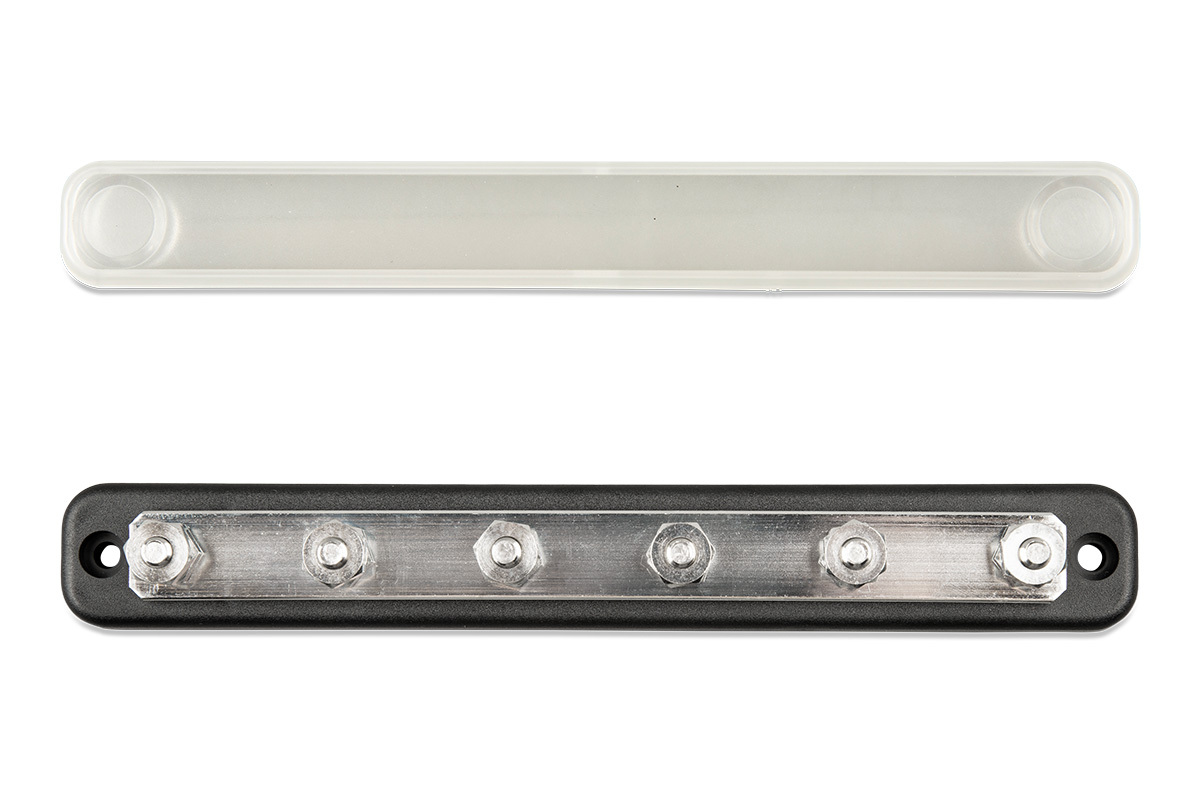

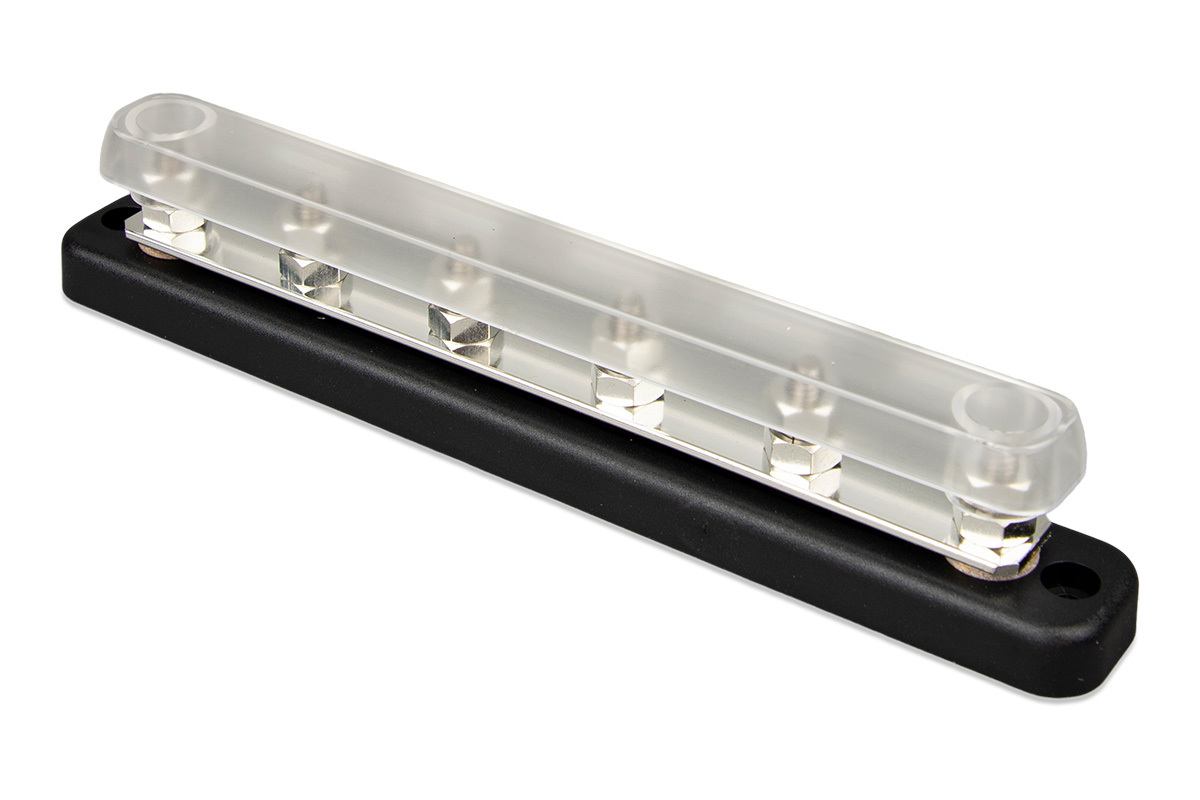

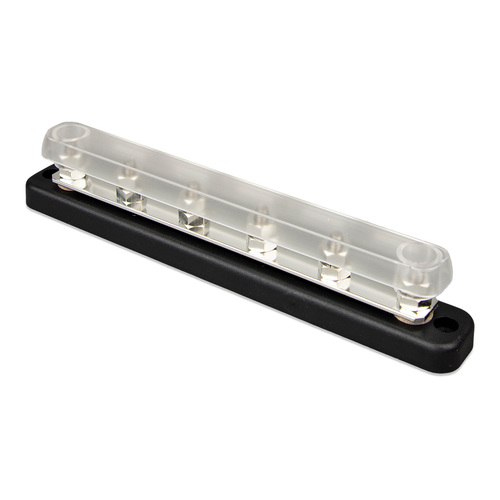

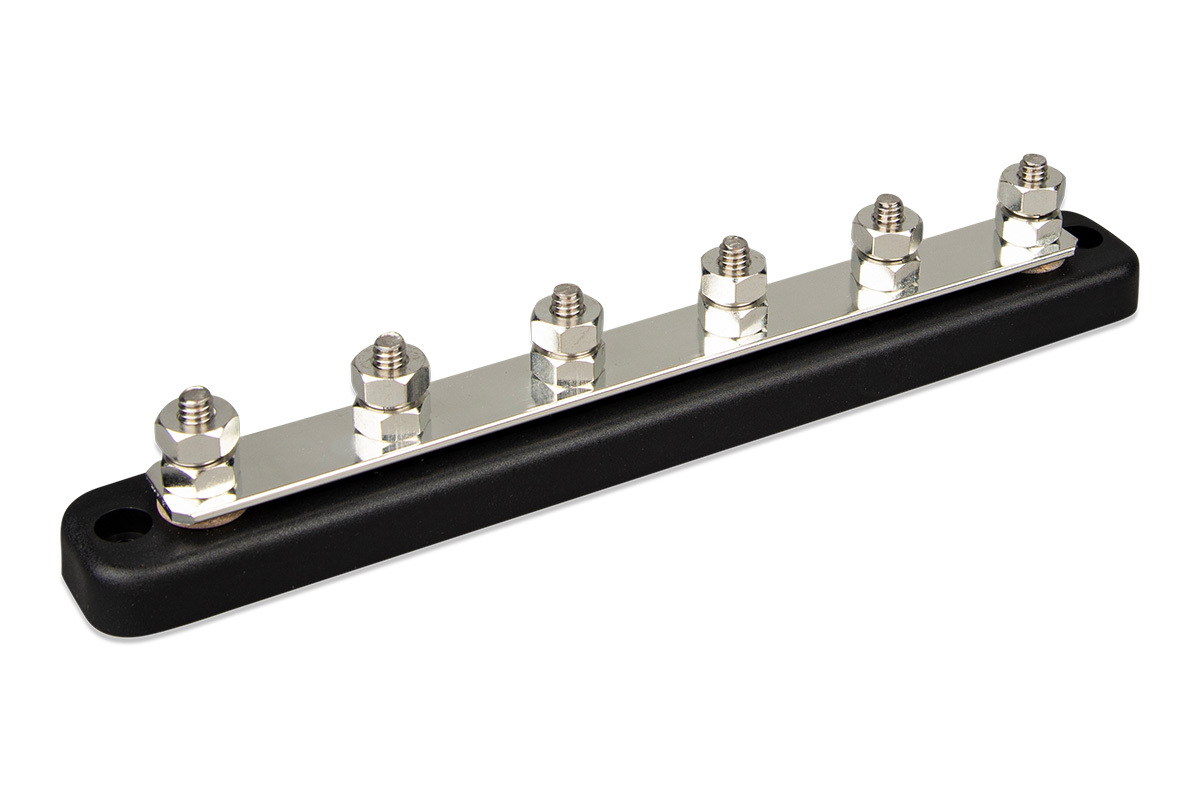

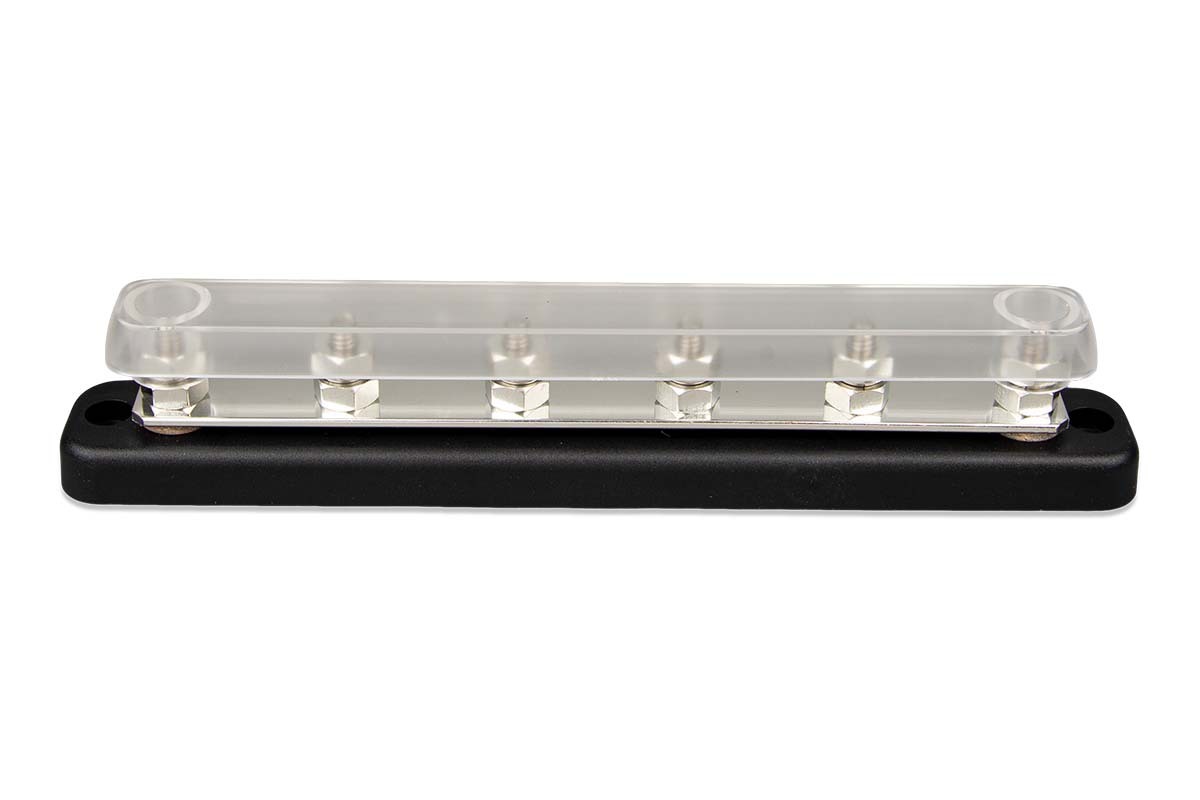

Busbar 150 A with cover
Max. current 150 A
Max. Voltage 70 VDC
Terminal diameter ¼ inch / 6.35 mm
Terminal height 0.67 inch / 17 mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 60 lbf·inch / 7 N·m
Busbar strip material Tin-plated copper (1.4 x 18 mm)
Base material ABS, black, UL 94 V-0
Cover material Clear Polycarbonate, UL 94 HB
Weight, 6 terminals 0.6 lb / 0.27 kg
Dimensions (hxwxd)
(with cover)
1.8 x 9.1 x 1.25 inch
45 x 231.7 x 31.8 mm




SKU VIC.VBB115060020
Model # VBB115060020
UPC/EAN 8719076052203
Brand Victron Energy
Shipping Weight 0.3000kg
Shipping Width 0.025m
Shipping Height 0.016m
Shipping Length 0.260m
Shipping Cubic 0.000104000m3
Unit Of Measure ea
