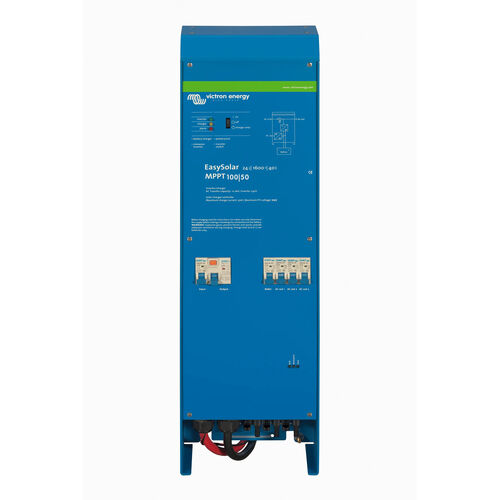

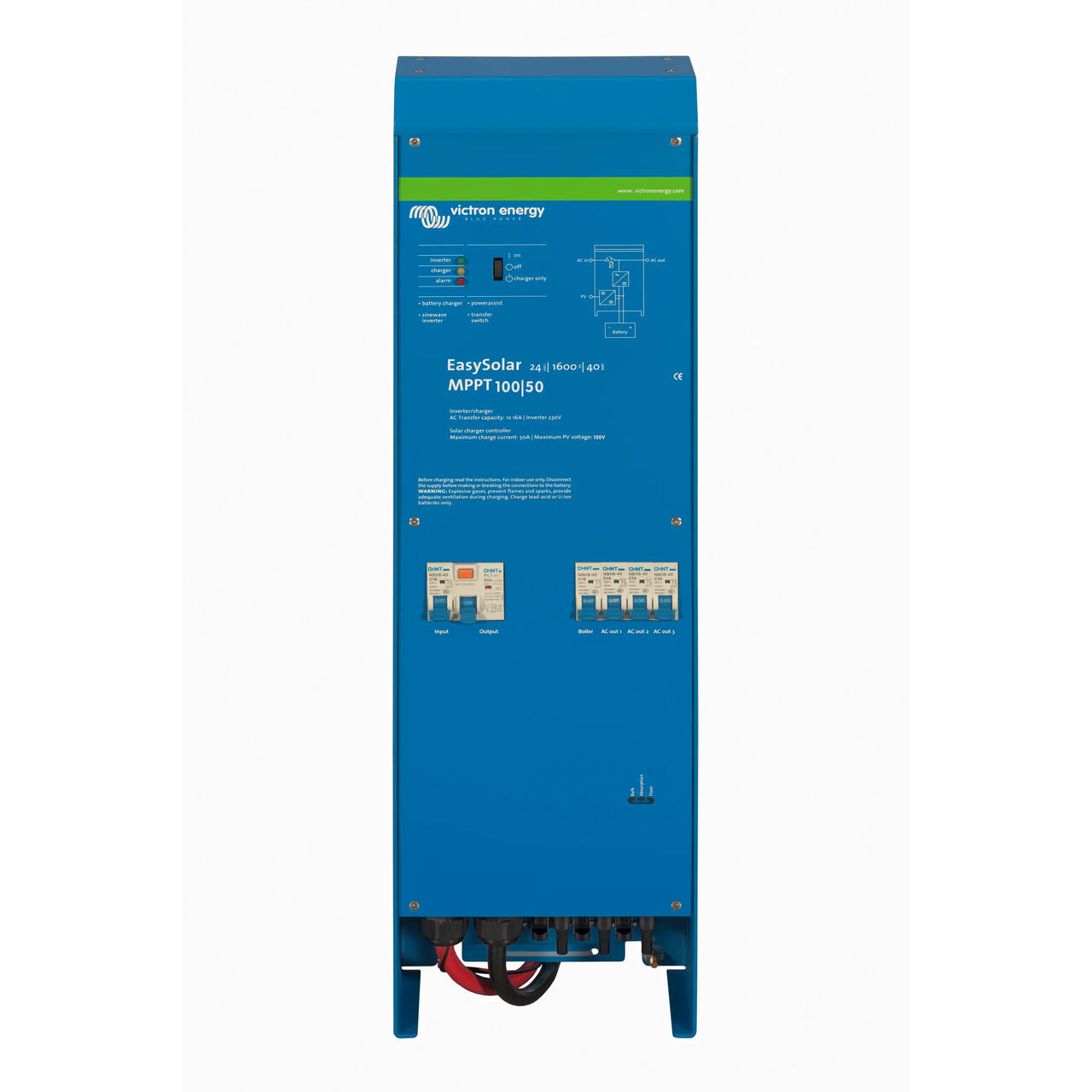

Integrated Solar Inverter System with Charger and AC Distribution

This all-in-one solar solution combines a 1600VA inverter/charger, 70A battery charger, and 50A MPPT solar charge controller into a single compact unit. Designed for easy off-grid or grid-interactive applications, it simplifies solar system installations by reducing cabling and configuration complexity. Ideal for 12V battery setups, it supports up to 700W of PV input and includes a built-in AC distribution board with circuit breakers and RCD protection. PowerAssist functionality boosts output by drawing from batteries when AC input is limited, ensuring uninterrupted energy supply in homes, mobile, or backup systems.

Key Features

  • All-in-one design: Combines inverter/charger, solar MPPT controller, and AC distribution in one enclosure for simple installation.
  • High-performance inverter: Delivers 1600VA (1300W) continuous power with 3000W peak capability, supporting demanding loads.
  • Built-in solar MPPT controller: BlueSolar MPPT 100/50 supports up to 700W PV input with 98% efficiency for optimal solar charging.
  • Advanced battery charger: Charges 12V batteries at 70A from AC power or solar, with multi-stage adaptive algorithm and temperature compensation.
  • Integrated AC distribution: Includes RCD and four circuit breakers, with one output that activates only when AC input is available.
  • PowerAssist technology: Supplements external AC power with inverter output to prevent overloads when demand exceeds supply.
  • Compact and lightweight: Weighs just 15kg with integrated 1.5m battery cables and MC4 PV connectors for fast setup.
  • Smart protections: Safeguards against short circuits, overloads, high/low battery voltage, over-temperature, and voltage ripple.

Effortlessly deploy reliable off-grid or hybrid solar power with this space-saving, high-performance integrated energy system.

Product Specifications
Nominal Battery Voltage 12 V
Continuous Output Power (25°C) 1600 VA / 1300 W
Peak Power 3000 W
Charger Output Current 70 A
MPPT Solar Controller 100/50
Maximum PV Input Power 700 W
Maximum PV Open Circuit Voltage 100 V
Solar Controller Efficiency 98%
AC Input Voltage Range 187 – 265 VAC
Frequency 50 Hz ± 0.1%
AC Transfer Switch 16 A
PowerAssist Feature Yes
AC Outputs 4 (2 x 10 A, 2 x 16 A)
RCD Protection 30 mA / 16 A
Dimensions (H x W x D) 745 x 214 x 110 mm
Weight 15 kg
Enclosure Material Aluminium (blue RAL 5012)
Ingress Protection IP21
Operating Temperature -20 to +50 °C
Standards Compliance EN 60335-1, EN 62109, EN 55014-1
SKU VIC.CEP122161000
Model # CEP122161000
UPC/EAN 8719076065012
Brand Victron Energy
Shipping Weight 16.0000kg
Shipping Width 0.950m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.057000000m3
Unit Of Measure ea
