Integrated solar power system for efficient off-grid energy management

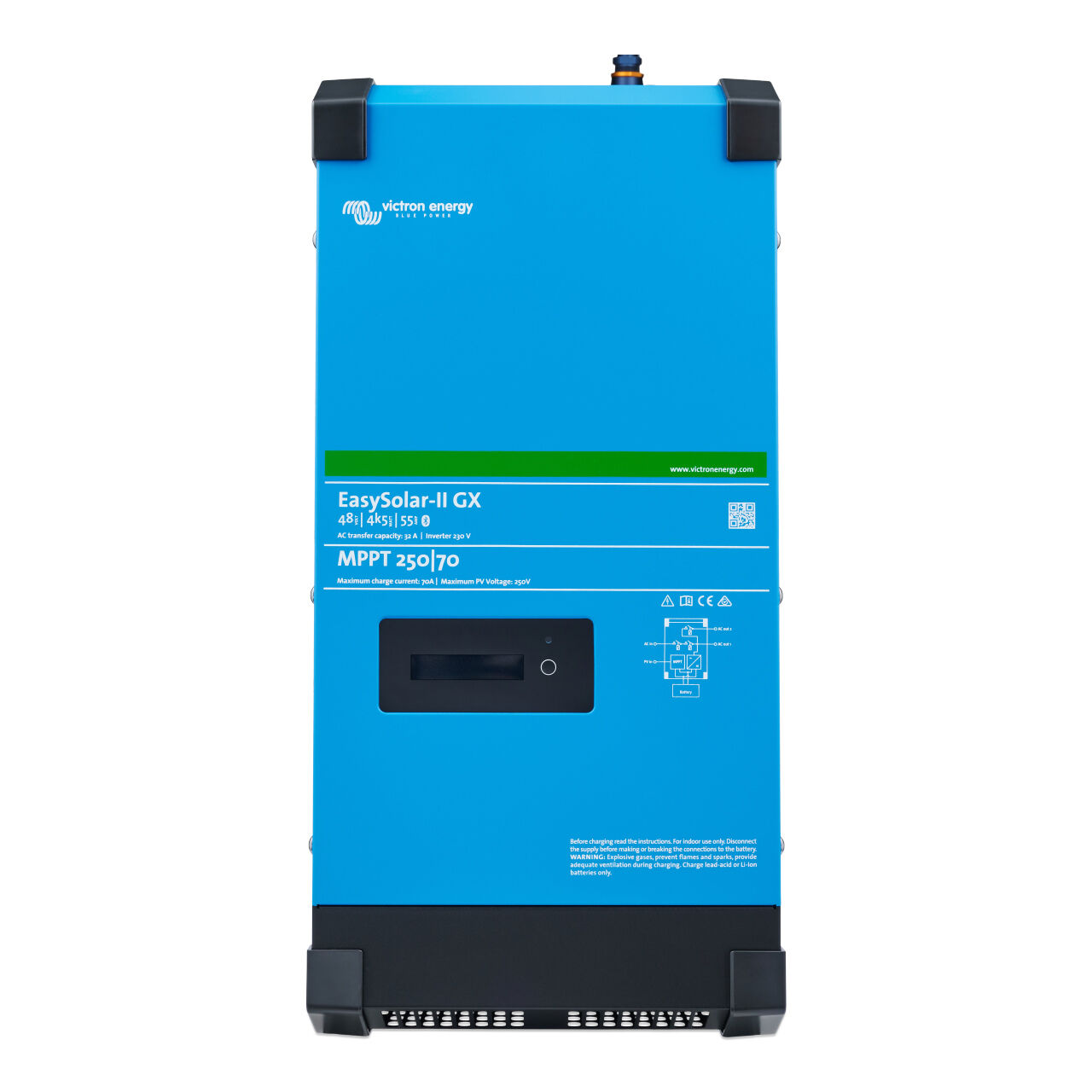

The EasySolar-II GX 48/4k5/55-32 combines an inverter/charger, solar charge controller, and GX monitoring device in one prewired unit to simplify installation and reduce setup time. Designed for 48V battery systems, it delivers 4 kW continuous inverter output, 55A battery charging, and up to 4000W of PV input through its integrated MPPT solar charger. Built-in display, Wi-Fi, Ethernet, USB, VE.Direct, and BMS-Can connectivity support local and remote system monitoring, configuration, and management through compatible devices and the VRM portal.

Key Features

• All-In-One System Design: Combines an inverter/charger, MPPT solar charge controller, and GX device inside one unit to simplify system installation.
• Integrated GX Monitoring: Built-in GX functionality provides access to system data, remote monitoring, alarms, and configuration through Wi-Fi and VRM.
• MPPT Solar Charging: Integrated MPPT charge controller supports up to 4000W PV power with high conversion efficiency for solar battery charging.
• PowerControl and PowerAssist: Helps manage AC input limits and supplement available supply using battery power when required.
• Battery Chemistry Compatibility: Supports lithium, lead-acid, zinc-bromine, and other compatible battery chemistries when correctly configured.
• Backup Power Support: Continues supplying critical loads during power outages when configured within a suitable system topology.

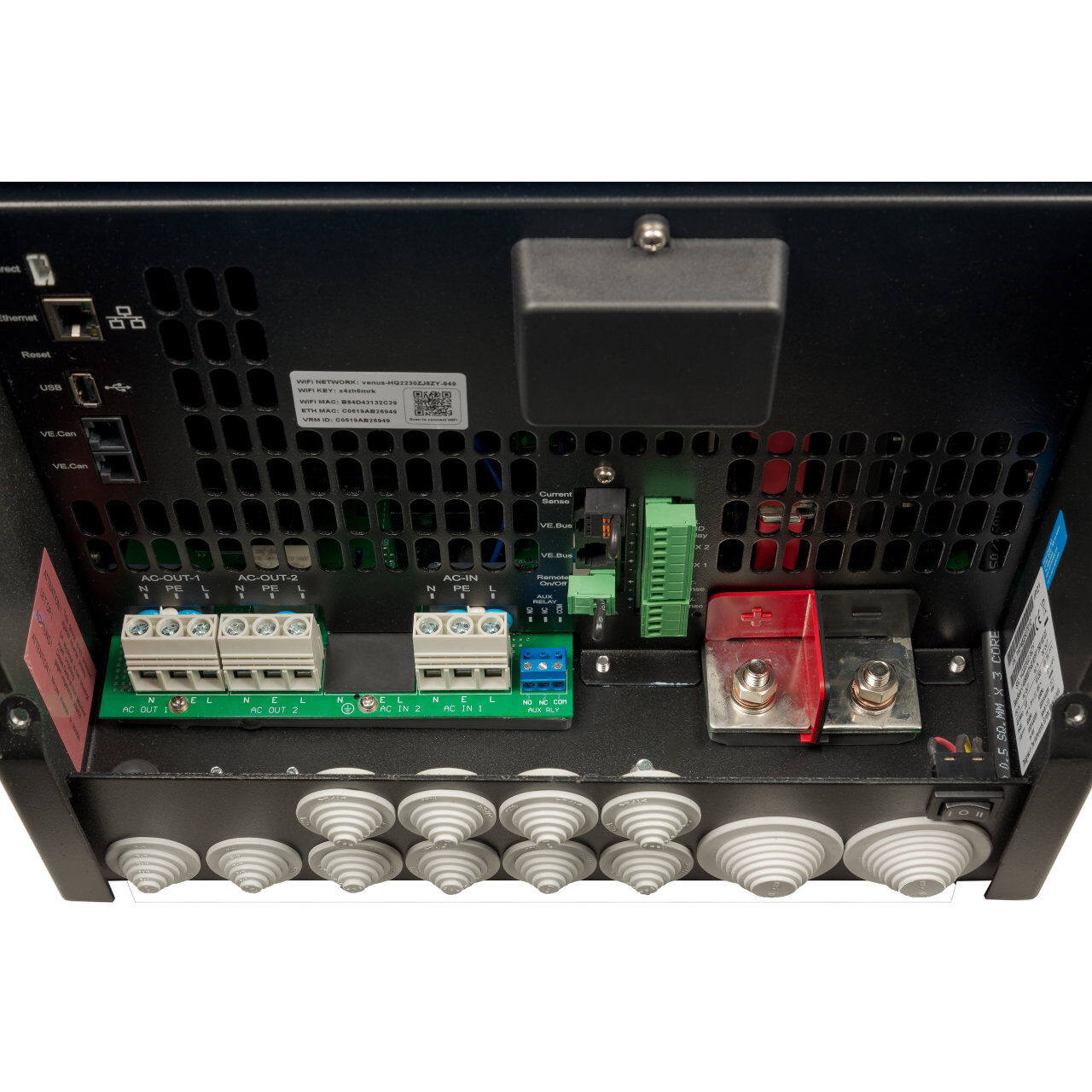

• Multiple Communication Interfaces: Includes BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi, remote on/off, and general-purpose communication ports.

A compact, integrated solution for solar power systems needing inverter performance, battery charging, monitoring, and remote management in one unit.
