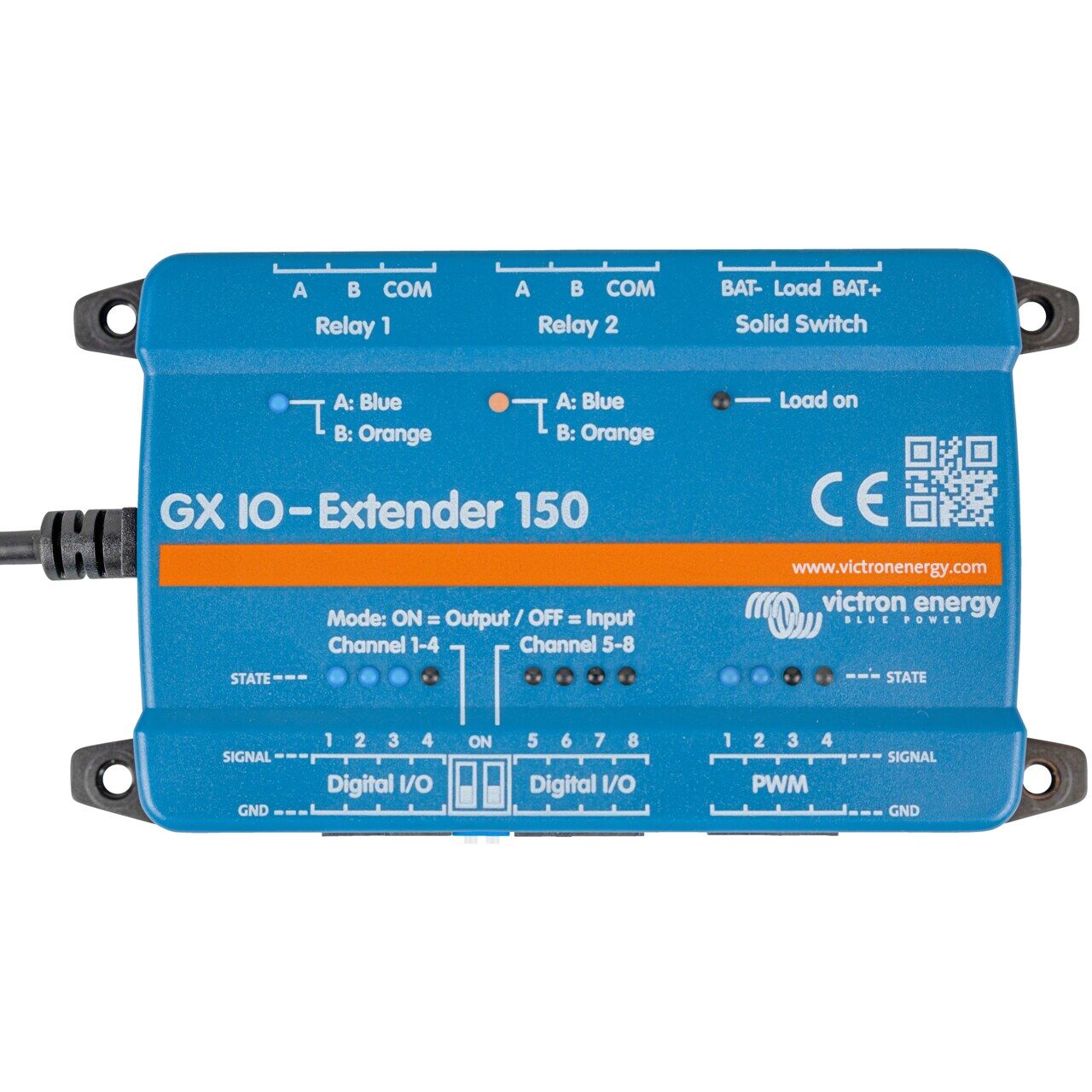

Victron GX IO-Extender 150
Modular I/O expander for Victron GX systems with digital I/Os, relays, USB power, and Node-RED automation support for flexible energy system control.
SKU: VIC.BPP900800150
SAVE $74.76 (30%)
Available at Victron
In Stock at Victrons Australian warehouse and typically ships within 5-6 Business Days.
Expansion Module for Enhanced Control of Smart Power Systems
The GX IO-Extender 150 is a compact I/O expansion unit designed to extend the connectivity of Victron GX devices. Powered via USB, it enables seamless integration with sensors, switches, and external devices through eight configurable digital I/Os, latching relays, a solid-state relay, and PWM outputs. Its isolated circuits and spring terminals ensure safe, quick installation, while Node-RED compatibility allows for flexible automation. With robust design and DIN-rail or wall mounting, it delivers reliable control in smart energy systems.
Key Features
- Configurable Digital I/Os: Offers eight digital channels that can be set as inputs, outputs, or a combination, with LED status indicators.
- PWM Output Channels: Provides four 8-bit precision PWM outputs for fine control of connected components.
- Dual Latching Relays: Includes two bi-stable relays for low-power switching with AC/DC support and visible state LEDs.
- Integrated Solid-State Relay: Enables fast, high-frequency DC load switching with support for resistive, capacitive, or inductive loads.
- USB Powered Operation: Draws power and data through a single USB connection, simplifying installation.
- Node-RED Automation Support: Allows for custom control logic and automation using the GX device’s interface.
- Versatile Mounting Options: Supports wall or DIN-rail mounting with an adapter accessory for flexible deployment.
- Rugged Design and Protection: Isolated I/Os and SSR circuits reduce risk of damage and interference.
Ideal for expanding control in Victron-based systems where flexibility and automation are essential.
Product Specifications | |
---|---|
Power Supply | Powered by USB |
Power Consumption | Idle < 100 mW, Max 1 W |
Digital I/Os | 8 configurable as inputs/outputs or mixed, up to 5.5 V |
PWM Output | 4 channels, 8-bit precision at 1.5625 kHz |
Relays | 2 latching relays, AC/DC rated, LED indicators |
Solid State Relay | Max 70 VDC, 4 A load, for capacitive/inductive loads |
Mounting | Wall or DIN-rail (with accessory) |
Dimensions | 123 x 67 x 23 mm |
Weight | 0.170 kg |
Operating Temperature | -20°C to +50°C |
SKU | VIC.BPP900800150 |
UPC/EAN | 8719076062882 |
Brand | Victron Energy |
Shipping Weight | 0.2500kg |
Shipping Width | 0.055m |
Shipping Height | 0.110m |
Shipping Length | 0.140m |
Shipping Cubic | 0.000847000m3 |
Unit Of Measure | ea |
