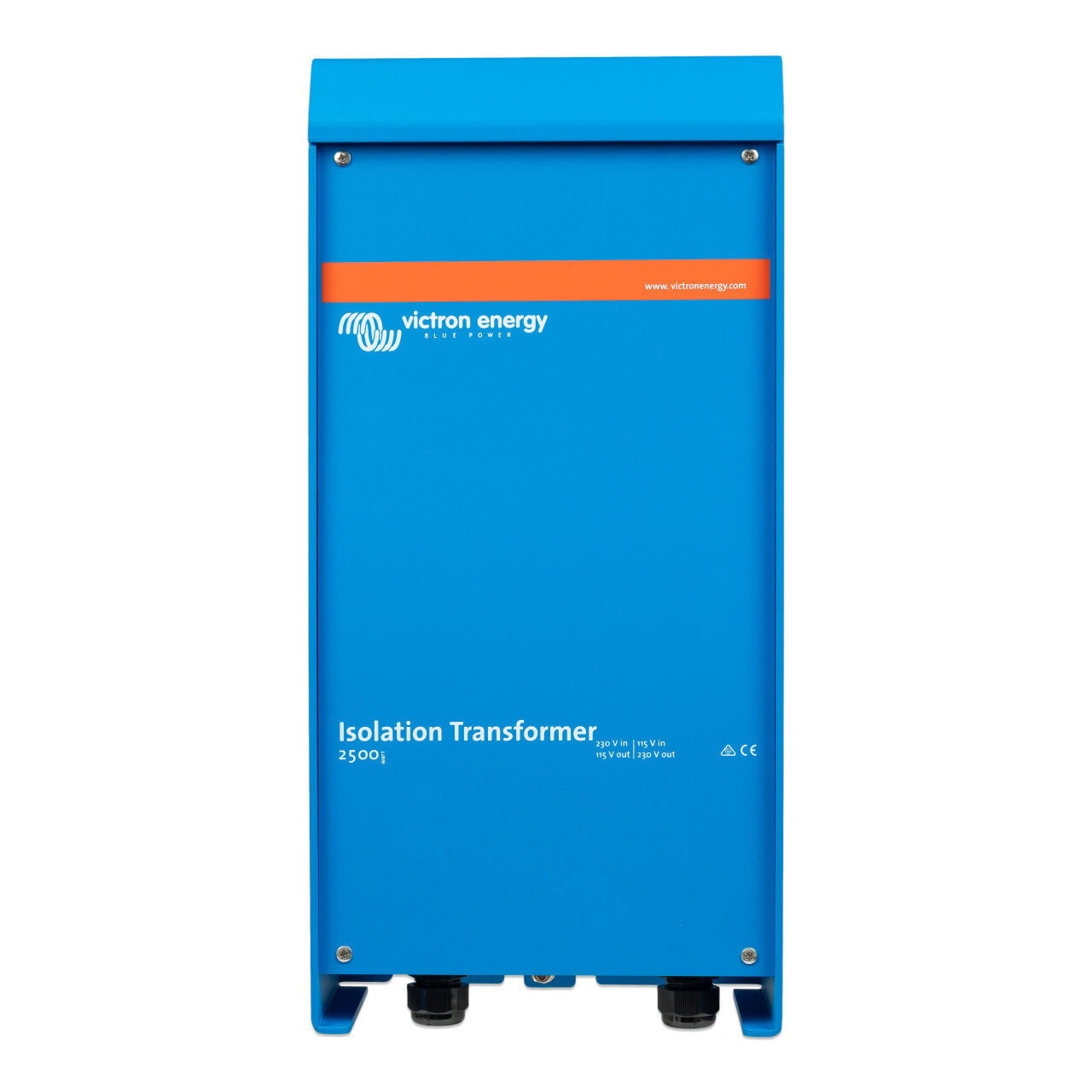

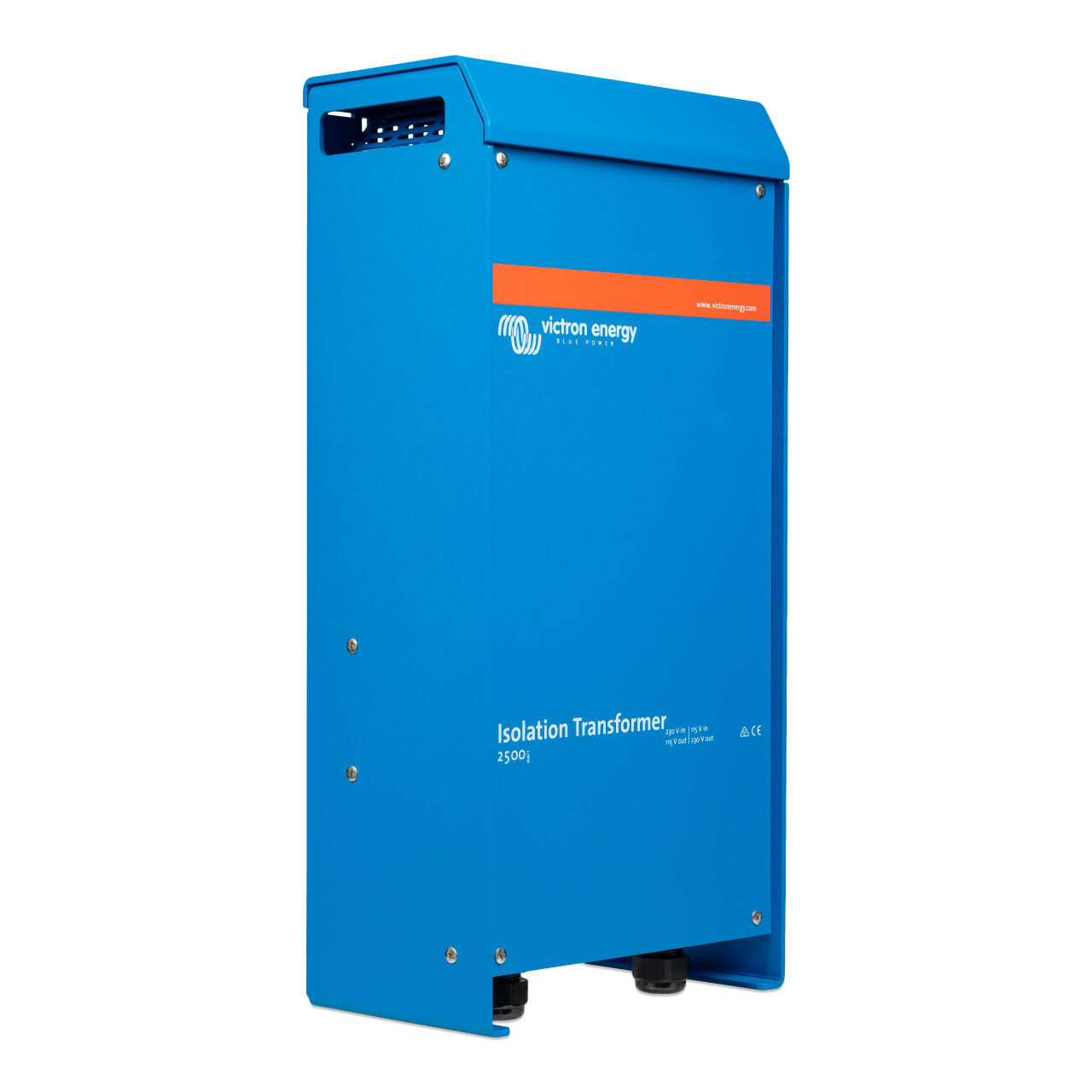

Marine AC isolation for shore power safety and galvanic corrosion protection

Separates the boat’s AC electrical system from the shore-side supply, eliminating electrical continuity between shore power and the vessel. This isolation helps prevent galvanic corrosion of submerged metal components while maintaining a safe grounding arrangement that allows protective devices such as GFCIs and circuit breakers to operate correctly during electrical faults.

Key Features

• Galvanic corrosion protection: Electrically isolates the vessel from the shore ground, helping protect shafts, propellers, sacrificial anodes and other submerged metal components from galvanic corrosion.
• Flexible voltage configuration: Supports 115 V or 230 V input and 115 V or 230 V output, allowing operation as 115 V to 115 V, 230 V to 230 V, 115 V to 230 V or 230 V to 115 V.
• Integrated soft start: Reduces transformer inrush current to help prevent the shore-side fuse from blowing when power is connected.
• Toroidal transformer: Uses a toroidal transformer construction for low operating noise and reduced weight.
• Integrated circuit protection: Includes an input circuit breaker as part of the AC installation.
• Marine-suitable enclosure: Aluminium construction with an IP21 protection rating provides a robust enclosure for onboard installation.
• Safety compliance: Meets EN 60076 safety requirements.

By isolating shore ground from the boat’s electrical ground, the transformer supports safer shore power integration while reducing the electrical conditions that contribute to galvanic corrosion. The datasheet also recommends connecting the secondary neutral to ground for optimal safety when the boat is out of the water.
