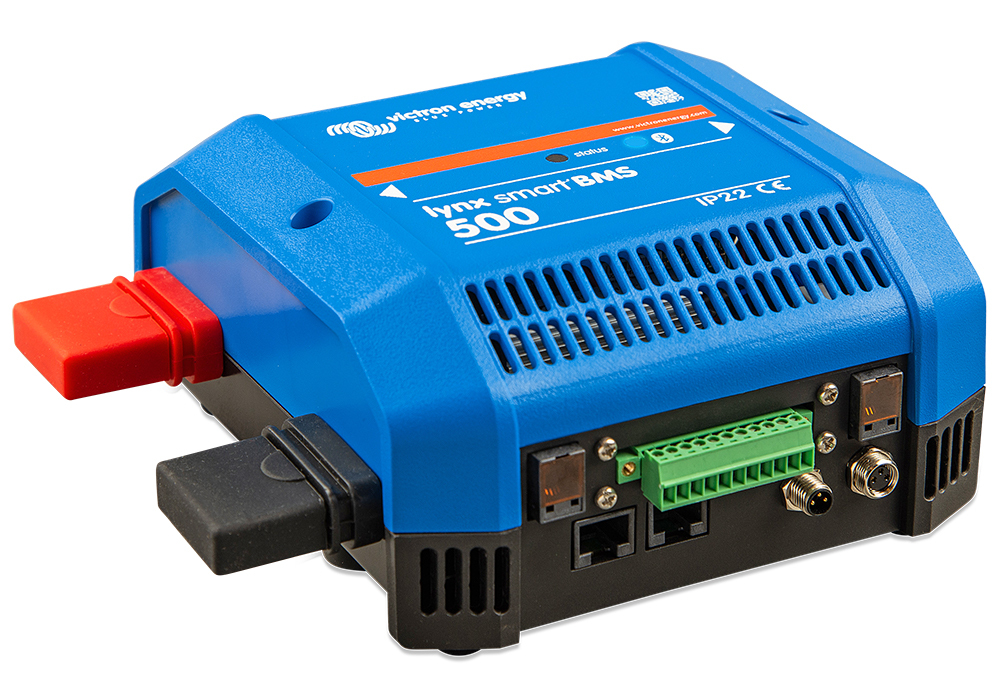

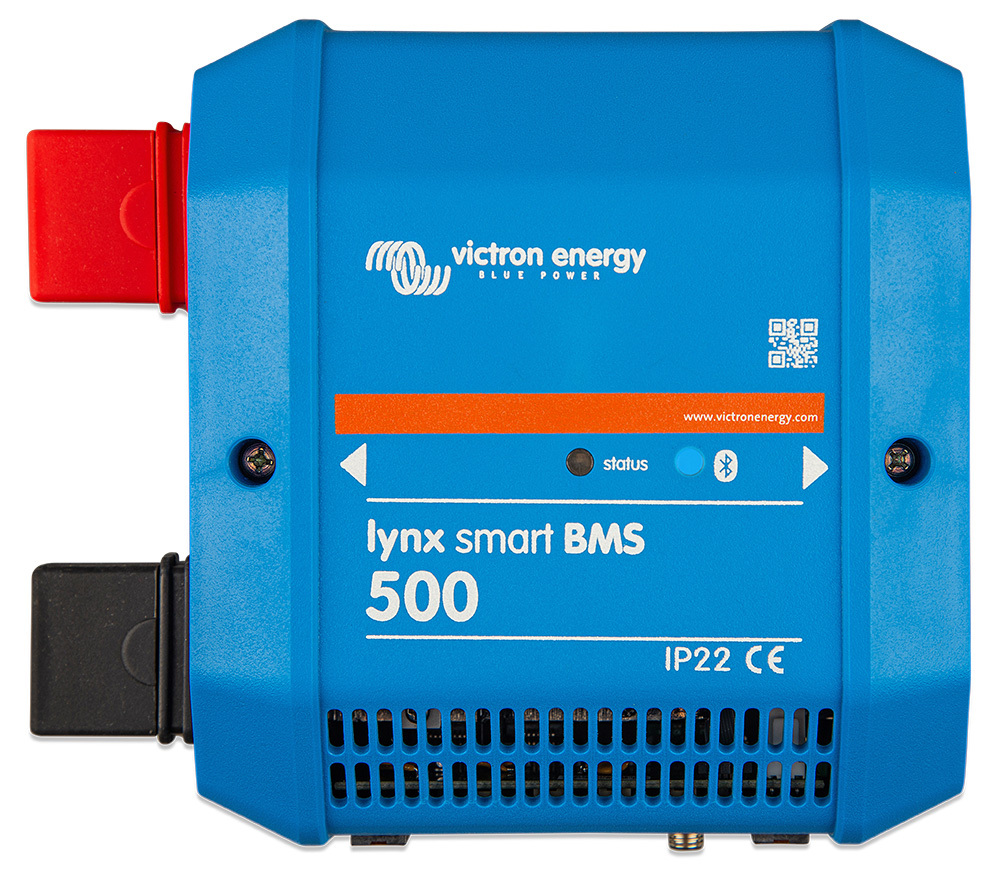

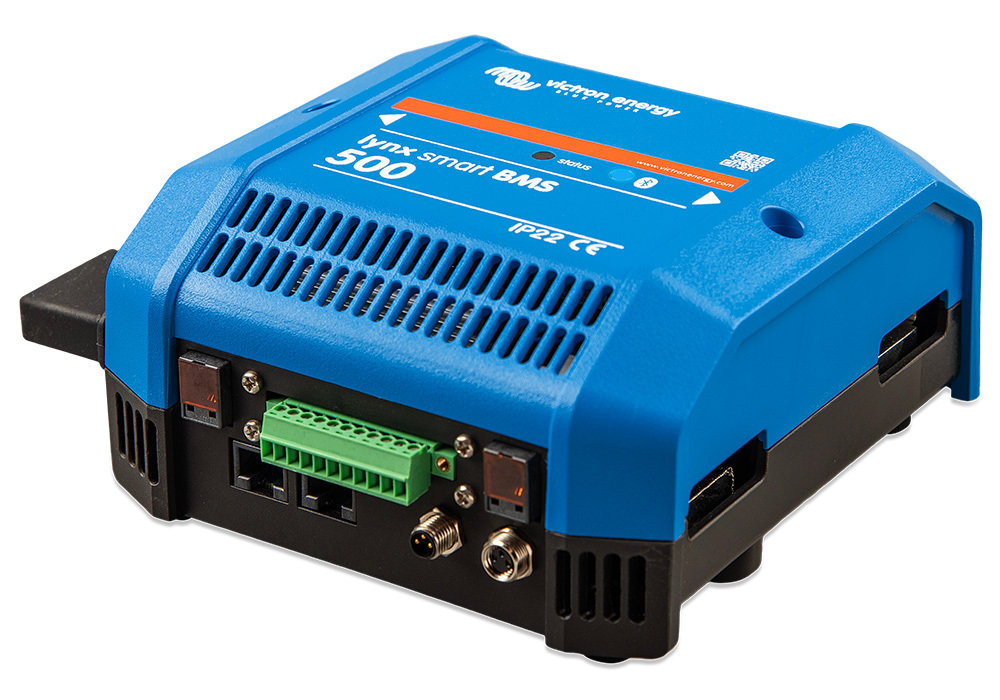

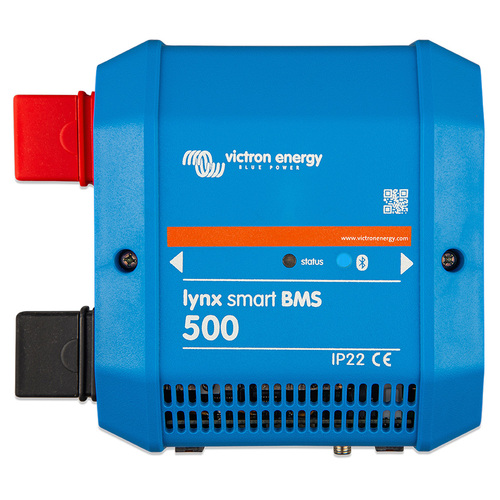

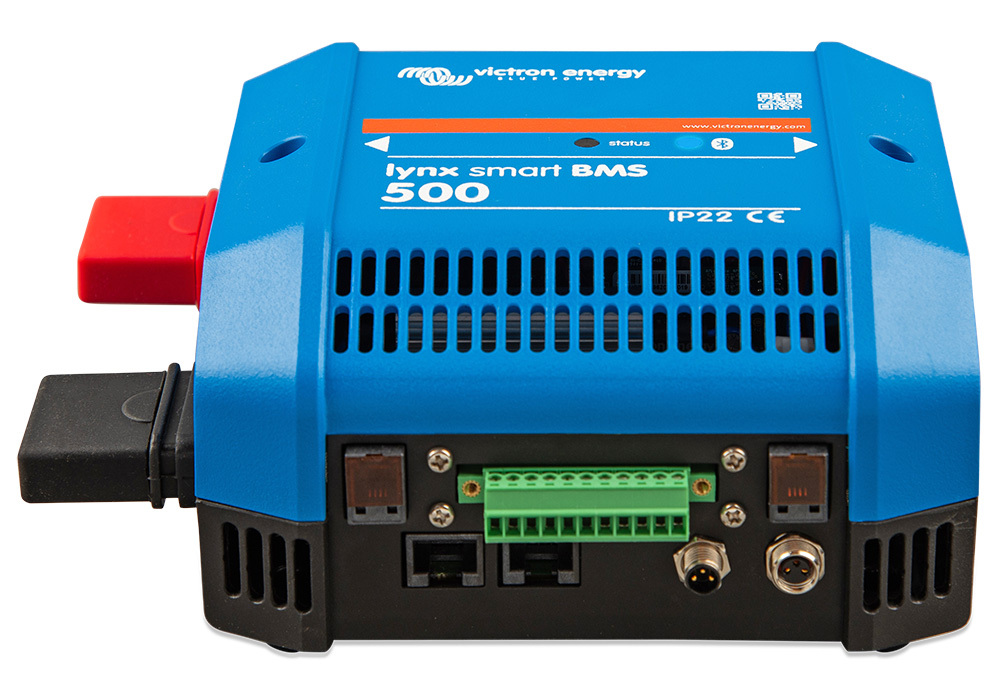

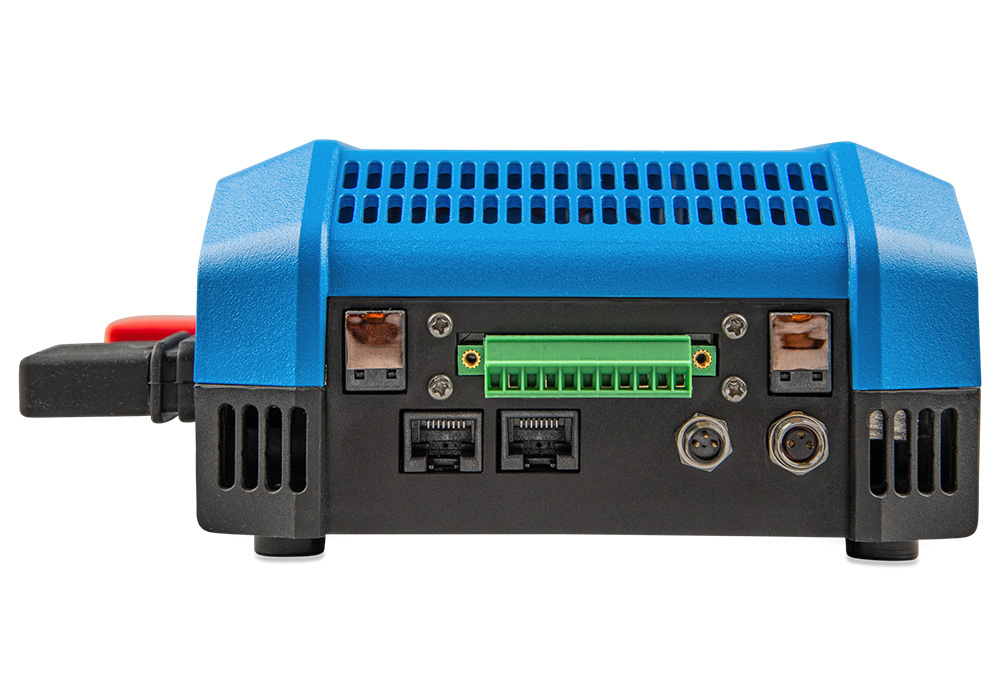

Victron Lynx Smart BMS

The Lynx Smart BMS is a comprehensive Battery Management System from Victron Energy, tailored for Victron Lithium Smart Batteries. This system is available in two variants: the 500A model with M8 busbar connections and the 1000A model with M10 busbar connections. It stands out as the most feature-rich and complete option in the Lynx series, ideal for demanding power management applications.

Key Features:

  • High-Capacity Models: Available in 500A and 1000A versions to suit varying power requirements.
  • Safety Mechanism: Equipped with a built-in 500A or 1000A contactor as a fallback safety and a main system switch.
  • Comprehensive Monitoring: Features a battery monitor indicating state of charge percentage and other critical data.
  • Pre-Alarm Signal: Provides early warnings to prevent system shutdowns due to issues like low cell voltage.
  • Connectivity: Offers Bluetooth integration for setup and monitoring using the VictronConnect App and compatibility with Victron GX devices for both local and remote monitoring.

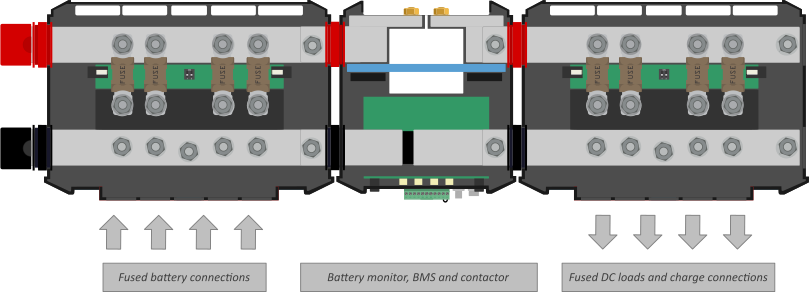

  • Part of Lynx Distribution System: Seamlessly integrates with the Lynx Distributor system.

Technical Overview:

The Lynx Smart BMS showcases advanced design elements including a pre-charge circuit to manage inrush currents, and dual functionalities as both a battery monitor and a controllable system switch. It supports various communication protocols and interfaces, such as VE.Can and NMEA 2000 (requires a VE.Can to NMEA 2000 micro-C male cable), making it versatile for integration into different setups.

Specifications:

  • Applications: Best suited for high-capacity energy storage and management systems.
  • Compatibility: Works seamlessly with Victron Energy battery monitors and supports integration with standard network cables for communication with GX devices.
  • Safety Features: Includes a robust contactor and pre-charge circuitry for enhanced protection.
  • Connectivity and Control: Offers advanced control via DVCC, ATC/ATD contacts, and a programmable relay for various operational modes.
  • Additional Features: Comes with an AUX terminal for powering essential loads and supports fuse monitoring when used with the Lynx Distributor.

*Note: To minimize the time needed for balancing, it's advisable to use batteries in series that are as closely matched as possible for your application. For systems requiring 24 volts, it's optimal to use 24 V batteries. Similarly, for 48 V systems, using two 24 V batteries in series is recommended. While using four 12 V batteries in series can also achieve 48 V, this configuration tends to require more frequent balancing, thus increasing maintenance time.







Additional resources:

SKU VIC.LYN034160200
Model # LYN034160200
UPC/EAN 8719076047476
Brand Victron Energy
Shipping Weight 2.1900kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.012000000m3
Unit Of Measure ea
