Inverter/Charger with GX inside

The MultiPlus-II GX is an Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.


A MultiPlus-II with LCD and GX functionality

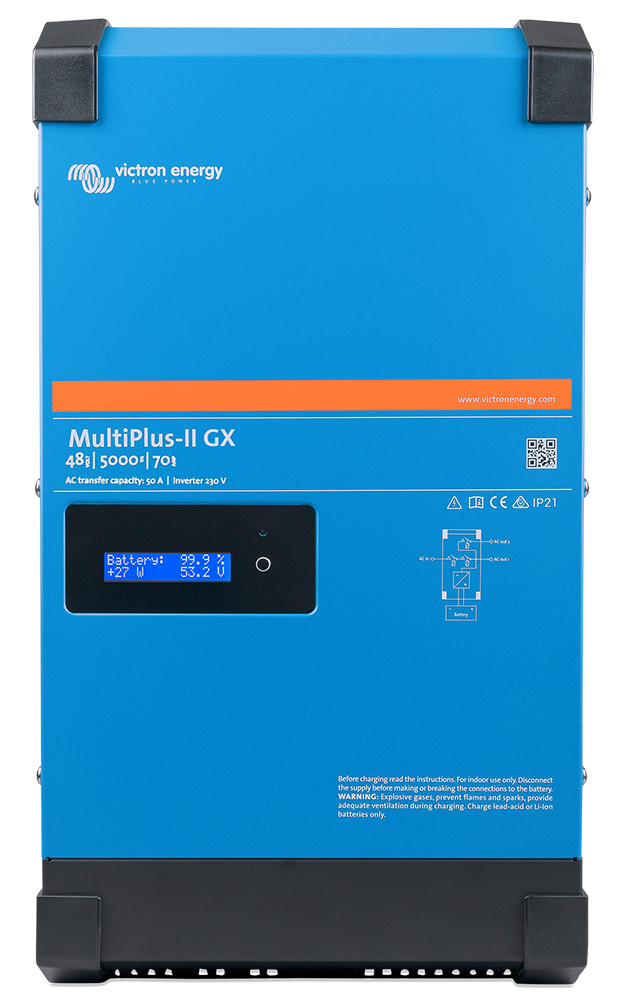

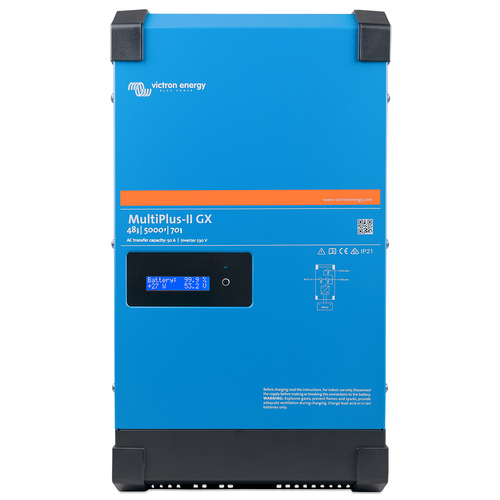

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.


GX Device Inbuilt

The integrated GX device includes:

  • A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
  • A USB port.
  • A Ethernet port.
  • A VE.Direct port.


Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.


Applications

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.


Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.

This item must be installed by a licensed Electrician

Victron EasyPlus Basic Setup



The basics of using VE Configure



MultiPlus-II GX 24/3000/70-32 48/3000/35-32 48/5000/70-50
PowerControl & PowerAssist Yes
Transfer switch 32A 50A
Maximum AC input current 32A 50A
Auxiliary output Yes (32A)
INVERTER
DC Input voltage range 19 – 33V 38 – 66V
Output Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0,1%   (1)
Cont. output power at 25°C   (3) 3000VA 5000VA
Cont. output power at 25°C 2400W 4000W
Cont. output power at 40°C 2200W 3700W
Cont. output power at 65°C 1700W 3000W
Maximum apparent feed-in power 2500VA 4000VA
Peak power 5500W 9000W
Maximum efficiency 94% 95% 96%
Zero load power 13W 11W 18W
Zero load power in AES mode 9W 7W 12W
Zero load power in Search mode 3W 2W 2W
CHARGER
AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Charge voltage 'absorption' 28,8V 57,6V
Charge voltage 'float' 27,6V 55,2V
Storage mode 26,4V 52,8V
Maximum battery charge current  (4) 70A 35A 70A
Battery temperature sensor Yes
GENERAL
Interfaces VE.Can, USB, Ethernet, VE.Direct, Wi-Fi
External AC current sensor (optional) 50A 100A
Programmable relay   (5) Yes
Protection   (2) a – g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
ENCLOSURE
Material & Colour Steel, blue RAL 5012
Protection category IP22
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm² (6 AWG)
Weight 19 kg 30 kg
Dimensions (hxwxd) mm 506 x 275 x 147 565 x 323 x 148
STANDARDS
Safety EN-IEC 60335-1, EN-IEC 60335-2-29,
EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply IEC 62040-1
Anti-islanding Please consult the certificates on our website.
1) Can be adjusted to 60 Hz                                 3) Non-linear load, crest factor 3:1
2) Protection key:                                                  4) At 25°C ambient
a) output short circuit                                            5) Programmable relay which can be set for general alarm, DC
b) overload                                                                under voltage or genset start/stop function.
c) battery voltage too high                                    AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to
d) battery voltage too low                                     60VDC
e) temperature too high
f) 230 VAC on inverter output
g) input voltage ripple too high
SKU VIC.PMP482506000
Model # PMP482506000
UPC/EAN 8719076048824
Brand Victron Energy
Shipping Weight 31.3000kg
Shipping Width 0.655m
Shipping Height 0.255m
Shipping Length 0.415m
Shipping Cubic 0.069315000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
