Proven reliability

The full bridge with toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.


High start-up power

Needed to start loads such as power converters for LED lamps, filament lamps or electric tools.


ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. It will switch on and check every few seconds, adjustable, if the load has increased again.


Remote on/off

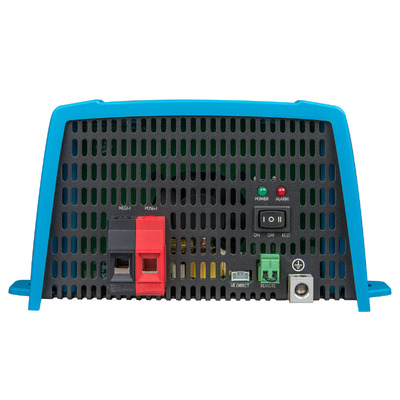

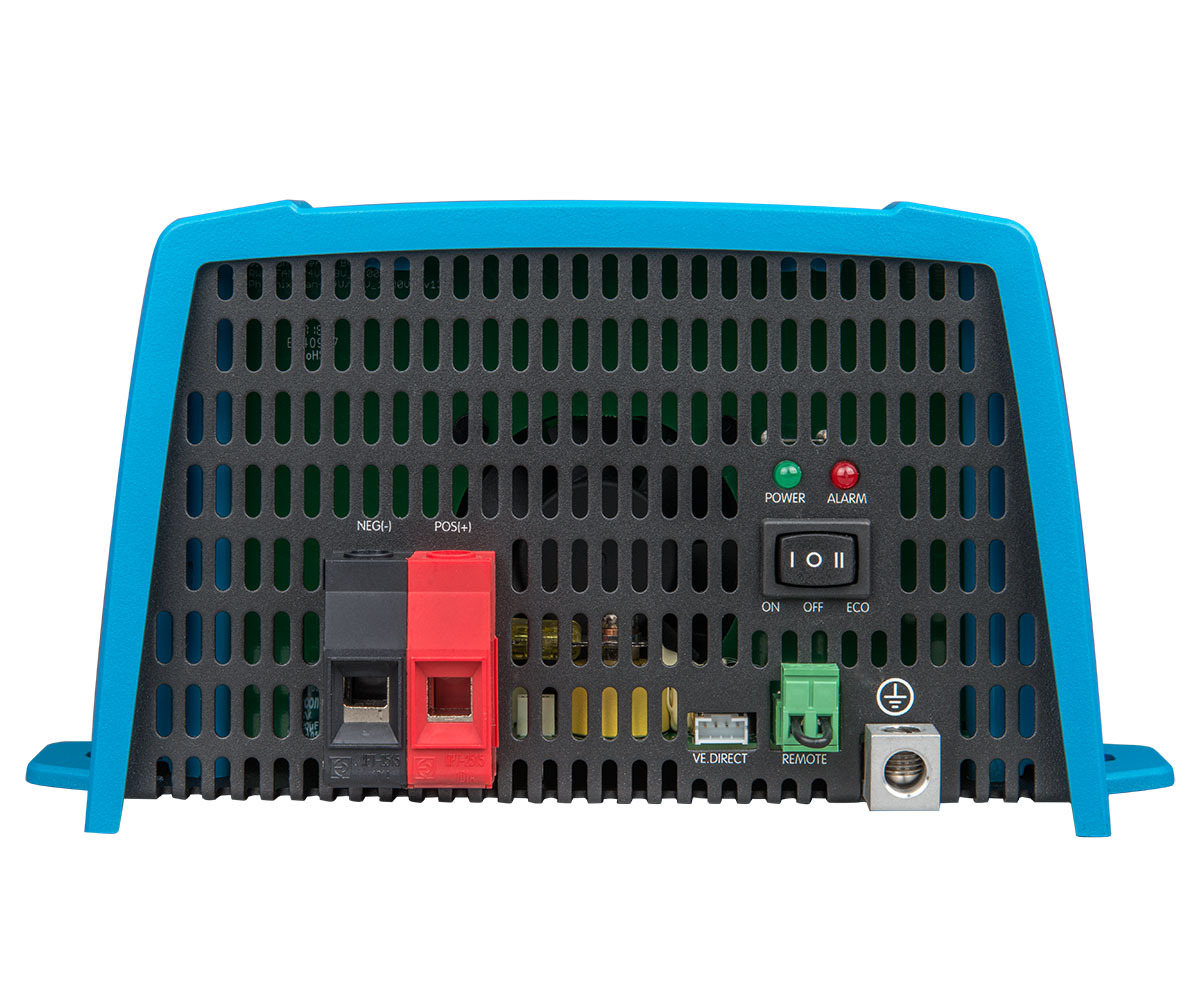

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.


VE.Direct communication port for further configuration

The VE.Direct port can be connected to a computer (via VE.Direct to USB interface cable) or Apple and Android smartphones, tablets, MacBook’s and other devices (via VE.Direct Bluetooth Smart dongle) for further configuration and monitoring:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage 210 - 245V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level

  • Monitoring: In and output voltage, % load and alarms

This item must be installed by a licensed Electrician

SKU VIC.PIN242121300
Model # PIN242121300
UPC/EAN 8719076056102
Brand Victron Energy
Shipping Weight 7.4000kg
Shipping Width 0.440m
Shipping Height 0.190m
Shipping Length 0.290m
Shipping Cubic 0.024244000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
