Victrons IP65 Rated 1000A/50mV SmartShunt is a powerful battery monitor with Bluetooth on board for monitoring on your mobile phone, tablet or computer via the VictronConnect App or connected to a Victron GX Device.
SKU: VIC.SHU065210050 | MPN: SHU065210050
SAVE 33%!
Available at Victron
In Stock at Victrons Australian warehouse and typically ships within 5-6 Business Days.

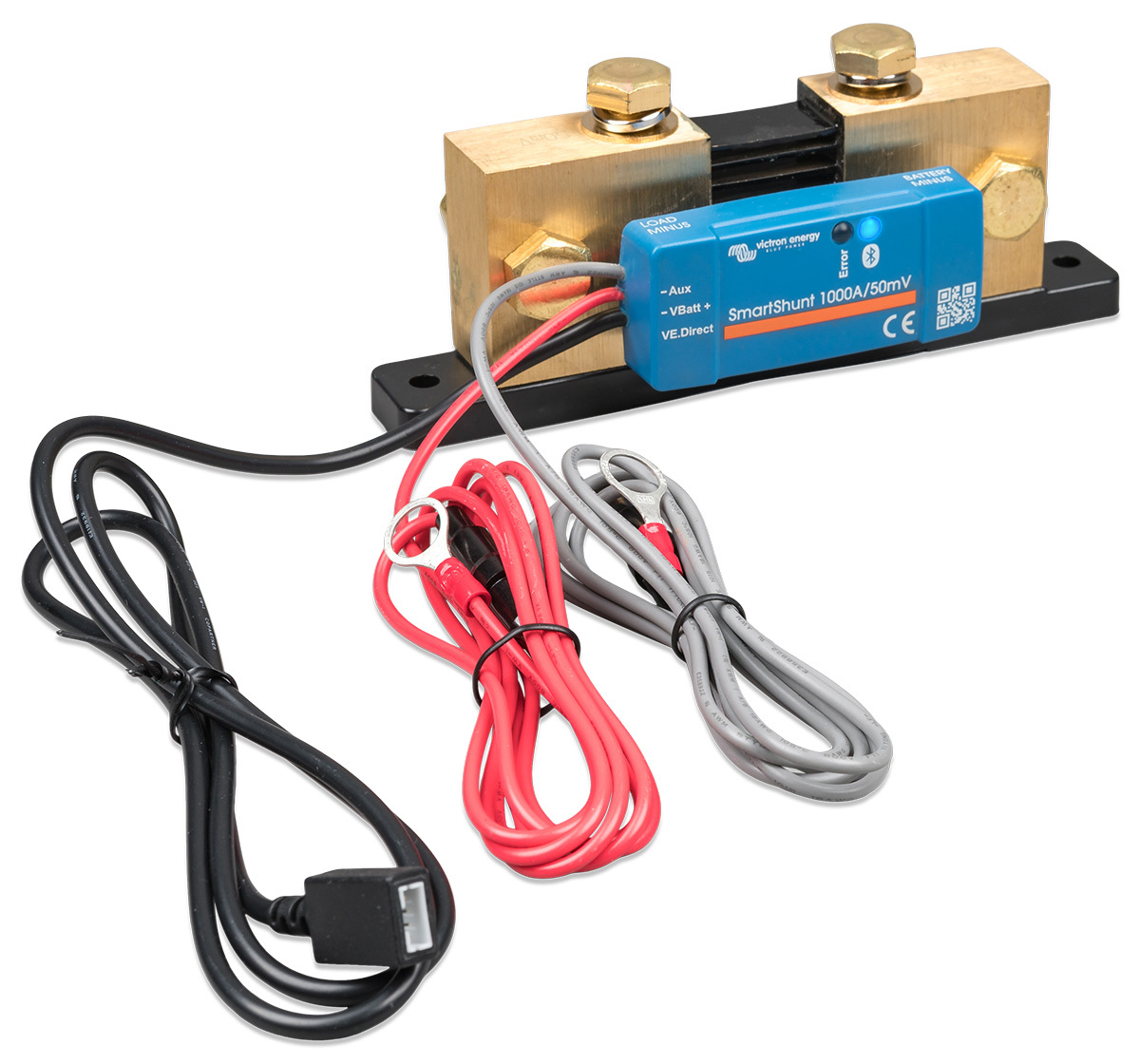

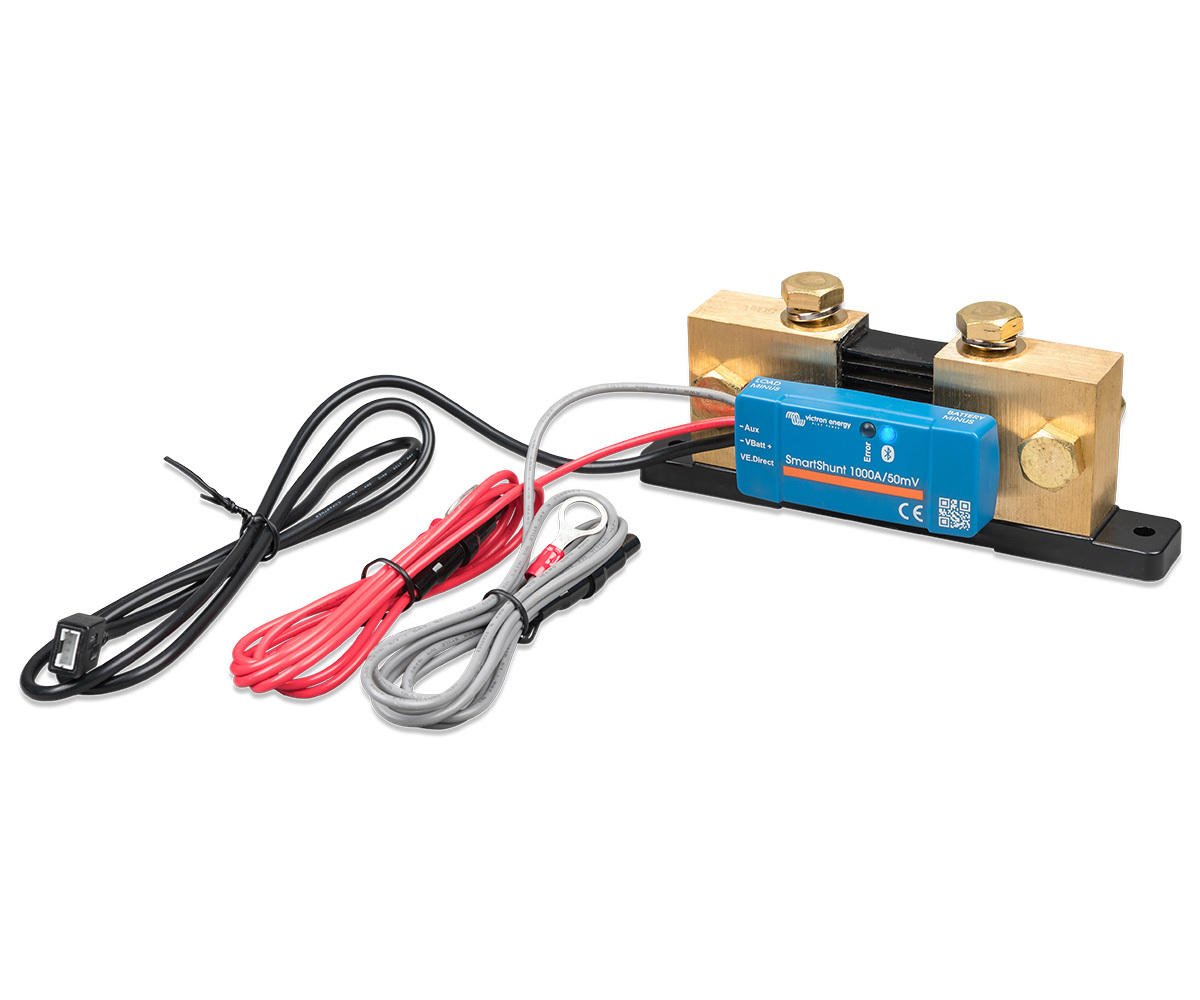

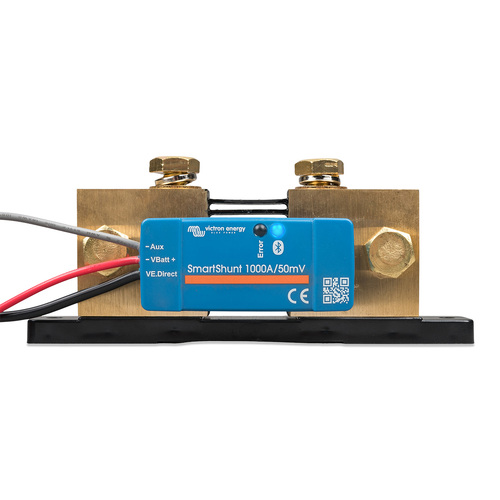

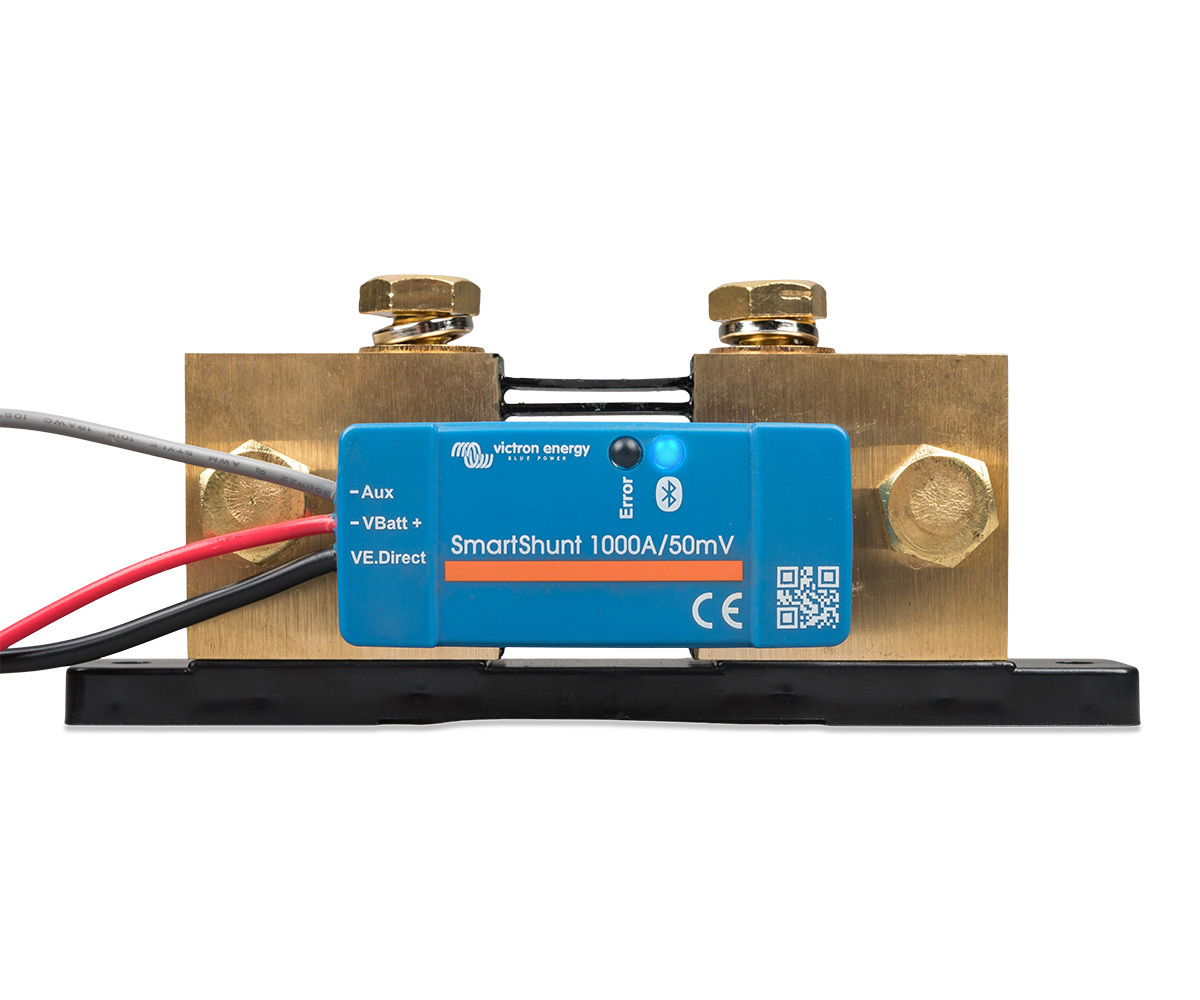

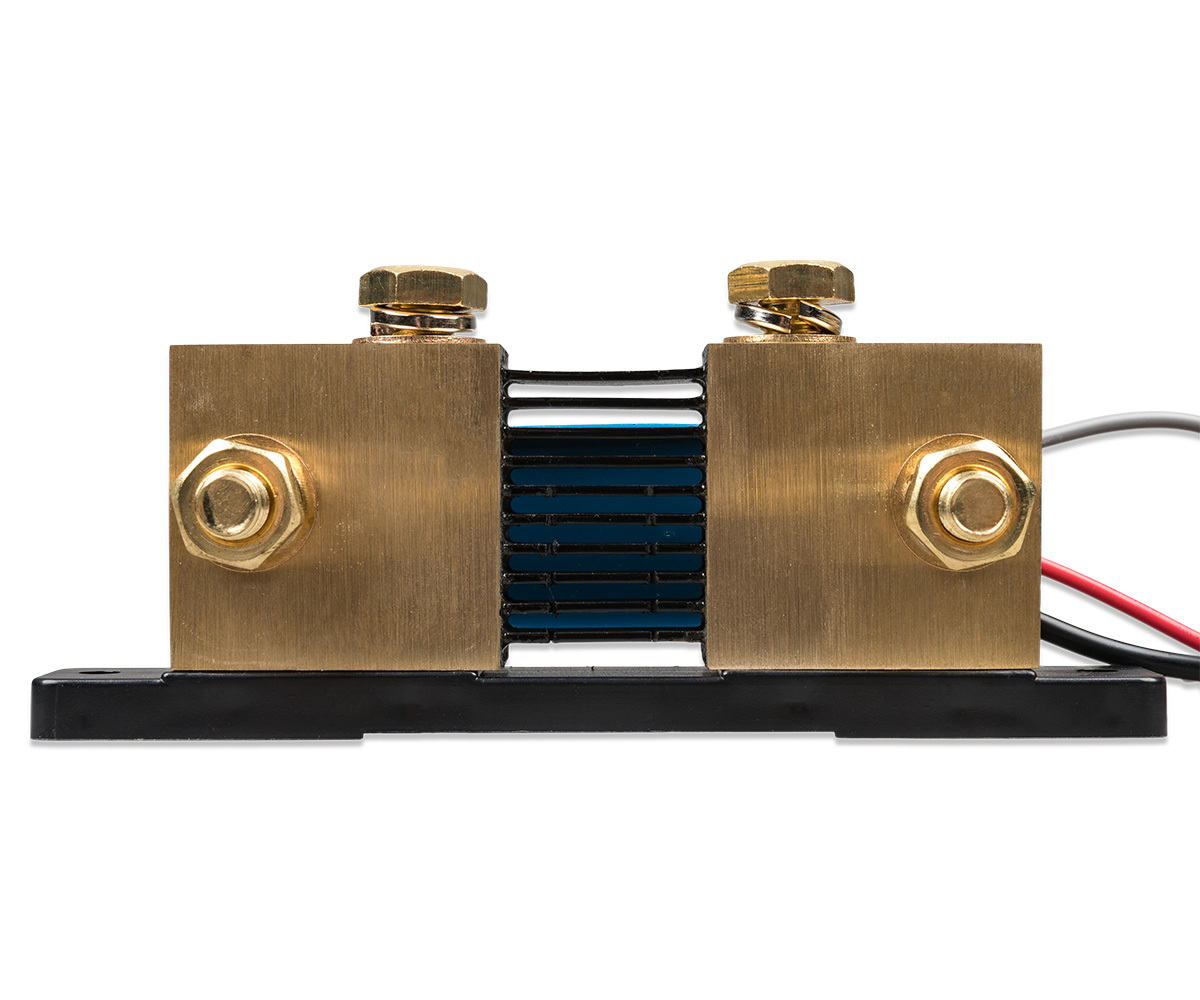

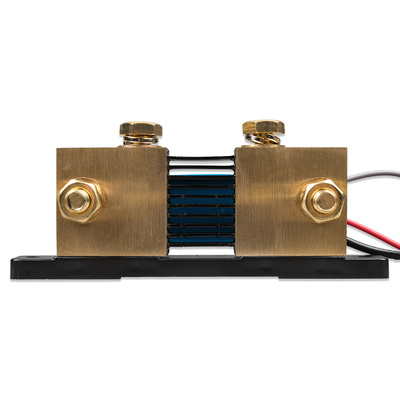

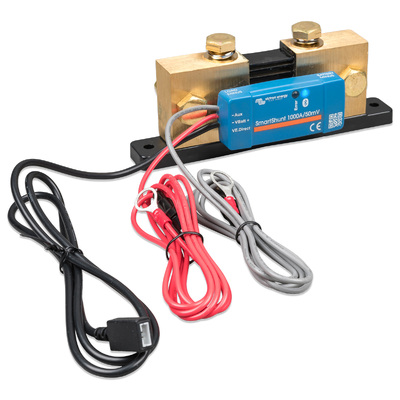

The 1000A SmartShunt IP65 is an all-in-one battery monitor, only without a display. Your phone acts as a display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the SmartShunt can be connected and read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but where less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a secondary connection that can be used for monitoring a second battery, midpoint monitoring or a temperature sensor.
With its IP65 Water Resistant rating, the SmartShunt is more ideal for areas prone to receiving an ingress of water such as an engine bay in a 4WD that does creek crossings, or in a marine environment where the battery area is relatively exposed to the elements.
The SmartShunt can do more than comprehensively monitor your main battery bank - additionally, you can choose to either:
The SmartShunt also features a VE.Direct port so can also be connected to any device in the GX range including the Colour Controller and Cerbo GX via a VE.Direct cable.
SmartShunt IP65 | 1000 A |
Supply voltage range Current draw |
6,5 - 70 VDC < 1 mA |
Input voltage range, auxiliary battery | 6,5 - 70 VDC |
Battery capacity (Ah) Operating temperature range Measures voltage of second battery, or temperature, or midpoint |
1 - 9999 Ah -40 +50 °C (-40 – 120 °F) Yes |
Temperature measurement range VE.Direct communication port |
-20 +50 °C Yes |
RESOLUTION & ACCURACY | |
Current | ± 0,01 A |
Voltage | ± 0,01 V |
Amp hours | ± 0,1 Ah |
State of charge (0 – 100 %) | ± 0,1 % |
Time to go | ± 1 min |
Temperature (if optional temperature sensor connected) |
± 1 °C/°F (0 – 50 °C or 30 – 120 °F) |
Accuracy of current measurement | ± 0,4 % |
Offset | Less than 20 / 40 / 80 mA |
Accuracy of voltage measurement | ± 0,3 % |
INSTALLATION & DIMENSIONS | |
Dimensions (h x w x d) | 500A: 46 x 120 x 54 mm 1000A: 68 x 168 x 75 mm 2000A: 68 x 168 x 100 protection |
Protection category | IP65 |
STANDARDS | |
Safety Emission / Immunity Automotive |
EN 60335-1 EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3 EN 50498 |

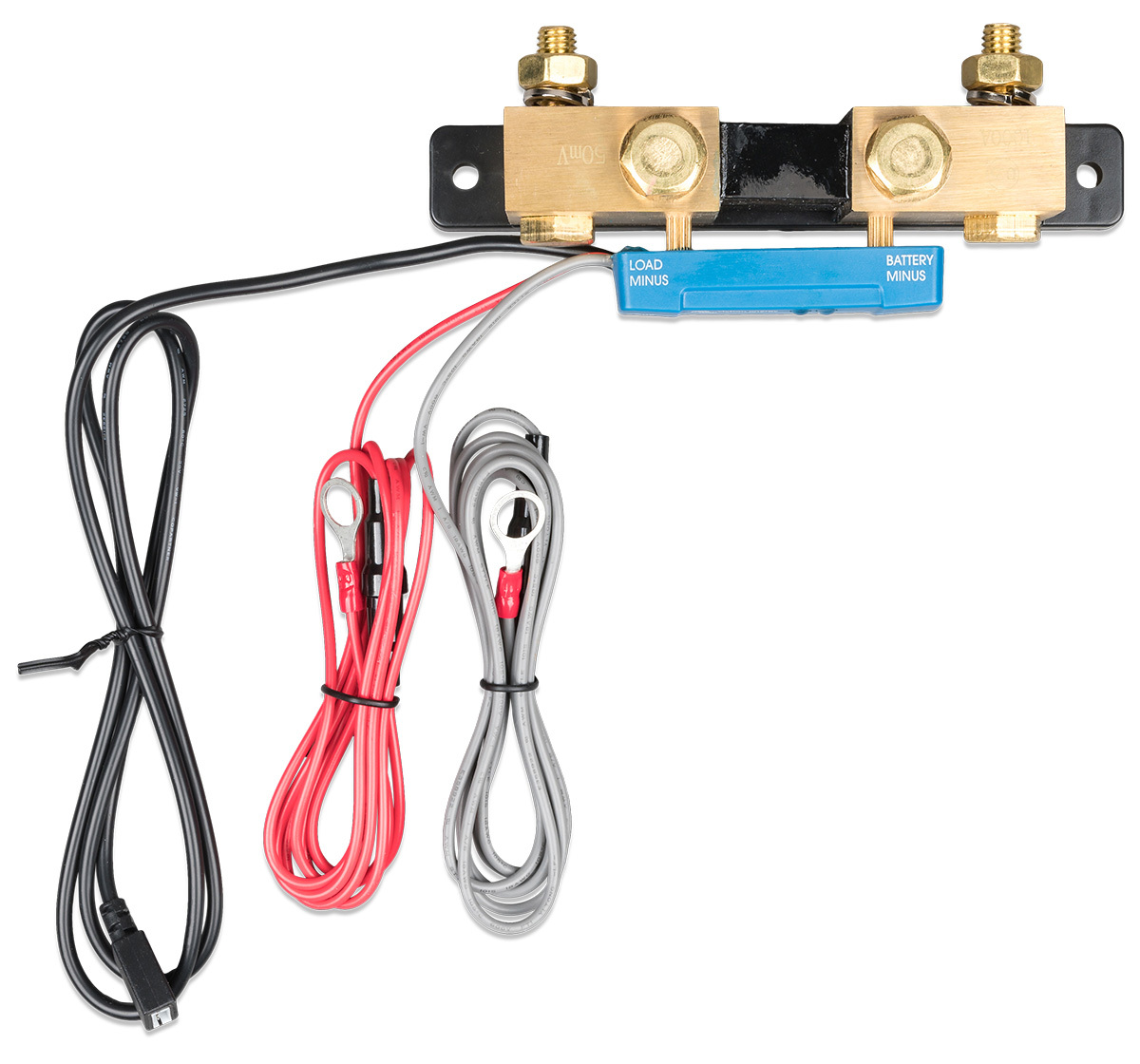

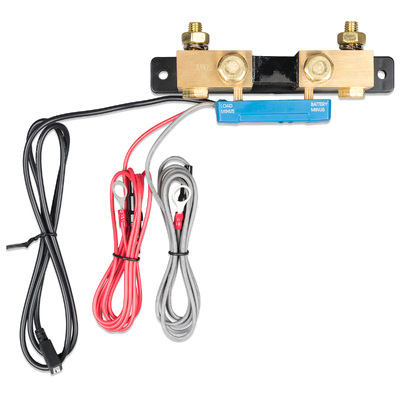

Cables | Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection |
VE.Direct cable | 1.5 m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device. |
Temperature sensor | Optional (ASS000100000) |
A note regarding the range of the Bluetooth signal | The shunt and the electric cables do negatively influence the range of the Bluetooth signal. The resulting range of 10-15 meters is however satisfactory in most cases. The proximity of other electrically conducting elements, such as the metal chassis of a vehicle or seawater around the hull if a boat, may reduce the range of the Bluetooth signal to an unacceptable level. The solution in such a case is to add a VE.Direct Bluetooth Dongle (ASS030536011) to the system, and to switch off Bluetooth in the SmartShunt. |
SKU | VIC.SHU065210050 |
Model # | SHU065210050 |
UPC/EAN | 8719076057901 |
Brand | Victron Energy |
Shipping Weight | 1.3300kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
Shipping Cubic | 0.002000000m3 |
Unit Of Measure | ea |
Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
