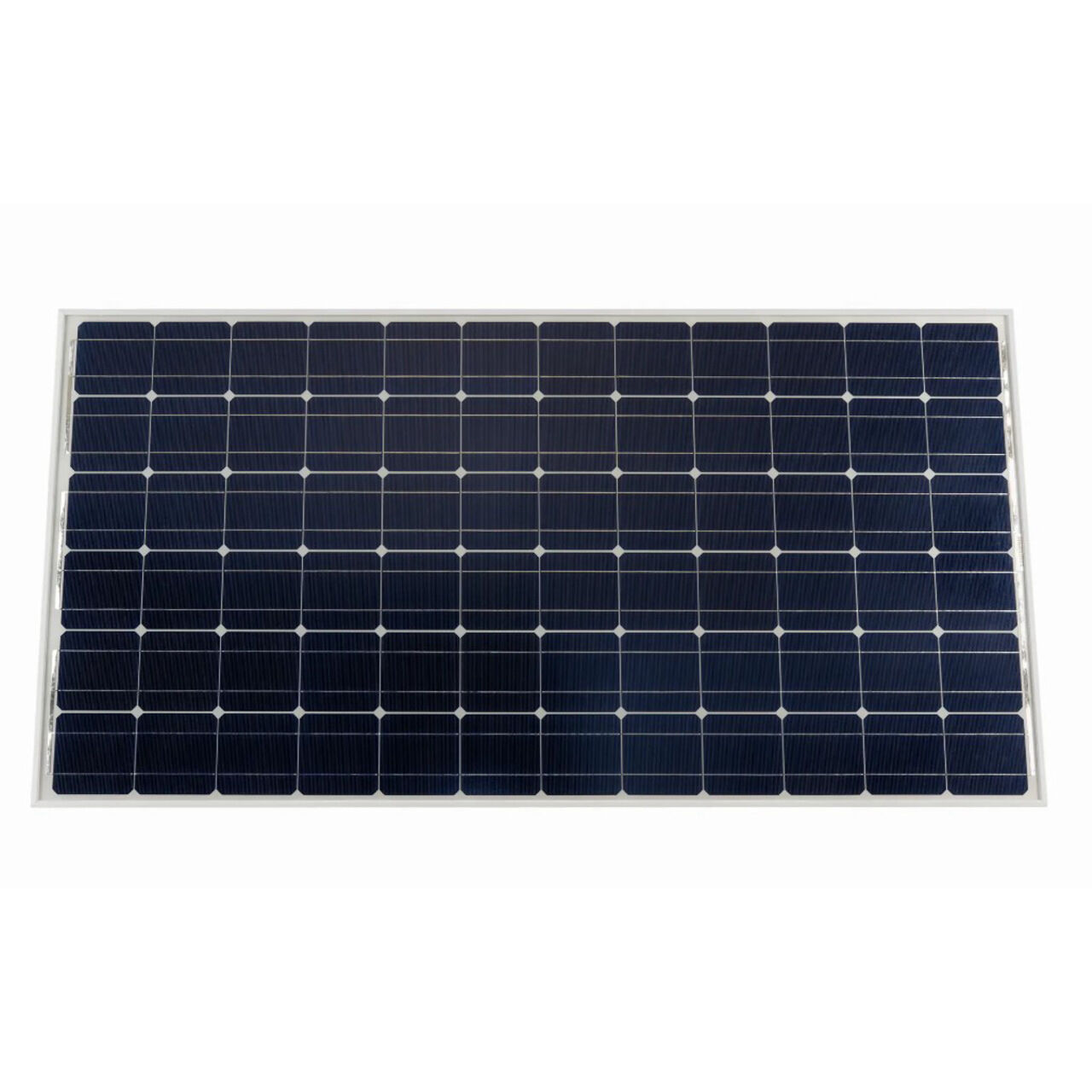

Victron Solar Panel 235W-72 cells Mono 1350x880x30mm series 4d
235W monocrystalline solar panel with 72 cells, tempered glass, aluminium frame and excellent low-light performance for reliable off-grid solar systems.
SKU: VIC.SPM042357204 | MPN: SPM042357204
SAVE $109.09 (33%)
In Stock
Ships today from our Yatala warehouse if order placed by 1pm
Efficient Solar Energy Generation with Monocrystalline Panels for Off-Grid Applications
Generate reliable renewable energy with a 235W monocrystalline solar panel engineered for off-grid, backup power and battery charging systems. Featuring 72 high-efficiency monocrystalline cells, this panel delivers dependable performance across varying weather conditions while maintaining excellent low-light sensitivity. A durable anodised aluminium frame, tempered glass construction and sealed junction box provide long-term reliability for residential, commercial and marine solar installations.
Key Features
- 235W Power Output – Produces up to 235W of rated power under Standard Test Conditions (STC) for dependable solar energy generation.
- 72 Monocrystalline Cells – High-efficiency monocrystalline cell technology provides reliable energy production with excellent conversion efficiency.
- Excellent Low-Light Performance – High sensitivity across the solar spectrum helps maximise energy production during cloudy and low-light conditions.
- Tempered Glass Front – High-transmission tempered glass enhances impact resistance while allowing maximum sunlight to reach the solar cells.
- Anodised Aluminium Frame – Corrosion-resistant aluminium frame provides strength and compatibility with a wide range of mounting systems.
- Integrated Bypass Diodes – High-performance bypass diodes help reduce power loss caused by partial shading.
- Sealed Junction Box – Waterproof multifunction junction box enhances electrical safety and long-term outdoor durability.
- Long-Term Warranty – Covered by a 5-year product warranty and a 25-year electrical performance warranty for lasting confidence.
Built for dependable long-term operation, this solar panel is suitable for a wide range of standalone and battery-based solar energy systems. Its robust construction supports reliable performance in demanding outdoor environments.
| Specifications | |
|---|---|
| Rated Power (Pmax) | 235W |
| Cell Type | Monocrystalline |
| Number of Cells | 72 |
| Module Efficiency | 19.78% |
| Maximum Power Voltage (Vmp) | 41.4V |
| Maximum Power Current (Imp) | 5.68A |
| Open Circuit Voltage (Voc) | 49.6V |
| Short Circuit Current (Isc) | 6.02A |
| Dimensions | 1350 × 880 × 30 mm |
| Net Weight | 12.48 kg |
| Maximum System Voltage | 1000V DC |
| Output Tolerance | ±3% |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.45%/°C |
| Temperature Coefficient (Voc) | -0.35%/°C |
| Temperature Coefficient (Isc) | +0.04%/°C |
| Surface Maximum Load | 200 kg/m² |
| Allowable Hail Load | 23 m/s, 7.53 g |
| Frame Material | Anodised Aluminium |
| Connector Type | MC4 |
| Product Warranty | 5 Years |
| Performance Warranty | 10 Years (90% output), 25 Years (80% output) |
| SKU | VIC.SPM042357204 |
| Model # | SPM042357204 |
| UPC/EAN | 8719076079453 |
| Shipping Weight | 32.0000kg |
| Shipping Width | 1.360m |
| Shipping Height | 0.540m |
| Shipping Length | 0.890m |
| Shipping Cubic | 0.653616000m3 |
| Unit Of Measure | ea |
