Seamless Connectivity for UHF and Cellular Devices

Designed for superior performance, this innovative smart antenna integrates UHF CB and cellular 4G/5G connectivity into a single solution. Its patent-pending ZetiLink™ technology ensures optimised signal boosting, while an onboard GPS and processor enhance coverage in real time.

Key Features

  • Dual-functionality in one antenna: combines UHF CB and cellular 4G/5G connectivity, reducing the need for multiple antennas.
  • Optimised for CEL-FI signal repeaters: smart band selection and automatic power adjustments enhance CEL-FI ROAM R41 performance.
  • Real-time coverage optimisation: integrated GPS and processor adjust signal settings based on vehicle location.
  • Smart signal management: automatic boost control deactivates the repeater in strong signal areas to conserve power.
  • Battery monitoring via app: the Zetifi Smart Antenna app allows real-time monitoring of battery usage and protection.
  • Satellite-ready compatibility: fully supports direct-to-handset satellite frequencies for enhanced connectivity.

Experience uninterrupted communication with advanced signal optimisation and intelligent power management.

Product Specifications
Frequency Range UHF: 477 MHz
Cellular: 698-960 MHz, 1710-2700 MHz, 3400-3800 MHz
Gain UHF: 2.1 dBi
Cellular: 4 dBi
VSWR UHF: <1.5:1 @ 477 MHz, <2:1 @ 450-520 MHz
Cellular: <2.5:1 across supported bands
Nominal Impedance 50 Ω
Input Voltage 12V DC to 18V DC
Input Current 60 mA
Power Consumption 0.7 W

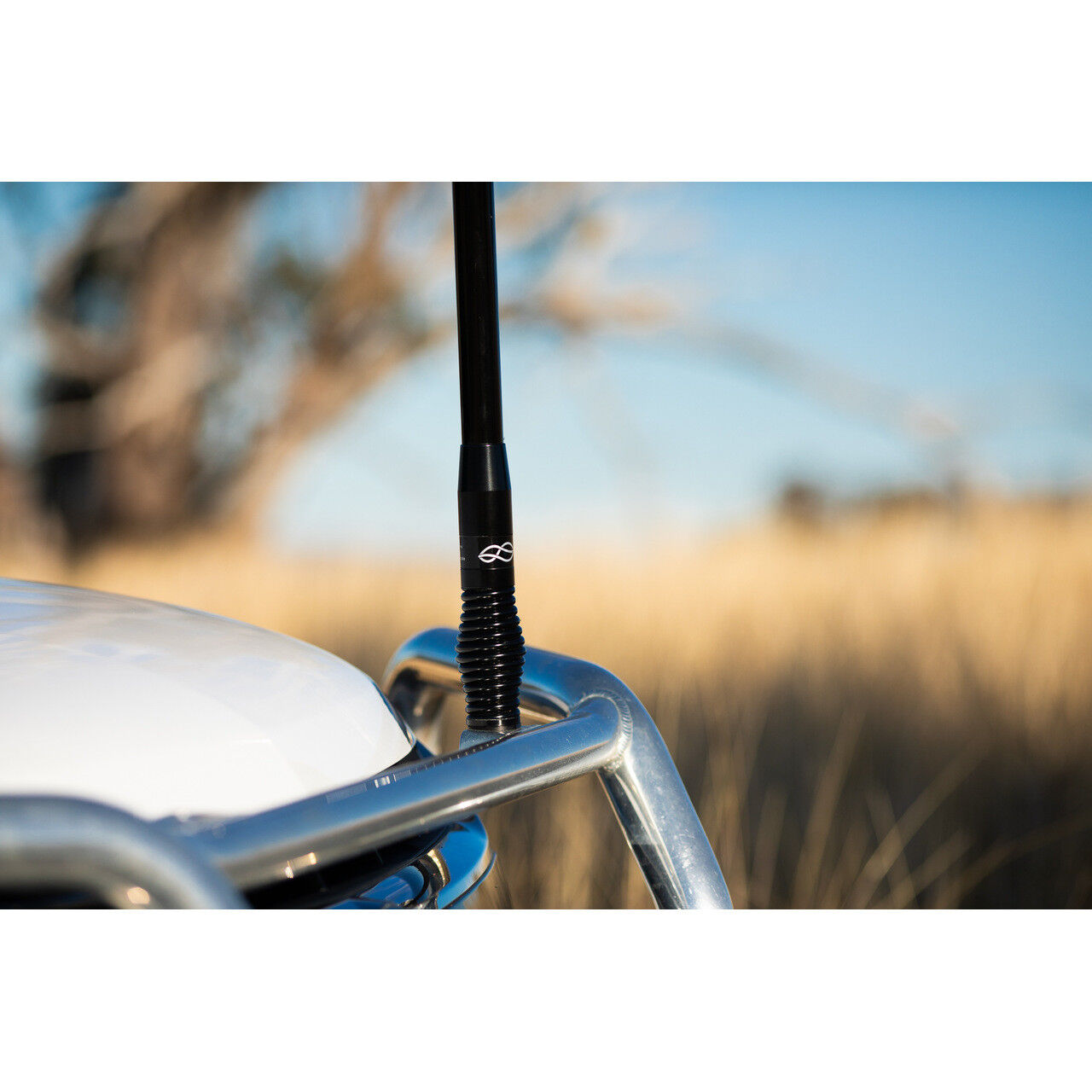

Construction Fibreglass whip with UHF/LTE combination PCB and steel ferrule with integrated ZetiLink™ controller
Mounting M14 threaded stud & nut (16mm mounting hole)
Dimensions Height: 780mm (total), 690mm (whip)
Width: 33mm (whip), 56mm (spring), 42mm (base)
Weight Antenna: 1250g
Package with cabling: 2310g
Cable Lengths Coaxial: 4360mm (UHF & Cellular)
Power: 2500mm
Connectors UHF: FME Female
Cellular: SMA Male
SKU ZET.ANMA1103AU-02
Model # ANMA1103AU-02
Brand Zetifi
Shipping Weight 2.5000kg
Shipping Width 0.780m
Shipping Height 0.060m
Shipping Length 0.060m
Shipping Cubic 0.002808000m3
Unit Of Measure ea
