High-efficiency multi-zone amplifier for precision marine and automotive audio systems

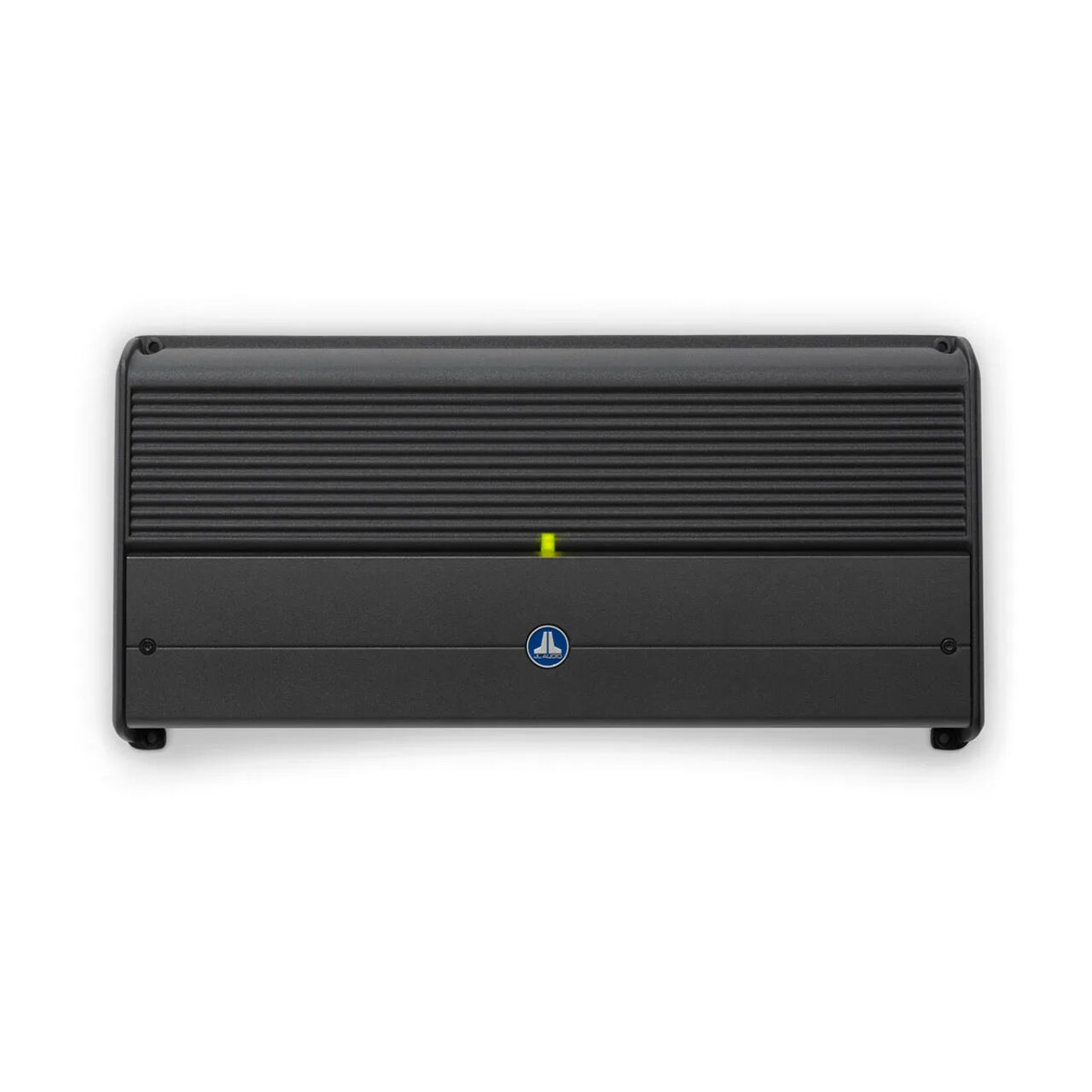

The XDM 800 W 8-Channel Amplifier delivers exceptional sound control and power for complex multi-speaker installations. Combining advanced Class-D efficiency with marine-grade durability, it provides clear, distortion-free performance across eight channels — ideal for large boats, RVs, and vehicles requiring multi-zone or full-range sound coverage. Compact and rugged, this amplifier ensures balanced, dynamic audio reproduction in any environment.

Key Features

• Eight-channel configuration: Drives up to eight speakers or can be bridged into four high-power channels for subwoofers or large full-range drivers.
• High-output performance: Provides 100 W × 8 at 2 Ω or 200 W × 4 when bridged for complete system flexibility.
• Class-D power design: Ensures maximum efficiency, reduced heat, and stable performance under demanding loads.
• Optimised for 12 V operation: Runs smoothly between 11–14.5 V DC, perfect for automotive and marine installations.
• Clean, distortion-free output: Maintains < 1% THD + N at rated power for transparent, accurate sound reproduction.
• Comprehensive crossover control: Selectable high-pass or low-pass filters per channel pair (50 Hz–500 Hz) for fine-tuned frequency management.
• Excellent damping control: > 150 @ 4 Ω ensures tight, responsive bass and balanced audio across all channels.
• Compact installation footprint: Only 52 mm high × 374 mm wide — ideal for multi-zone systems in tight compartments.
• Marine-ready construction: Corrosion-resistant materials and built-in thermal, overload, and short-circuit protection.
• Reliable long-term performance: Engineered for stability and consistency in high-vibration or high-humidity environments.

A true all-in-one solution for powering complete marine and automotive sound systems with efficiency, precision, and reliability.
