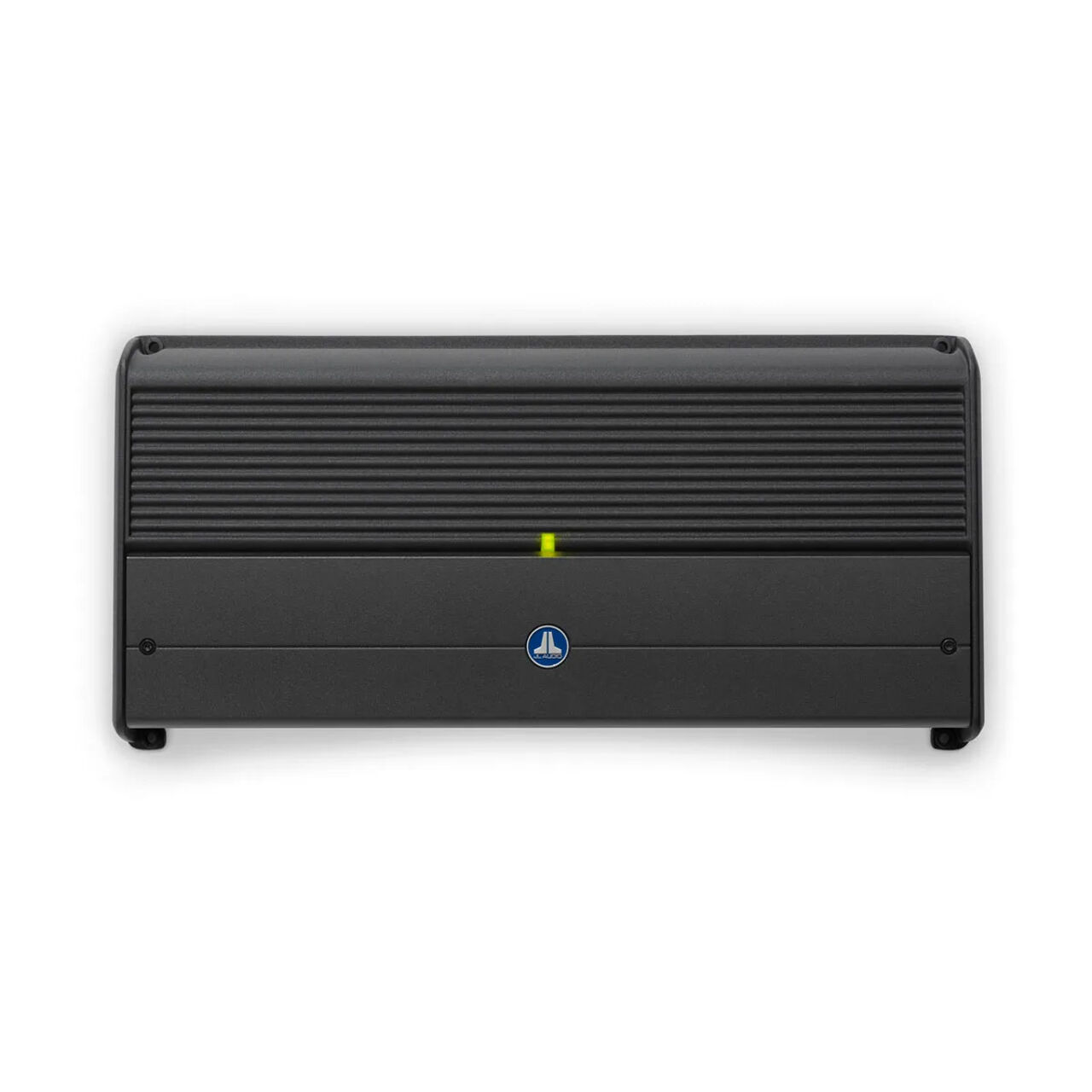

JL Audio® XDM Series Marine Amplifier, 5 Channel Car and Marine System Amplifier (1000 watts)
High-efficiency 5-channel Class-D amplifier for 12 V car and marine systems delivering 1000 W RMS total power, exceptional clarity, and compact, marine-grade reliability.
SKU: GAR.010-03113-00 | MPN: 010-03113-00
SAVE $47.21 (3%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Versatile high-power amplifier for full-range marine and automotive sound
The XDM 5-Channel 1000 W Amplifier delivers exceptional multi-zone performance for car and marine audio systems, combining four full-range channels and a dedicated subwoofer channel. Engineered with efficient Class-D technology and rugged marine-grade construction, it provides powerful, distortion-free sound reproduction across the entire frequency range. Designed for 12-volt installations, it ensures dependable output, compact form factor, and seamless integration with high-end audio setups.
Key Features
- Comprehensive 5-channel configuration: Drives four speakers and one subwoofer simultaneously for a complete sound experience.
- Powerful Class-D architecture: Provides up to 600 W RMS total output with high efficiency and low heat.
- High output versatility: Delivers 75 W × 4 + 600 W × 1 at 2 Ω, ensuring strong mids, highs, and bass in any setup.
- Low-distortion performance: THD+N < 1% guarantees accurate and clear audio reproduction even at high volumes.
- Independent crossover control: Adjustable 50 Hz – 5 kHz range with 12 / 24 dB slopes for precise tuning across channels.
- Dedicated subwoofer channel: Optimised for clean, deep bass with selectable low-pass filtering.
- Compact, durable design: 52 mm height and 374 mm width for flexible installation in confined marine or vehicle spaces.
- Marine-ready protection: Corrosion-resistant components with short-circuit, thermal, and overload protection.
- Remote control compatible: Supports optional HD-RLC or MHD-RLC level controllers for convenient system adjustment.
A premium solution for audiophiles demanding balanced clarity, efficiency, and durability in both automotive and marine sound systems.
| Technical Specifications | |
|---|---|
| Amplifier Type | Class D |
| Channels | 5-Channel (Main + Subwoofer) |
| Operating Voltage | 11–14.5 V DC |
| Rated Power @ 4 Ω (14.4 V) | Main: 75 W × 4 / Sub: 400 W × 1 |
| Rated Power @ 2 Ω (14.4 V) | Main: 100 W × 4 / Sub: 600 W × 1 |
| Rated Power @ 4 Ω (12.5 V) | Main: 60 W × 4 / Sub: 360 W × 1 |
| Rated Power @ 2 Ω (12.5 V) | Main: 90 W × 4 / Sub: 600 W × 1 |
| Frequency Response (Main) | 12 Hz – 22 kHz (+0, −1 dB) |
| Frequency Response (Sub) | 10 Hz – 1 kHz (+0, −1 dB) |
| Damping Factor @ 4 Ω | > 150 @ 50 Hz |
| Signal-to-Noise Ratio (A-weighted) | > 104 dB (Main) / > 103 dB (Sub) |
| THD + N @ Rated Power | < 1% @ 2 Ω per Channel |
| Filter Modes | High-Pass, Low-Pass, or Bandpass (Channels 1–4); Low-Pass (Sub) |
| Filter Frequency Range | 50 Hz – 5 kHz (Main) / 50 Hz – 500 Hz (Sub) |
| Filter Slopes | 12 / 24 dB per Octave |
| Fuse Rating | 80 A |
| Recommended Fuse Type | AFS, AGU or MaxiFuse™ |
| Minimum Power/Ground Wire | 4 AWG |
| Dimensions (H × W × D) | 52 mm × 374 mm × 180 mm |
| Weight | 6.3 lbs (2.86 kg) |
| Warranty | 3 Years |
| SKU | GAR.010-03113-00 |
| Model # | 010-03113-00 |
| UPC/EAN | 699440986786 |
| Brand | JL Audio |
| Shipping Weight | 3.9300kg |
| Unit Of Measure | each |
