Seamless 4G Connectivity for Remote <onitoring

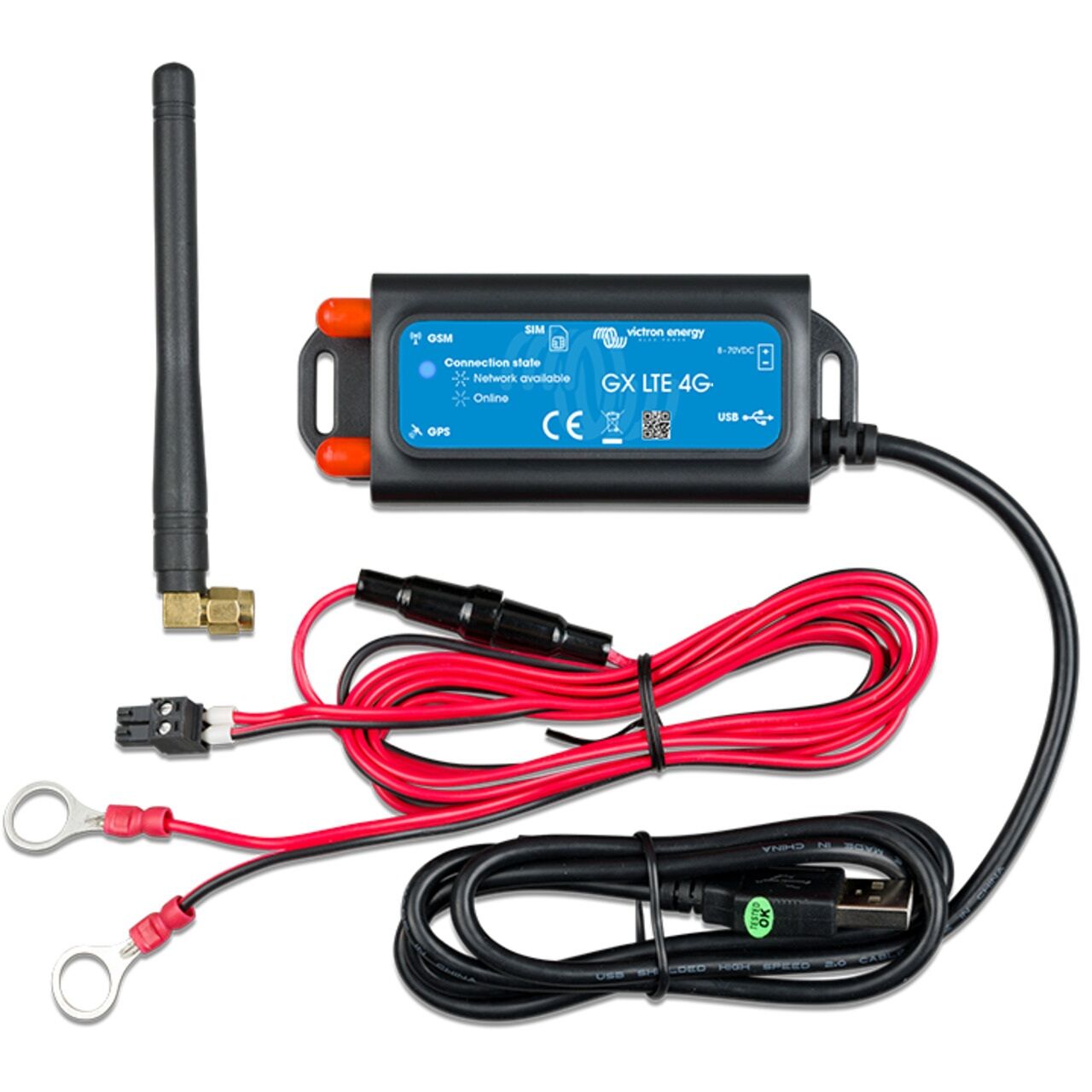

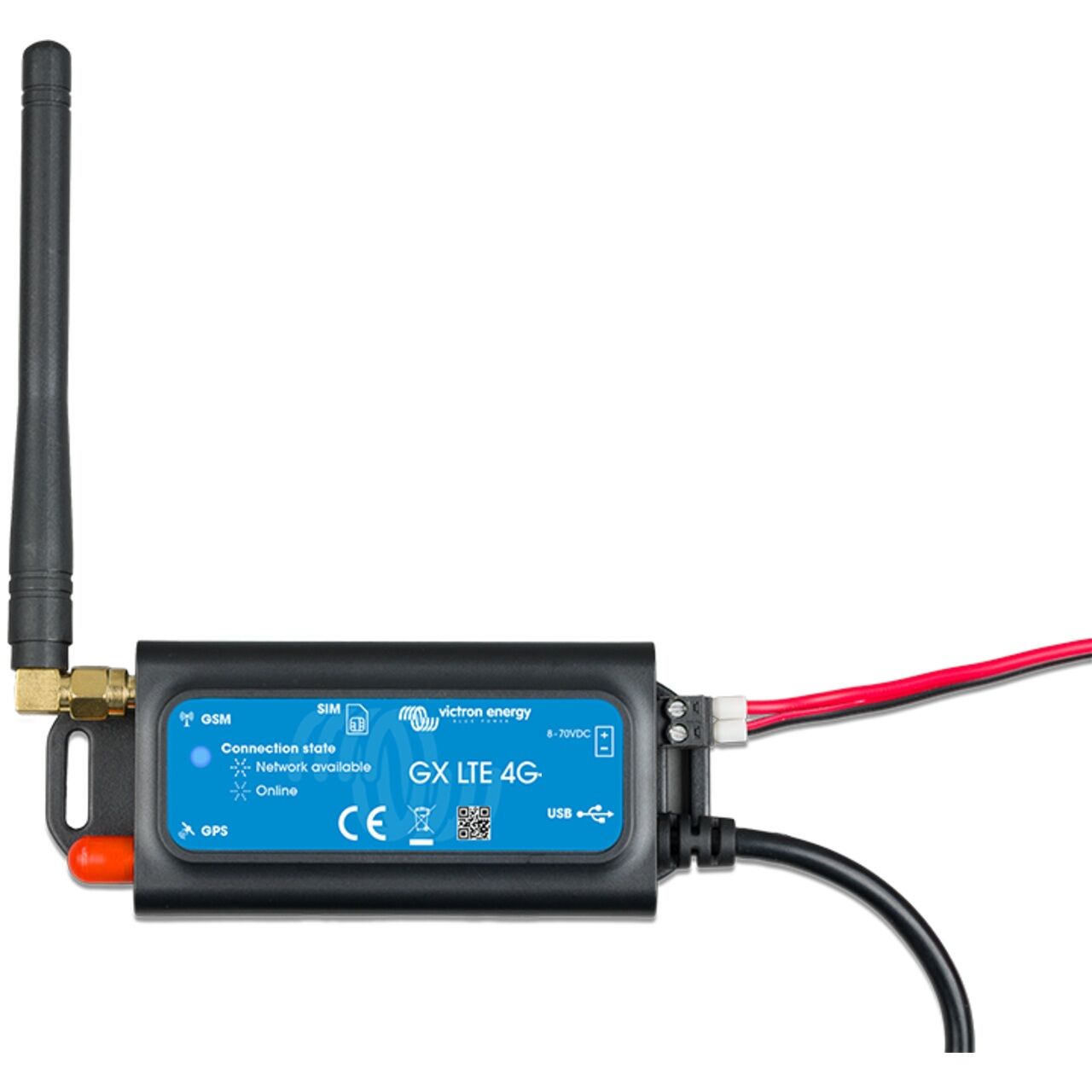

The Victron GX LTE 4G-A is a reliable cellular modem designed to provide a secure and stable internet connection for Victron GX devices. It enables remote monitoring and system management via the Victron Remote Management (VRM) portal, ensuring real-time access to performance data from anywhere. Compatible with 2G, 3G, and 4G networks, this modem supports global connectivity and includes a Mini-SIM card slot for flexible data plan options.

Key Features

  • Reliable 4G connectivity for remote access: Ensures continuous internet access for Victron GX devices, enabling real-time system monitoring.
  • Seamless integration with the VRM portal: Enables remote monitoring, data logging, and system control from anywhere.
  • Global network compatibility: Supports multiple 2G, 3G, and 4G frequency bands for reliable operation in various regions.
  • Built-in GPS for tracking capabilities: Allows for optional GPS functionality when connected to an external GPS antenna.
  • Easy plug-and-play installation: Simple setup with minimal configuration required for hassle-free operation.
  • Efficient power consumption: Designed for low-energy use, making it ideal for off-grid and mobile applications.

This advanced LTE modem provides uninterrupted connectivity, ensuring reliable system monitoring and control for off-grid, marine, and mobile power setups.

Victron GX LTE 4G-A Specifications
Supply Voltage Range 8 - 70VDC
Power Consumption 2.5W during data transfer, <1.0W in idle mode, +0.4W if GPS is enabled
Operating Temperature Range -40°C to +50°C (-40°F to 120°F)
Power Cable (Included) 1.4m cable with inline fuse holder, terminal block, and 10mm ring terminals
Inline Fuse (Included) T3.15A 250V
USB Communication Port Fixed 1.0m cable with USB-A connector (connects to GX device)
LTE Antenna Connector SMA Female (optional 4G outdoor antenna: GSM900100400)
GPS Antenna Connector SMA Female (optional GPS antenna: GSM900200100)
GNSS Support GPS, Beidou, GLONASS, GALILEO, QZSS
SIM Card Type Mini SIM (supports 1.8V and 3V)
Data Transmission (Max Download/Upload) LTE Cat-1: 10 Mbps / 5 Mbps
3G (HSPA+): 42 Mbps / 5.76 Mbps
2G (EDGE): 236.8 Kbps / 236.8 Kbps
2G (GPRS): 85.6 Kbps / 85.6 Kbps
Status Indicator Blue LED
Dimensions (L x W x H) 106 × 42.5 × 22mm
Weight 0.08 kg (0.177 lbs)
Wire Gauge (Power Cable) 0.5 - 1.5mm² / AWG 28 - 16
Recommended Fuse Size 500mA @ 12V / 250mA @ 24V / 100mA @ 48V (or use supplied inline fuse)
Safety Standards EN 60335-1, EN 60335-2-29, EN 62368-1
Emission & Immunity Standards ECE R10-5
Quality Management Standard EN 9001:2015
SKU VIC.GSM100200400
UPC/EAN 8719076052944
Brand Victron Energy
Shipping Weight 0.0900kg
Shipping Width 0.035m
Shipping Height 0.085m
Shipping Length 0.110m
Shipping Cubic 0.000327250m3
Unit Of Measure ea
