Xantrex TrueCharge2 Chargers

Xantrex Trucharge battery chargers suit flooded, AGM and GEL batteries for caravans, boats, RV's and industrial applications.

Image Name Price
TRUECharge2 Battery Temperature Sensor - Xantrex 808-0232-01 TRUECharge2 Battery Temperature Sensor - Xantrex 808-0232-01
SKU
XAN.808-0232-01

$75.00

TRUEcharge2 Remote Panel for GEN3 Chargers - Xantrex 808-8040-01 TRUEcharge2 Remote Panel for GEN3 Chargers - Xantrex 808-8040-01
SKU
XAN.808-8040-01

$220.00

TRUEcharge2 12V/20A Battery Charger - Xantrex 804-1220 TRUEcharge2 12V/20A Battery Charger - Xantrex 804-1220
SKU
XAN.804-1220
20A12V

$600.00
$540.00

TRUEcharge2 24V/10A Battery Charger - Xantrex 804-2410 TRUEcharge2 24V/10A Battery Charger - Xantrex 804-2410
SKU
XAN.804-2410
10A24V

$736.00
$615.00

TRUEcharge2 12V/40A Battery Charger - Xantrex 804-1240 TRUEcharge2 12V/40A Battery Charger - Xantrex 804-1240
SKU
XAN.804-1240
40A12V

$792.00
$640.00

TRUEcharge2 24V/20A Battery Charger - Xantrex 804-2420 TRUEcharge2 24V/20A Battery Charger - Xantrex 804-2420
SKU
XAN.804-2420
20A24V

$832.00
$690.00

TRUEcharge2 12V/60A Battery Charger - Xantrex 804-1260 TRUEcharge2 12V/60A Battery Charger - Xantrex 804-1260
SKU
XAN.804-1260
60A12V

$1,112.00
$925.00

TRUEcharge2 24V/30A Battery Charger - Xantrex 804-2430 TRUEcharge2 24V/30A Battery Charger - Xantrex 804-2430
SKU
XAN.Xantrex804-2430
30A24V

$1,144.00
$950.00

TRUEcharge2 Datasheet
TRUEcharge2 User Manual

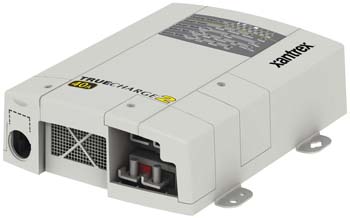

Ultimate, High Performance, Worldwide Charging

TRUECharge™2 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUECharge2 battery chargers feature low electrical interference and efficient, power factor corrected multistage charging.

Thanks to their inherent drip-proof design characteristics, the TRUECharge2 chargers can be mounted in multiple positions. Designed for recreational and commercial applications worldwide, TRUECharge2 accepts 90 - 265 Vac, 47-63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUECharge2 20A, 40A and 60A 12V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line.

New Parallel Feature

TRUECharge2 20A, 40A and 60A are equipped with a NEW PARALLEL STACKING feature. This allows two chargers to work together to combine the output current, achieving up to 120A for large battery banks. This requires the optional Remote Panel (part #808-8040-01).

Performance Features

  • 12V models available in 20, 40 and 60 amps
  • 24V models available in 10, 20 and 30 amps
  • Microprocessor-controlled, multistage charging algorithms
  • Settings for two and three-stage charging
  • Settings for flooded, gel, AGM or lead-calcium batteries
  • Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
  • Temperature-compensated charging
  • Power factor corrected for efficient charging
  • Battery-equalization feature
  • Ability to charge ‘dead’ batteries
  • Battery temperature sensor available (Part #808-0232-01)
  • Optional remote panel (#808-8040-01) required for parallel stacking

Protection Features

  • Reverse battery polarity protection
  • Drip-proof design
  • Over and under-temperature protection
  • DC over-voltage protection
  • Battery overcharging protection
