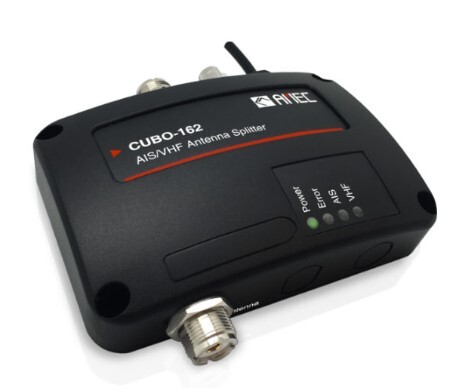

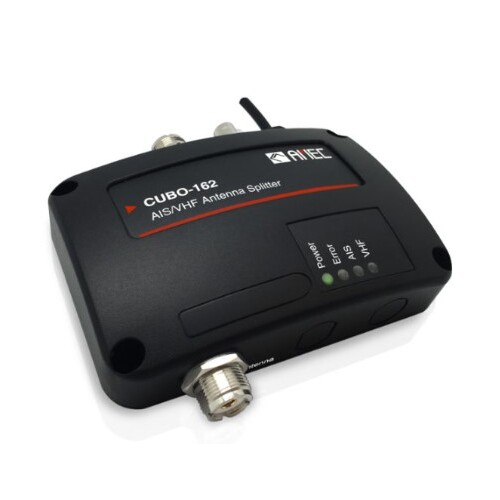

AIS Antenna Splitter CUBO-162

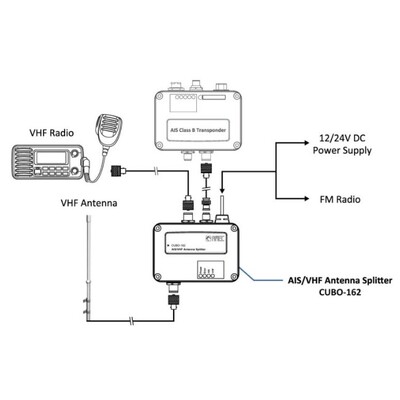

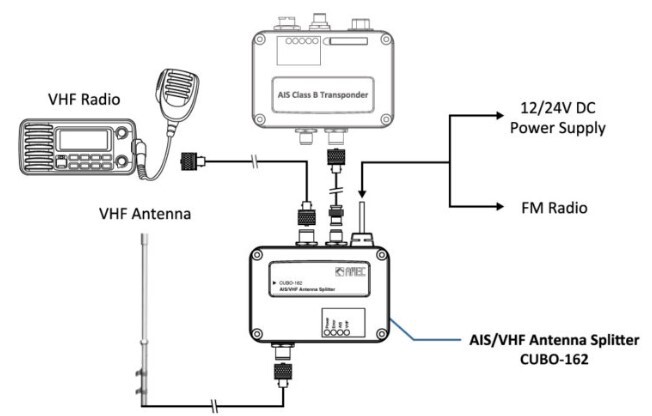

CUBO-162 is AMEC´s next-generation AIS antenna splitter that shares a single VHF antenna for both VHF radio and AIS transponder or receiver. It also provides a feed for FM radio.
SKU: AME.AMEC-S162-010 | MPN: AMEC-S162-010
SAVE $16.40 (4%)
Special OrderSpecial Order from Supplier
CUBO-162 is an advanced AIS antenna splitter that shares a single VHF antenna for both VHF radio equipment and an AIS transponder or receiver.
The splitter is designed to have zero insertion loss on reception. Its fail-safe feature guarantees priority to VHF radio operation even if the splitter has
a power outage. The built-in test function gives a simple diagnosis in the event of an antenna problem.
- Zero insertion loss: for Reception CUBO-162 provides optimized AIS and VHF radio performance in all situations.
- Low power consumption: Its advanced circuit design enables low power consumption by optimum performance.
- Fail-safe Operation: The guarantee of uninterrupted VHF/DSC radio operation even when the splitter is turned off.
- Self-test function: The error LED gives a simple diagnosis in the event of antenna problem.
|
RF PERFORMANCE |
|
|
AIS & VHF Radio Frequency Range |
156.025 MHz~162.025 MHz |
|
Insertion loss, AIS Receive path |
Typical 0dB |
|
Insertion loss, VHF Radio Receive path |
Typical 0d |
|
Insertion loss, AIS Transmit path |
Typical 1dB |
|
Insertion loss, VHF Radio Transmit path |
Typical 1dB |
|
POWER SUPPLY |
|
|
Supply Voltag |
12V ~ 24V DC |
|
Operating Current (receive) |
100mA typical at 12VDC |
|
Operating Current (Transmit) |
150mA typical at 12VDC |
|
LED INDICATION |
|
|
One Power Indicator (Green) |
|
|
One Error Indicator (Red) |
|
|
One VHF Radio Transmission Indicator (Green) |
|
|
One AIS Transponder Transmission Indicator (Green) |
|
|
PHYSICAL |
|
|
Width |
128 mm (5.03 inch) |
|
Height |
36 mm (1.40 inch) |
|
Depth |
88 mm (3.46 inch) (exclude connector) |
|
Weight |
230g |
|

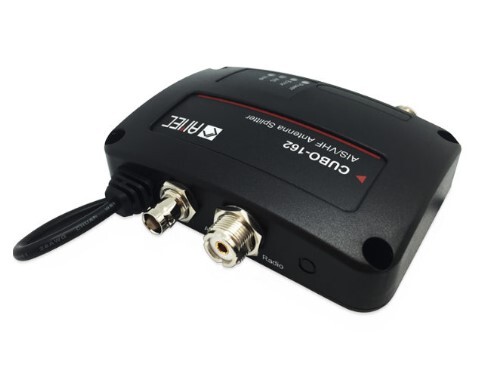

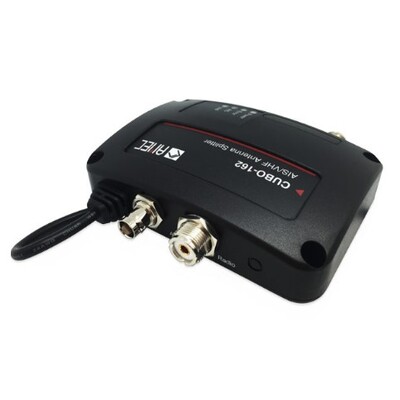

AIS Port |
BNC : Max. 12.5W, 50‑Ω |
|
VHF Radio Port |
SO-239 : Max. 25W, 50‑Ω |
|
Antenna Port |
SO-239 |
|
FM Radio |
Wiring Connection |
|
ENVIRONMENTAL |
|
|
Operating Conditions |
-15°C~55°C |
|
Operating Temperature |
-25°C~70°C |
|
Operating Humidity |
95% RH at 40°C |
|
Waterproof |
IPX2 |
