High-Output 12V Marine Alternator for Demanding Onboard Power Systems

Modern marine vessels rely on dependable charging performance to support battery banks, navigation electronics, communication equipment and other onboard electrical loads. Delivering a nominal 225A output and up to 254A maximum output, this 12V high-output marine alternator combines a compact 130mm small-frame design with exceptional charging performance across the operating range. Available in Internal/External (IE) or External Only (EX) regulation configurations, it features a 49mm K6 serpentine pulley, M8 side-mounted battery post and durable marine-grade finish for reliable operation in harsh environments.

Key Features

• 225A Nominal Charging Capacity: Supplies high current output to support demanding marine electrical systems and larger battery banks.
• Up to 254A Maximum Output: Produces exceptional charging performance at higher alternator speeds to reduce battery recharge times.
• Excellent Hot Output Performance: Maintains up to 187A at cruising speed and 157A at idle under hot operating conditions for dependable charging throughout engine operation.
• Internal or External Regulation Options: Available in Internal/External (IE) or External Only (EX) configurations to suit different charging system requirements.
• Compact 130mm Small-Frame Housing: Maximises charging performance while maintaining a space-efficient design for installations with limited engine room clearance.

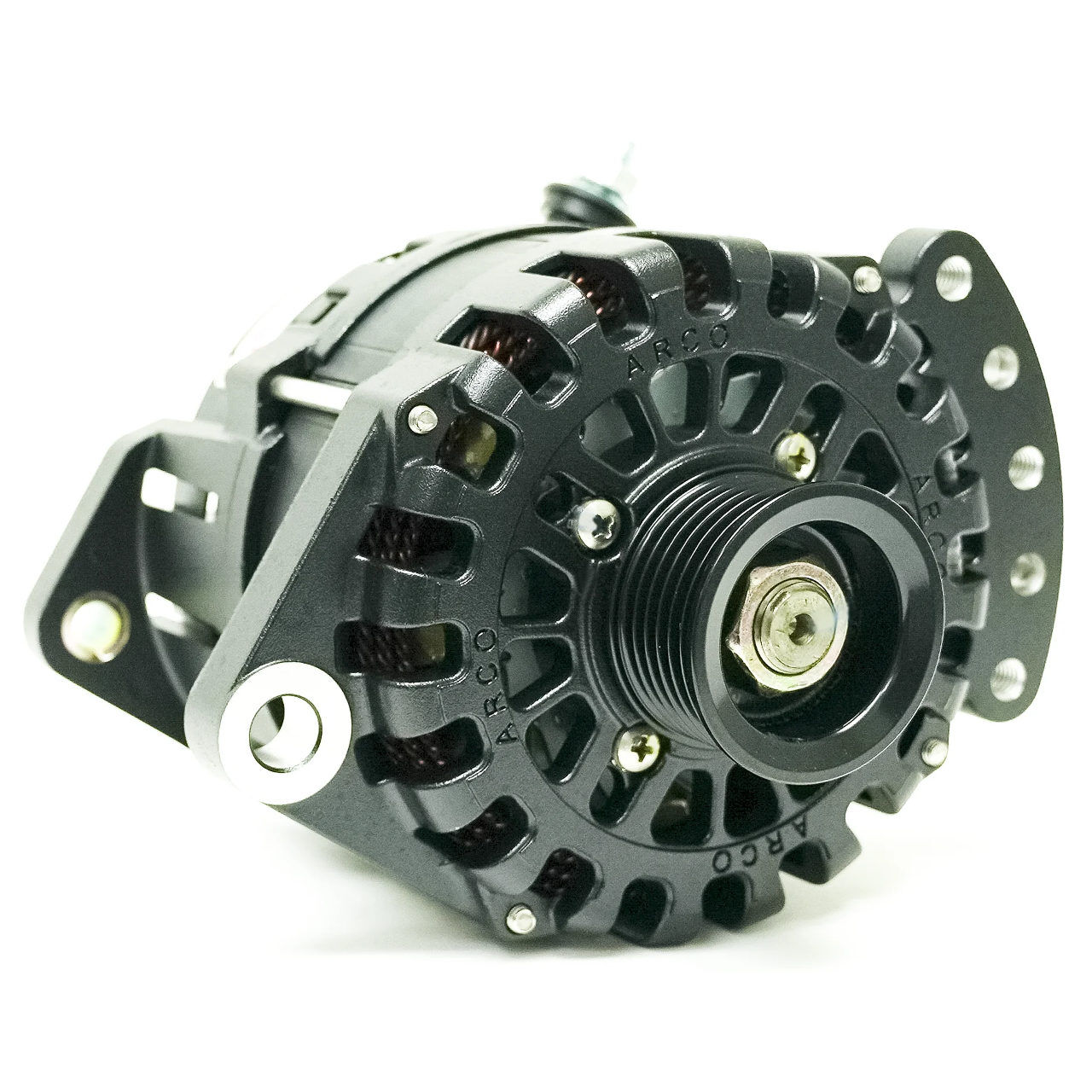

• 49mm K6 Serpentine Pulley: Includes a factory-fitted 6-groove pulley for efficient belt engagement and reliable power transmission.
• Heavy-Duty Pulley Assembly: Features a 17mm threaded shaft with supplied retaining nut and washer for secure pulley installation.
• Avalanche-Rated Diode Technology: Six positive and six negative 50A avalanche-rated diodes provide improved durability and protection against voltage spikes.
• Wide Operating Speed Range: Begins charging from just 1,061 alternator RPM and supports continuous operation up to 19,000 alternator RPM.
• Factory Preset 14.1V Output: Optimised charging voltage for compatible 12V battery systems.
• Marine-Grade Corrosion Protection: Available with a durable black Cerakote or E-coating finish for long-lasting protection in demanding marine environments.

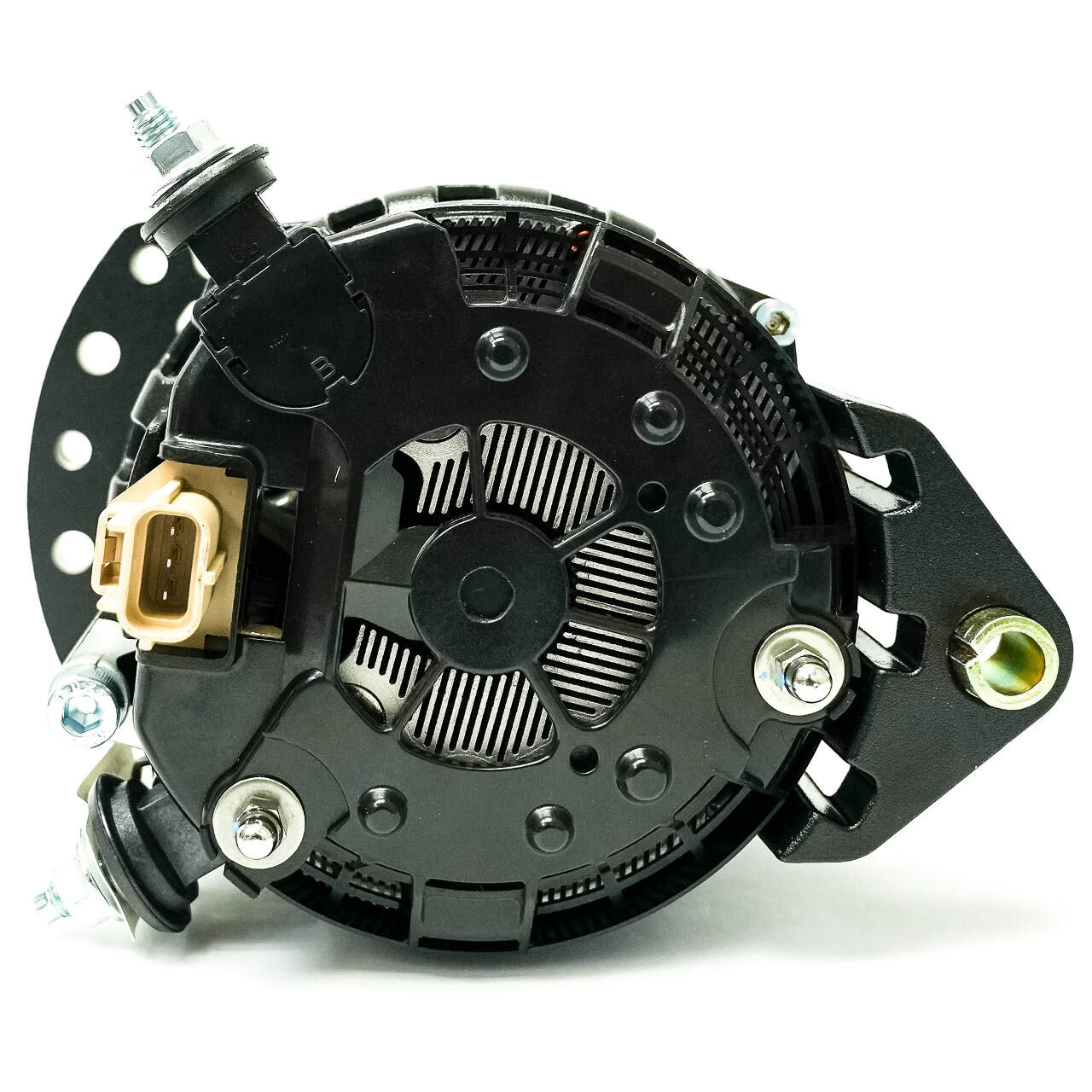

• Secure M8 Battery Connection: Side-mounted M8 threaded battery post provides a robust electrical connection and simplifies installation.

Built to deliver consistent charging performance under demanding conditions, this high-output alternator combines robust construction with excellent idle and cruising output to support modern marine electrical systems. Its compact design, flexible regulation options and heavy-duty components make it well suited to a wide range of marine charging applications.
