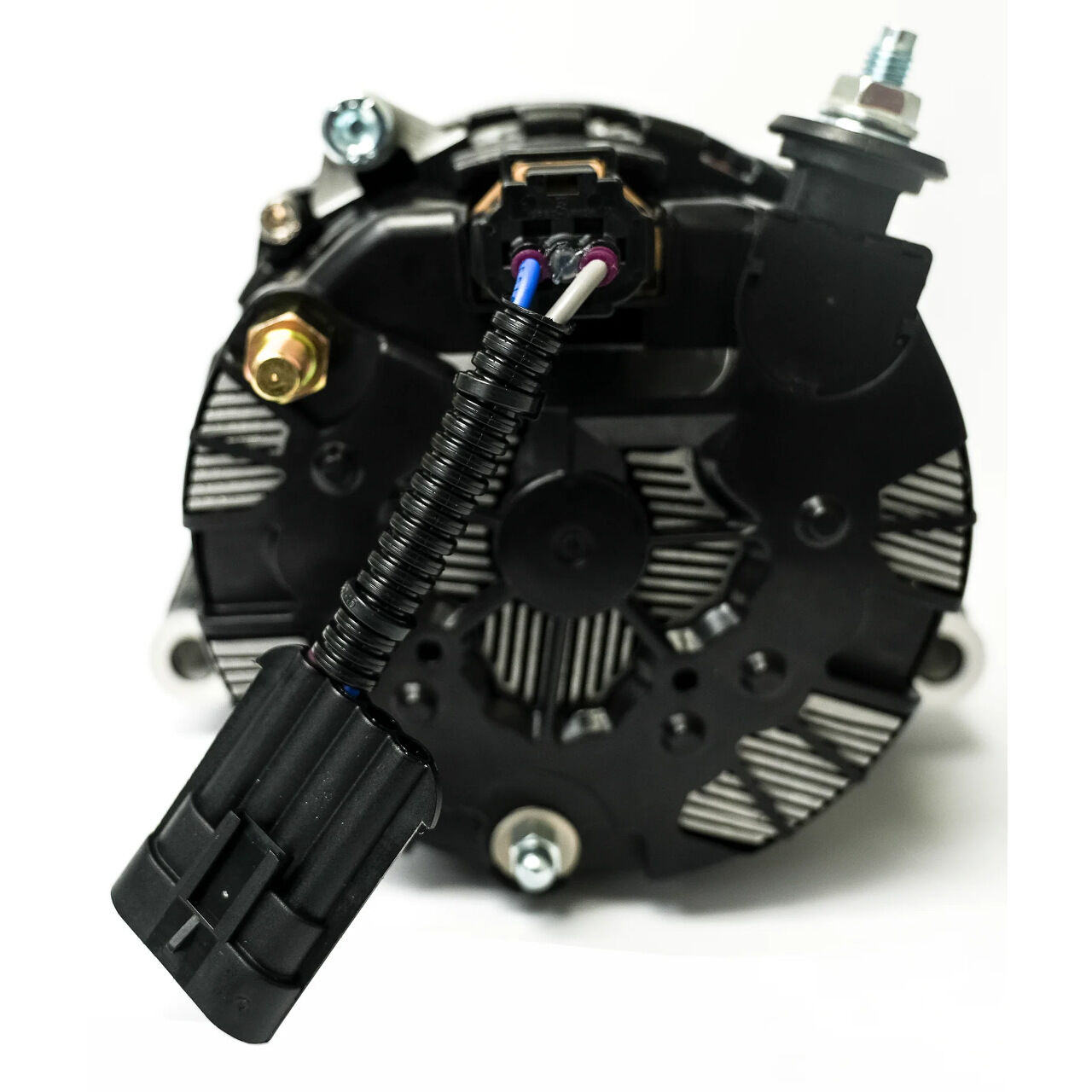

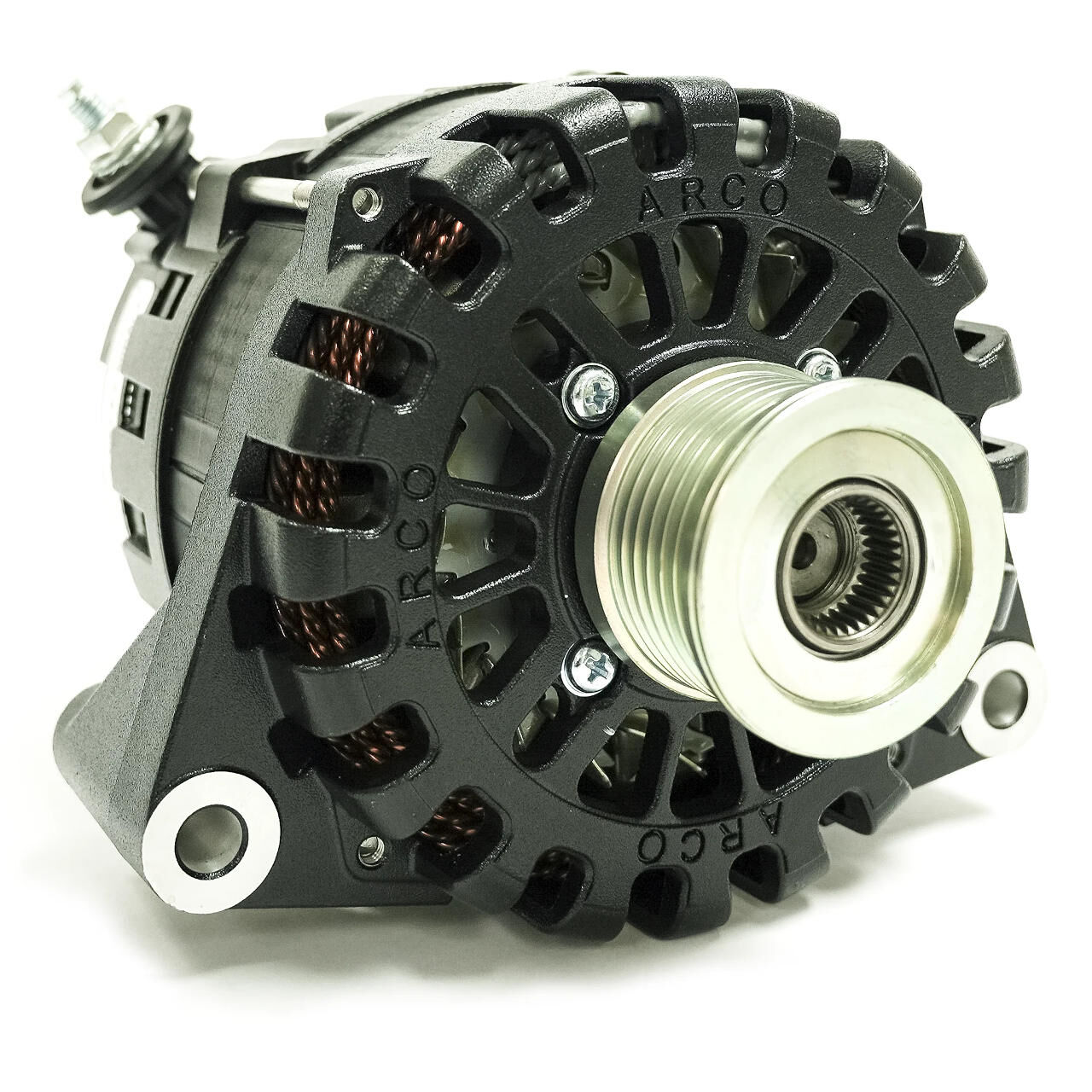

High-Output 24V 7kW Alternator for N62 Applications with Maximum Charging Performance

Deliver maximum charging performance for large 24V electrical systems with this 7kW high-output alternator engineered for applications requiring an N62 mounting configuration. Designed for vehicles and equipment operating at cruising and higher engine speeds, this alternator provides exceptional charging capacity for large lithium battery banks and high-demand electrical loads. Featuring a side-mounted battery post, 50mm K6 overrunning alternator pulley (OAP) and external regulation, it utilises a native 24V rotor and field design to improve efficiency, reduce operating temperatures and extend service life compared to conventional 24V alternators.

Key Features

• 7kW High-Output Charging: Produces up to 284A (7,810W) at 27.5V, delivering exceptional charging capacity for large 24V battery systems.
• Optimised for Higher RPM Performance: Designed to generate extremely high charging output at cruising and higher engine speeds where maximum charging capacity is required.
• Native 24V Rotor Design: Utilises a true 24V rotor and field current, improving efficiency, reducing heat generation and extending alternator life compared with designs using 12V rotors.
• High Sustained Charging Output: Delivers up to 220A (6,050W) sustained output at cruising speeds to support continuous heavy electrical loads.
• External Regulation: Designed for use with an external alternator regulator, including the ARCO Zeus Bluetooth Alternator Regulator for advanced charging management.
• N62 Mount with 50mm K6 OAP: Configured with an N62 housing and a 50mm K6 overrunning alternator pulley for compatible installations.
• Heavy-Duty Cooling System: Features dual cooling fans, an externally mounted rectifier and a durable black E-coated finish to maintain lower operating temperatures under sustained loads.
• 80A Avalanche-Rated Diodes: Equipped with premium 80A avalanche-rated diodes to support continuous high-current operation.
• SAE J1171 Certified: Certified for ignition protection and proudly manufactured in the USA.
• Zeus Bluetooth Regulator Compatible: Supports advanced battery charging profiles and system monitoring when paired with the ARCO Zeus Bluetooth Alternator Regulator.

Engineered for applications requiring maximum charging capacity at operating speeds, this 24V 7kW alternator provides dependable high-output performance for large battery banks and demanding electrical systems.
