Expand and Control Additional Externally Regulated Alternators

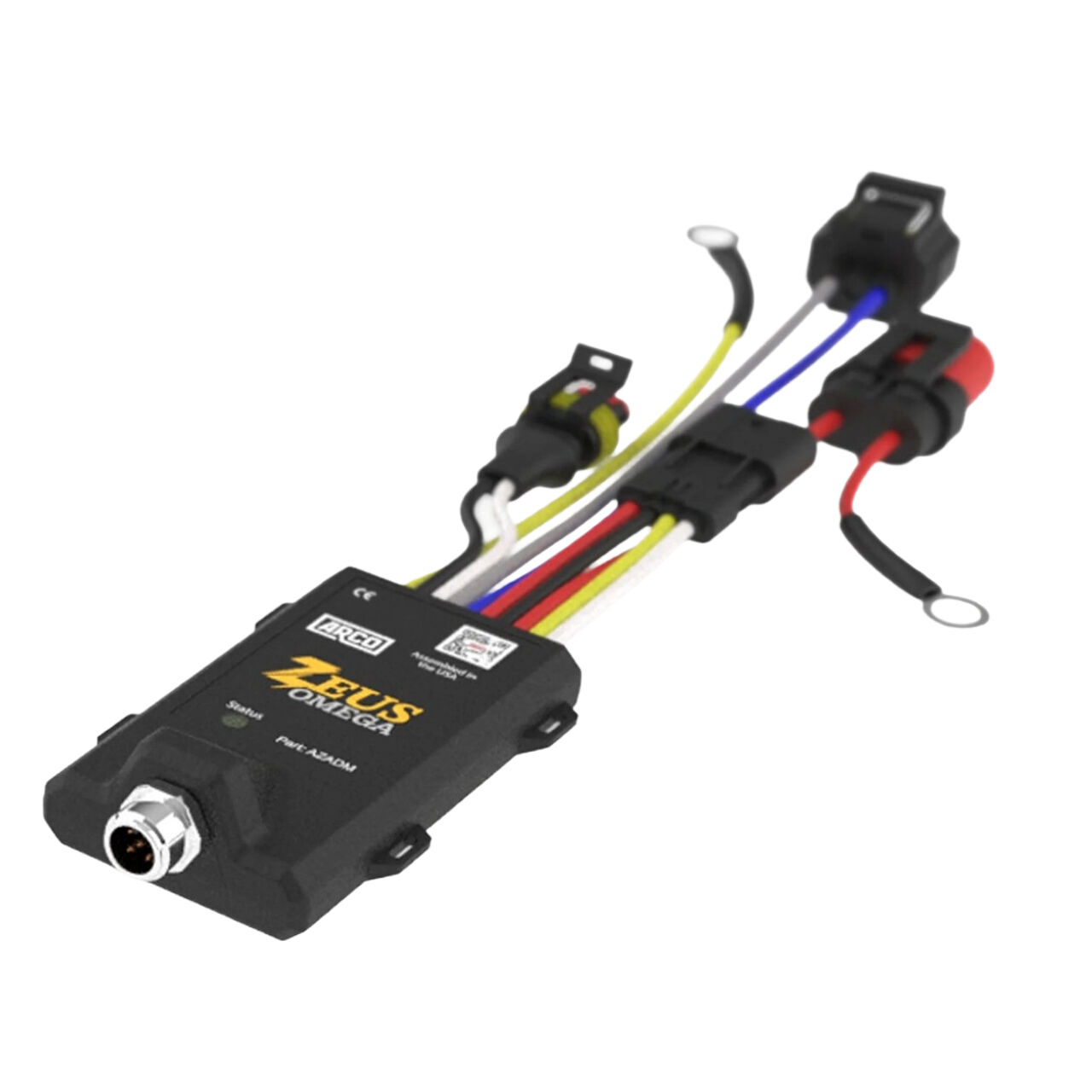

The ARCO Zeus Omega Alternator Drive Module is an expansion module that enables additional externally regulated alternators to be integrated into a Zeus Omega Alternator Control System. Mounted directly at the alternator, the module communicates with the Control Module through a single AZ CAN cable, simplifying installation while providing intelligent alternator control. Its sealed IP68 construction is engineered to withstand demanding engine bay environments and supports scalable charging systems across 12V, 24V, 36V and 48V applications.

Key Features

• Expands the Zeus Omega Charging System – Adds support for an additional externally regulated alternator when connected to a Zeus Omega Control Module, allowing charging capacity to grow as system requirements increase.
• Single-Cable Communication – Connects to the Zeus Omega Control Module using a single AZ CAN cable, eliminating the need for traditional multi-wire regulator harnesses.
• Direct Alternator Installation – Mounts at the alternator using short connections, reducing wiring complexity and simplifying installation in the engine compartment.
• Compatible with P-Type and N-Type Alternators – Supports externally regulated P-Type and N-Type alternators, with alternator type configured through the Zeus Omega mobile app.
• Multi-Voltage Compatibility – Suitable for 12V, 24V, 36V and 48V charging systems, providing flexibility across a wide range of marine, RV and commercial electrical installations.
• IP68 Environmental Protection – Fully epoxy-potted and IP68 rated to protect internal electronics from moisture, vibration and harsh engine bay conditions.
• High Temperature Operation – Rated for continuous operation in engine bay temperatures up to 100°C.
• Supports Multi-Alternator Systems – Multiple Alternator Drive Modules can be managed from a single Zeus Omega Control Module, allowing scalable charging system expansion without additional controllers.
• Emergency Charging Support – Works with the Zeus Omega Control System's emergency charging functionality, allowing charging to continue at float voltage if communication with the Control Module is interrupted.
• Purpose-Built for Zeus Omega – Designed specifically for integration with the Zeus Omega Alternator Control System and is not intended for standalone operation.

Adding an Alternator Drive Module provides a straightforward way to expand a Zeus Omega charging system while maintaining simplified wiring and intelligent alternator management.
