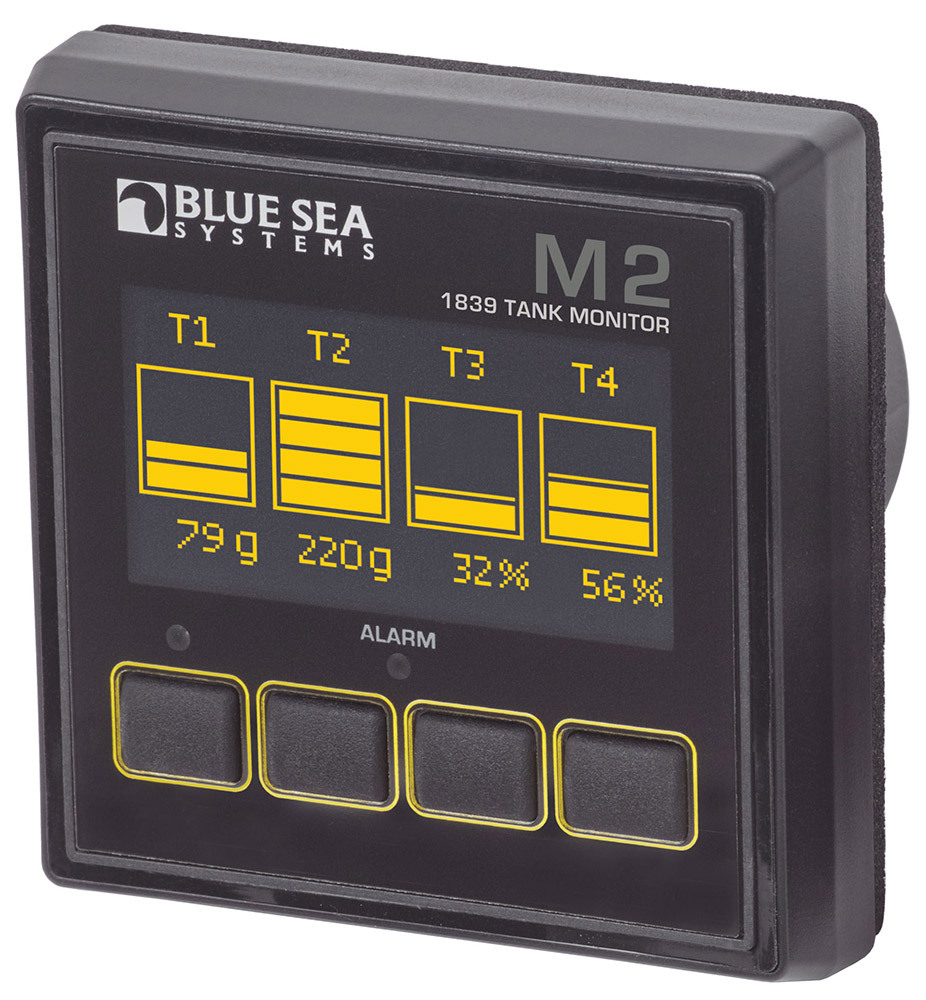

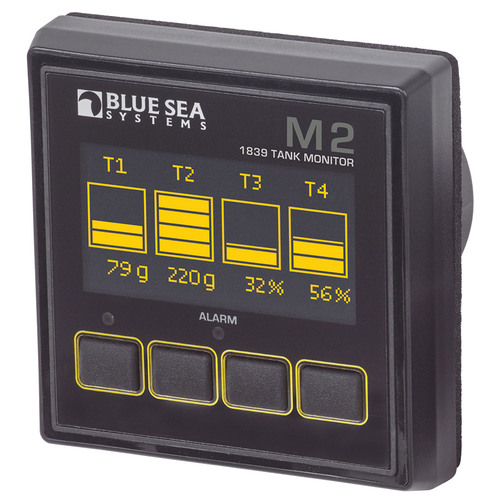

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

M2 OLED Tank Monitor Features:

  • Auto-dimming, bright Organic LED display is easy to read
  • 80dB alarm
  • Isolated 500mA MOSFET relay
  • Intuitive tank level monitoring
  • Monitor up to 4 tanks
  • Auto calibration for unique tank shapes
  • Compatible with common sending units

M2 OLED Tank Monitor Specifications:

Meter Tank
Function Monitors tank volume in up to 4 tanks
Resolution 1%
Input Voltage 7-70V DC
Alarm/Relay Activation High and Low Level
Display Size 55mm x 28mm
Range 0.3W-1.0W
Tank Alarms 80dB
Tank Shapes Custom shapes, auto calibration
Weight 4.00lb (1.81 kg)
SKU BSS.1839
Model # 1839
UPC/EAN 632085018399
Brand Blue Sea Systems
Shipping Weight 2.0000kg
Shipping Width 0.060m
Shipping Height 0.040m
Shipping Length 0.060m
Shipping Cubic 0.000144000m3
3 years
