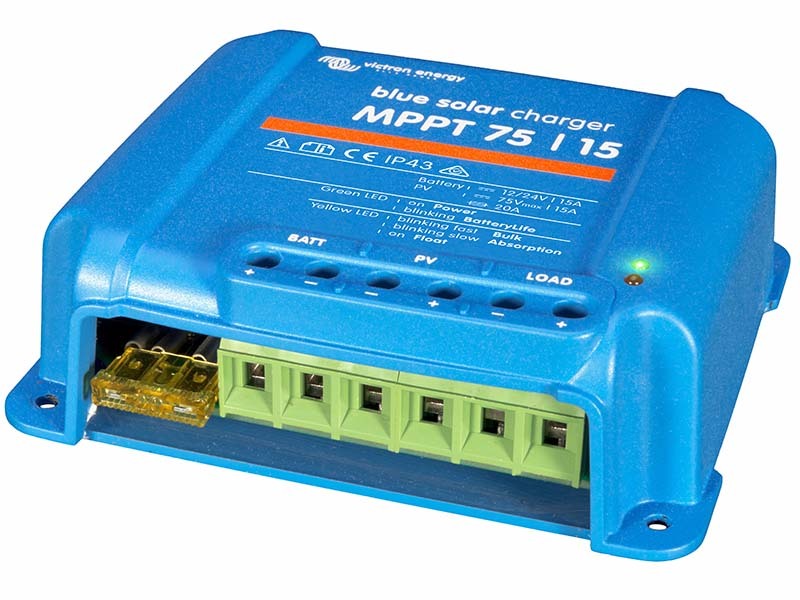

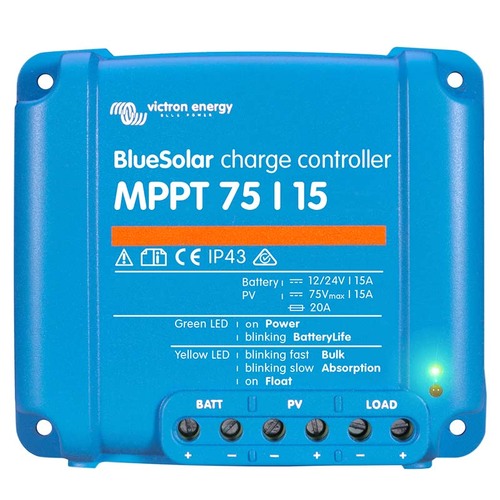

Victron BlueSolar MPPT 75/15 Solar Controller

BlueSolar 75 VOC, 15 Amp MPPT solar panel charge controller for 12V and 24V battery systems including Lithium.

  • Availability:
  • SKU: VIC.SCC010015050R
  • Battery: 12/24V
  • Max Voc: 75V
  • Charge Current: 15A
  • Manufacturer: Victron
  • MPN: SCC010015050R
  • Shipping Weight: 0.68kg

Free Shipping - On This Product

$107.00 inc GST
$166.00 RRP
SAVE $59.00 (36%)

Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

BlueSolar 75 VOC, 15 Amp MPPT solar panel charge controller for 12V and 24V battery systems including Lithium.

Victron BlueSolar Controlles require the V.E.Direct Bluetooth Smart dongle. For in-built Bluetooth please view the SmartSolar range.

MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It then manages this power to supply the varying voltage requirement of the battery plus load.

The Victron MPPT BlueSolar senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.

The BlueSolar supports Advanced Maximum Power Point Detection. Unlike the conventional MPPTs which tend to lock to a local MPP when shady conditions occur, [which may not be the optimum MPP], Advance Maximum Power Point Detection will harvest maximum energy by locking to the optimum MPP. In addition the unit is configured for optimal Three Step Charging.



With the V.E.Direct Bluetooth Smart dongle, programming, real-time data and history display is available on your smart device.

Inbuilt additional electronic protection provides

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.



Three Stage Charging

  • Stage One - Bulk or Boost - As much current as possible is delivered in order to rapidly recharge the batteries to about 80%.
  • Stage Two - Absorption - When the battery reaches its final charging voltage, known as its absorption voltage the charge allows the current to taper off as the battery nears a full charge.
  • Stage Three - Float - At this stage float voltage is applied which is enough to retain a full charge but controlled to prevent overcharging.

(VIC.SCC010015050R)

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.

MPPT 75/10, 75/15 & MPPT 100/15 Specifications

MPPT 75/10, 75/15 & MPPT 100/15 specifications
