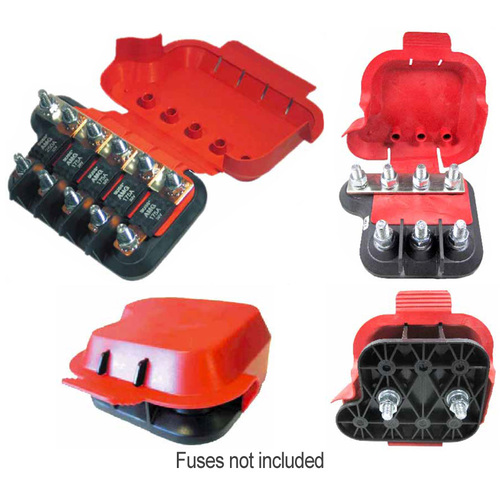

Bussmann’s heavy duty power distribution module called the LMG is used for main branch primary fusing and accepts 5 industry standard AMG / MEGA fuses. Utilising bus bar, the LMG requires just one input connection to power all fuses. The LMG the provides efficient power distribution suitable for many "under the hood" applications for Agriculture, Bus, Caravan/RV, Construction, Emergency, Trucks, Marine etc.

Bussman LMG Specifications:

  • Rating: Maximum total combined rating is 300A continuous
  • Voltage Rating: 32V DC
  • Temperature:-40°C to 85°C
  • Body: Black UL-Rated 94V0 thermoplastic
  • Studs: 5/16”-18 plated steel
  • Torque Mounting: 100 in-lbs max
  • Toruqe Power/Fuses: 120 in-lbs max
  • Hardware: Includes busbar, nuts & lock washers
  • Cover: Red EPDM (protection from accidental shorts)


Fuses are not included and sold separately.



SKU BUS.LMG5-1-001
Model # LMG5-1-001
Brand Bussmann
Shipping Weight 0.2500kg
Shipping Width 0.050m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.001000000m3
Unit Of Measure ea
