Blue Sea SafetyHub 100 Fuse Block

SafetyHub 100 Fuse Block

  • Availability:
  • SKU: BSS.7725
  • Manufacturer: Blue Sea
  • MPN: 7725
  • Barcode: 632085077259
  • Shipping Weight: 0.90kg
$149.00 inc GST
$172.90 RRP
SAVE $23.90 (14%)





Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

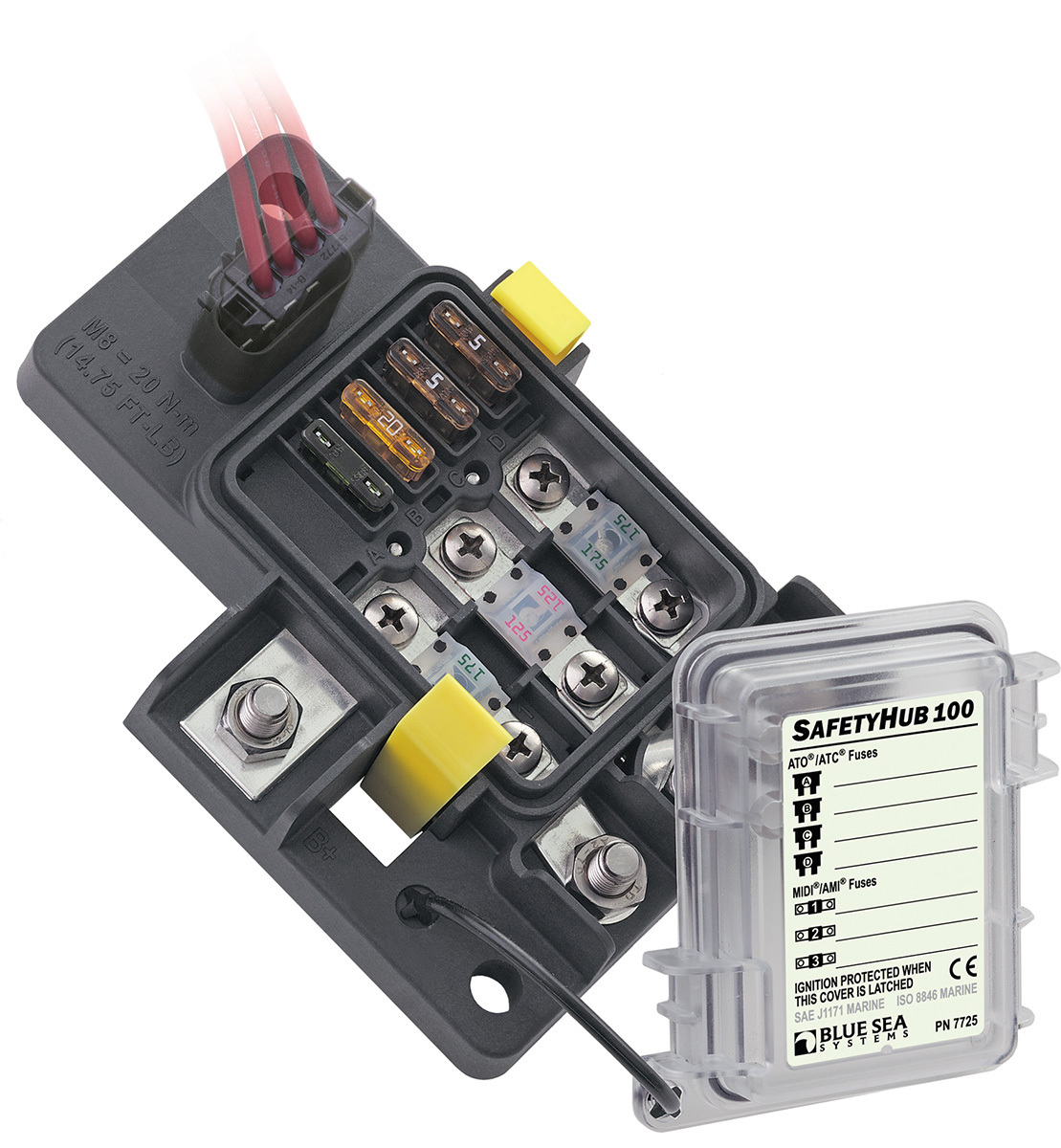

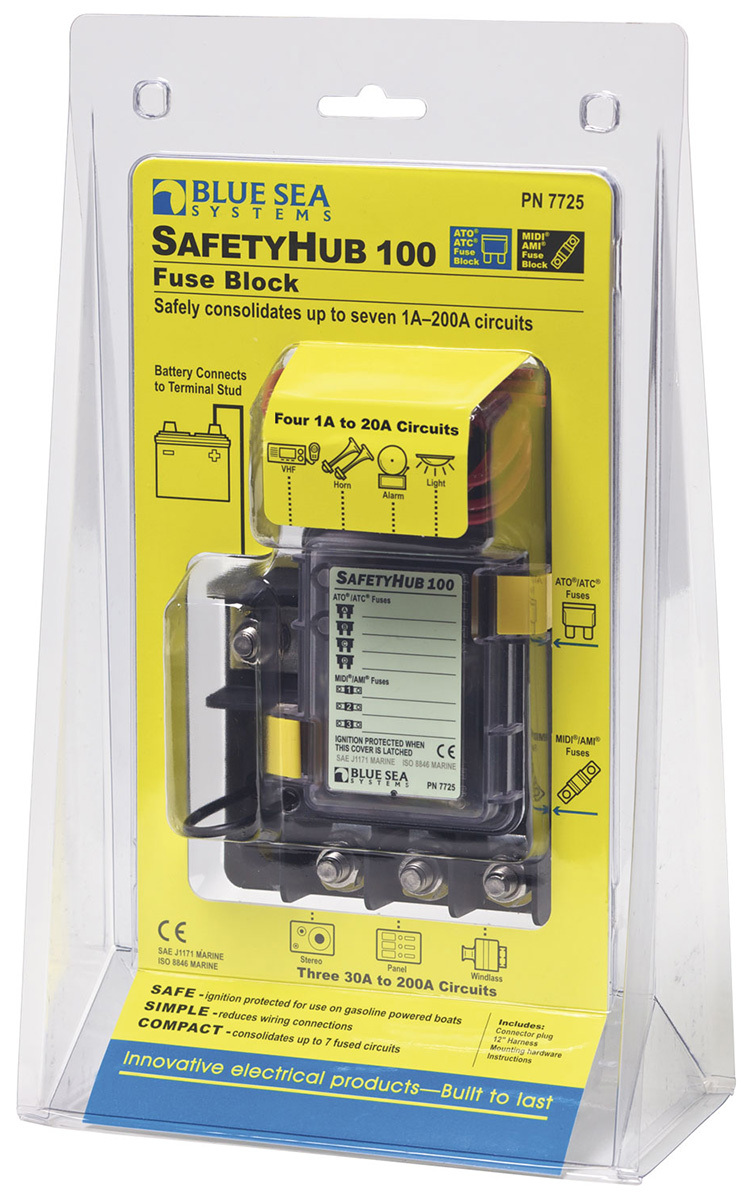

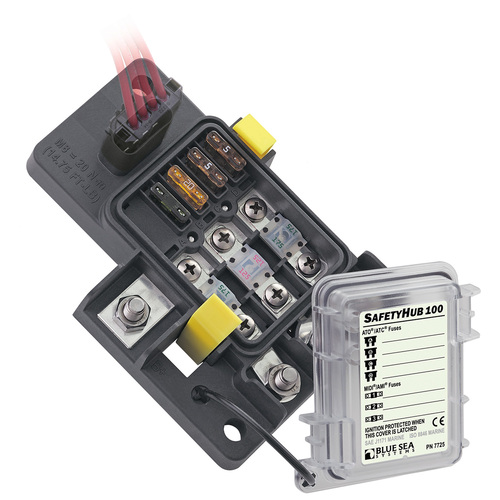

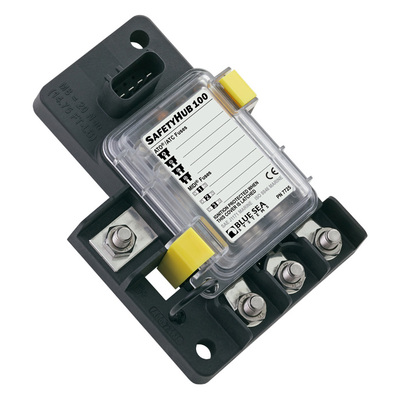

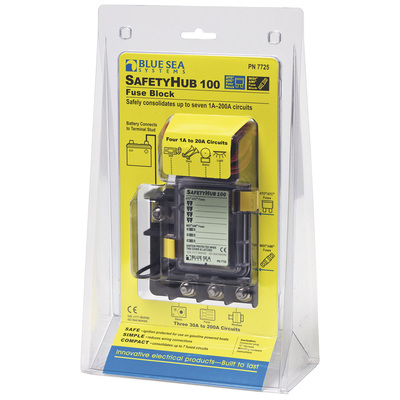

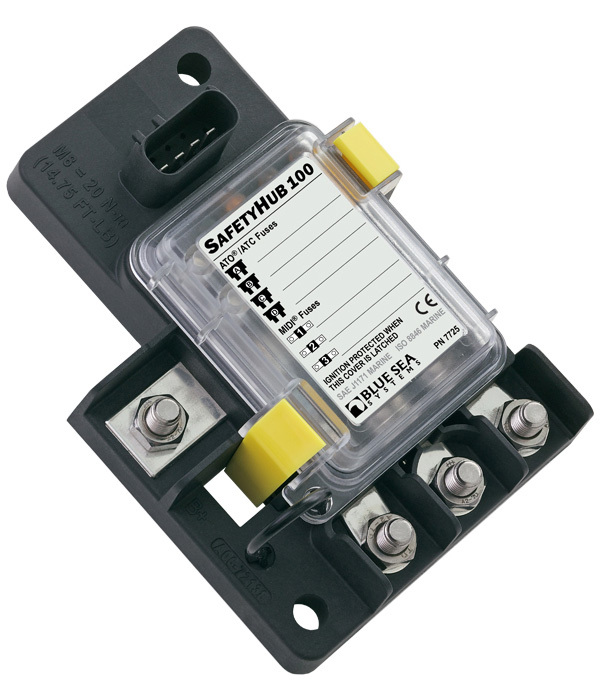

SafetyHub 100 Fuse Block

SafetyHub 100 Features

The SafetyHub 100 combines an ignition protected fuse block and an optional integrated connecting plug. It is safe for use on gasoline powered boats reduces wiring connections and consolidates up to seven fused circuits.

  • Three 30A−200A MIDI®/AMI® fuses ideal for high-amp circuits including panel feeds windlasses and stereo amplifiers
  • Four 1A−20A ATO®/ATC® fuses ideal for circuits including bilge pumps alarms and clock memory
  • Sealed cover protects fuses from the harsh marine environment: IP66 rating—protected against powerful water jets
  • Integrated connector plugs eliminate loose wires and provide a secure waterproof connection
  • Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats



Specifications
Circuits 7
Stud Size M8 x 1.25
Operating Voltage 12V
24V
32V
Amperage Maximum Operating - combined 280A
Recommended Ring Terminal M8 (5/16")
Screw Torque, 8-32 18in-lb (2.03 Nm)
Screw Torque, M5 27in-lb (3.05 Nm)
Stud Torque 180 in-lb (20.34 Nm)
Weight 3.20lb (1.45 kg)



(BSS.7725)
