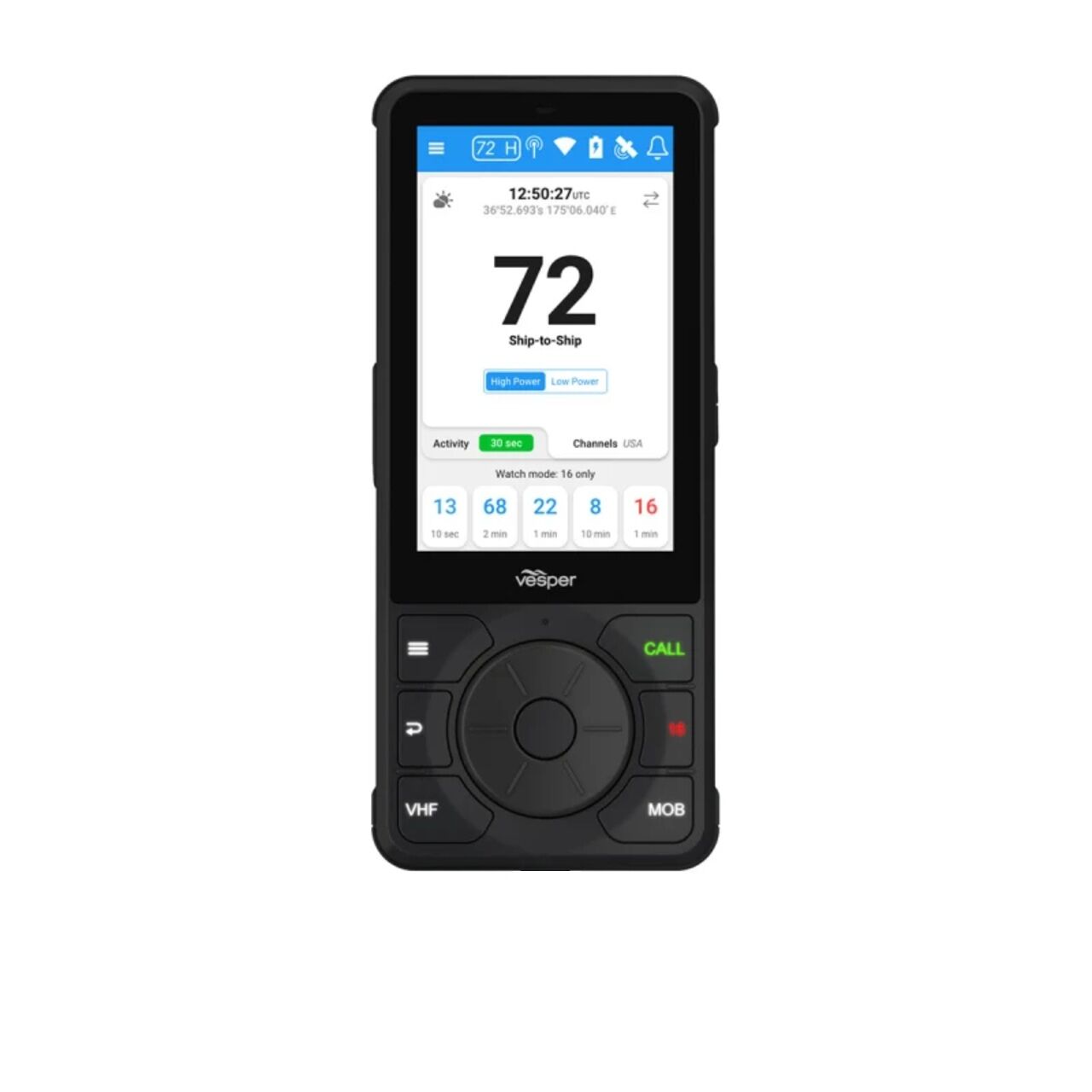

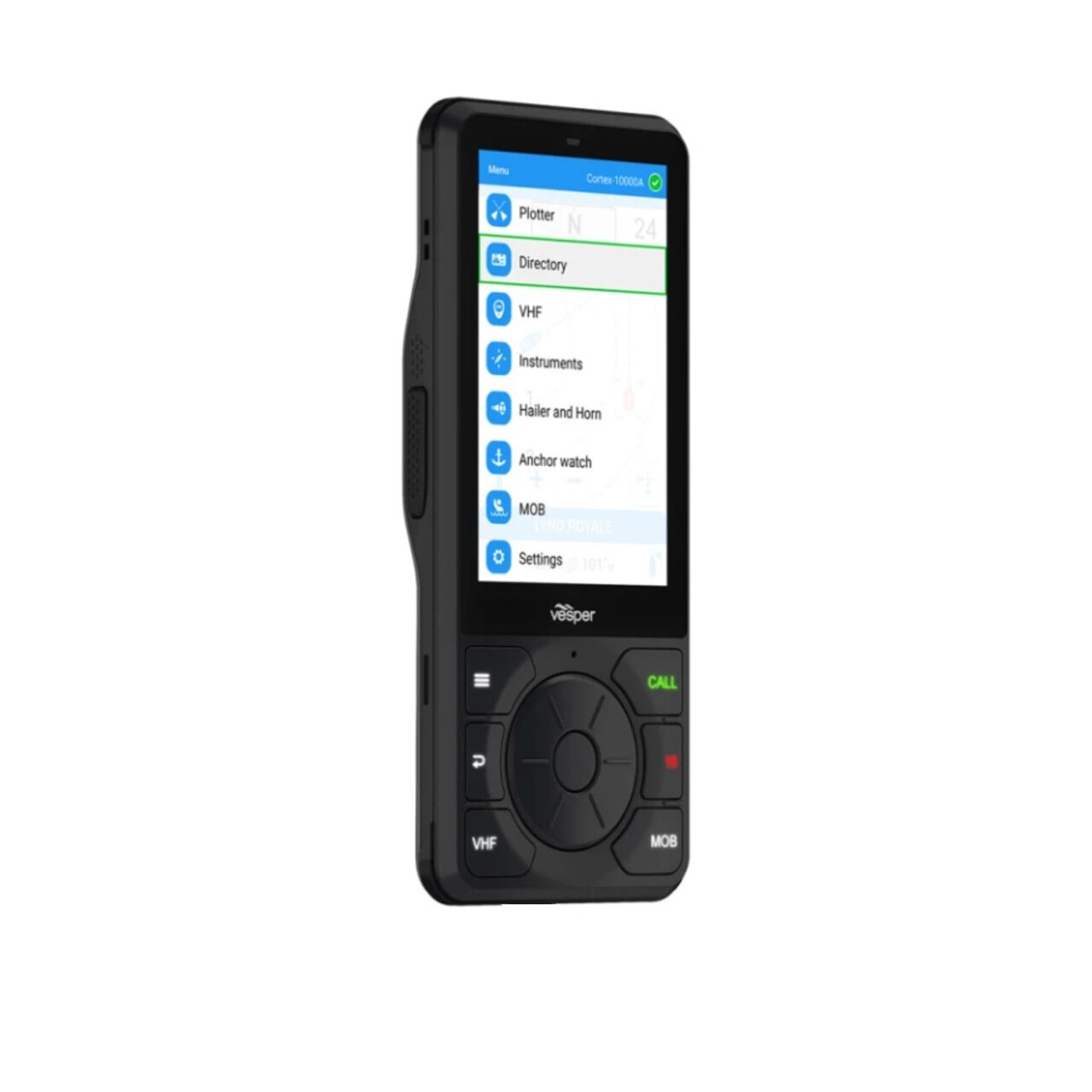

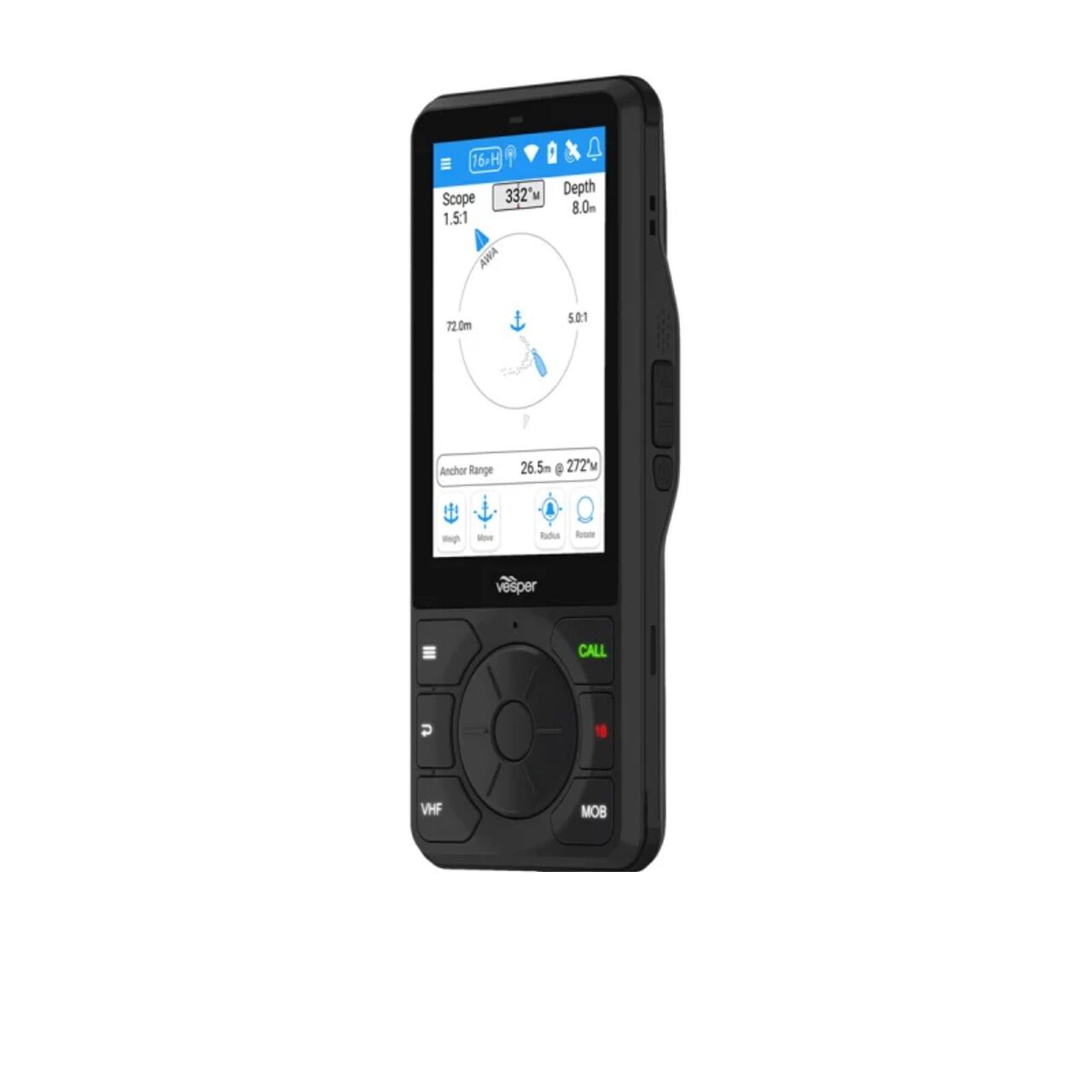

Wireless Marine Handset with DSC Calling and Onboard Mobility

This portable handset connects wirelessly to Cortex M1 or V1 hubs, combining VHF, DSC, and AIS control in a single unit. Designed for use anywhere on the vessel, it features a 4-inch Gorilla Glass touchscreen, click-wheel navigation, and loud 85 dBA audio output. With IPX7 waterproof protection and rugged construction, it is ideal for harsh marine environments. A built-in rechargeable battery provides over 12 hours of operation, while one-touch DSC, man overboard alerts, and AIS target calling offer enhanced safety and usability during on-water operations.

Key Features

  • Wireless Operation: Connects to Cortex hubs over Wi-Fi for complete mobility throughout the vessel.
  • 4-Inch Touchscreen Display: Optically bonded LCD with Gorilla Glass for high visibility and durability.
  • Click-Wheel and Button Control: Allows intuitive operation even with wet or gloved hands.
  • Loud and Clear Audio: 3W amplifier delivers up to 85 dBA for communication in noisy marine settings.
  • One-Touch DSC Calling: Quickly call AIS targets or send distress alerts with a single tap.
  • Man Overboard Response: Track-back mode and position details support rapid MOB recovery.
  • Long Battery Life: Integrated lithium polymer battery delivers 12+ hours of runtime per charge.
  • IPX7 Waterproof Rating: Engineered for full exposure to rain and saltwater spray.
  • Multiple Handset Support: Compatible with up to 10 handsets per Cortex system.
  • Flexible Mounting Options: Supplied with powered charging cradle and passive cradle.

A reliable and fully mobile solution for critical marine communication and safety onboard.

Product Specifications
Display 4" LCD TFT, optically bonded Gorilla Glass
Touchscreen Capacitive, usable with gloves and wet hands
Audio Output 3W Class D amplifier, up to 85 dBA
Control Interface Click-wheel and dedicated buttons
Waterproof Rating IPX7
Connectivity Wi-Fi to Cortex M1 or V1 hubs
Multi-Handset Capability Supports up to 10 handsets per system
Battery Type Rechargeable lithium polymer
Battery Life Over 12 hours per charge
Charging Time Approximately 2 hours
Operating Temperature -25°C to +55°C
Dimensions 164.8 × 71.8 × 21.4 mm
Weight 235 g
Included Accessories Powered cradle, non-powered cradle
SKU GAR.010-02816-10
Model # 010-02816-10
UPC/EAN 735850824765
Brand Garmin
Shipping Weight 0.5000kg
Unit Of Measure ea
