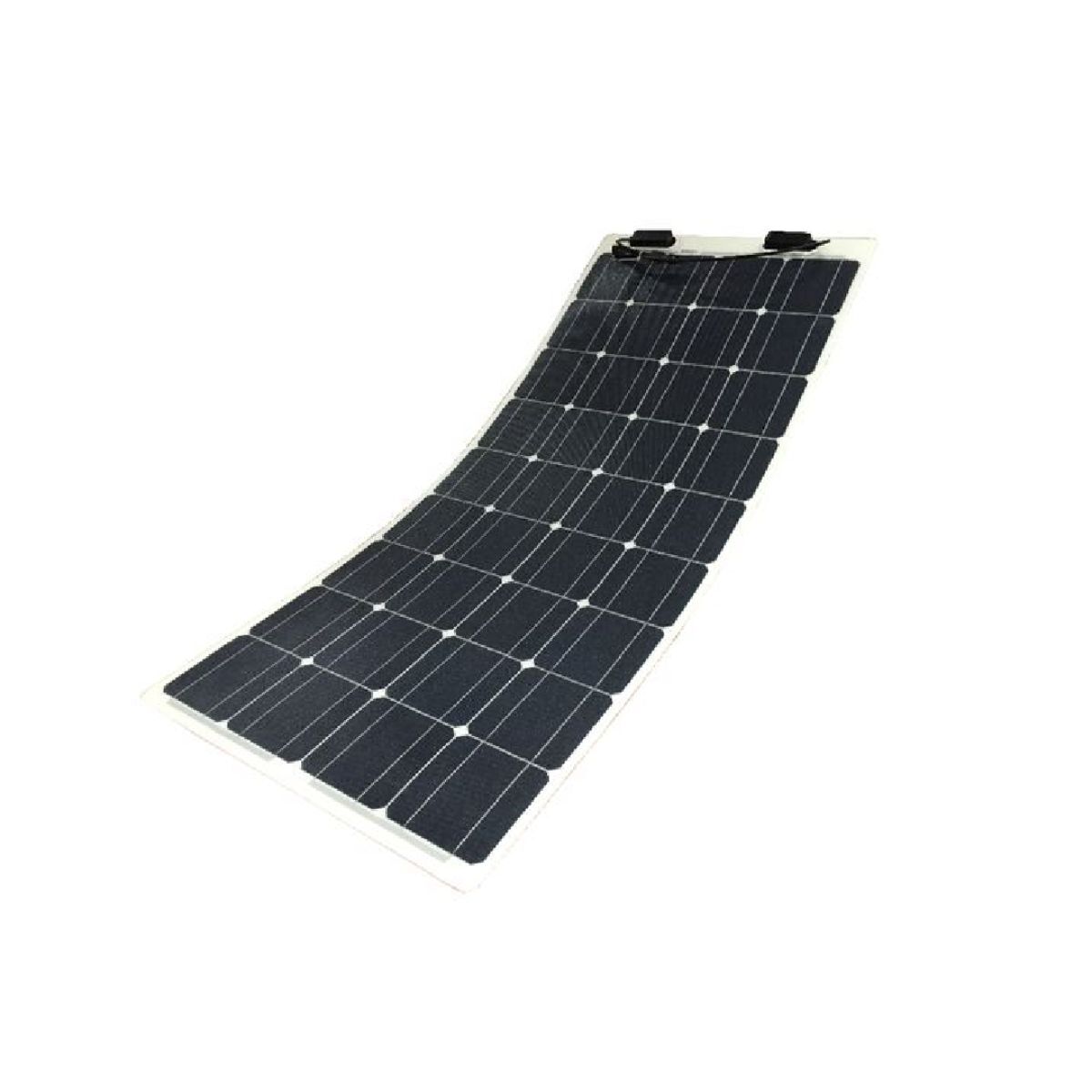

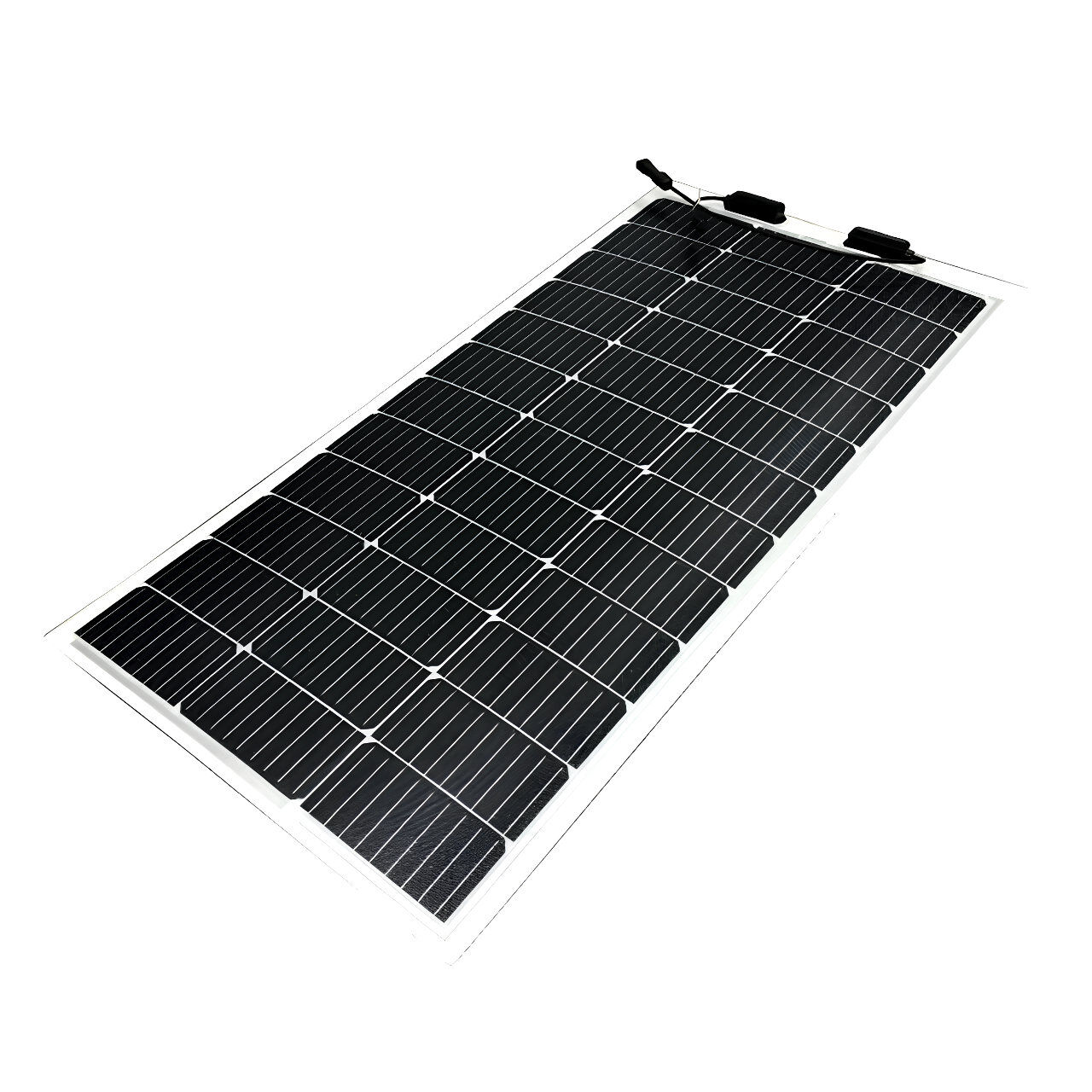

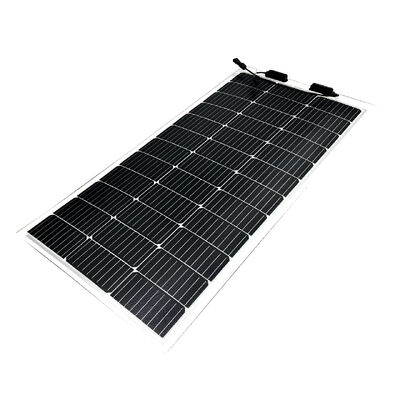

eArc Flexible Solar Panel 100W-12V Mono 1093x552x2mm
These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.
SKU: SNM.SMF100F-3X12UW | MPN: SMF100F-3X12UW
SAVE $29.01 (11%)
On BackorderMore stock on the way. Order now to reserve your stock.
Sunman's eArc series flexible solar panels are a revolutionary advancement in solar technology!
eArc is the world’s first glassless solar module, combining proven crystalline silicon solar cells with Sunman's patented composite material (ZL201610927464.6, ZL201610927383.6 EP3534410). This innovation offers the same durability and robustness as traditional glass modules, but with a significant difference.
Unlike glass, eArc functions like a flexible "solar skin," making it 70% lighter and up to 95% thinner. With eArc, there’s no need for mounting equipment or penetration during installation, reducing on-site time by 40%. Its lightweight design also makes it easier to transport, allowing up to 60% more kW per pallet. eArc is designed for applications that conventional glass modules can't accommodate.
Same Durability as Glass: eArc is the first of its kind to pass the same rigorous durability and safety tests as glass modules, including IEC 61215:2016, IEC61730:2016, and UL1703 (USA). The IEC61215 certification confirms eArc’s ability to withstand prolonged exposure to outdoor environments. It has also passed additional quality tests, including 3000 hours of damp heat, UV exposure (equivalent to 25 years), PID, salt mist, and ammonia corrosion tests.
Features & Benefits:
- Lightweight & Durable
- Ultra-slim profile—just 2mm thick
- Highly efficient Mono-PERC cells for optimal performance
- Flexible and suitable for a variety of surfaces
- MC4 connector system for easy daisy-chaining of multiple panels
Sunman's eArc series is setting a new standard in solar technology, offering unparalleled flexibility, efficiency, and durability.
Tougher, lighter, thinner and more durable
- Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
- This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
- Light - 100W frameless is 1.8kg
- Thin - 2mm
- Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
- Strong - rated 2400 pascals for wind and 2400 pascals for load
- Durable - 10 year product warranty for building and 5 years for mobile application
- 25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
- Output - Efficient monocrystalline cells, 25 year performance guarantee
- The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation
Product Category | Portable Solar Panels |
---|---|
Solar Panel Type | Flexible Solar Panels |
Wattage | 100W |
Max Power Voltage Vm(V) | 21.2 |
Max Power Current Im(A) | 4.75 |
Open Circuit Voltage Voc(V) | 25.2 |
Short Circuit Current Isc(A) | 5.12 |
Max System Voltage (VDC) | 1000 |
Dimensions | 1093 x 552 x 2 mm |
Cell Type | Monocrystalline |
Weight (kg) | 2.1000 |
Manufacturers Warranty | 5 Years |
SKU | SNM.SMF100F-3X12UW |
Model # | SMF100F-3X12UW |
Brand | Sunman |
Shipping Weight | 1.9000kg |
Shipping Width | 1.220m |
Shipping Height | 0.002m |
Shipping Length | 0.535m |
Shipping Cubic | 0.001305000m3 |
Unit Of Measure | ea |
