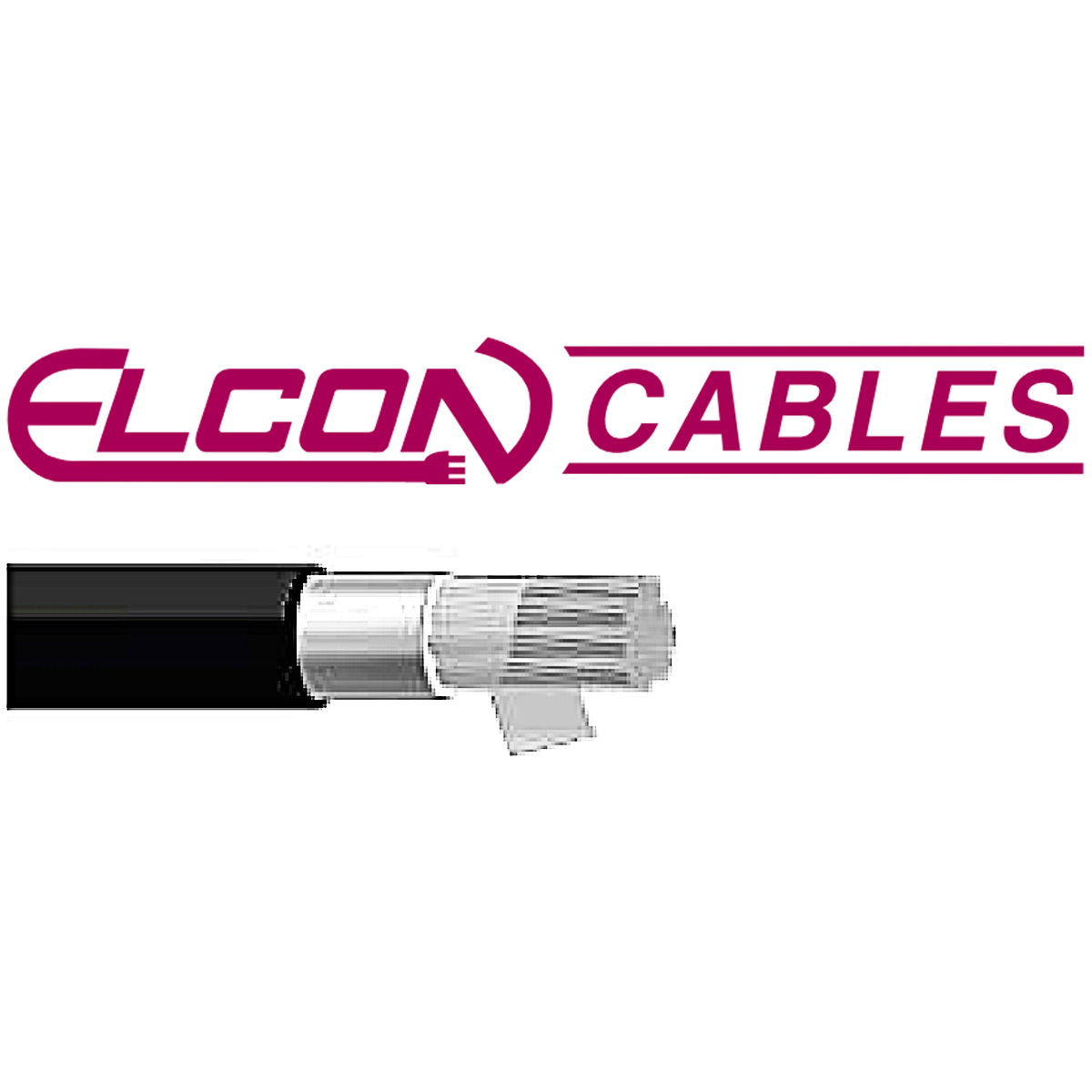

Elcon SDI Series Single Core Tinned Cables with 3.3KV Voltage Rating

The Elcon SDI Series Single Core Tinned Cables with a 3.3KV Voltage Rating are engineered to deliver outstanding performance and reliability in a variety of applications. With a focus on construction quality and cutting-edge materials, these cables are designed to meet the rigorous demands of industrial environments. Here's a breakdown of their key features:

Construction

  • Conductors:

    Crafted from tinned annealed copper conductors adhering to AS/NZS1125 standards, ensuring superior conductivity.

  • Insulation:

    Utilizes a special EPR compound of 3GI3 quality, complying with VDE 0207 part 20 standards for robust insulation.

  • Outer Jacket:

    Features a PCP (Polychloroprene) outer jacket of 5GM3 grade, meeting VDE 0207 part 21 standards, ensuring durability and longevity.

  • Voltage:

    Boasts a 1.0/3.3kV test voltage with a 6kV rating, guaranteeing optimal performance under various conditions.

  • Colour:

    Presented in a sleek black colour, providing versatility for different installations.

  • Minimum Bending Radius:

    Designed for practicality with a minimum bending radius of 4 x diameter for fixed installations and 5 x diameter for mobile installations.

Features:

  • Excellent Flexibility for ease of installation in diverse settings.
  • Flame Retardant and Submersible to 100m, ensuring safety and reliability.
  • Temperature Range of -25°C to +110°C, suitable for a wide range of environments.
  • Maximum Permissible Short Circuit Temperature of 250°C, providing reliability under extreme conditions.
  • UV, Sunlight, Ozone, and Oil Resistant, ensuring longevity in outdoor and challenging industrial settings.
  • Designed in accordance with DIN VDE 250 Part 602 standards, showcasing a commitment to quality.

Applications:

Ideal for heavy-duty flexible single-core applications in:

  • Mobile and fixed installations
  • Internal switchboard wiring
  • Sub-mains
  • Electrical traction vehicles
  • Battery bank connections
  • Machine and equipment cabling
  • Stacker and reclaimed cabling
  • Steelworks, cranes, and hoists
  • Other industrial applications

Packaging:

  • Standard length cable packing available in 100m and 500m options.
  • Cut to length options available for 10mm² and above, providing flexibility for various project requirements.

Amperage ratings specified are in accordance with  AS/NZS 3008.1.1.2009 Table 9.(Flexible “Spaced) @ 40˚C

A derating factor may apply, refer to AS/NZS 3008.1.1.2009.

Product Code Nominal Area
mm²		 No Strands x Conductor Size

Nominal Insulation Thickness
mm

 Nominal Sheath Thickness
mm		 Amps Max DC Resistance @20°C
Ω/Km		 Min OD
mm		 Max OD
mm		 Short circuit Rating
kA (1s)		 Mass
Kg/Km
ELC.3.3KVM-10MM 1 x 10 77 / 0.41 1.5 0.8 99 1.95 8.2 10 1.32 kA 155
ELC.3.3KVM-16MM 1 x 16 123 / 0.41 1.5 0.8 130 1.24 9.2 11.1 2.11 kA 255
ELC.3.3KVM-25MM 1 x 25 190 / 0.41 1.8 1.0 173 0.795 11.3 13.4 3.3 kA 330
ELC.3.3KVM-35MM 1 x 35 268 / 0.41 1.8 1.0 214 0.565 12.5 14.6 4.62 kA 430
ELC.3.3KVM-50MM 1 x 50 384 / 0.41 1.8 1.0 270 0.393 14.1 16.4 6.60 kA 590
ELC.3.3KVM-70MM 1 x 70 545 / 0.41 1.8 1.0 340 0.277 15.9 18.3 9.24 kA 785
ELC.3.3KVM-95MM 1 x 95 724 / 0.41 2.2 1.0 410 0.210 18.2 20.8 12.54 kA 1030
SKU ELC.SDI-3.3KV-CABLES
Brand Elcon Cables
