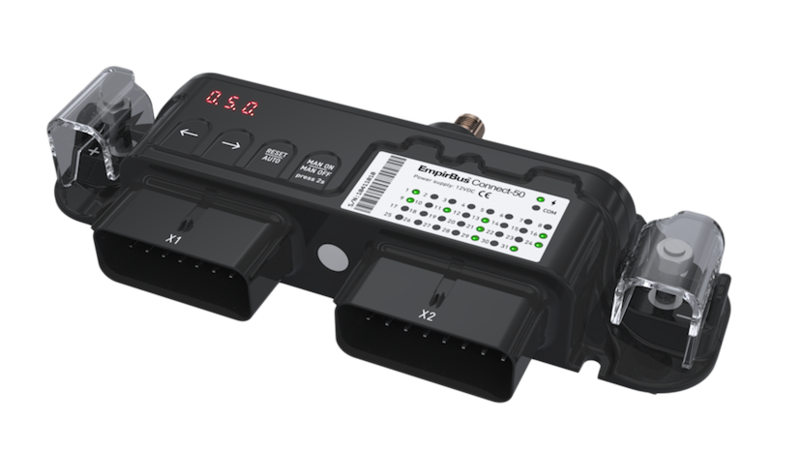

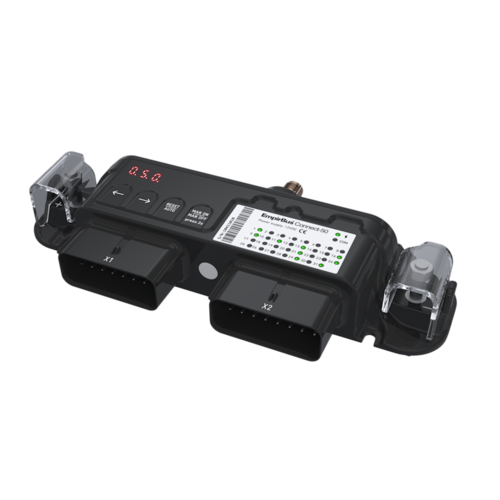

The Connect 50 DCM is a more compact version of the NXT DCM device, designed for smaller or less complex installations of the EmpirBus digital switching system. The Connect 50 unit includes the durability and competence of the NXT DCM device and delivers outstanding cost/channel ratio without sacrificing important functionality. Connect 50 can also be integrated to work with other DCMs or master control units in larger system installations, if desired.

The outputs have been fitted with high-accuracy current feedback that enables real-time readout of the current consumption per channel. A new design of the NMEA 2000® network connection provides a galvanically isolated connection — without the need for a powered bus for the network. The power consumption from the bus is zero for the Connect 50 unit.

The Connect 50 DCM comes as standard with 11 input channels and 20 output channels. As an option, it can be equipped with ports for additional galvanic isolated CAN and serial interface. The 010-002225-11 has 7 inputs, 20 output channels CAN and Serial Port and the 010-00225-12 has 7 inputs, 20 Output channels CAN, Serial Port and Wi Fi.

Reverse polarity on 4 channels is supplied as standard to control of tables, windows, hatches and more as well as capability for controlling and synchronizing window wipers. For applications where more reverse polarity control is needed, the Connect HPR distribution module offers 10 channels (18 amp) that can drive such functions as trim tab actuators, engine hatches, pumps and more.

11 input- Analogue or Digital, 20 output channels-10 Amp rating

Advanced lighting control- Provides full LED brightness control

Analogue functions- Monitor and control analogue signals

Smooth turn on- Create your desired ambience

Self-adapting units- For simple service & replacement

Dimming functionality- Full flexibility without limitation

Advanced motor control- Reverse polarity functionality for pumps, wipers etc.

Automatic override control- Security and safety with manual override

Control of complex wiper systems- Interval function, 1 or 2 speed, synchronised

Optional CAN/RS485/ Wi-Fi For connecting 3rd party devices and App control


Dimensions (WxHxD): 23.0 x 10.6 x 3.8 cm

Weight: 400 grams

Communication*: CAN-bus NMEA 2000®
                            CAN-bus galvanic isolated**
                            RS485 galvanic isolated*
                            Wi-Fi connectivity

* Model dependant ** Optional

Ambient temperature: -20° C to +55° C

Enclosure water rating: IP65


Maximum current: 50 Amp

Power Consumption: 1.5 mA

Supply Voltage for 12 Volt: 9 - 16 Volts D.C.


NMEA 2000: Micro 5-pin M12 Male

Channels: Molex MX150L 16 Circuits

Power Supply: M6 Bolt (torque: < 4.5Nm)

SKU GAR.010-02225-10
Model # 2110110
UPC/EAN 753759225292
Brand Empirbus
Shipping Weight 0.5000kg
Unit Of Measure ea
