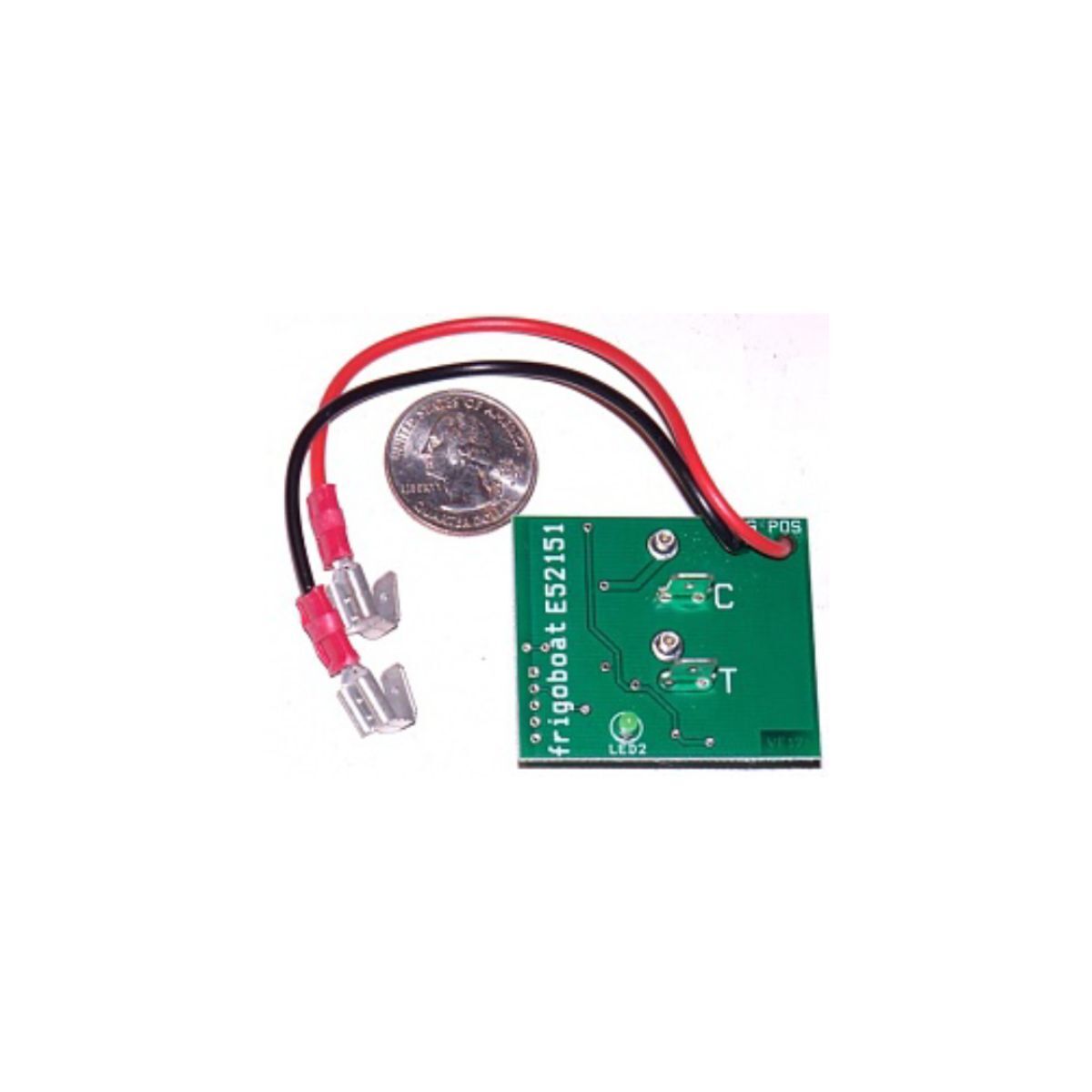

Merlin II Circuit Board for Danfoss BD35 and BD50 Compressors

The Merlin II is a compact circuit board designed to plug onto the Danfoss 101N02xx series controller for your Danfoss BD35 or BD50 compressor, enabling automatic control of the compressor speed. Key features include:

  • Automatic Speed Control: Adjusts the compressor speed automatically for optimal performance.
  • LED Indicators: A green LED blinks to indicate the current compressor speed, while a red LED blinks one to five times to help troubleshoot faults.
  • Energy Savings: Enhances energy efficiency while protecting your system's electronics and reducing stress on components.
  • Adjustable Compressor Speed: Features a potentiometer to adjust the compressor speed from 2,000 RPM to 3,500 RPM.
  • 12V/24V Switch: Switch between 12V and 24V operations with ease.
  • Easy Installation: Plugs directly onto the side of the Danfoss power controller.
  • Standard with Frigoboat Condenser Sets: Supplied as standard with Frigoboat condenser sets for seamless integration.

Compatibility Notice: This circuit board is not compatible with BD3 and earlier electronic controllers.

Upgrade your Danfoss compressor with the Merlin II for enhanced performance, energy savings, and reliable operation.

SKU VEC.E52152
Model # E52152
Brand Veco
Shipping Weight 0.2000kg
