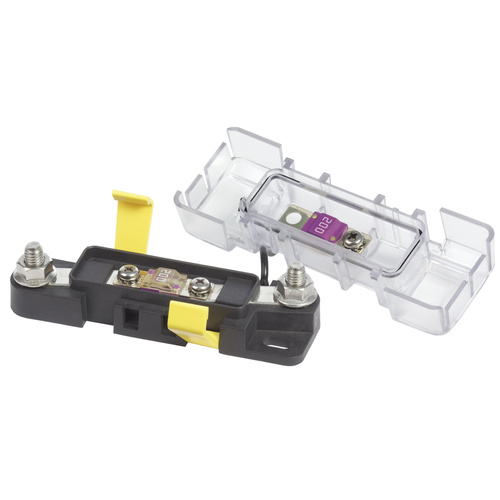

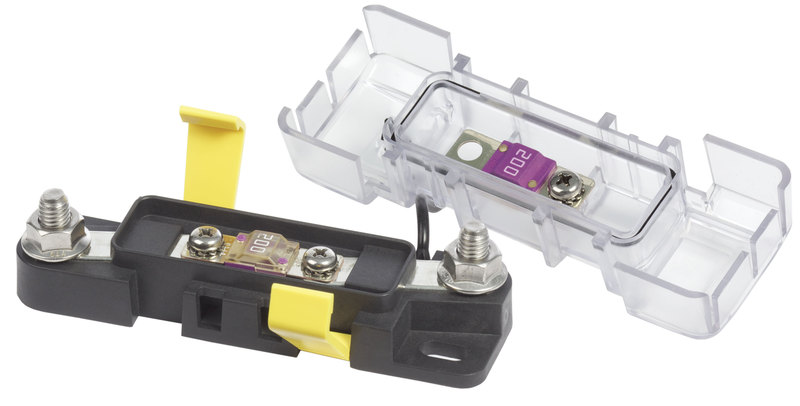

Blue Sea AMI/MIDI Fuse Block Safety Holder 30A - 200A

Safety Fuse Block accepts 30A to 200A AMI® or MIDI® fuses.

  • Availability:
  • SKU: BSS.7720
  • Manufacturer: Blue Sea
  • MPN: 7720B
  • Barcode: 632085077204
  • Shipping Weight: 0.07kg
$51.30 inc GST





Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

Safety Fuse Block accepts 30A to 200A AMI® or MIDI® fuses.

Features

  • Ignition protected for use in fuel vapour engine areas - meets ISO8846 and SAEJ1171
  • Sealed cover protects fuses from harsh marine environments and satisfies AYC/USCG insulation requirements
  • Cover breakouts allow wire access in three directions
  • IP66 rated

Specifications

  • Max operating voltage 32VDC
  • Max current rating 200A
  • Wire size to meet rating 2/0 AWG (70mm2)
  • Mounting holes accept 1/4" (M6) screws
  • Terminal stud size M8 x 1.25
  • Terminal screw size M5 x 0.8 Stainless Steel
  • Dimensions - 125 x 38.4 mm (4.92 x 1.51") length x width
  • 101.6 to 107.4mm (4 to 4.2") between screw mounting hole centers
  • outer cover length 130 mm (5.12")

Fuses not Included

(BSS.7720)
