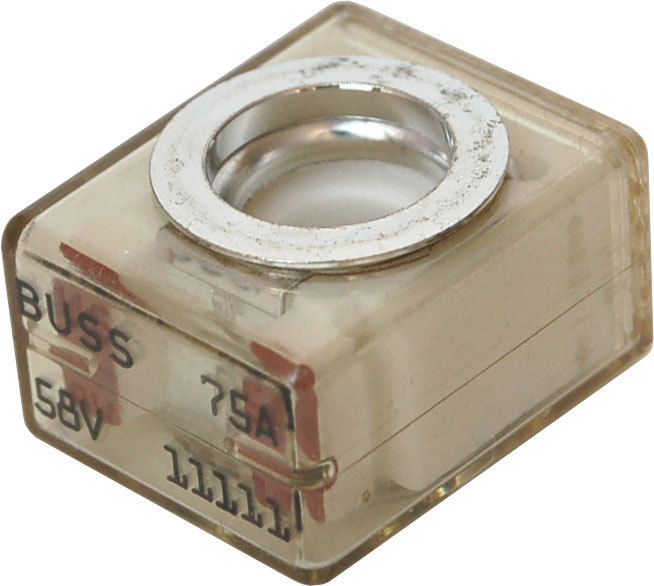

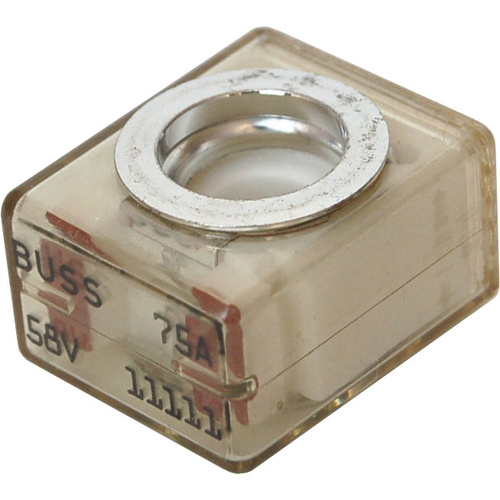

Blue Sea MRBF Terminal Fuse 75A
Terminal Fuses (MRBF - Marine Rated Battery Fuse) - Terminal Fuse 75 Amp
- Availability:
- SKU: BSS.5180
- Manufacturer: Blue Sea
- MPN: 5180B
- Barcode: 632085051808
- Shipping Weight: 0.03kg
Recommended Accessories
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
Terminal Fuses (MRBF - Marine Rated Battery Fuse) - Terminal Fuse 75 Amp
Features
- Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151 - do not mount the fuse directly to the battery terminal
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected—safe for installation aboard gasoline powered boats
- Clear window—visual indication of blown condition
- Colour coded for each amperage
| Specifications | |
|---|---|
| Amperage | 75A |
Ignition Protected  |
Yes |
| Maximum Voltage | 58V DC |
| Interrupt Capacity |
10000A @ 14V DC 5000A @ 32V DC 2000A @ 58V DC |
| Weight | 0.06lb (0.03 kg) |
(BSS.5180)
