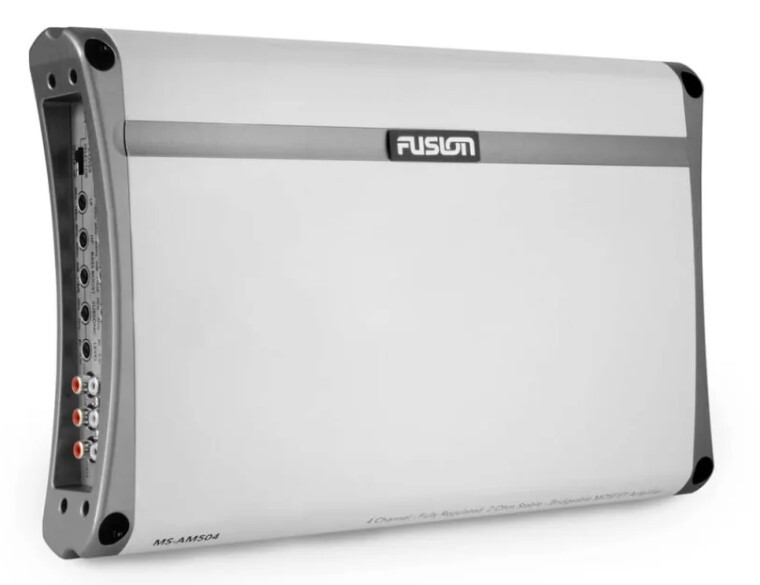

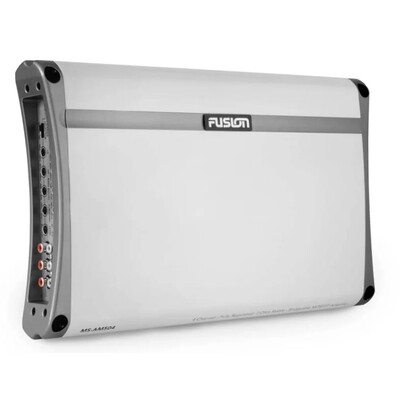

QUALITY AUDIO AMPLIFICATION

Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.

CLASS-AB AMPLIFIER TECHNOLOGY

The Class-AB design provides high power output with reduced distortion to the connected speakers/subwoofers for an enhanced level of audio performance.

ENHANCED SYSTEM PERFORMANCE

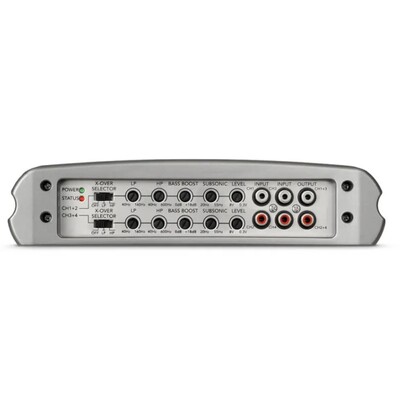

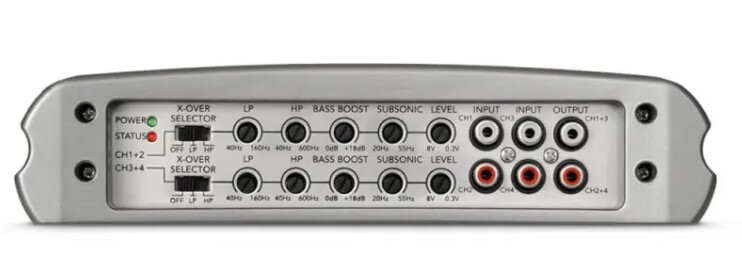

The AM Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for enhanced performance and system protection.

MARINE-READY DESIGN WITH CONFORMAL COATED PCBS

Helping to extend the life of your amplifiers, the AM Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.

HEAT SINK TECHNOLOGY

The incorporated heat sink is designed to dissipate heat efficiently, providing more thermal stability and enhanced component reliability.

Physical dimensions (Length x Width x Height)
  4 Channel: 14.41″ x 9.02″ x 2.09″ (366 x 229 x 53 mm)
Amplifier class Class-AB
Peak power (Watts) 4 Channel: 500 W
Total rated power output - 4 Ohm (Watts)
  4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts)
  4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
Total rated power output - 4 Ohm Bridged (Watts)
  4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
Frequency response 5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity 0.3 V - 8 V RMS, user adjustable
Input impedance 5k Ohm nominal
High-pass/low-pass full range filter Yes (user selectable)
HP variable crossover frequency 40 Hz - 600 Hz
LP variable crossover frequency 40 Hz - 160 Hz
Warranty 1 year
SKU FUS.010-01500-00
Model # 010-01500-00
UPC/EAN 0753759139254
Brand Fusion
Shipping Weight 3.6000kg
