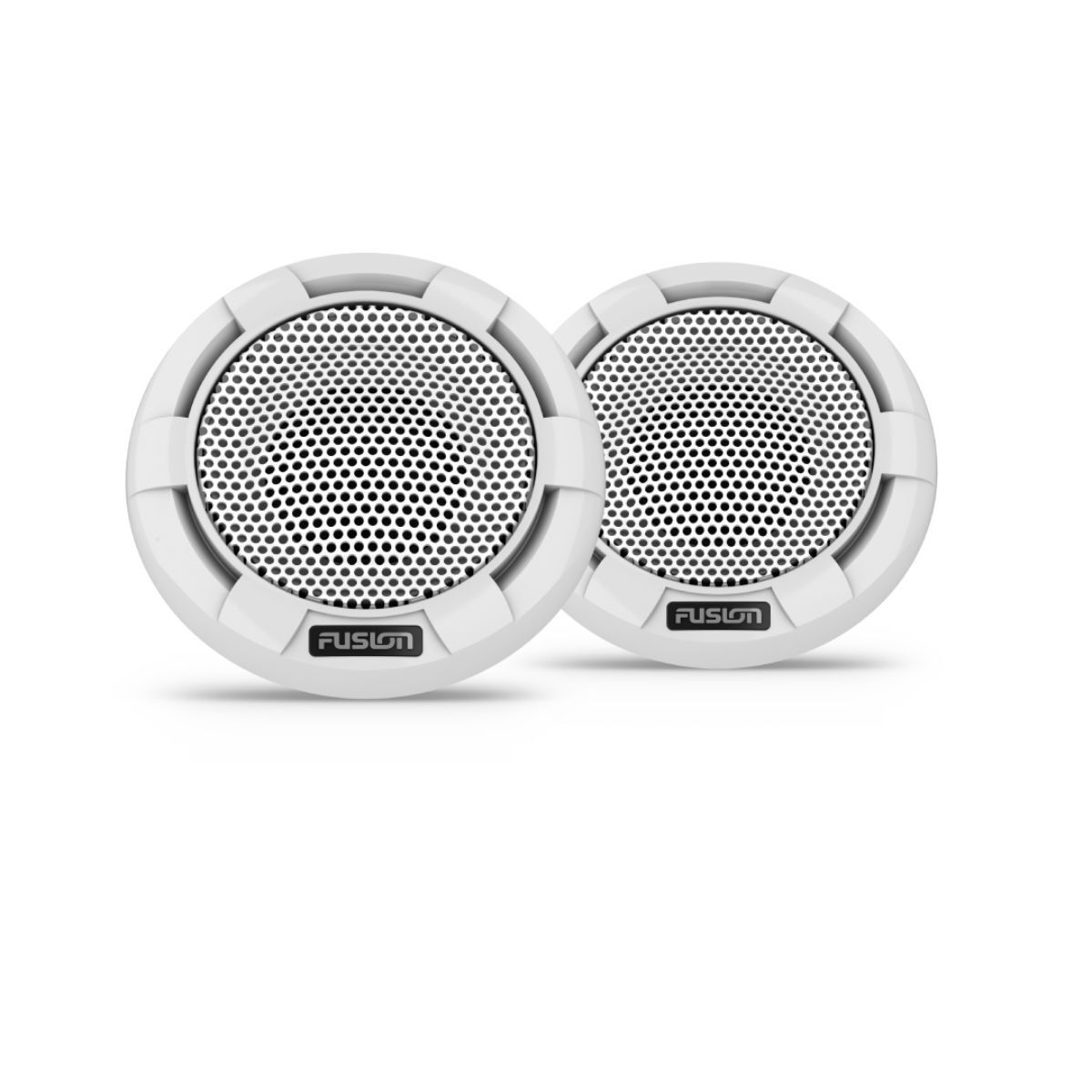

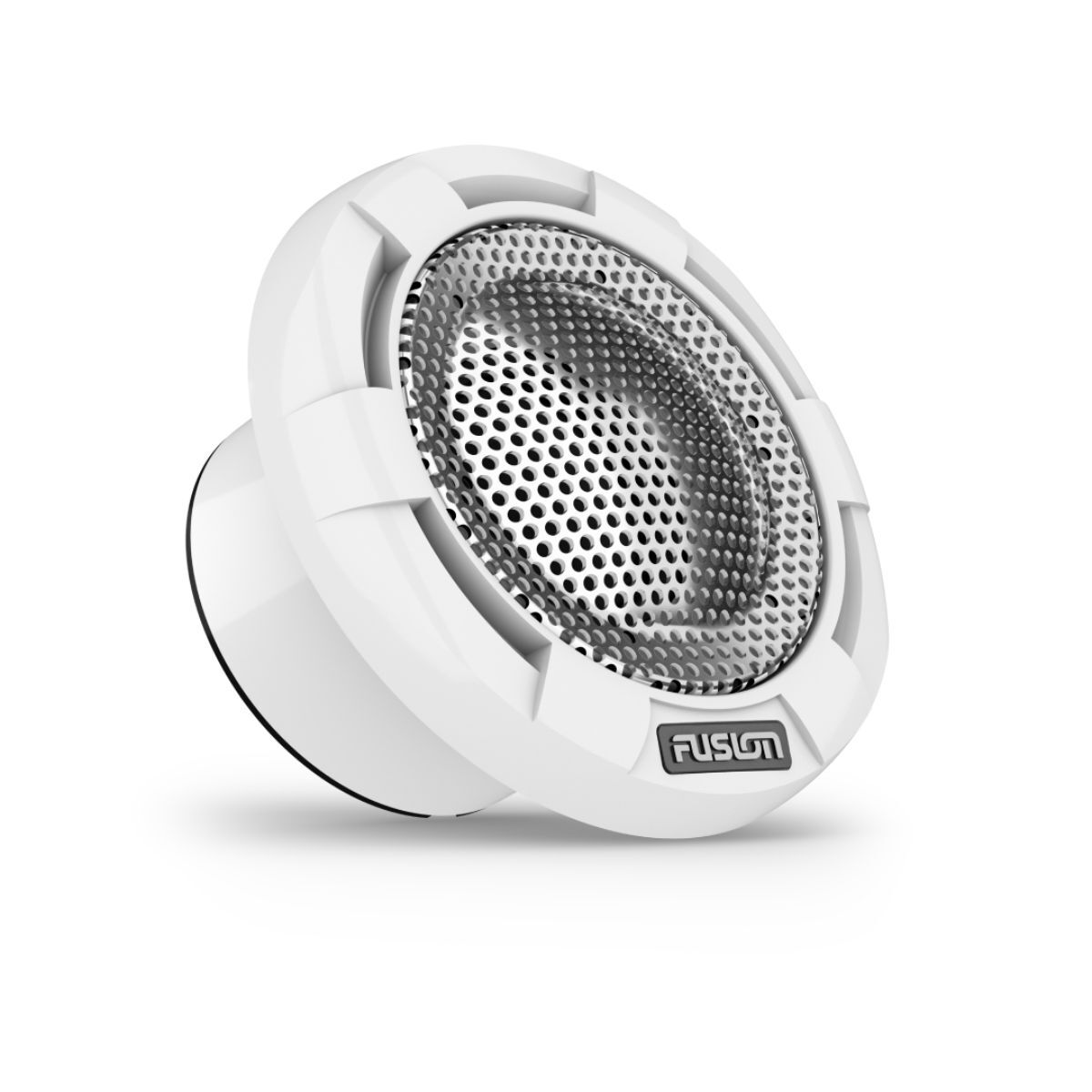

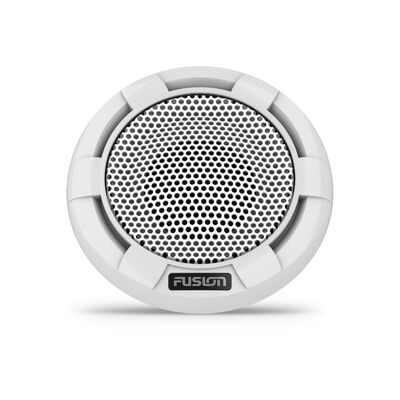

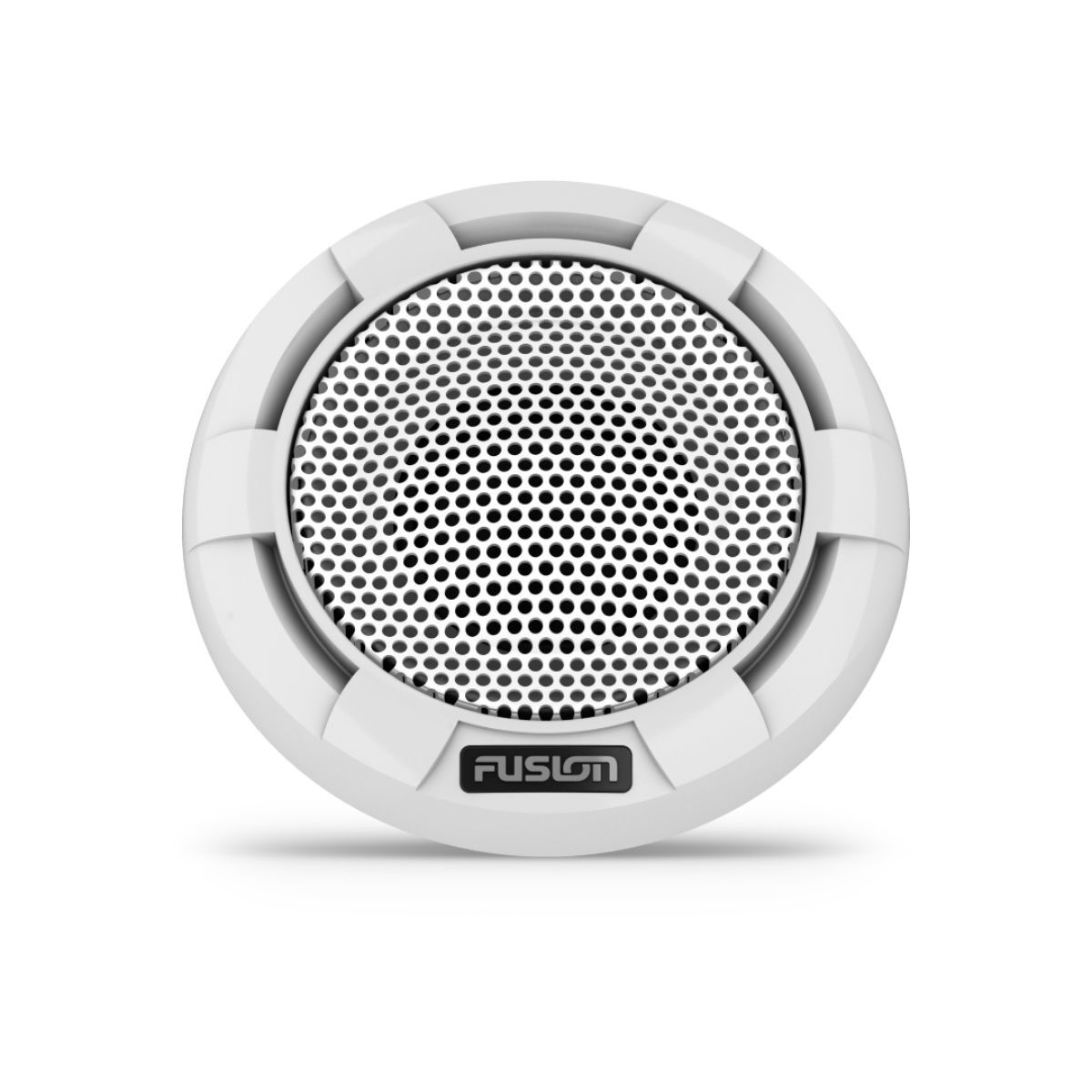

Enhance your listening experience while you’re on the move with these marinised component tweeters. Designed to be dash mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind, and wave noise.

Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.


  • Compact form factor
  • Low profile mounting design
  • IP65 weather rating
  • Fusion True-Marine™ design with a 3 year warranty


Physical dimensions (diameter x depth) 2.91″ x 1.64″ (74 x 41.6 mm)
Water and dust rating IP65
Tweeter size 1″
Peak power (watt) 330 W
RMS power (watt) 60 W
Sensitivity (1 W / 1 m) 91 dB
Frequency response 3 kHz - 20 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 25 - 140 W/Ch
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 1″
Material Aluminum dome
Tweeter connection Flying lead with water-resistant 2-way connector, 5.9″ (150 mm)
Compass-safe distance 43.3″ (110 cm)
Warranty 3 years

Mounting Dimensions

Mounting diameter clearance 2.01″ (51 mm)
Mounting depth clearance 1.22″ (31 mm)
SKU FUS.010-02796-20
Model # 010-02796-20
UPC/EAN 753759303020
Brand Garmin
Shipping Weight 0.4000kg
Shipping Width 0.074m
Shipping Height 0.042m
Shipping Length 0.074m
Shipping Cubic 0.000229992m3
