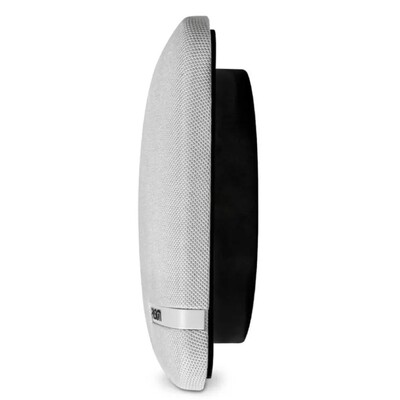

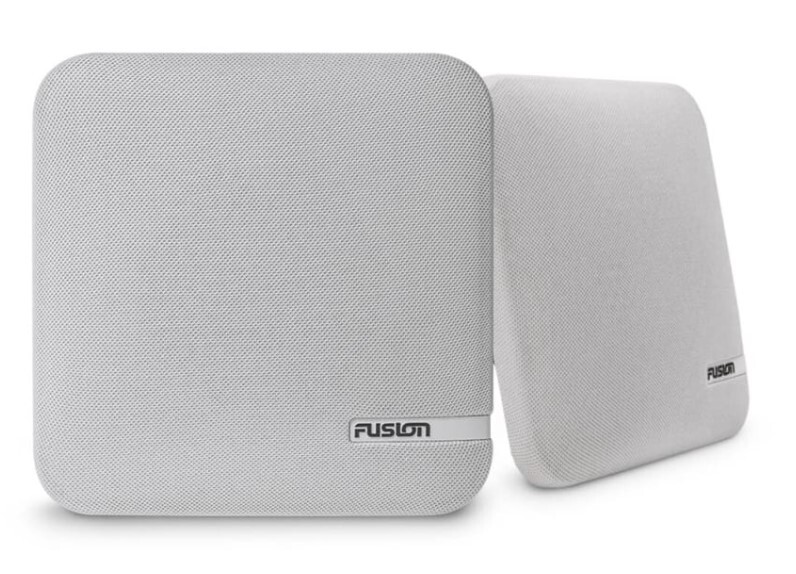

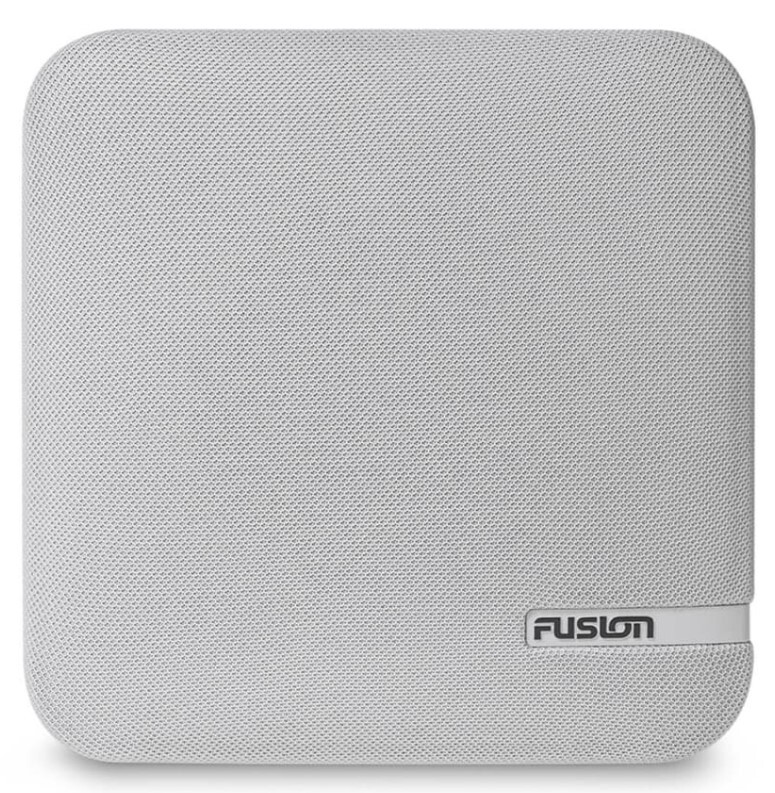

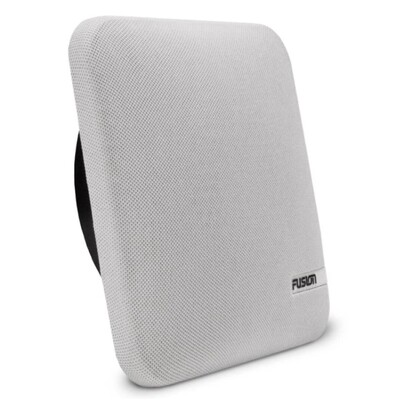

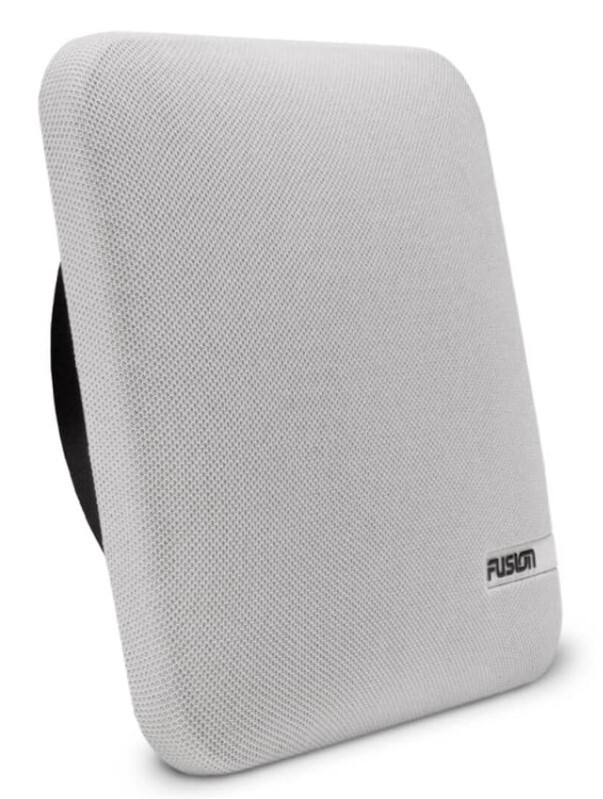

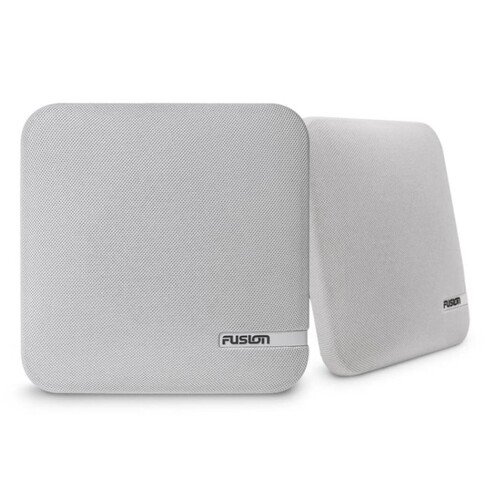

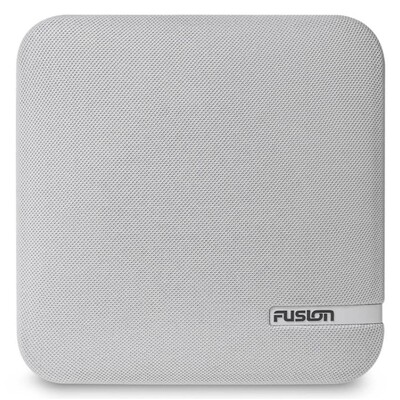

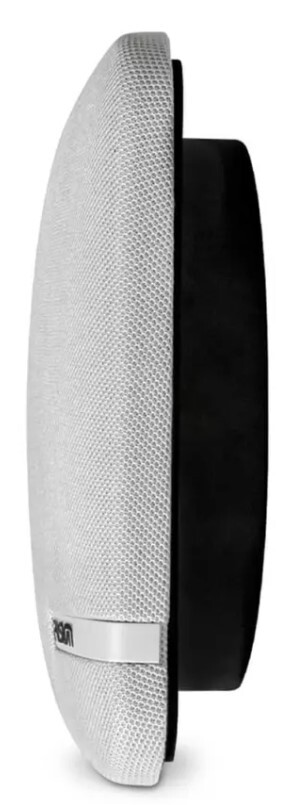

The enclosure allows for installation where mounting depth is limited, without compromising sound quality. The enclosure also protects the components from damage without needing rear speaker cups, simplifying installation.


An optimised 3″ speaker driver is incorporated into the enclosure, with all acoustic parameters precisely calculated for quality audio reproduction wherever the speaker is installed.


Physical dimensions (Diameter x Depth) 6.10″ x 1.81″ (155 x 46 mm)
Water and dust rating IP65
Configuration Full Range
Speaker size 6.50″
Peak power (Watts) 100 W
Sensitivity (1 W / 1 m) 84 dB
Frequency response 150 Hz-20 kHz
Nominal impedance 4 ohms
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 20 mm
Cone material Polypropylene cone with rubber surround
Compass-safe distance 96.50″ (245 cm)
Warranty 3 year
SKU FUS.010-02263-10
Model # 010-02263-10
UPC/EAN 0753759236595
Brand Fusion
Shipping Weight 1.5900kg
