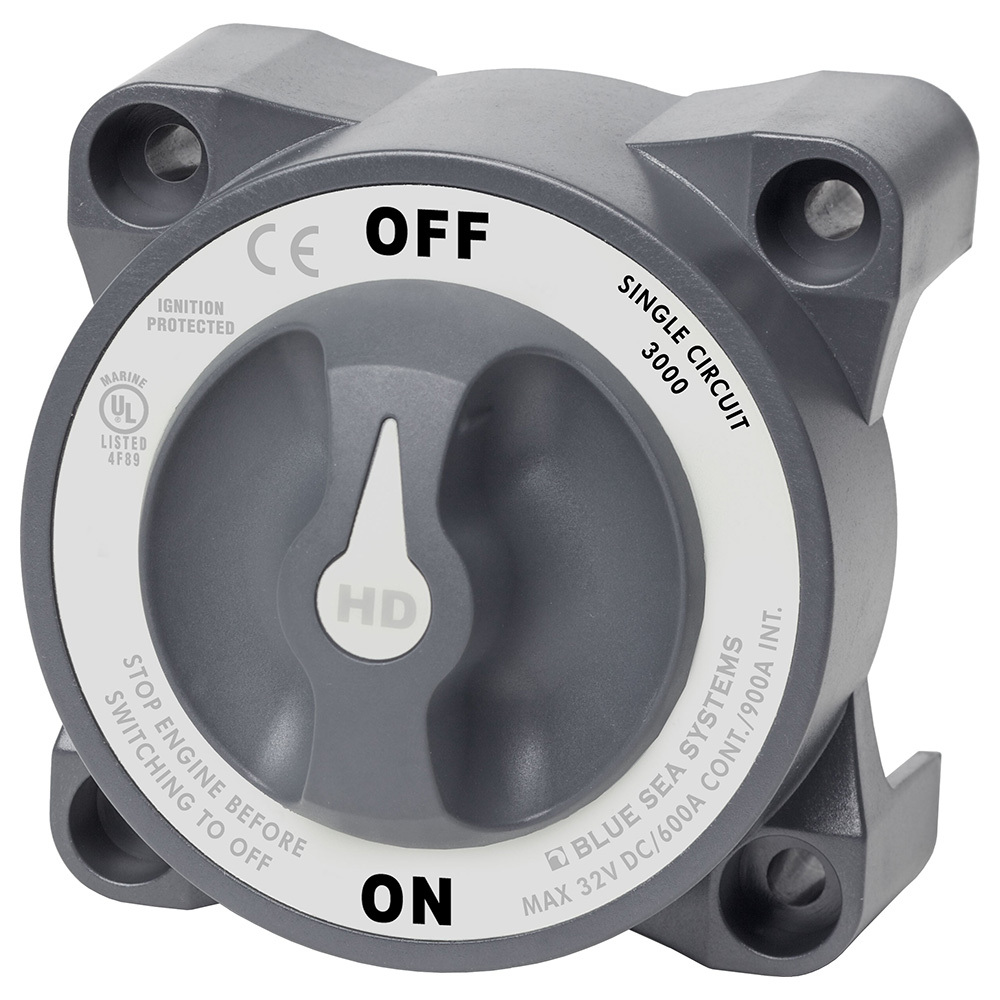

Blue Sea 3000 HD-Series Heavy Duty On-Off Battery Switch - ON-OFF

HD-Series Battery Switches - HD-Series Battery Switch Single Circuit ON-OFF

  • Availability:
  • SKU: BSS.3000
  • Afd: No AFD
  • Positions: ON-OFF
  • Poles: Single Pole
  • Manufacturer: Blue Sea
  • MPN: 3000B
  • Shipping Weight: 0.59kg
$121.10 inc GST
$150.70 RRP
SAVE $29.60 (20%)




Recommended Accessories



Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

HD-Series Battery Switches - HD-Series Battery Switch Single Circuit ON-OFF

Features

Switches a single battery to a single load group

  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Ignition protected—safe for installation aboard gasoline powered boats

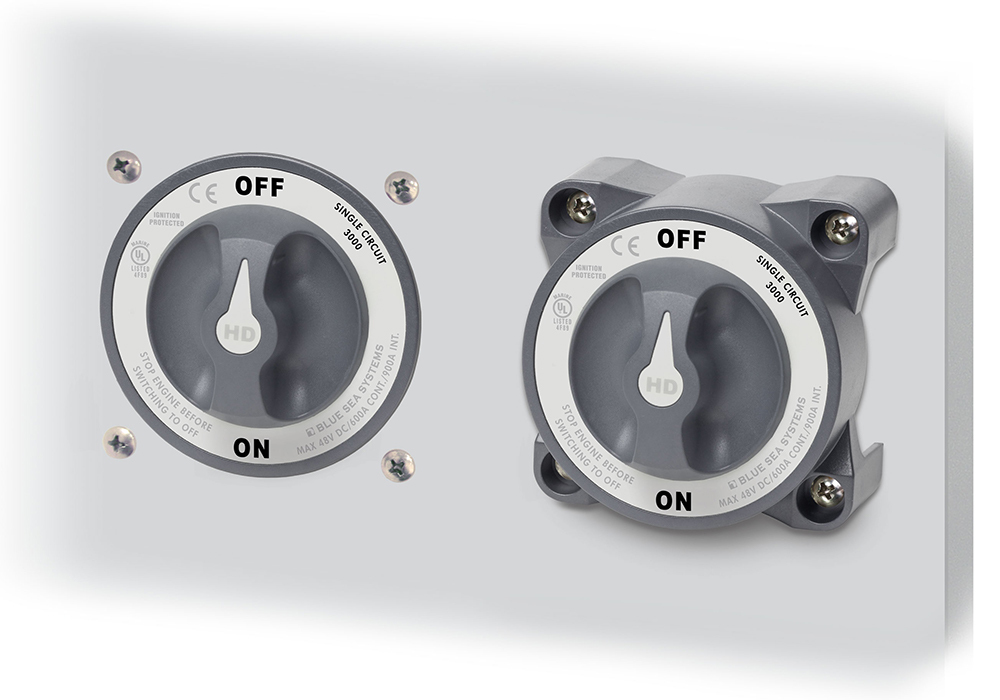

  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables
  • M12 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 1/2"" and M12 ring terminals
  • 7/8"" (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only
  • Case design allows surface or rear panel mounting

(BSS.3000)

Specifications
Switch Type  Single Circuit ON-OFF
Color Grey
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating  600A
Intermittent Rating  900A (5 min)
Cranking Rating 30 sec  1750A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size 1/2" (M12)
Weight 1.30Lb (0.59 Kg)
Weight 1.30lb (0.59 kg)
