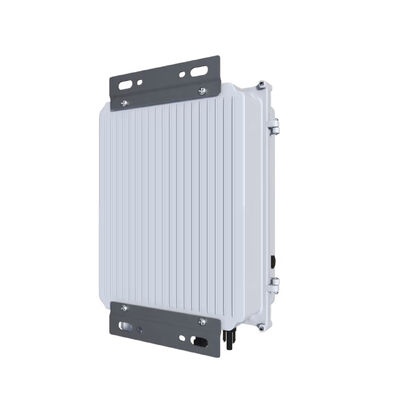

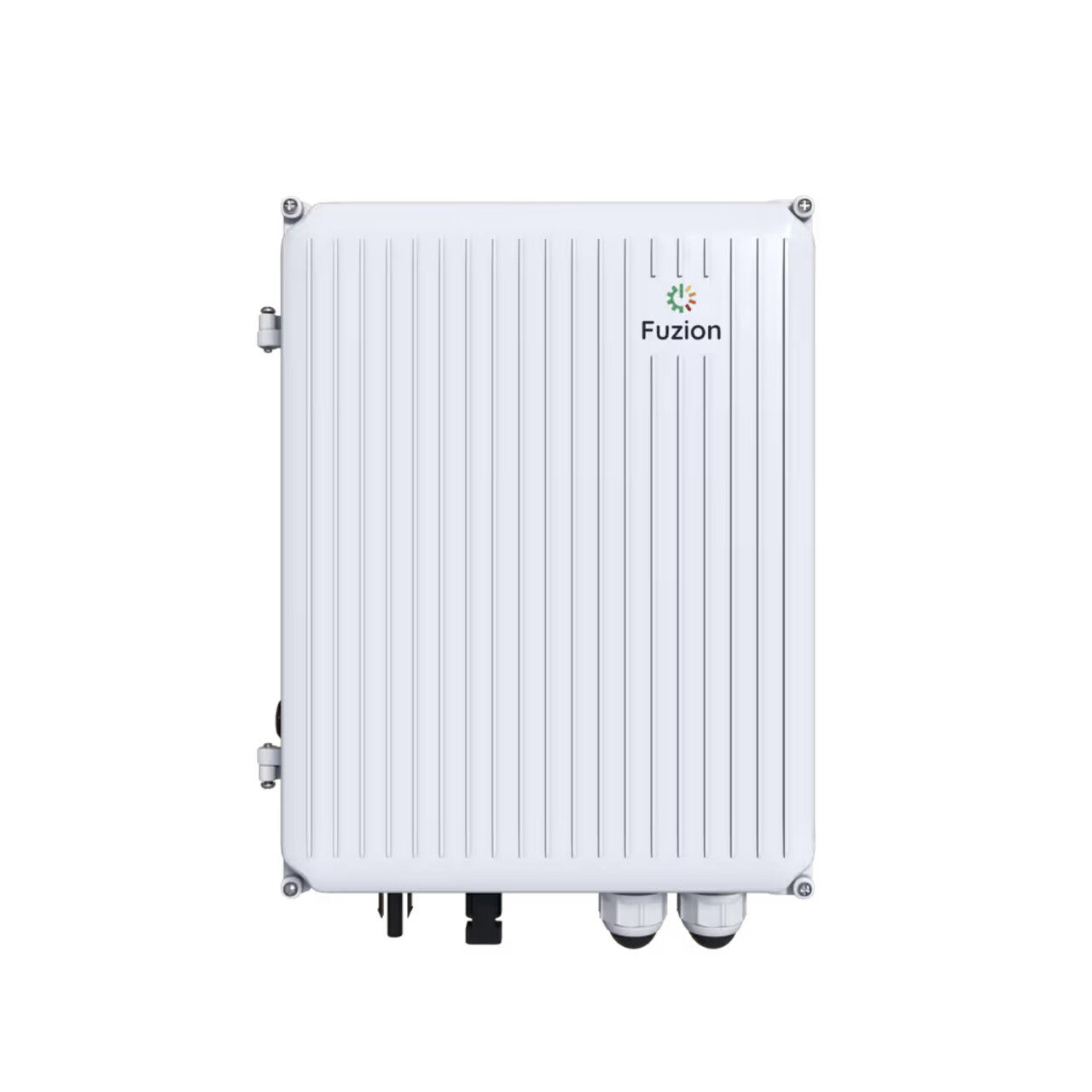

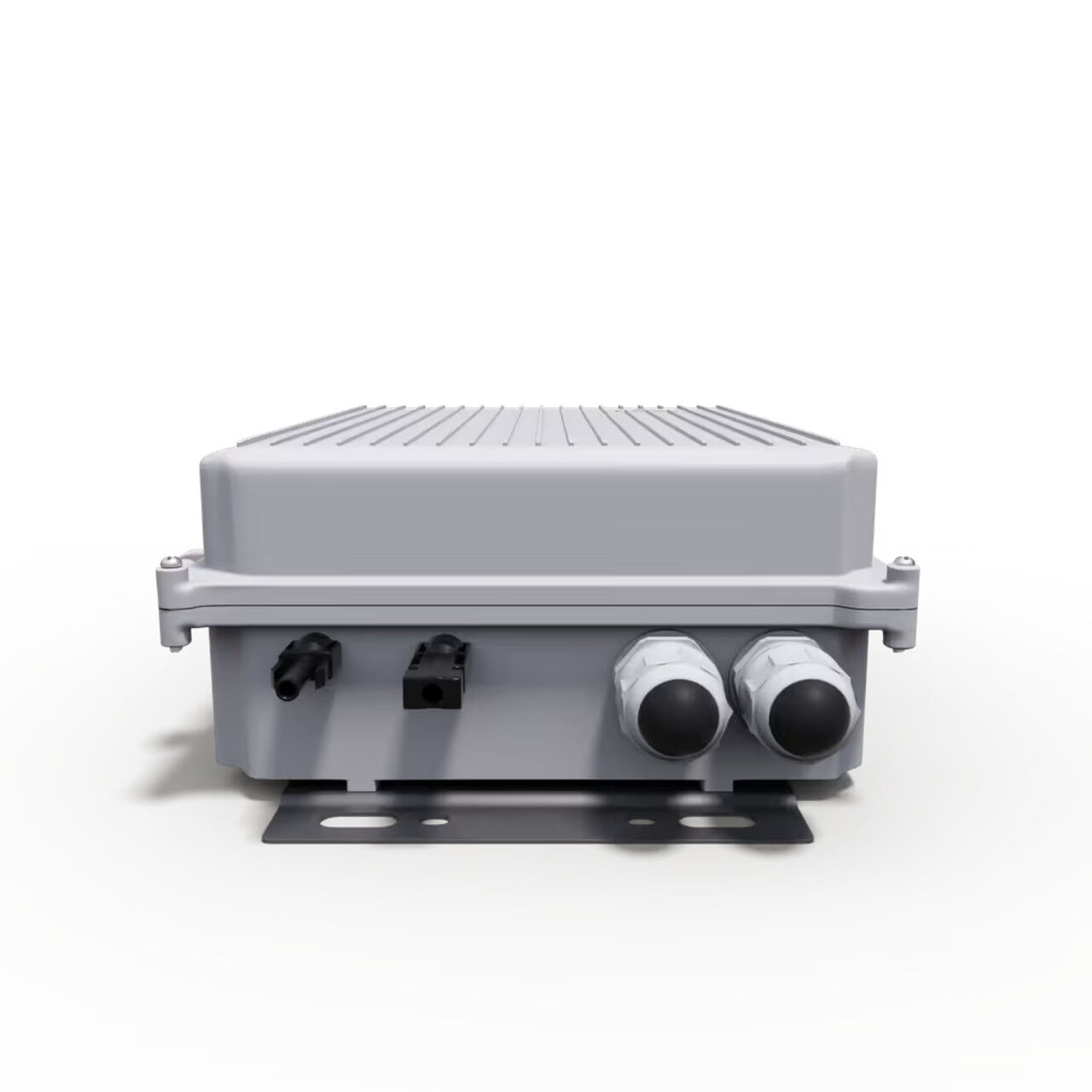

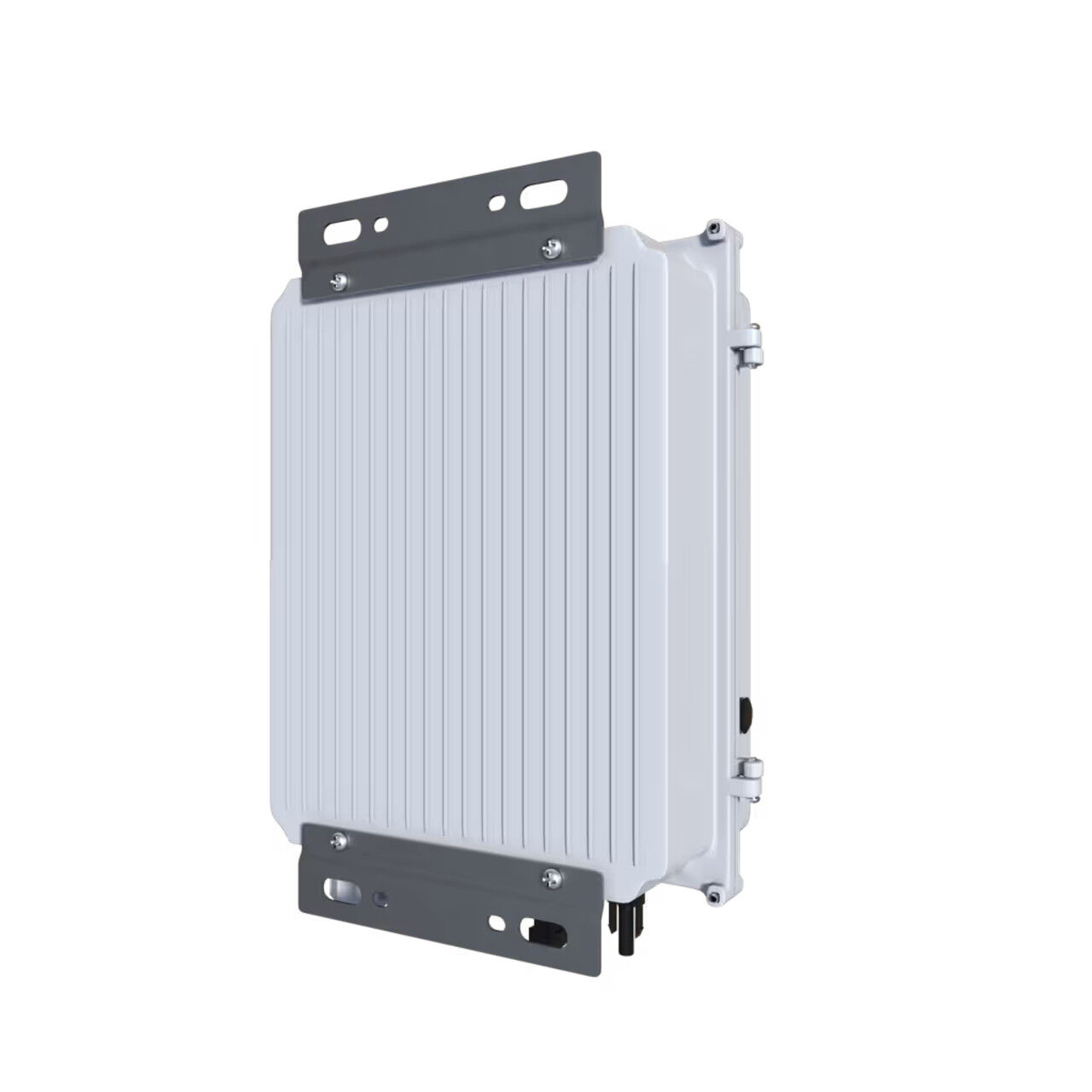

Fuzion FTP-300, 300Wh Networked Solar-Powered PoE Energy Unit
Compact backup power system with lithium-ion battery, PoE and AUX outputs, solar iinput and IoT monitoring. Ideal for off-grid Wi-Fi, IoT, and surveillance applications.
SKU: FUZ.PTP-300 | MPN: PTP-300
SAVE $0.30 (0%)
Vendor Warehouse - Stock availability will need to be confirmed with vendor
Compact solar-powered backup system for remote network installations
The FTP-300 provides reliable off-grid power for wireless access points, IoT sensors, cameras, and remote communications equipment. Designed for harsh outdoor environments, it operates autonomously with solar or AC input and offers extended battery backup, helping reduce CO₂ emissions through renewable energy use.
Key Features
- Long-lasting battery design: Delivers up to 60 hours of backup with lithium-ion cells rated for up to 10 years of service life.
- Autonomous smart operation: Automatically powers down during low charge and restarts once levels recover, ensuring uninterrupted field performance.
- Flexible input options: Works with solar panels via MPPT or an IP67-rated AC/DC adapter for hybrid energy setups.
- Compact power output: Provides up to 30 W total across dual Passive PoE and a 24 V AUX port within a compact IP65 aluminium housing.
- Versatile connectivity: Two 100 Mbps Ethernet ports and one AUX DC terminal support a wide range of network and IoT devices.
- Remote monitoring capability: Integrated IoT telemetry enables off-site system visibility and proactive maintenance.
- Sustainable energy solution: Each unit prevents approximately 175 kg of CO₂ emissions annually, promoting clean-energy connectivity.
Built for “deploy-and-forget” applications, it delivers long-term reliability, reduced maintenance, and efficient renewable power anywhere.
| Technical Specifications | |
|---|---|
| Model Number | FTP-830-00053 |
| Ethernet Ports | 2 × 100 Mbps (back-to-back) |
| Input Voltage | 27 V DC (max) |
| Input Current | 6.25 A (max) |
| Power Sources | Solar panel / AC DC adapter |
| Total Output Power | 30 W (max, PoE + AUX) |
| PoE Output | 0 V / 24 V / 48 V selectable Passive PoE |
| AUX Output | 24 V DC (max 30 W) |
| Battery Type | Lithium-ion 18650 cell |
| Battery Capacity | 150 Wh or 300 Wh configurations |
| Battery Voltage | 11 V nominal |
| Self-Consumption | < 0.9 W |
| Operating Temperature | −20 °C to +60 °C (discharge) |
| Charging Temperature | 0 °C to +45 °C |
| Dimensions | 27 × 21.4 × 9 cm |
| Weight | 2.2 – 3.9 kg (depends on battery) |
| Mounting | Tower, pole or wall |
| Enclosure Material | Die-cast aluminium with stainless hardware |
| Ingress Protection | IP65 |
| Warranty | 3-year hardware warranty |
| SKU | FUZ.PTP-300 |
| Model # | PTP-300 |
| Brand | Fuzion |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.090m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.005346000m3 |
| Unit Of Measure | ea |
