Fuzion Small Solar Mounting Structure
Compact adjustable solar mounting structure for up to two panels and FTP-3XX units. Wall or pole-mount design with 5°–45° tilt range ensures efficient solar deployment.
SKU: FUZ.FTP-SOLAR001-G-R1 | MPN: FTP-SOLAR001-G-R1
SAVE $0.70 (0%)
Vendor Warehouse - Stock availability will need to be confirmed with vendor
Durable mounting solution for small solar power installations

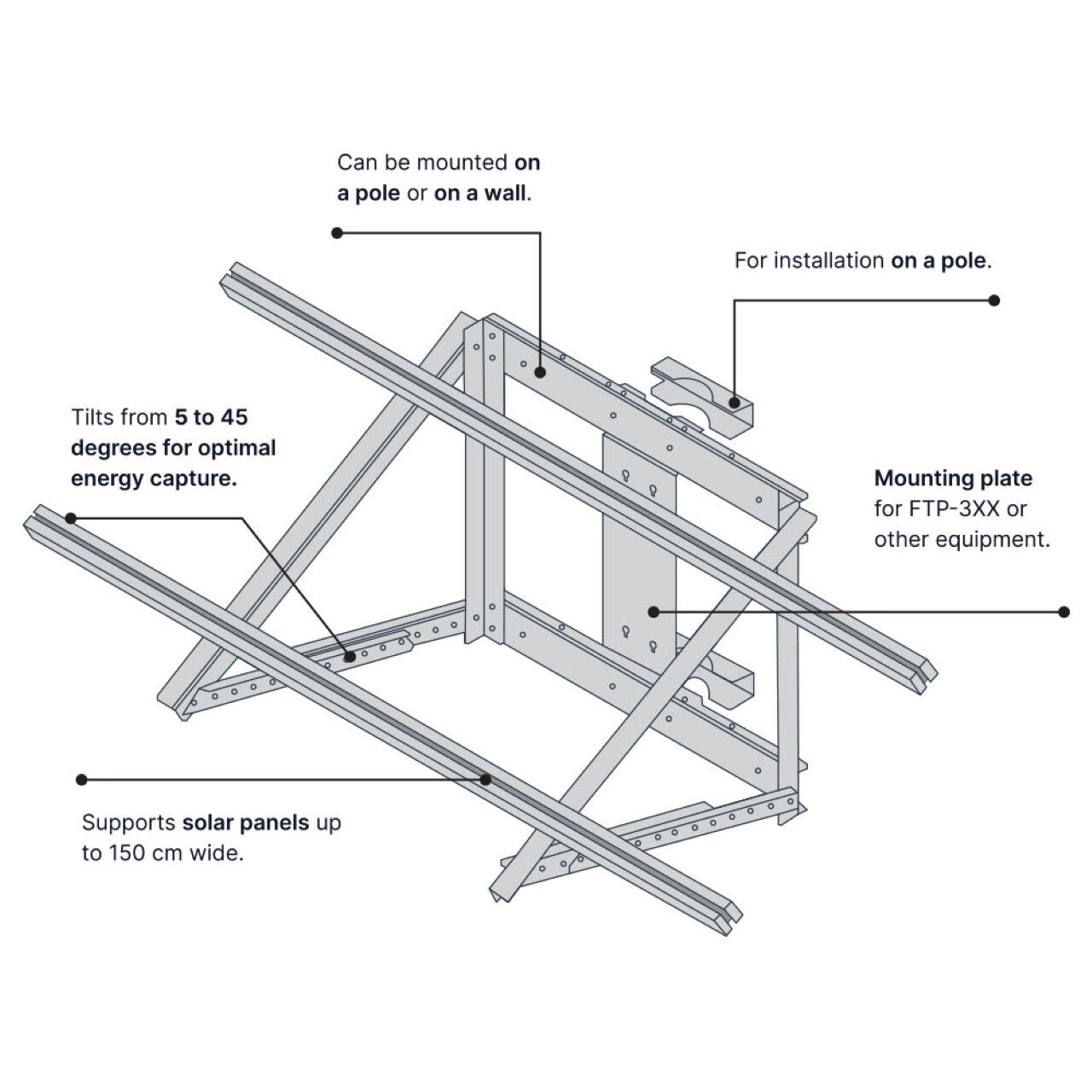

The Small Solar Panel Mounting Structure provides a versatile and stable platform for Fuzion FTP-3XX systems. Designed for pole or wall installation, it supports up to two solar panels and optional enclosures beneath, ensuring reliable power generation for off-grid network equipment in outdoor environments.
Key Features
- Dual-panel support: Accommodates up to two solar panels for increased power generation and system redundancy.
- Flexible mounting options: Can be installed on poles with diameters between 50 mm and 110 mm or directly on walls using standard fasteners.
- Adjustable tilt range: Allows panel angles between 5 ° and 45 ° to optimise solar exposure across different latitudes and seasons.
- Integrated equipment support: Mounts up to two FTP-3XX units or an FTP-3XX with an additional equipment box under the panels.
- Heavy-duty construction: Supplied with corrosion-resistant steel brackets, clamps and fasteners for long-term outdoor durability.
- Simplified assembly process: Includes all required brackets, bolts, nuts and clamps with detailed step-by-step installation guidance.
Engineered for reliability and ease of installation, it offers a robust foundation for powering remote Fuzion systems using solar energy.
| Technical Specifications | |
|---|---|
| Supported Panels | Up to two solar panels |
| Supported Equipment | Up to two FTP-3XX units or one FTP-3XX and one auxiliary box |
| Mounting Type | Pole or wall installation |
| Pole Diameter Range | 50 mm – 110 mm |
| Tilt Adjustment | 5 ° – 45 ° (nine discrete positions) |
| Material | Corrosion-resistant steel with galvanised finish |
| Included Hardware | Brackets, clamps, hex bolts (M6–M10), washers, self-locking nuts |
| Clamp Types | Middle Clamp H24 × 2 pcs; End Clamp PV-03-22 × 4 pcs |
| Tools Required | Two 10 mm spanners, two 13 mm spanners, one 17 mm spanner, one 6 mm Allen key |
| Installation Steps | 8-step assembly including bracket setup, panel installation and tilt adjustment |
| Manufacturer | Fuzion Power Technologies ApS, Roskilde, Denmark |
| SKU | FUZ.FTP-SOLAR001-G-R1 |
| Model # | FTP-SOLAR001-G-R1 |
| Brand | Fuzion |
| Shipping Weight | 10.0000kg |
| Shipping Width | 1.550m |
| Shipping Height | 0.110m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.018755000m3 |
| Unit Of Measure | ea |
