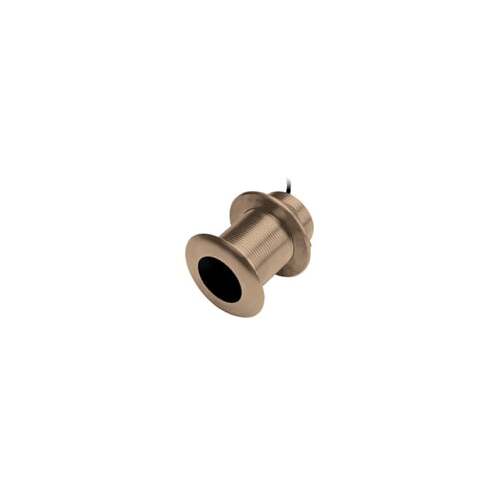

This bronze thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and wood hulls.

An excellent choice for fiberglass and wood hulls, this 8-pin 500 W transducer has a depth of 900 ft; an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and a 8 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on metal hulls.


Transducer cable length 30 ft.
Transducer power 500 W
Transducer frequency 77/200 kHz
Transducer maximum depth 900 ft.
Transducer number of pins 8-pin
Transducer beamwidth 45°/15°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      8°-15° degree deadrise
SKU GAR.010-10217-21
Model # 010-10217-21
UPC/EAN 0753759971724
Brand Garmin
Shipping Weight 1.3200kg
