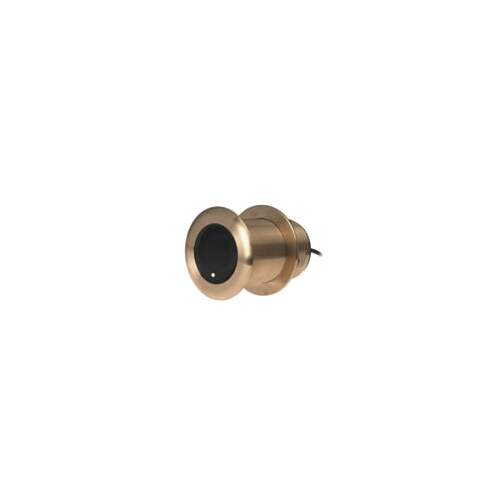

This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar like the GSD™ 26.

A 600 W transducer with 8 pins, it has a depth of 900 ft; an operating frequency of 80-130 kHz; a beamwidth of 24/16 degrees; and a 0 to 7 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.


Transducer cable length 39 ft.
Transducer power 600 W
Transducer frequency CHIRP (80-130 kHz)
Transducer maximum depth 900 ft.
Transducer number of pins 8-pin
Transducer beamwidth 24°/16°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      0°-7° degree deadrise
SKU GAR.010-11636-20
Model # 010-11636-20
UPC/EAN 0753759972011
Brand Garmin
Shipping Weight 2.7700kg
