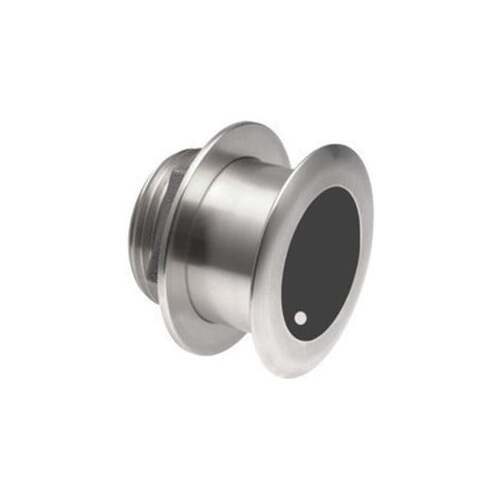

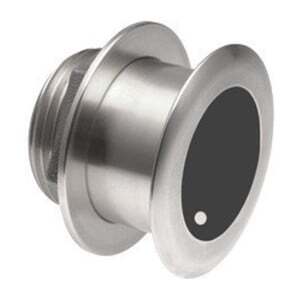

Step up to 1 kW without a fairing block with this flush-mounted stainless-steel housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

An excellent choice for all hull types including aluminum, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.


Transducer cable length 39 ft.
Transducer depth/speed/temperature Depth and Temperature
Transducer power 1 kW
Transducer frequency 150-240 kHz
Transducer supported deadrise/transom angles       16-24 degree deadrise
Transducer maximum depth 600 ft.
Transducer number of pins 8
Transducer beamwidth 25
SKU GAR.010-12567-22
Model # 010-12567-22
UPC/EAN 0753759173999
Brand Garmin
Shipping Weight 4.7000kg
