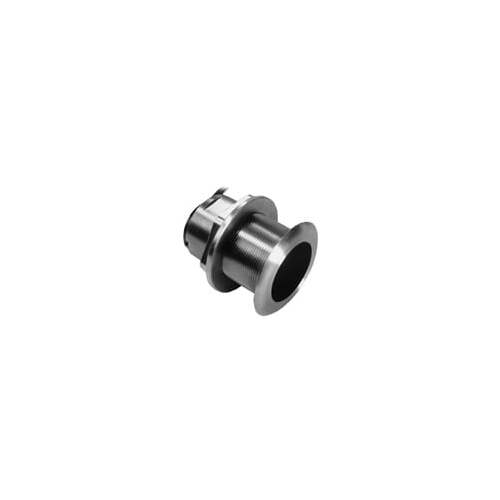

This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and an 8 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with a 6-pin Garmin sounder, a transducer adapter cable is required.


Transducer cable length 33 ft.
Transducer power 600 W
Transducer frequency 50/200 kHz
Transducer maximum depth 800-1,200 ft.
Transducer number of pins 8-pin
Transducer beamwidth 45°/12°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      8°-15° degree deadrise
SKU GAR.010-11868-22
Model # 010-11868-22
UPC/EAN 0753759990756
Brand Garmin
Shipping Weight 1.4900kg
