Made for your helm.

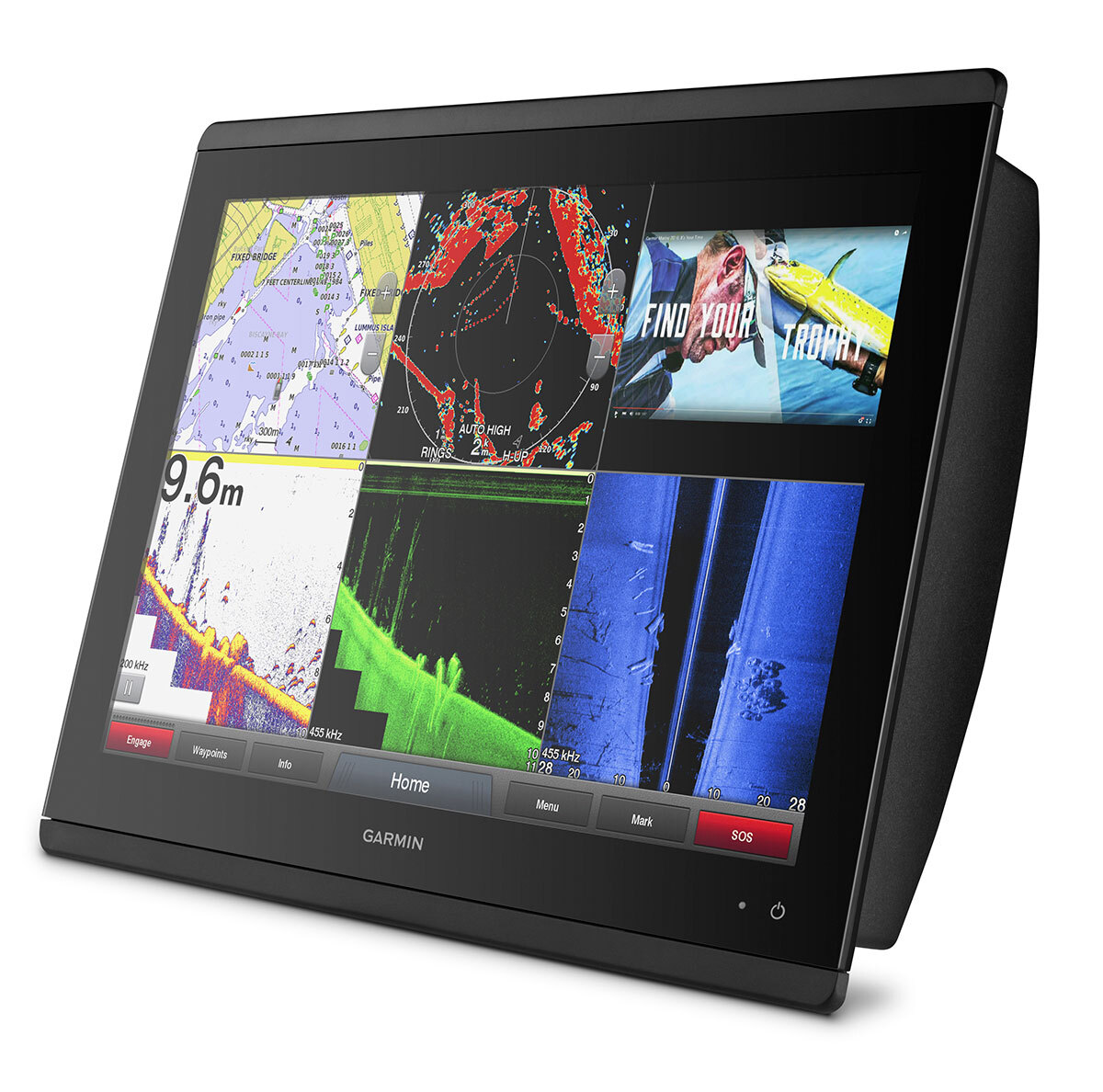

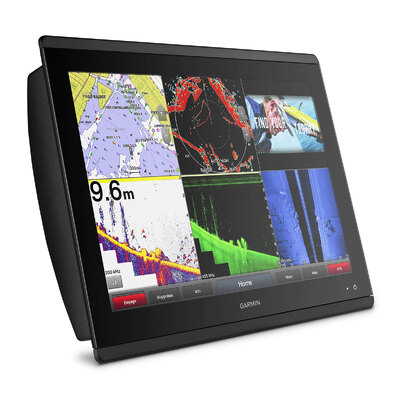

FULL HD TOUCHSCREEN

The sunlight-readable, the anti-glare display includes an auto-dimming feature for low light or nighttime use. An in-plane switching LCD display provides consistent, accurate colours from all angles.

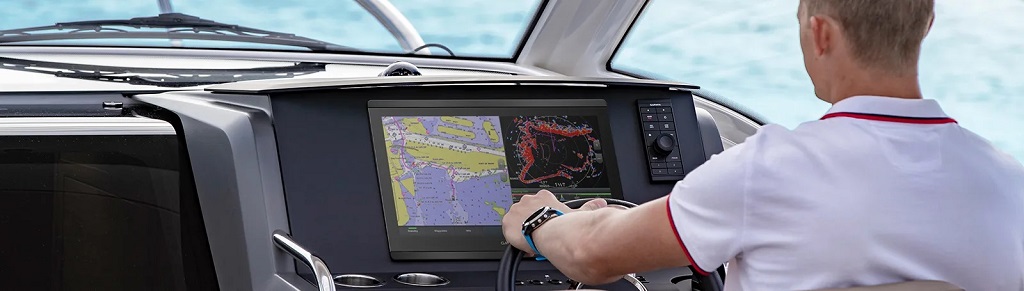

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

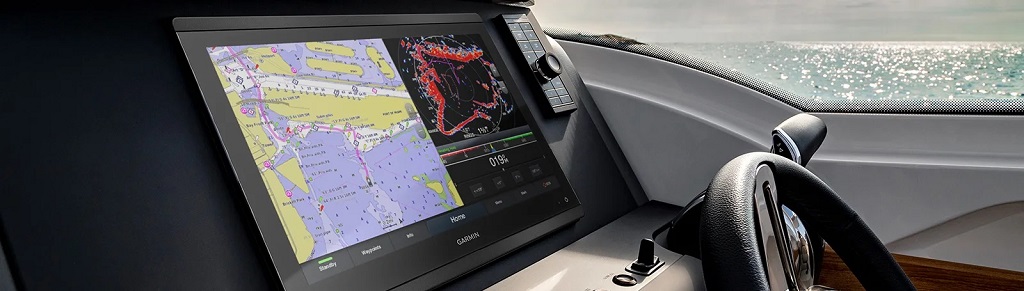

Install multiple displays with the low flush-mount profile, or flat mount them edge-to-edge for a sleek glass helm look. The maximum glass design puts a powerful, networked helm at your fingertips.





Connect to everything on your boat.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® AND NMEA 0183 NETWORKS

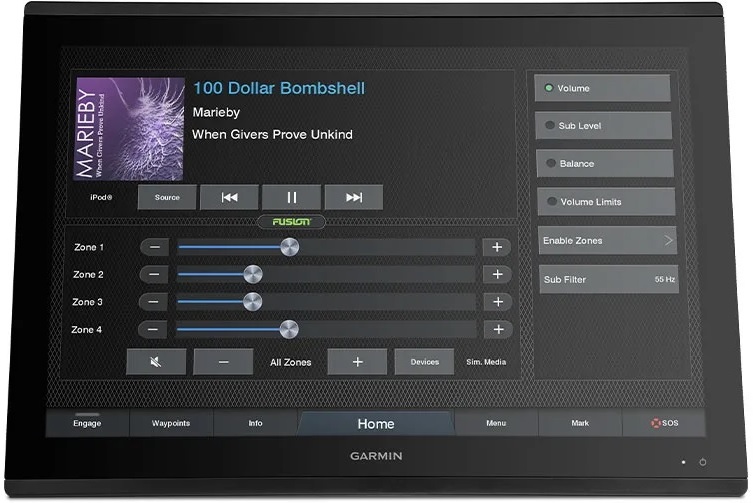

Connect to autopilots, digital switching, weather, your FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

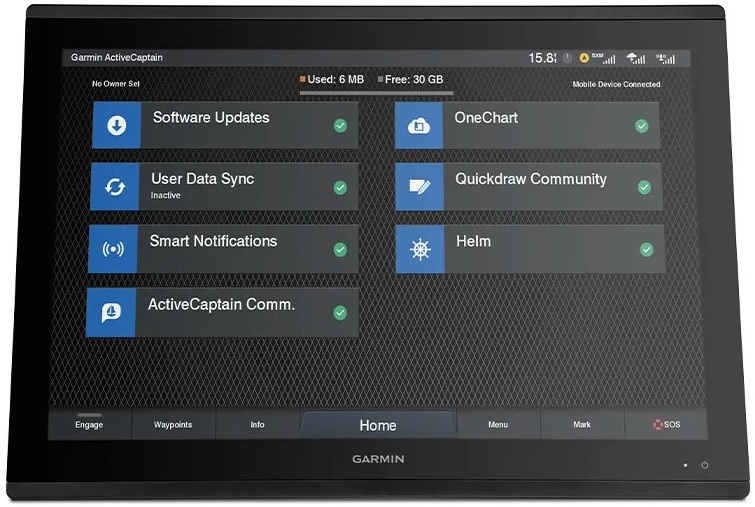

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications2, software updates, Helm, Garmin Quickdraw™ Community data and more.

BUILT-IN CONNECTIVITY

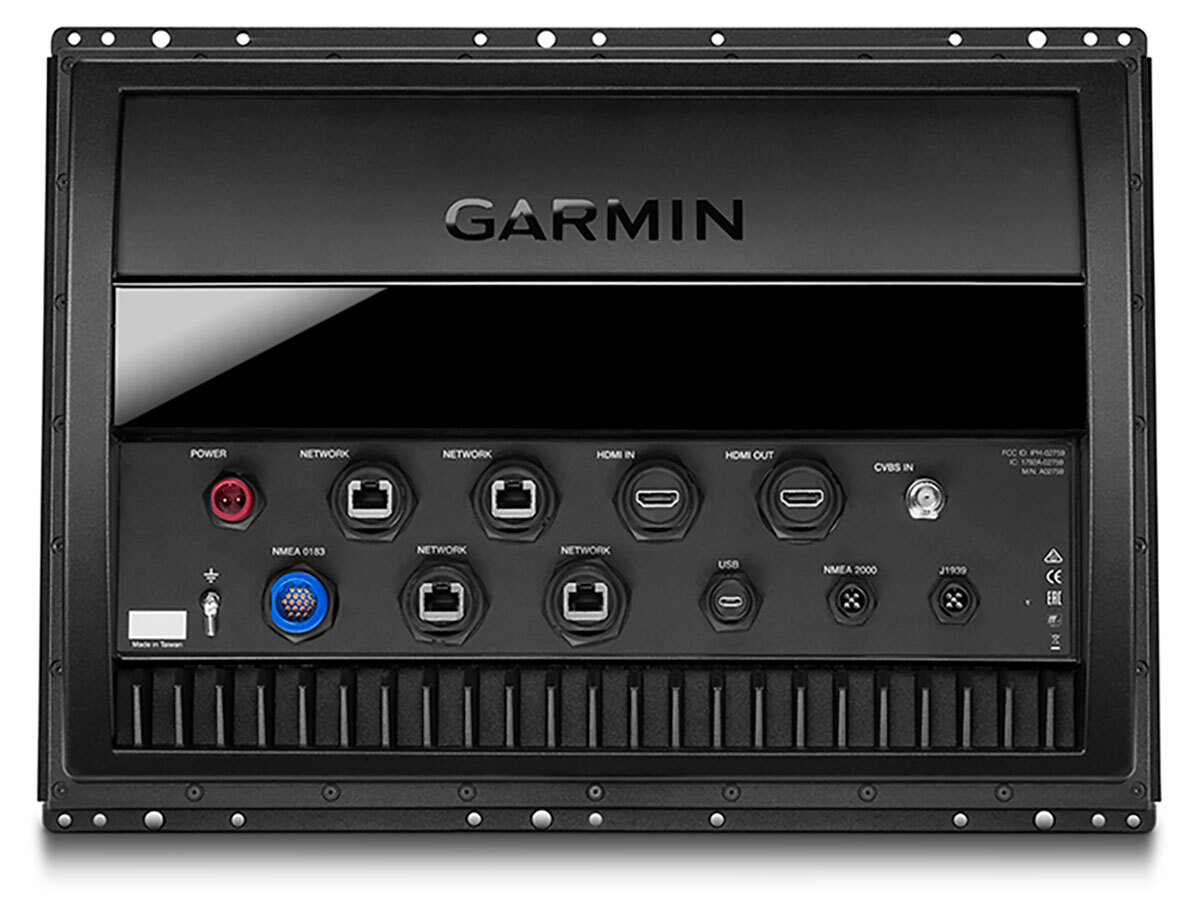

It’s easy to connect to peripheral devices with built-in Wi-Fi connectivity, ANT technology, four wired Ethernet ports, NMEA 2000, HDMI and USB ports with complete network compatibility.

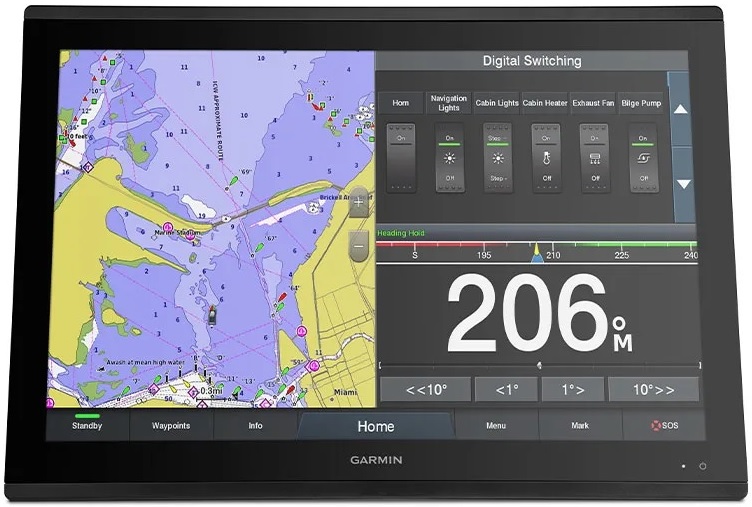

ONEHELM™ FEATURE

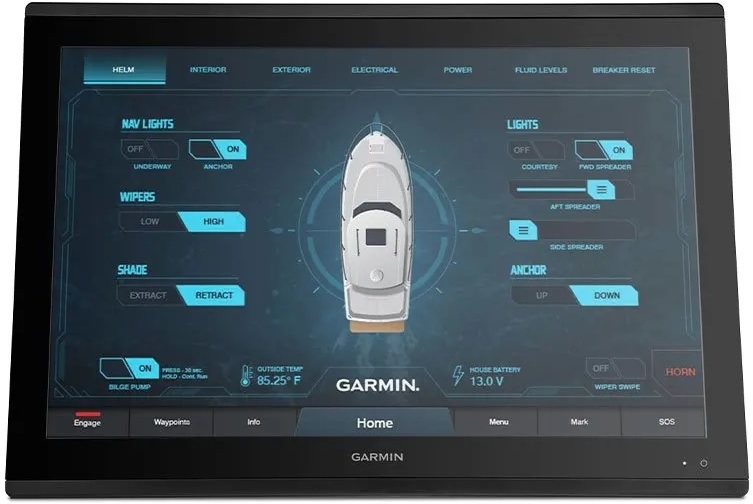

This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

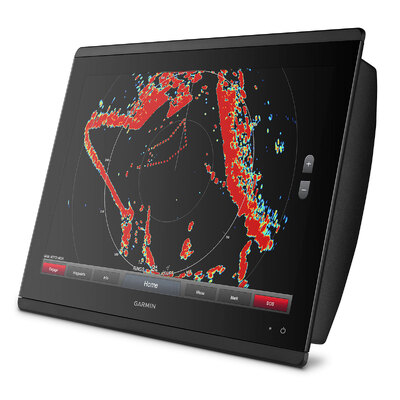

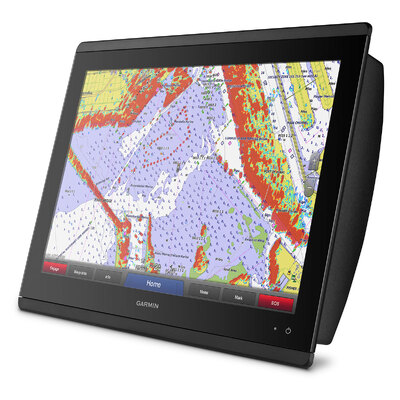

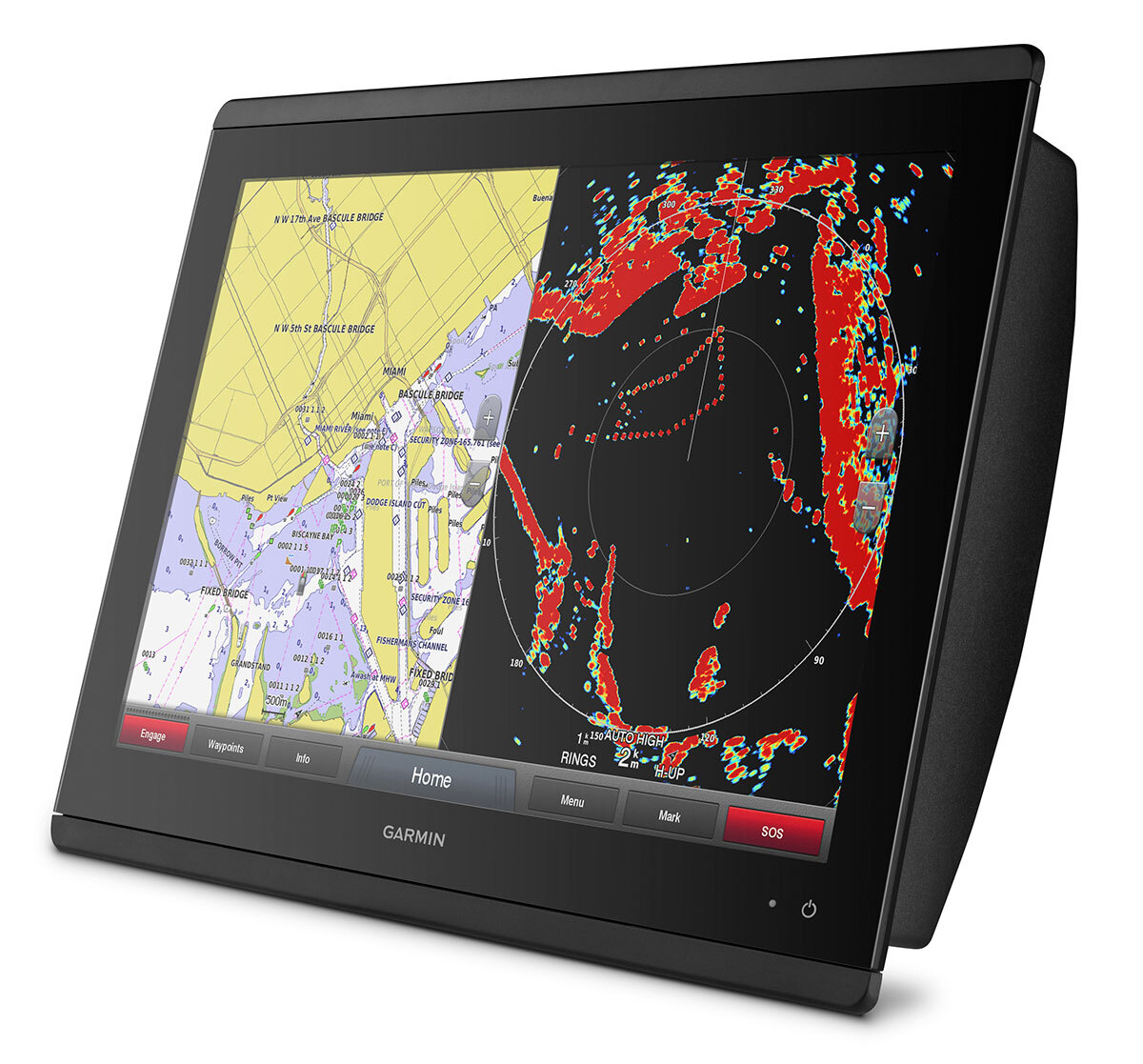

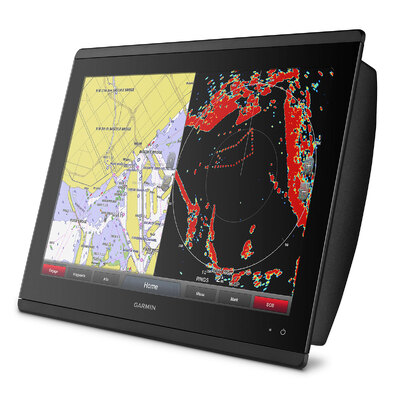

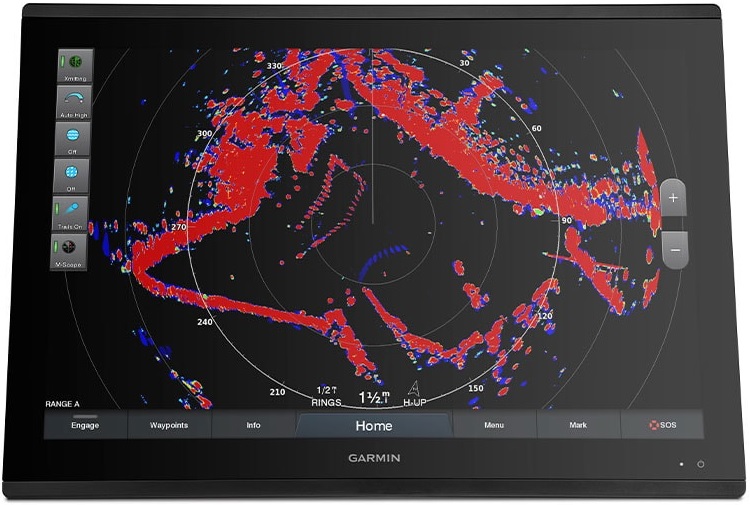

CONNECT WITH RADAR

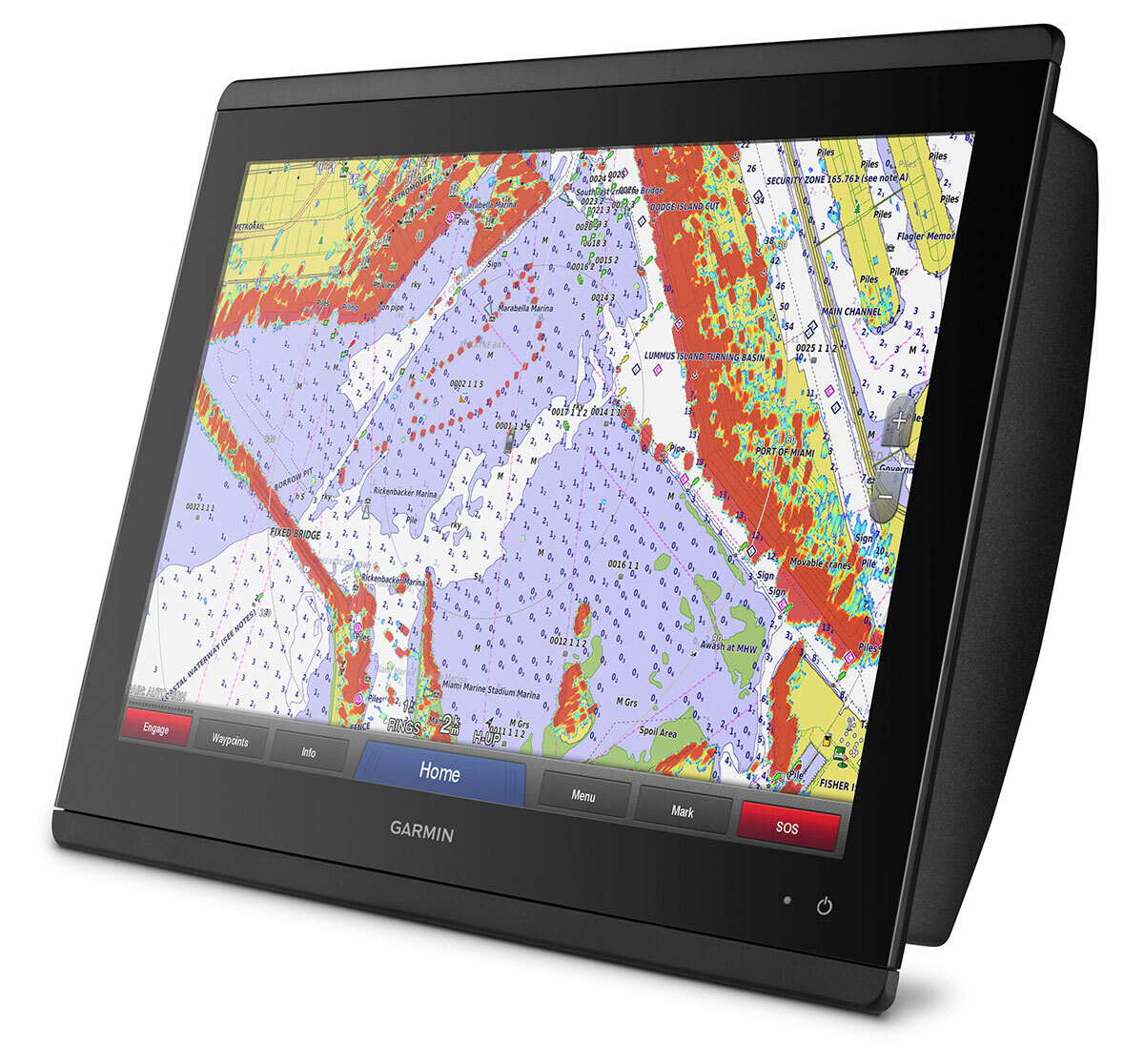

You can add your choice of compatible Garmin marine radar, including our powerful xHD2 open-array radars, GMR Fantom™ open-array radars with MotionScope™ technology or xHD dome radars.

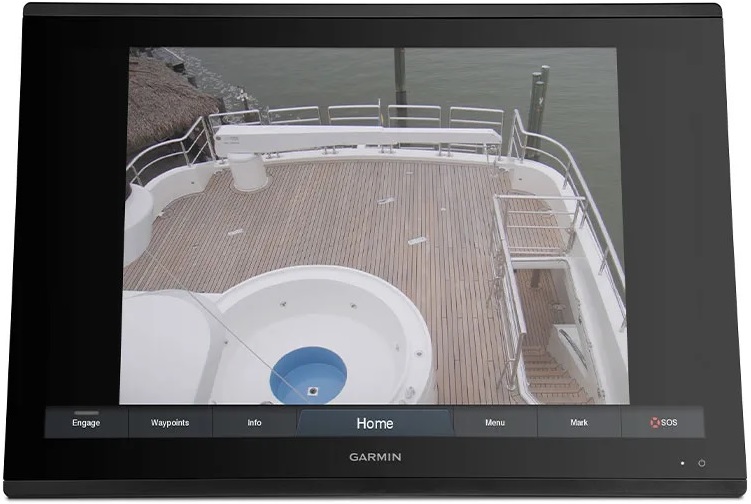

CAMERA SUPPORT

Garmin supports select Axis cameras and selects FLIR cameras for surveillance and situational awareness on your vessel. And with our Surround View Camera System, get live bird’s-eye view video plus 360-degree helm visibility

Sail and navigate with ease.

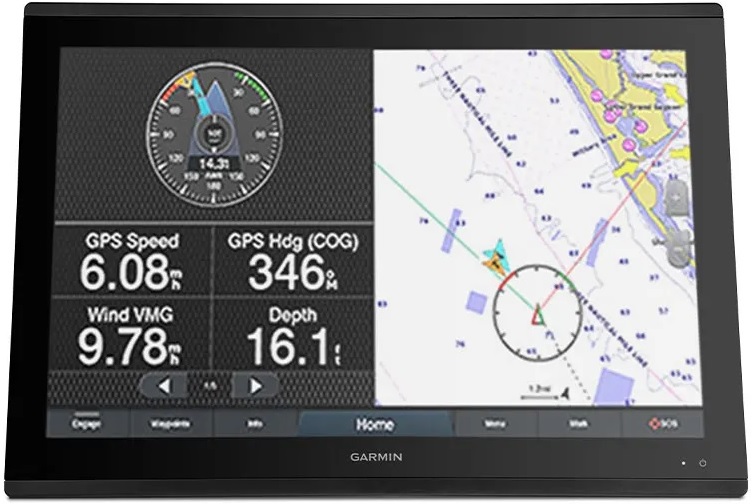

GARMIN SAILASSIST™ SAILING FEATURES

View lay lines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

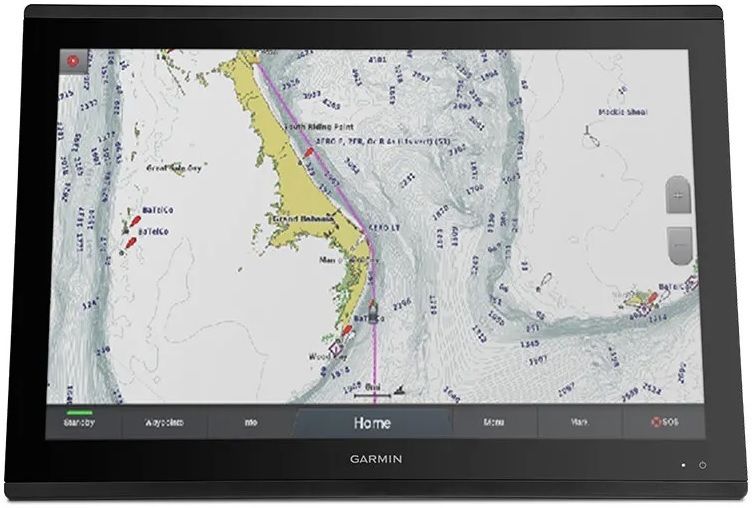

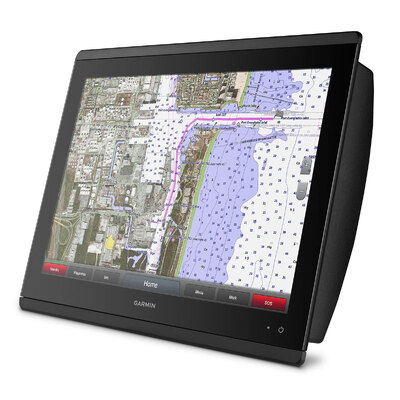

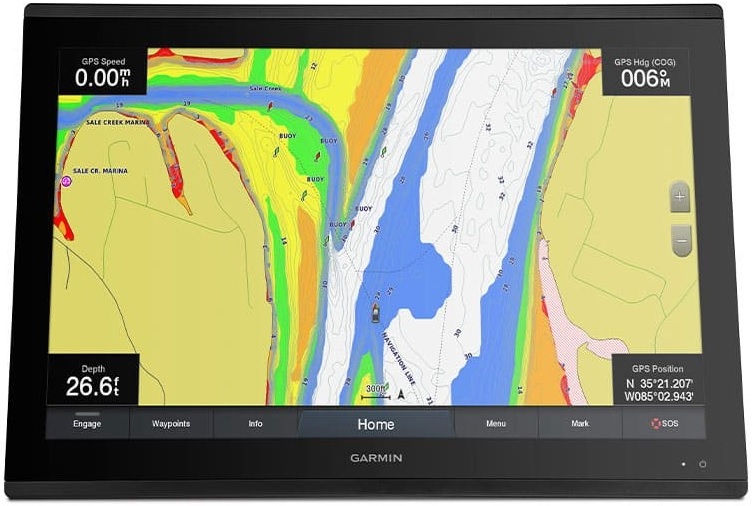

PREMIUM CARTOGRAPHY

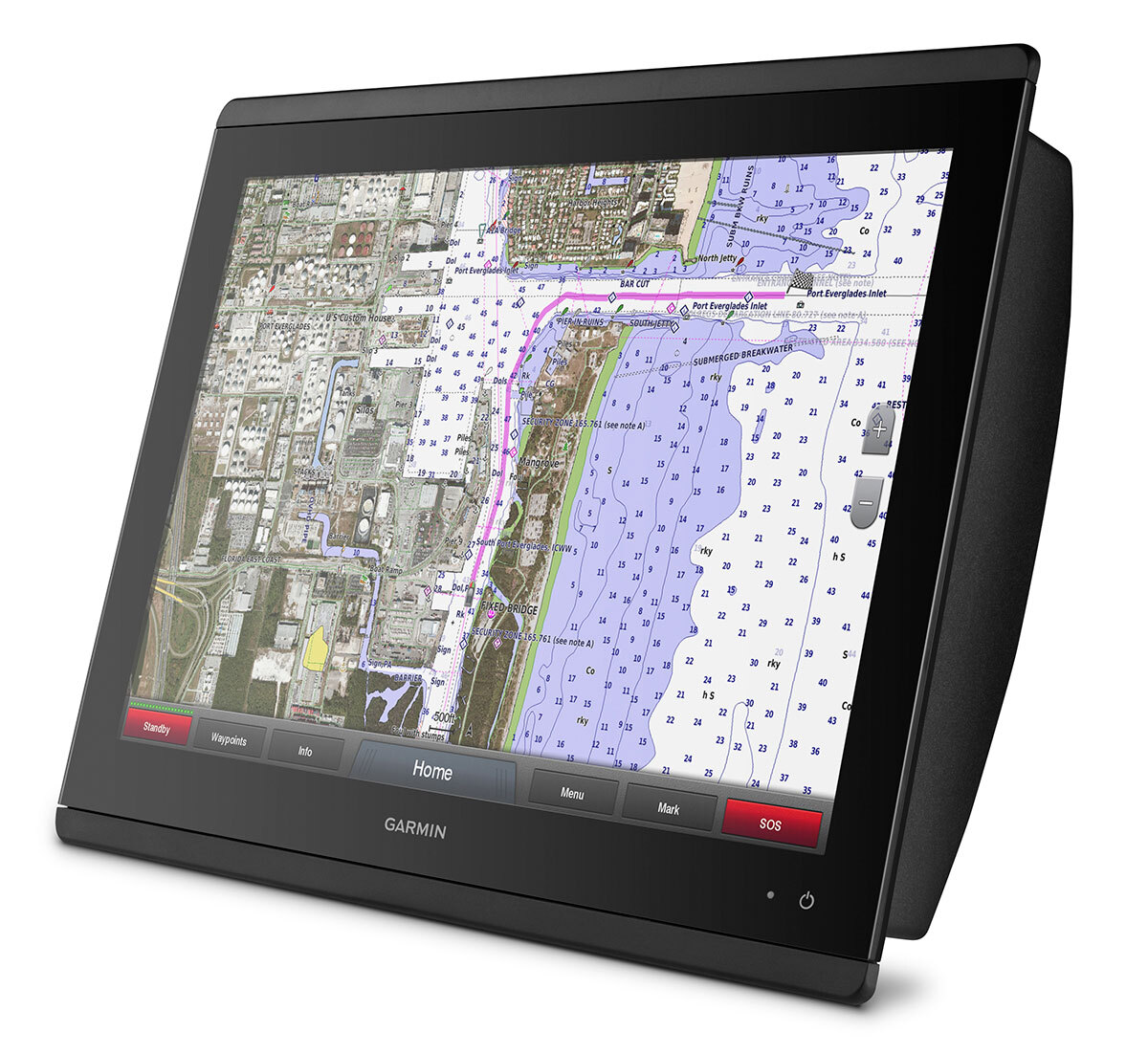

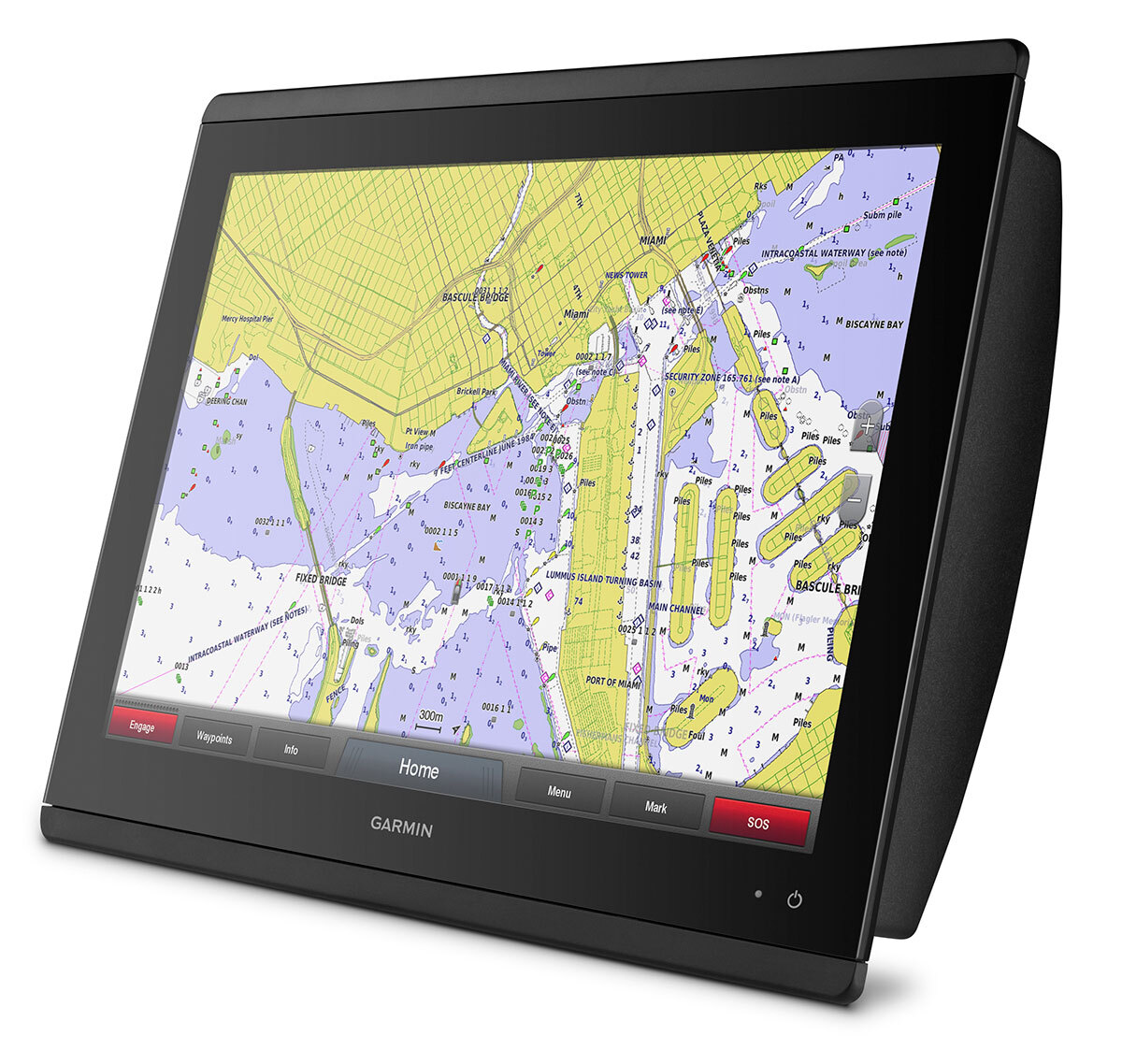

Experience unparalleled coverage and detail with optional BlueChart® g3 coastal charts featuring integrated Garmin and Navionics® content and Auto Guidance2 technology.

QUICKDRAW CONTOURS

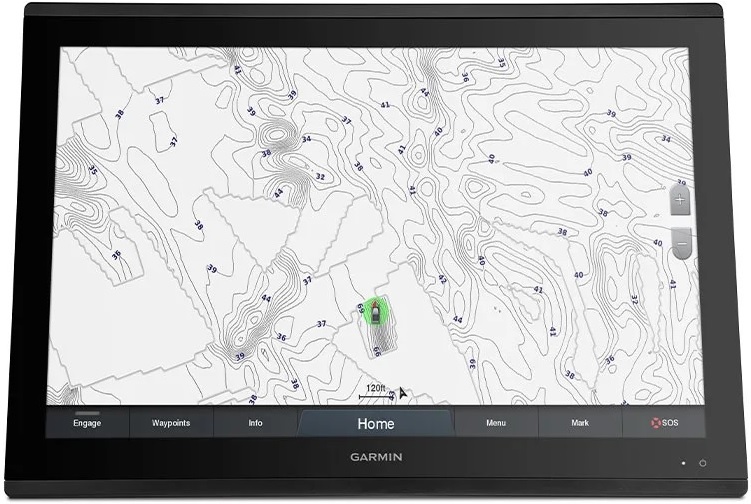

This free, easy-to-use software feature instantly creates your own personalized HD fishing maps with 1’ contours. There’s no special surveying expertise required. You just fish while it creates maps (requires transducer, sold separately).

MULTIPLE DEPTH RANGE SHADING

Designate up to 10 different depth ranges — each with its own colour. This makes it easier to view target depths at a glance.

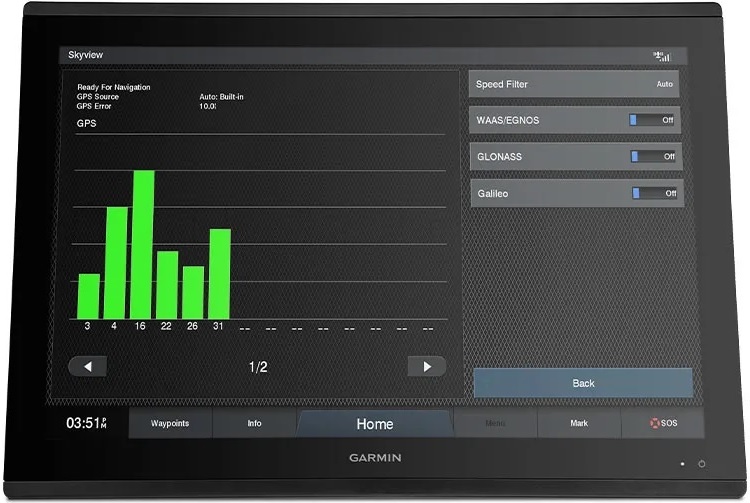

FAST, RESPONSIVE 10-HZ GPS

Your position and heading are refreshed 10 times per second to make your movement on the screen more fluid. Plus, GPS 24xd provides dual frequency precise location accuracy3 to within 1 meter.

See the world below.

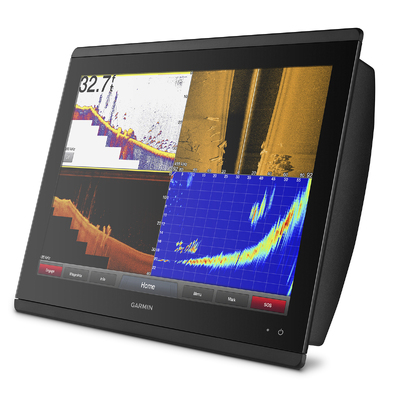

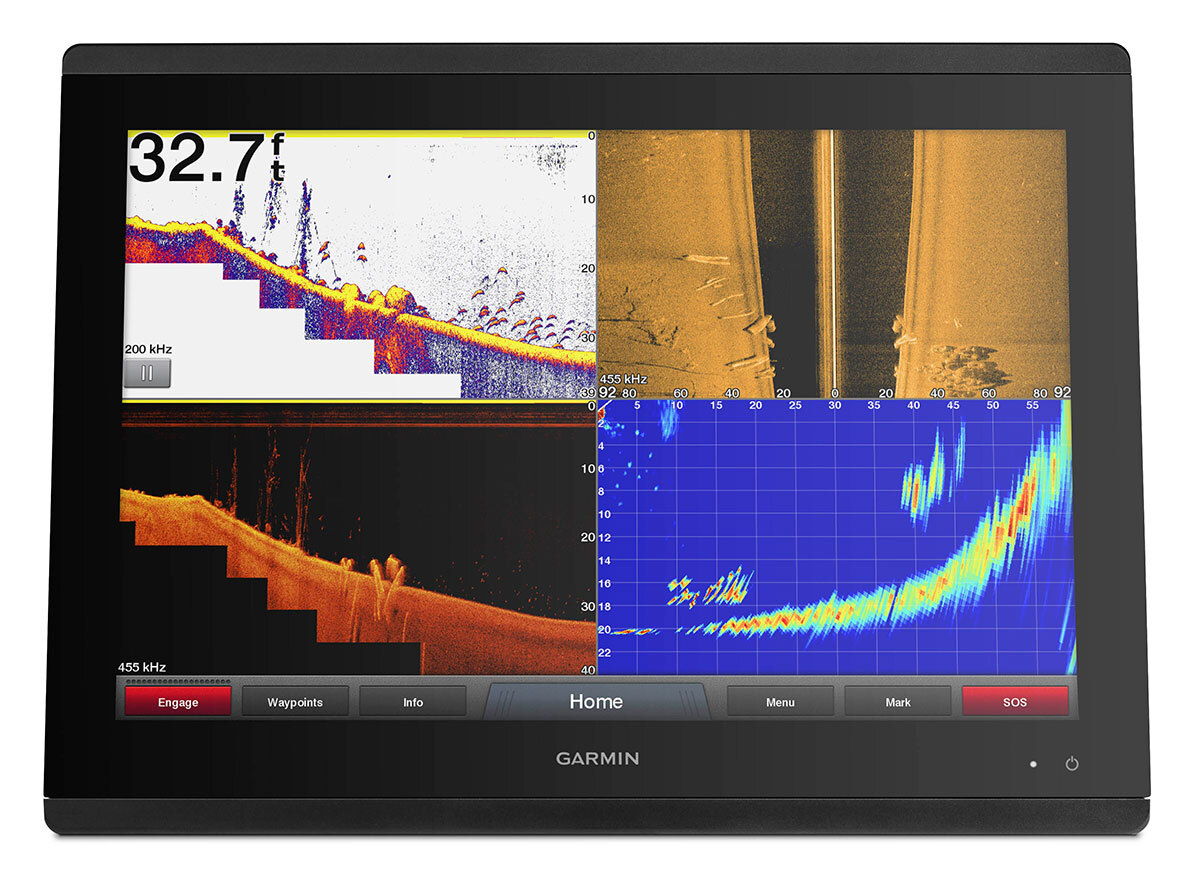

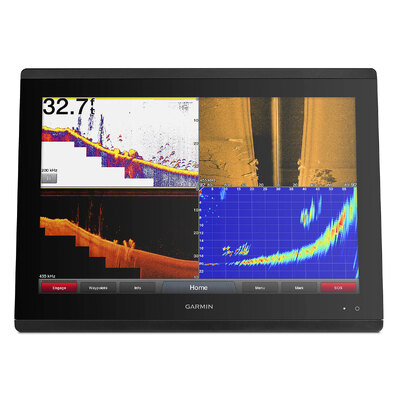

SONAR COMPATIBILITY

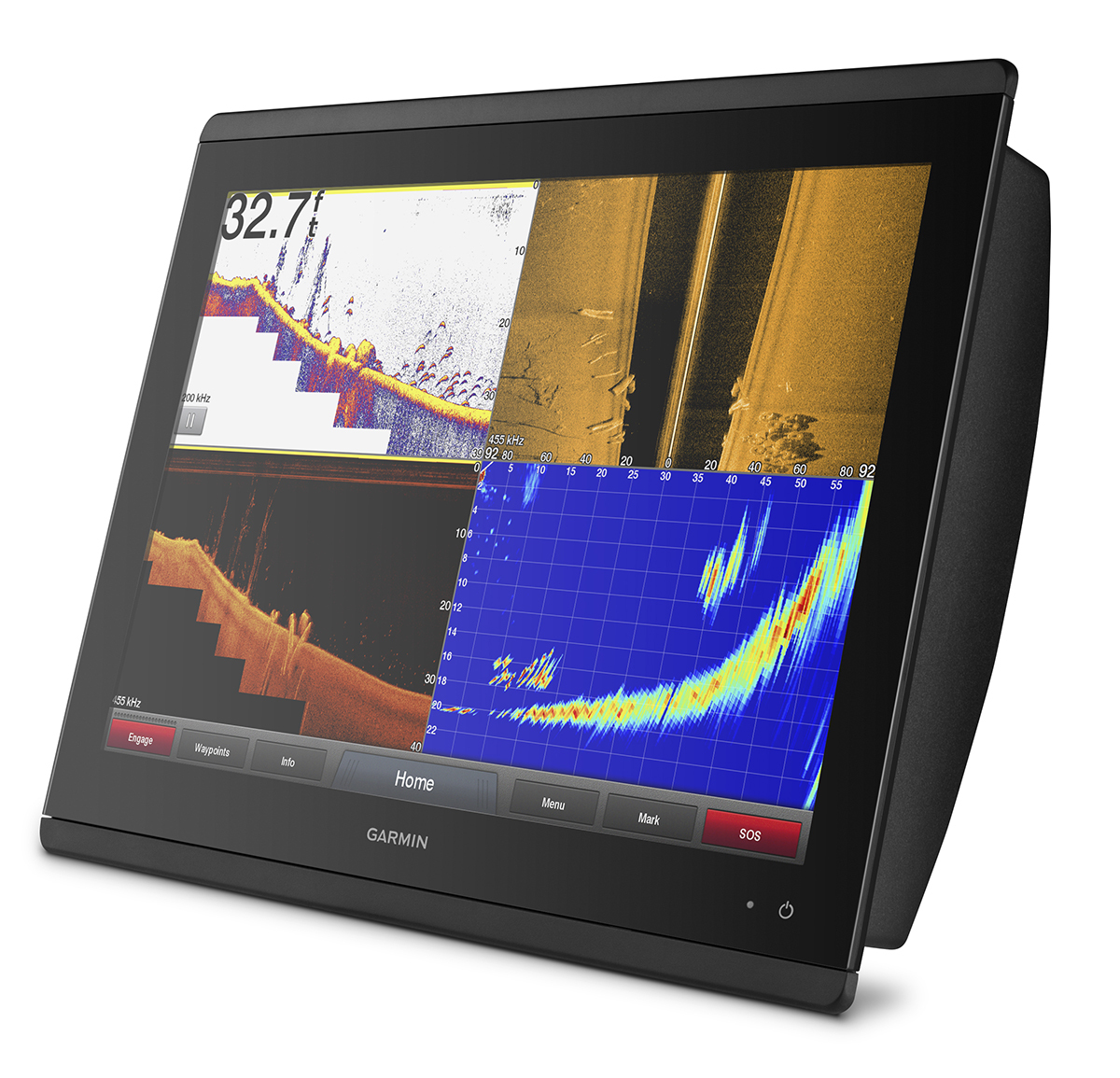

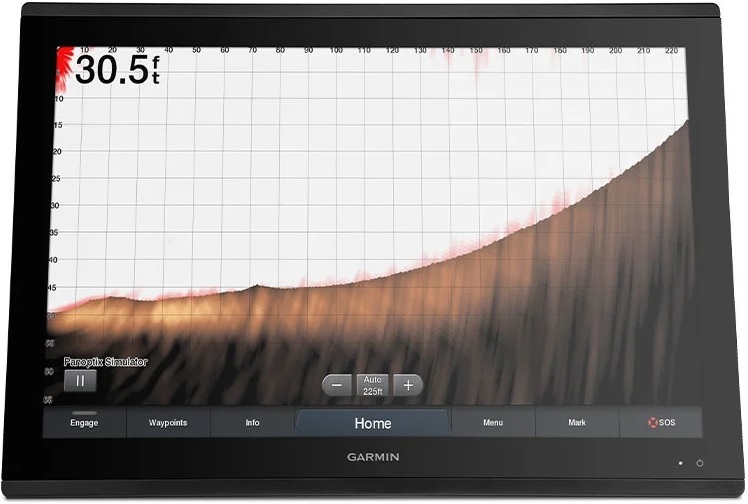

Find more fish when you pair with GSD™ 26 CHIRP professional sonar, GSD 24 advanced sonar, GCV™ 20 or GSD 25 ClearVü and SideVü scanning sonars or Panoptix™ all-seeing sonar.

Physical & Performance

Display Size   14.4" x 9.1"; 17.0" diagonal, 36.6 cm x 23.1 cm; 43.2 cm diagonal
Power Input 10 to 35 Vdc
Display Resolution    1920 x 1200 pixels
GPS No
Dimension 16.5" x 12.1" x 2.8" (41.9 cm x 30.7 cm x 7.1 cm)
Waterproof

IPX7

Weight 11.48 lbs (5.21 kg)
Mounting Options Flush or flat
Display Type FHD, IPS



Maps & Navigation

Garmin Navionics Vision+™    Yes
Accepts Data Cards

2 SD Cards (with Garmin SD card reader accessory)

Navigation Routes 100
Garmin Navionics+™ Yes



Features

Waypoints

5000

Sailing Features Yes
NMEA 0183 Compatible Yes
Has built-in receiver No
USB ports Yes
(Sounder) TOPO Yes
(Sounder) SideVü Yes (with compatible black box sonar)
DSC Yes
Touchscreen Yes
LakeVü g3 Ultra Yes
NMEA 2000 Compatible Yes
ActiveCaptain Mobile Planning Compatible

Yes

Typical current draw at 12 Vdc 2.8 A
NMEA 2000 ports 1
(Sounder) Tide tables Yes
GLONASS No
Track points 50,000
Panoptix™ sonar Yes
Connections Garmin Marine Network Ports

4

LakeVü g3 Yes
Supports WAAS No
GSD Black Box Sonar Support Yes
Maximum current draw at 12 Vdc 3.5 A
Smart Mode Compatible Yes
Built-in Auto Guidance No
Maximum power usage at 10 Vdc 40W
BlueChart g3 Yes
Standard Mapping Yes
LakeVu (inland) No
Displays sonar Yes
ANT+ (Connectivity) Yes
GCV Black Box Sonar Support Yes
BNC external GPS antenna port No
Connections NMEA0183 Input Ports

4

Spoken audio alerts Yes
BlueChart g3 Vision Yes
Garmin Wi-Fi network (local connection) Yes
J1939 ports 1
Input No
Garmin Quickdraw Contours Yes
BLUETOOTH® calling Yes
AIS Yes
Video output ports

1 HDMI

Raster chat support Yes
NMEA 0183 input (Tx) ports 2
OneHelm support Yes
ClearVü yes (with GCV™ black box, sold separately)
Tracks 50 saved tracks
Wireless Remote Compatible Yes
Supports Fusion-Link™ compatible radios Yes
Galileo No
LiveScope Yes
BlueChart (coastal) No
Traditional sonar (dual frequency/beam) Yes (with an external black box, sold separately)
GRID (Garmin Remote Input Device) compatible    Yes
Video input ports

1 (BNC composite); 1 HDMI (HDCP compliant)

SKU GAR.010-01510-00
Model # 010-01510-00
UPC/EAN 0753759143121
Brand Garmin
Shipping Weight 8.8000kg
