Better fishing comes built-in.

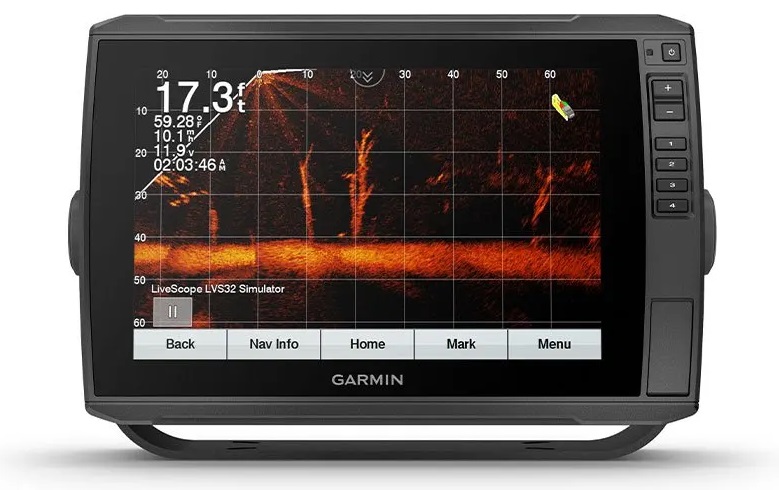

LIVESCOPE™ SONAR SUPPORT

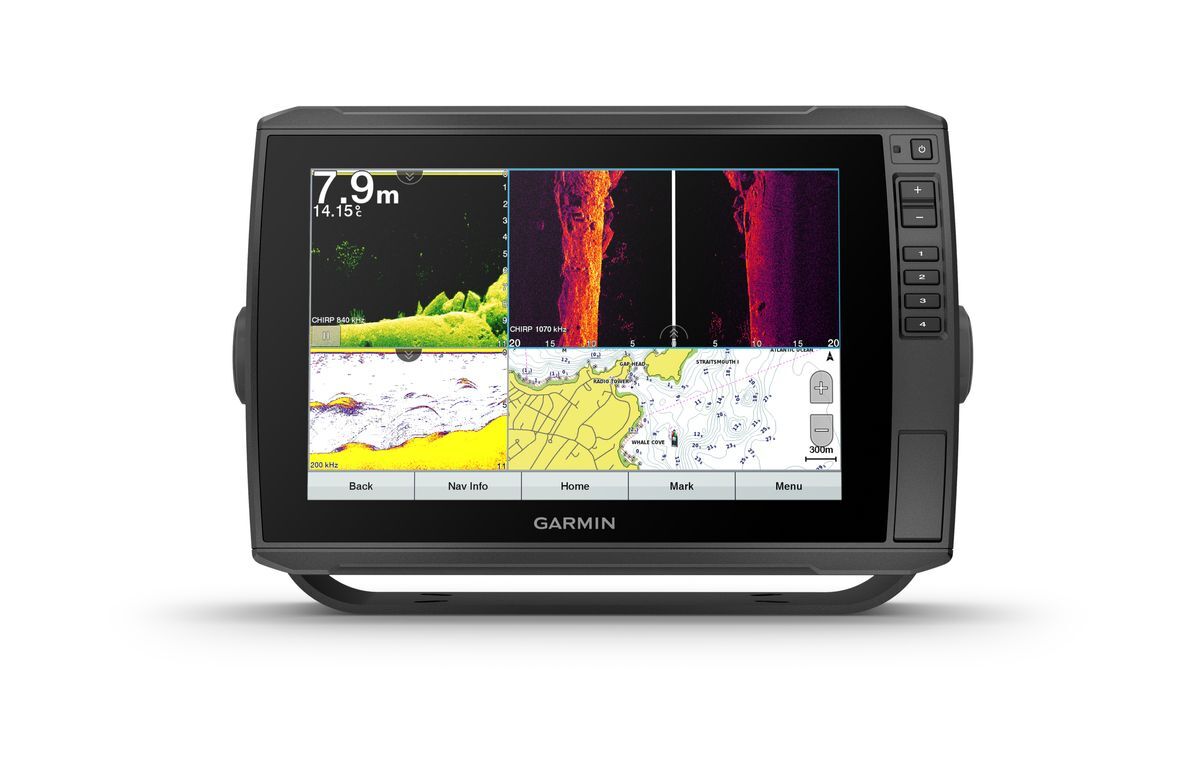

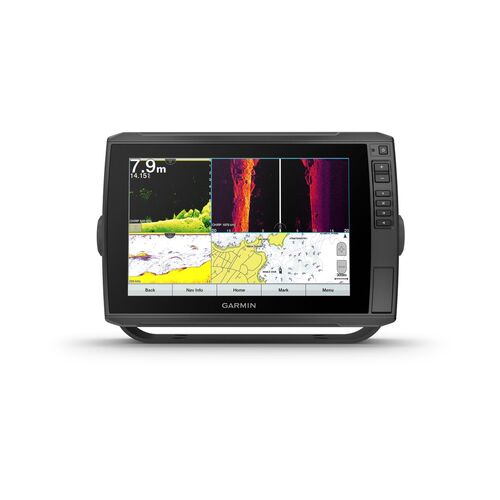

ECHOMAP Ultra 105sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).

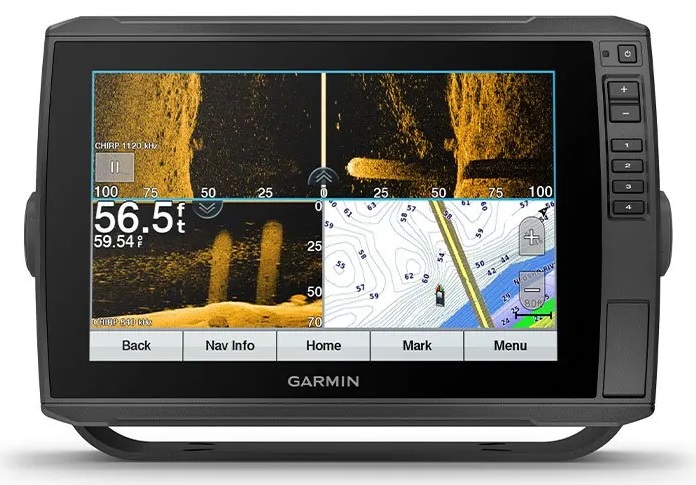

BUILT-IN UHD SONAR

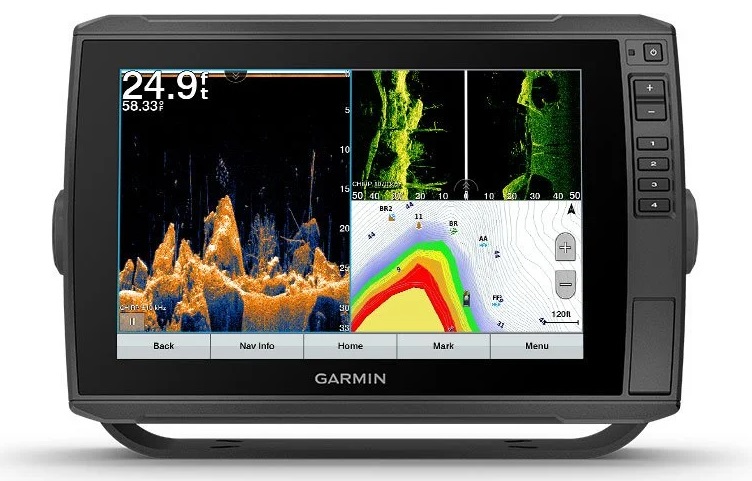

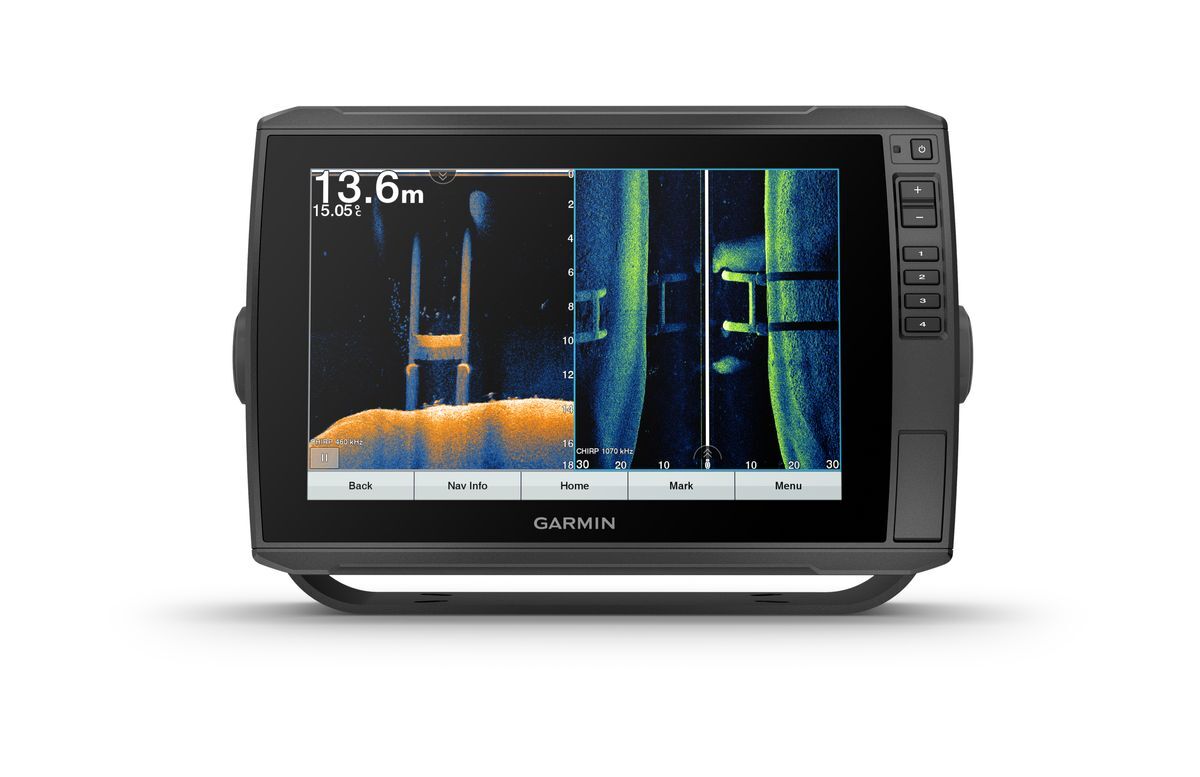

The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

VIVID COLOUR PALETTES

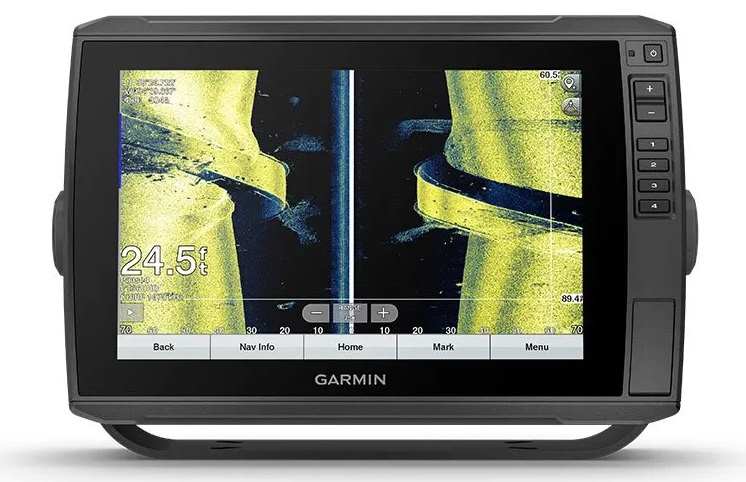

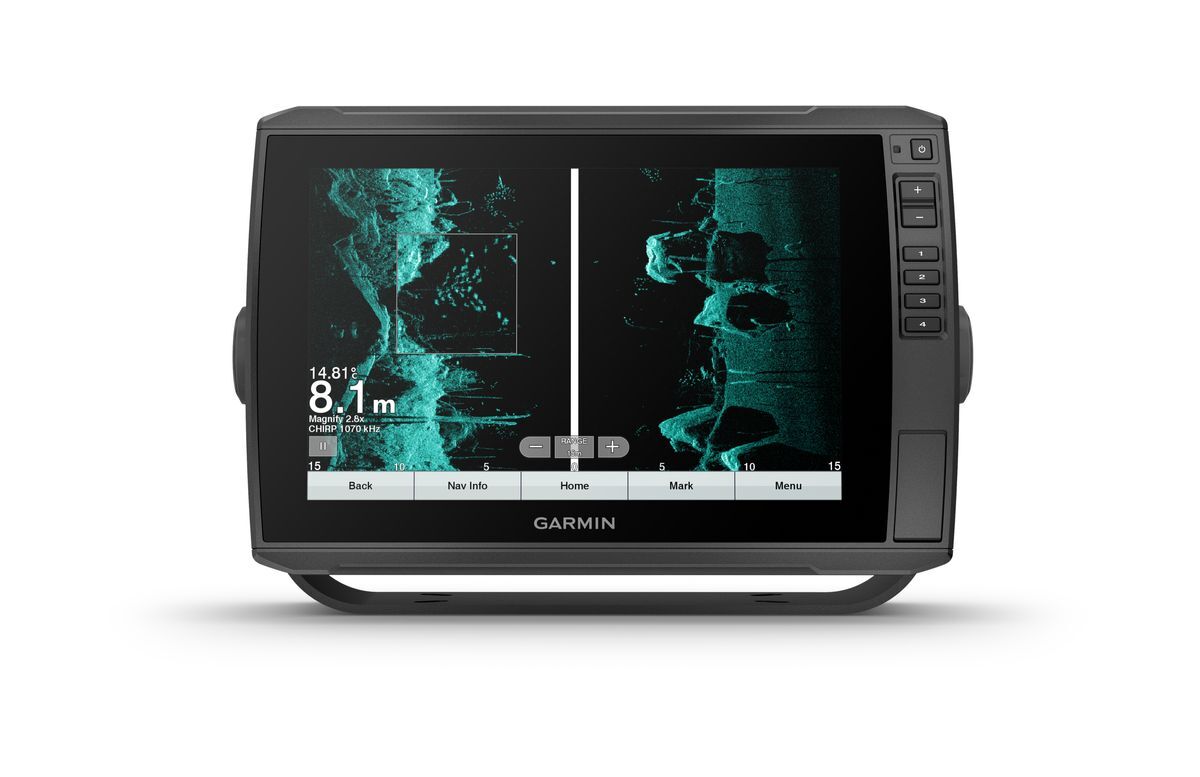

High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structures.

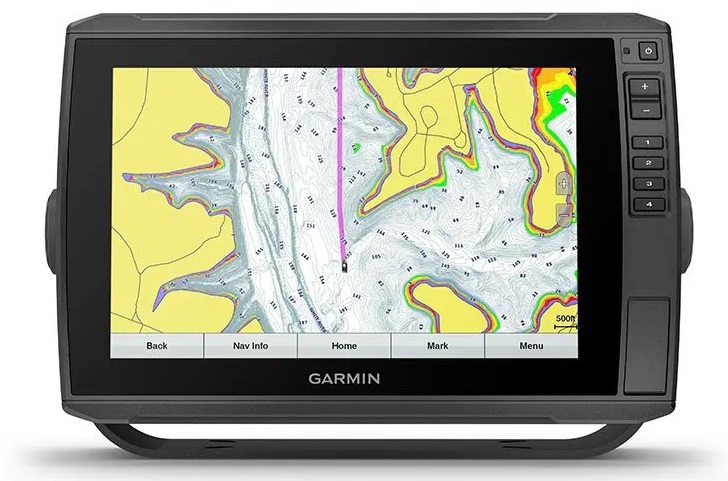

PRELOADED CHARTS

Experience unparalleled coverage and detail with BlueChart g3 Australia and New Zealand coastal charts with integrated Navionics® data and Auto Guidance2 technology.

QUICKDRAW CONTOURS

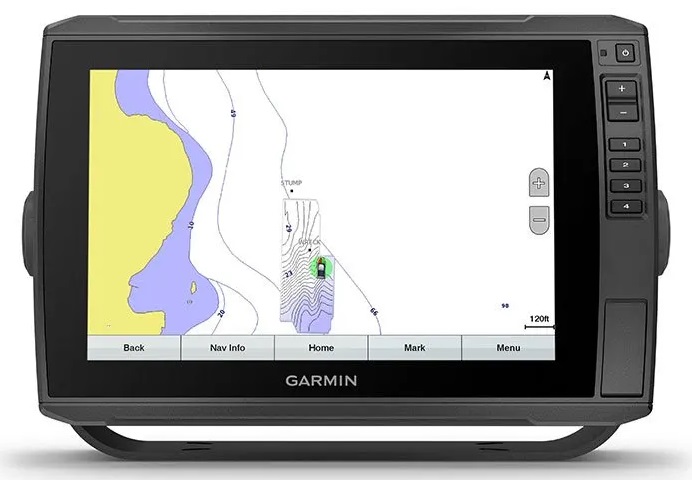

Create personalised fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.





Stay connected on and off the water.



NETWORK CAPABLE

If you have multiple compatible ECHOMAP Ultra 10″ and 12″ units or ECHOMAP Plus or UHD 7″ and 9″ units on your boat, you can share information — such as sonar, user data and charts — among them.

NMEA 2000® NETWORK COMPATIBILITY

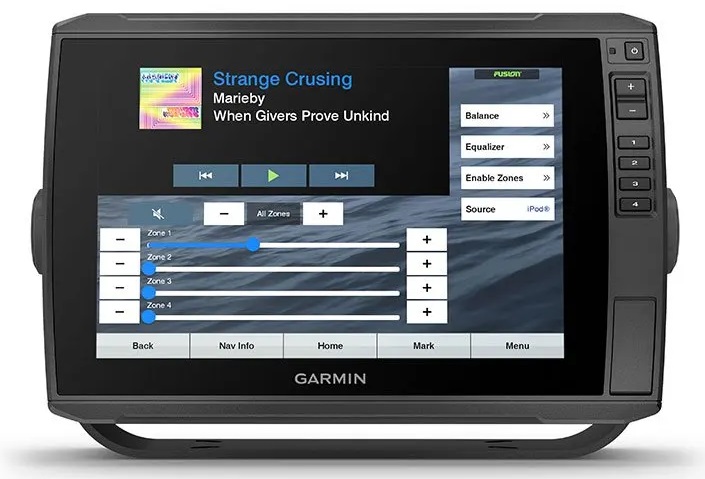

Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

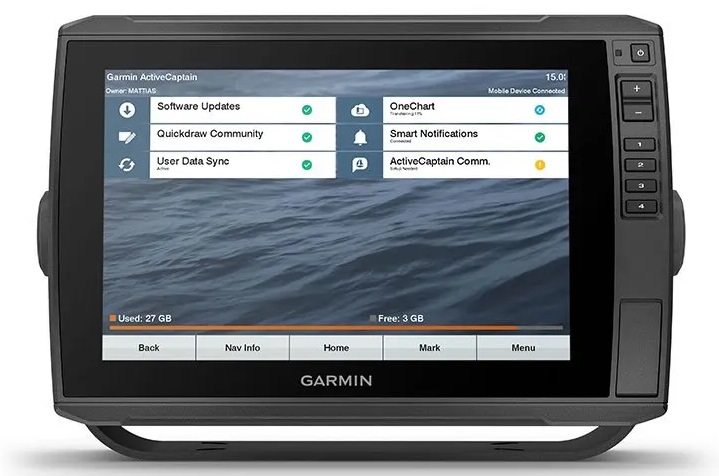

ACTIVECAPTAIN APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin QuickDraw Community data and more1.

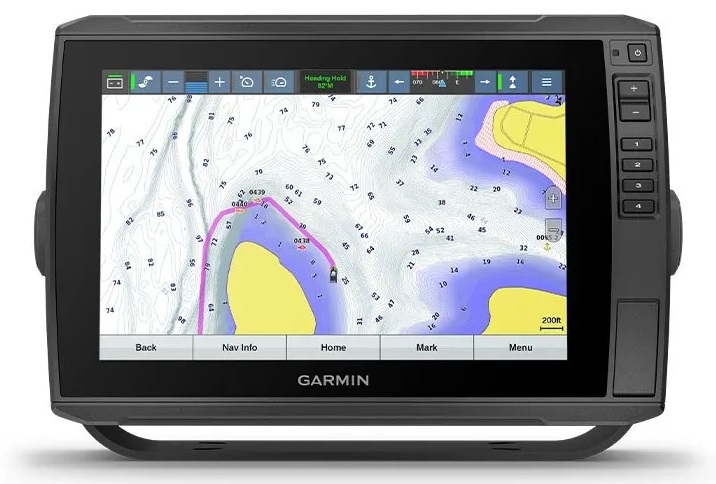

FORCE™ TROLLING MOTOR COMPATIBILITY

Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chart plotter.

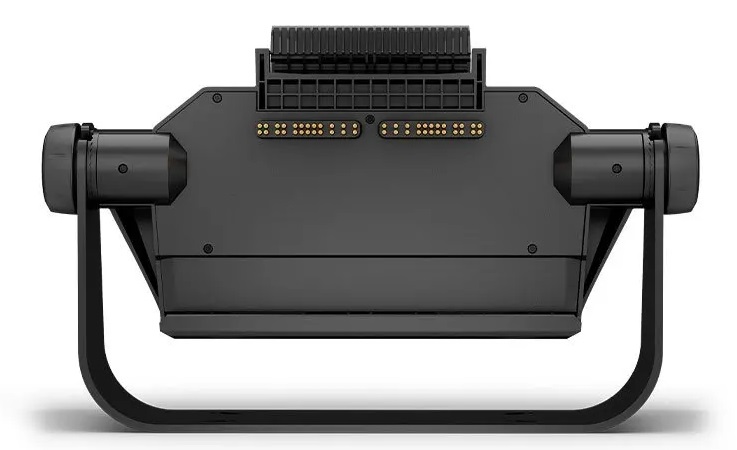

TAKE IT WITH YOU

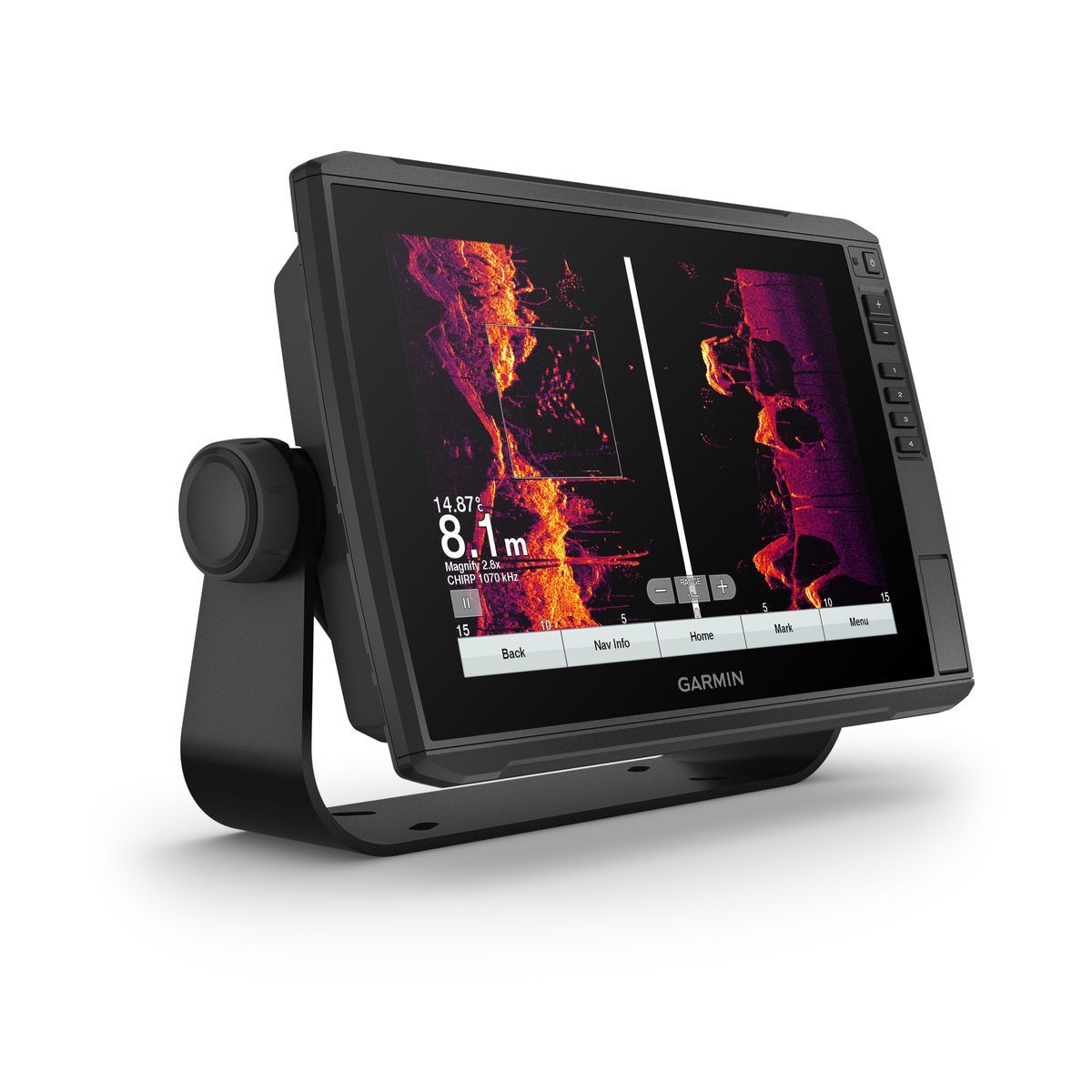

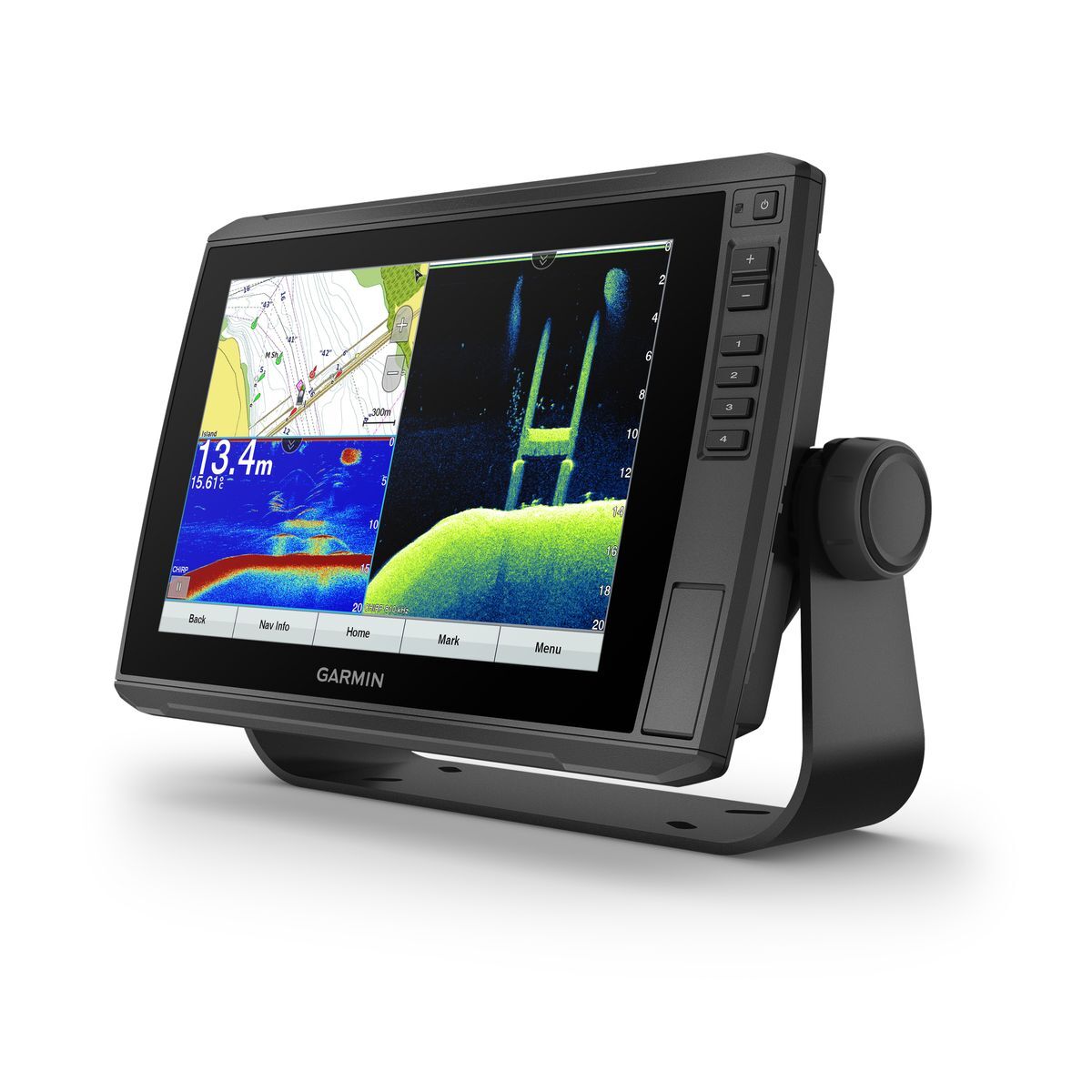

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.

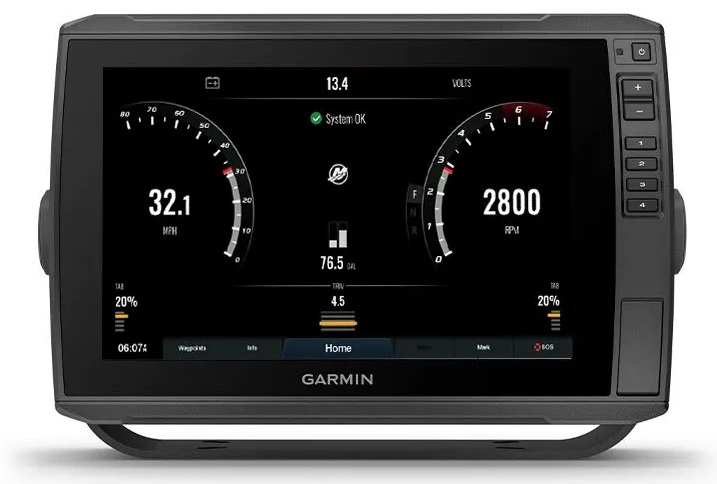

ENGINE CONNECTIVITY

Connect this chart plotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

Manage your marine experience using the free ActiveCaptain® app.



Powerful. Efficient. Quiet. Force™ trolling motor.



Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP Ultra 105sv/125sv

Auto Guidance is for planning purposes only and does not replace safe navigation operations

Requires app on your

Physical & Performance

Display Size 8.5” x  5.4”; 10" diagonal  (21.7 cm x 13.6 cm; 25.4 cm diagonal)
Display Resolution     1280 x 800 pixels
Dimension 11.6" x 7.7" x 3.9" (295 x 195 x 98 mm)
Receiver

10 Hz

Waterproof

IPX7

Weight

4.0 lbs (1.8 kg)

Mounting Options Bail or flush
Display Type WXGA IPS display



Maps & Navigation

Navigation Routes 100
Accepts Data Cards

2 microSD™ cards



Features

Waypoints

5,000

Sailing Features Yes
NMEA 0183 Compatible Yes
GCV Black Box Sonar Support Yes
Connections NMEA0183 Input Ports

1

DSC Yes
NMEA 2000 Compatible Yes
ActiveCaptain Mobile Planning Compatible

Yes

AIS Yes
Garmin Marine Network Ports

2 (large connector)

GSD Black Box Sonar Support No
Smart Mode Compatible No
Wireless Remote Compatible No
Supports Fusion-Link™ compatible radios Yes
GRID (Garmin Remote Input Device) compatible      No
SKU GAR.010-02526-20
Model # 010-02526-20
UPC/EAN 0753759264512
Brand Garmin
Shipping Weight 5.9300kg
