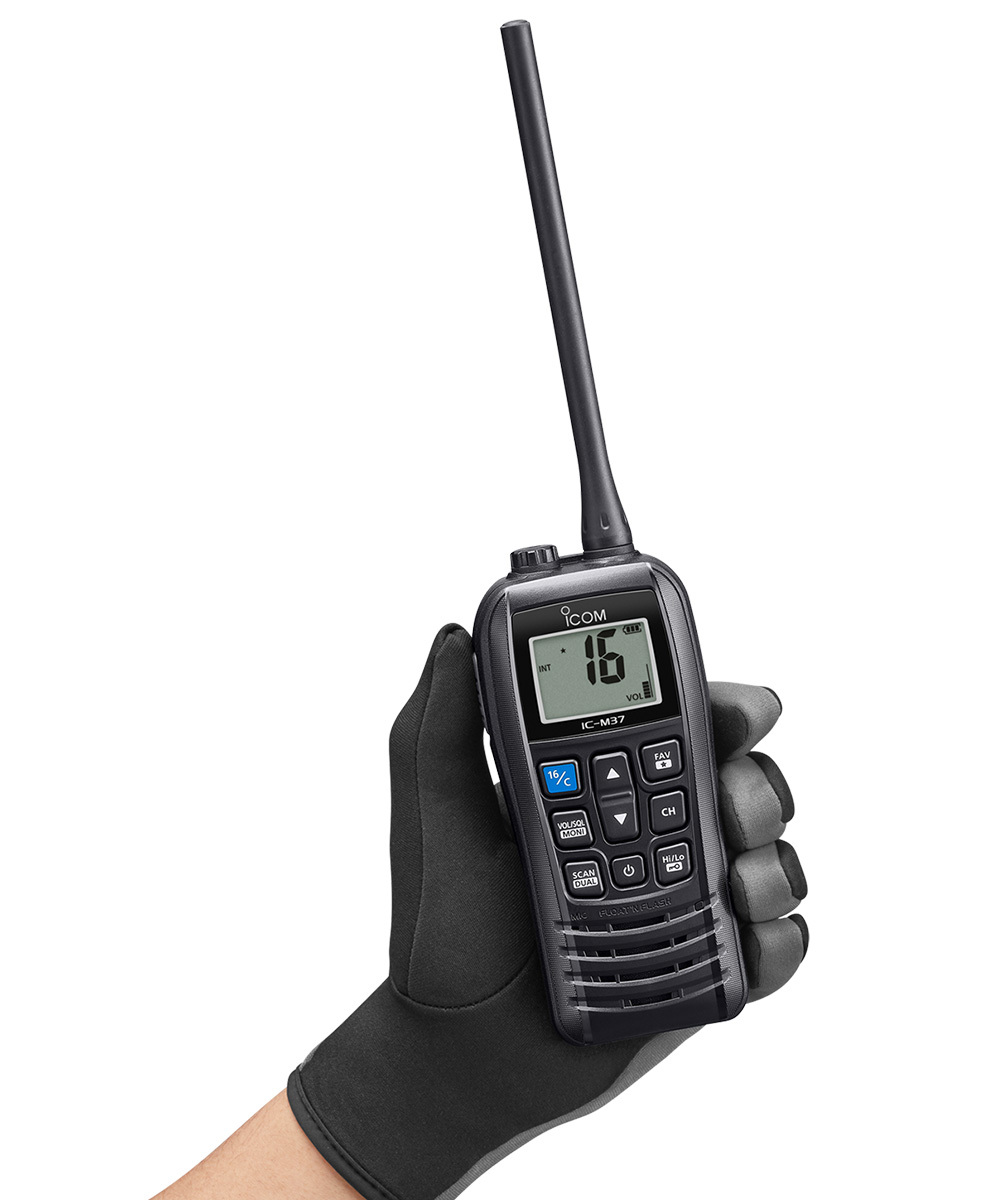

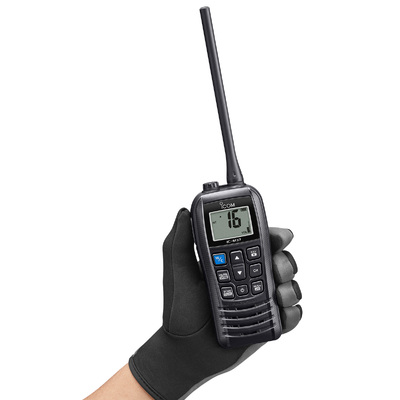

•  Large Keys and Easy-to-Grip Design
• 5W RF Output Power
• 700 mW Audio Output
• More than 12 Hours* of Long-Lasting Operating Time (with BP-296)
  (* TX: RX: Standby = 5 : 5 : 90.)
•  Channel History Function Stores the Last Five Channels Used for Easy Recall

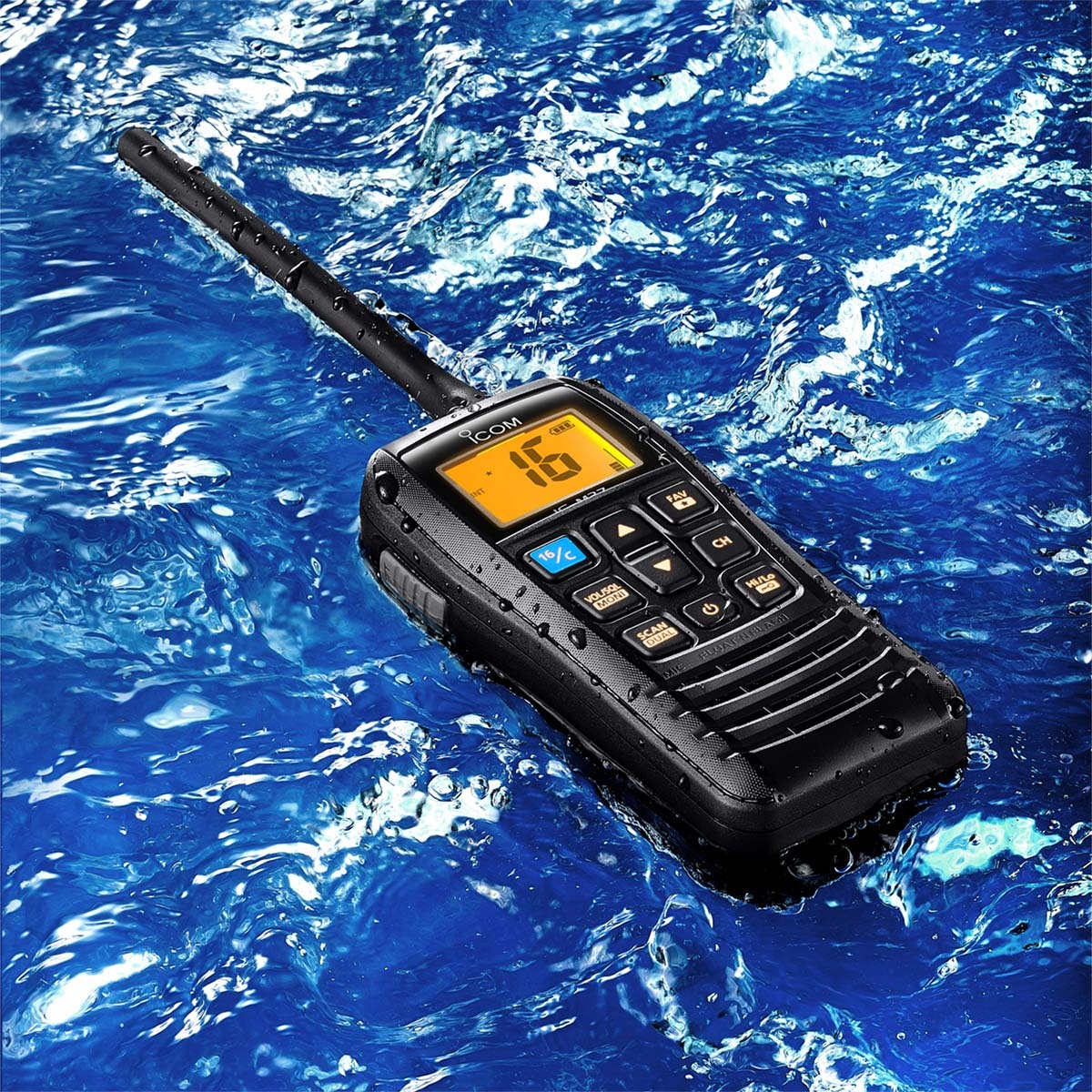

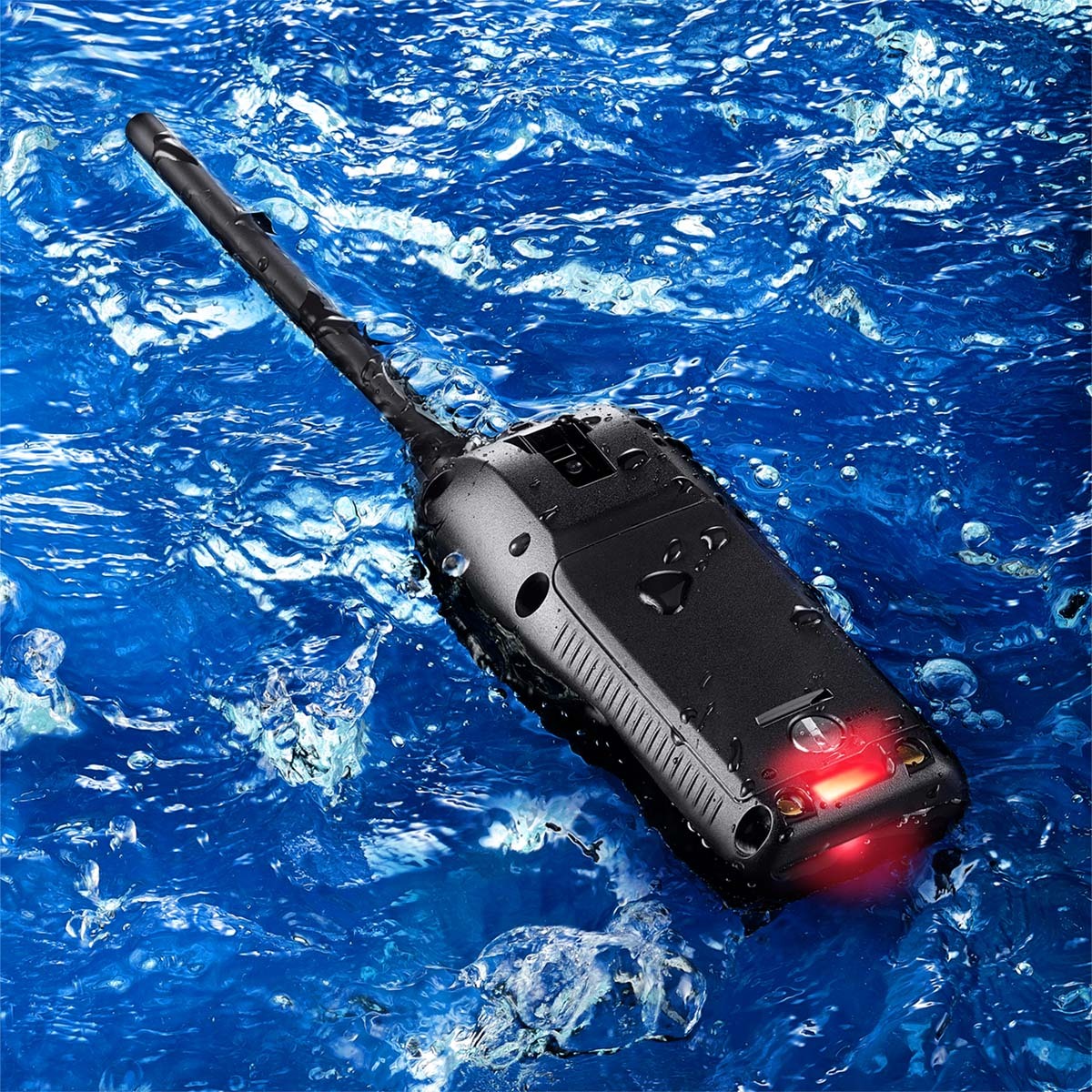

•  Float'n Flash Function
• IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)
• Low Battery Alert function
• Voice Loud and Mute function enables to temporary maximize/mute the volume
• AquaQuake™ function prevents audio degradation from a water-logged speaker
• Dualwatch and Tri-Watch functions
• Favorite Channel Function
• Instant access to channel 16 and the Call channel
• BP-296 user replaceable Li-ion battery pack supplied
• Weather Channels with Weather Alert function (AUS Version)

Included Accessories

• BP-296 battery pack
• BC-235 desktop charger
• BC-217SE/SV AC adapter
• FA-SC59V antenna
• MB-133 belt clip
• Hand strap





General

IC-M37E AUS Version
Frequency range	TX	156.025–157.425 MHz
	RX	156.300–162.000 MHz
Usable channel groups		INT, USA, WX
Type of emission		16K0G3E
Current drain (at 3.7 V DC)	TX	2.6 A/1.0 A (5.0 W/1.0 W output)
	RX	0.4 A/0.2 A (Max. audio. Int. SP/Ext. SP)
Operating temperature range		–10°C to +55°C
Antenna impedance		50 Ω
Dimensions (W×H×D) (Projections not included)		59.7 × 140.5 × 38.7 mm
Weight (approximate)		293 g (with BP-296, antenna and belt clip)

Transmitter

IC-M37E AUS Version
Output power (High/Low)	5 W/1 W
Max. frequency deviation	±5.0 kHz
Frequency stability	±10 ppm
Spurious emissions	0.25 μW typical

Receiver

IC-M37E AUS Version
Sensitivity (at 20 dB SINAD)		–4 dBμ emf typical
Squelch sensitivity (Threshold)		–5 dBμ emf typical
Adjacent channel selectivity		65 dB
Spurious response		65 dB
Intermodulation		65 dB
Hum and noise		40 dB
Audio output power (at 10% distortion)	Internal SP	700 mW typical ( 8 Ω load)
	External SP	200 mW typical ( 4 Ω load)

Measurements made in accordance with EN301 178(IC-M37E) and AS/NZS 4415.2-2003.(IC-M37E AUS Version)
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Standard	MIL-810 G
	Method	Procedure
Low Pressure	500.5	I, II
High Temperature	501.5	I, II
Low Temperature	502.5	I, II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Rain Blowing/Drip	506.5	I, III
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Water	IPX57 dust protection and waterproof protection
