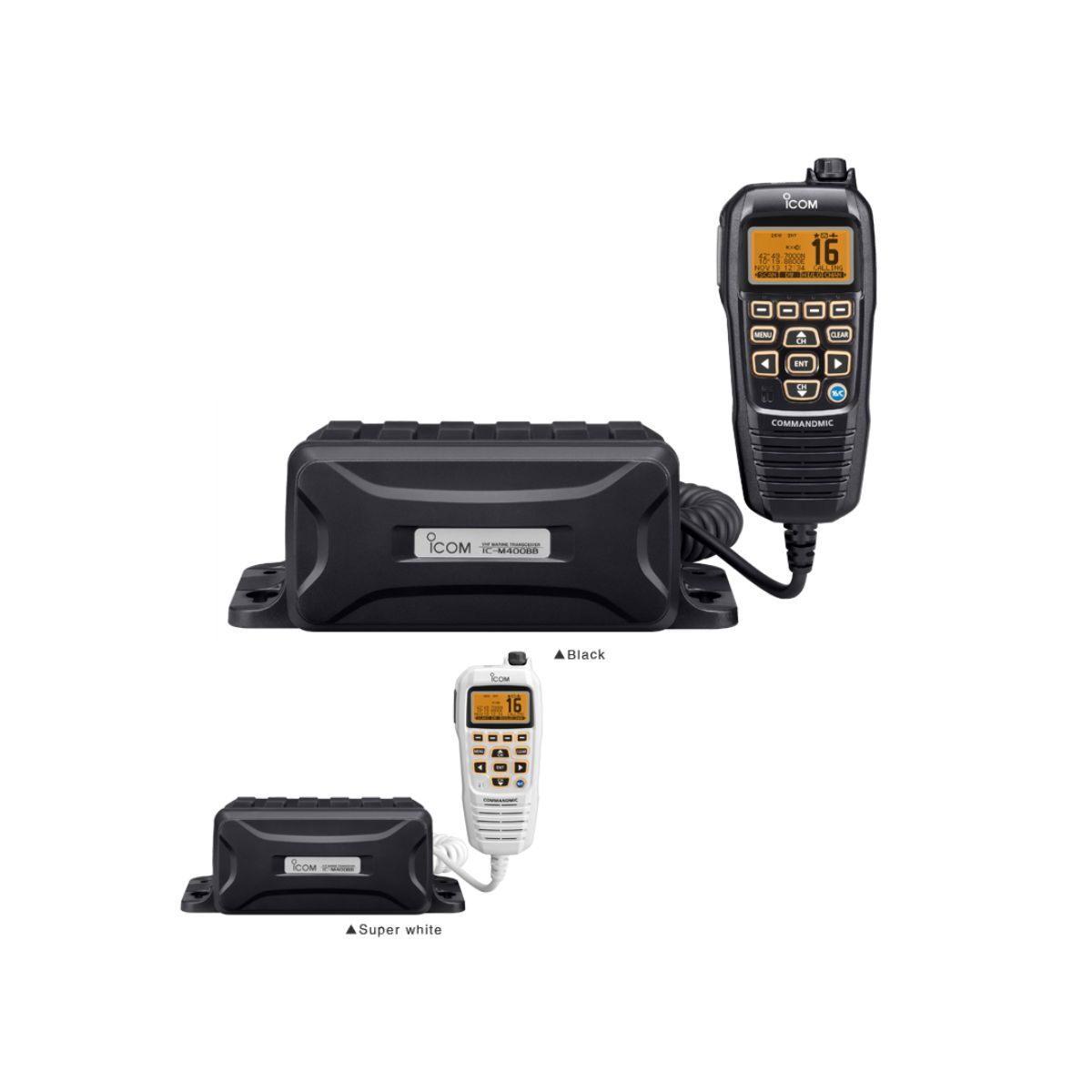

Space-Saving, Two-Piece Configuration

The IC-M400BBE consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMIC™, HM-195B/SW, and the RF unit, IC-M400BBE, can be installed in an out-of-sight place.

New Intuitive User Interface

The new menu system is shared with Icom's latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.

Active Noise Cancelling

The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.

10 W Loud Audio, Public Address and Foghorn

The IC-M400BBE has a built-in 10 W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.

Built-in Class D DSC

The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Built-in GNSS Receiver

A GNSS antenna is supplied with the IC-M400BBE.

Common NMEA Interface

When connected to an external GPS receiver, current position and time are shown on the Commandmic display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.

AIS Target Call with MA-510TR/MA-500TR

When connected to the optional MA-510TR/MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DS

  • MarineCommander™ compatible
  • AquaQuake™ water draining function (HM-195B/SW)
  • IPX7 waterproof protection both for IC-M400BBE and HM-195B/SW (1 m depth for 30 minutes)
  • Dual/tri-watch function for monitoring Ch.16 and/or call channel
  • Priority and normal scan

IC-M400BBE

Frequency range TX 156.000–161.450 MHz
RX 156.000–163.425 MHz
CH70 156.525 MHz
Power supply requirement 13.8 V DC nominal
(10.8–15.6 V DC)
Dimensions (W×H×D)
(Projections not included)		 IC-M400BBE 216×79×125 mm
HM-195B/SW 67.5×144.5×37 mm
Weight IC-M400BBE 830 g
HM-195B/SW 400 g
Current drain TX 25 W output 5.5 A
RX Max. audio 3.5 A
Sensitivity Main −5 dBμ emf typ. (20 dB SINAD)
DSC −4 dBμ emf typ. (1% BER)
Intermodulation Main More than 68 dB
DSC More than 68 dBμ emf (1% BER)
Audio output power
(at 10% distortion, 4 Ω load)		 More than 2 W (HM-195B/SW)
More than 10 W (RX speaker)
RF output power 25 W, 1 W

Applicable IP Rating

Ingress Protection Standards
Water

IPX7 (Waterproof protection)

All stated specifications are subject to change without notice or obligation.

Supplied Accessories

  • COMMANDMIC, HM-195B/SW*
  • DC power cable
  • GNSS antenna
  • 6.1 m (20 ft) of cable*, OPC-1540 between HM-195B/SW and IC-M400BBE
  • Mounting base for cable connector*
  • Microphone hanger*

* COMMANDMIC, HM-195B (black color) or HM-195SW (white color) is supplied depending on version.

SKU ICO.IC-M400BBE-B
Model # IC-M400BBE-B
Brand Icom
Shipping Weight 0.8300kg
Shipping Width 0.216m
Shipping Height 0.125m
Shipping Length 0.079m
Shipping Cubic 0.002133000m3
Unit Of Measure ea
