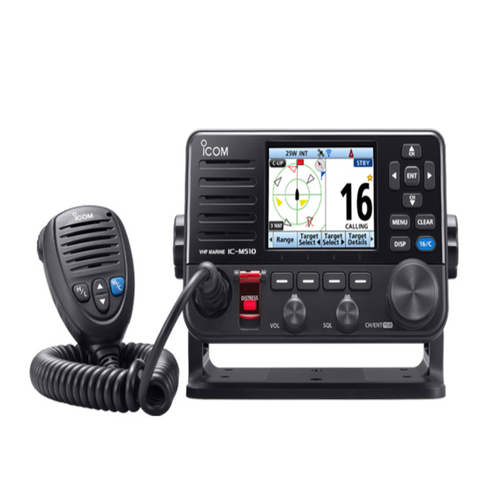

Class-D DSC VHF Marine Radio with WLAN Function

Radio Control & Intercom via Your Smart Device
Use the RS-M500 app (for iOS™/Android™) to remotely control the Smart device the IC-M510E through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller as a substitute for a simple microphone. An intercom function between your smart device and the radio is also available.

Integrated AIS Receiver*
With its integrated AIS receiver* or external NMEA sentence (third-party AIS receiver, transponder), the IC-M510E can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
* AIS receiver is not included depending on the transceiver version.


Wide Viewing Angle Colour TFT LCD
The colour TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low-light conditions.


New Sleek Design
The IC-M510E is slim (depth: 53.6 mm) and easy to install in your boat.


Simplified Navigation Function
The Navigation function guides you to a specified waypoint or AIS target. You can assign up to 100 destinations as waypoints.


Provides Clear, Loud Audio
The IC-M510E’s internal speaker enhances the received audio. The waterproof speaker provides superior sound quality with a wide frequency range for powerful, clear audio.


Interface BOX for NMEA 2000™ and Hailer
The optional CT-M500 wireless interface box provides NMEA 2000™ connectivity and a Two-way Hailer/PA function. The CT-M500 and the radio can be connected through WLAN. This separate interface box option allows for flexibility in positioning the unit closer to the NMEA network connection point.

FEATURES

  • Active Noise Cancelling
  • NMEA 0183/HS connectivity, NMEA 2000™ (CT-M500 required)
  • Integrated GNSS receiver (Selectable from either internal receiver or use optional UX-241 GNSS antenna)
  • IP68 advanced waterproofing (1 m depth of water for 60 minutes)
  • Automatic Foghorn function (CT-M500 required)
  • Voice Scrambler with optional UT-112A
  • AquaQuake™ prevents audio degradation from a water-logged speaker
  • Supplied speaker-microphone, HM-205RB can be connected to the rear panel
  • External speaker connection
  • Controlled with COMMANDMIC™ HM-195 or HM-229 series
  • Supports 4-digit channels
SKU ICO.IC-M510E
Model # IC-M510E-AIS
Brand Icom
Shipping Weight 1.0000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000250000m3
Unit Of Measure ea
