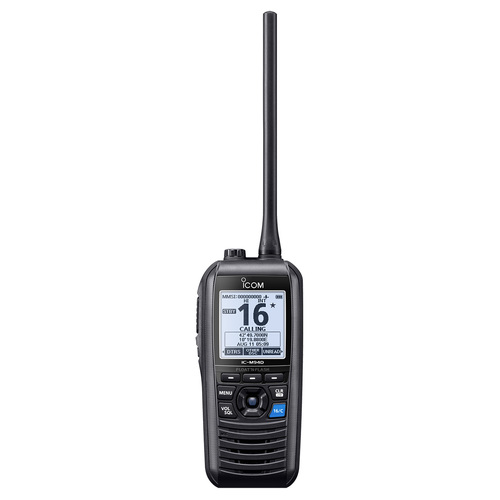

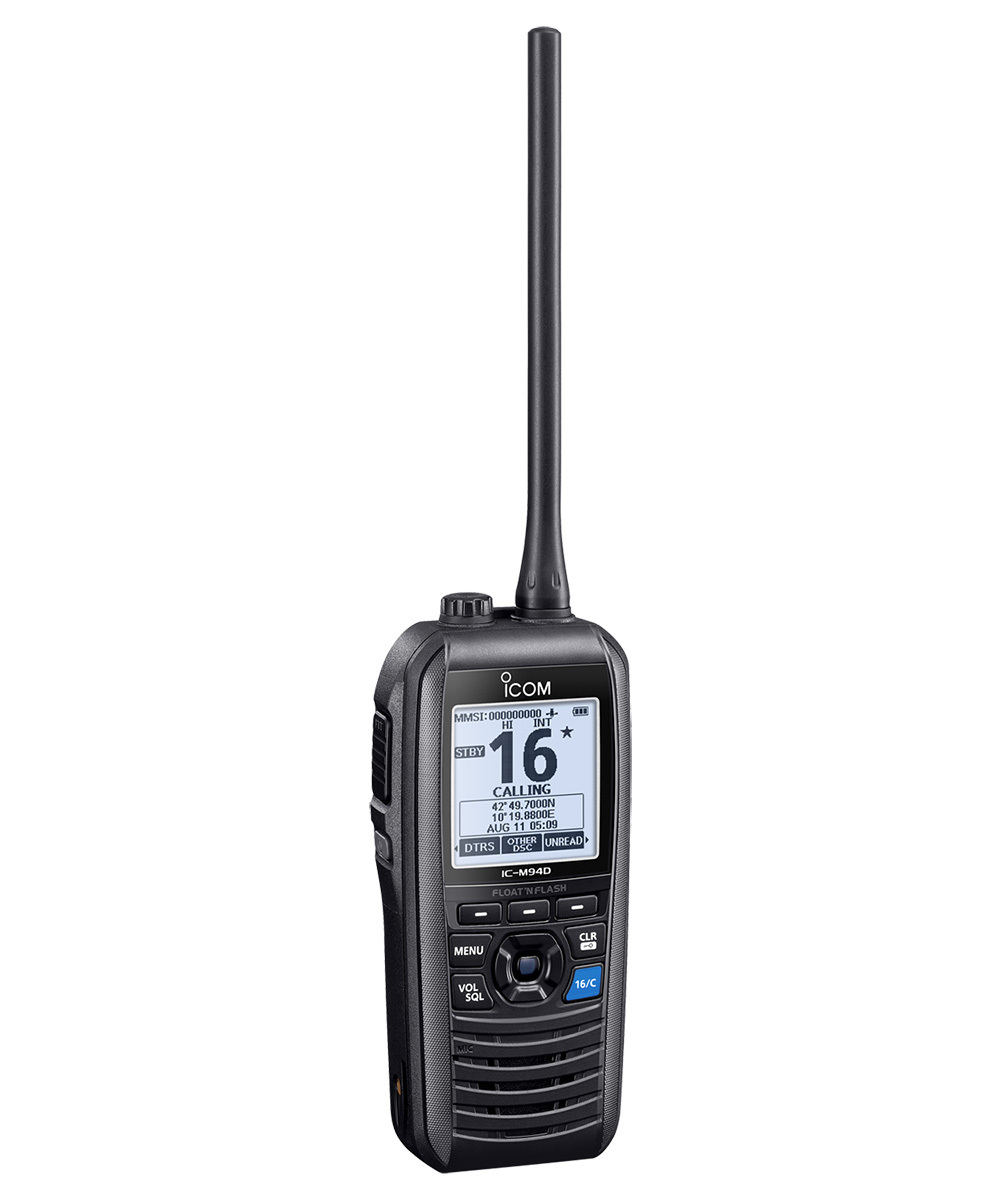

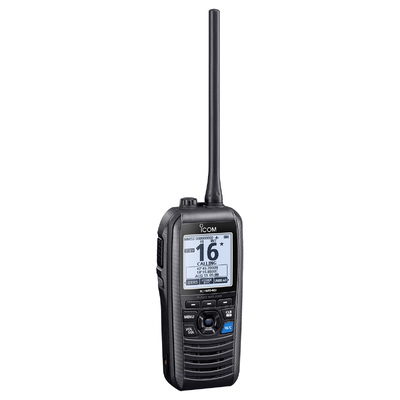

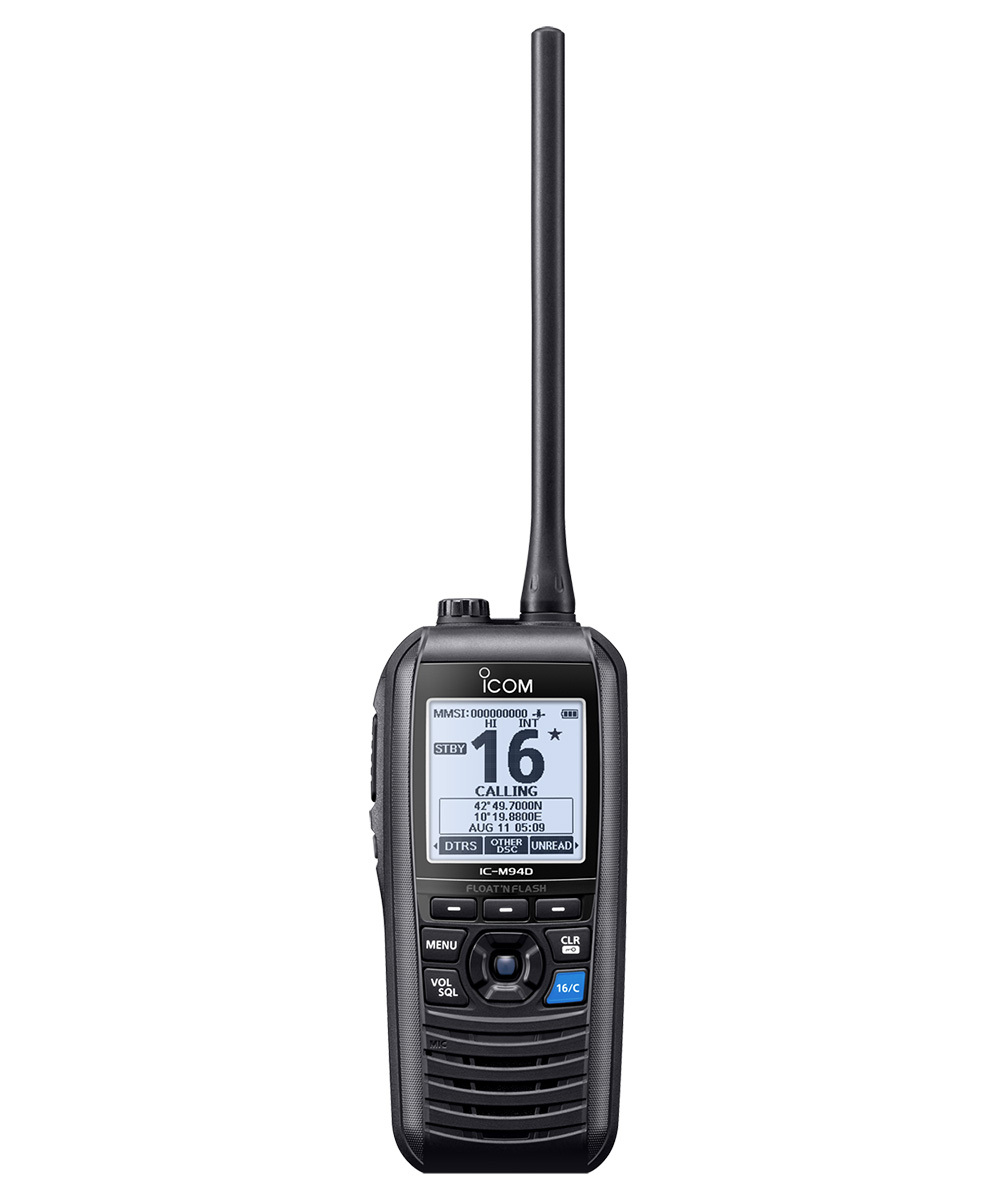

AIS Receiver and DSC in One Marine Handheld

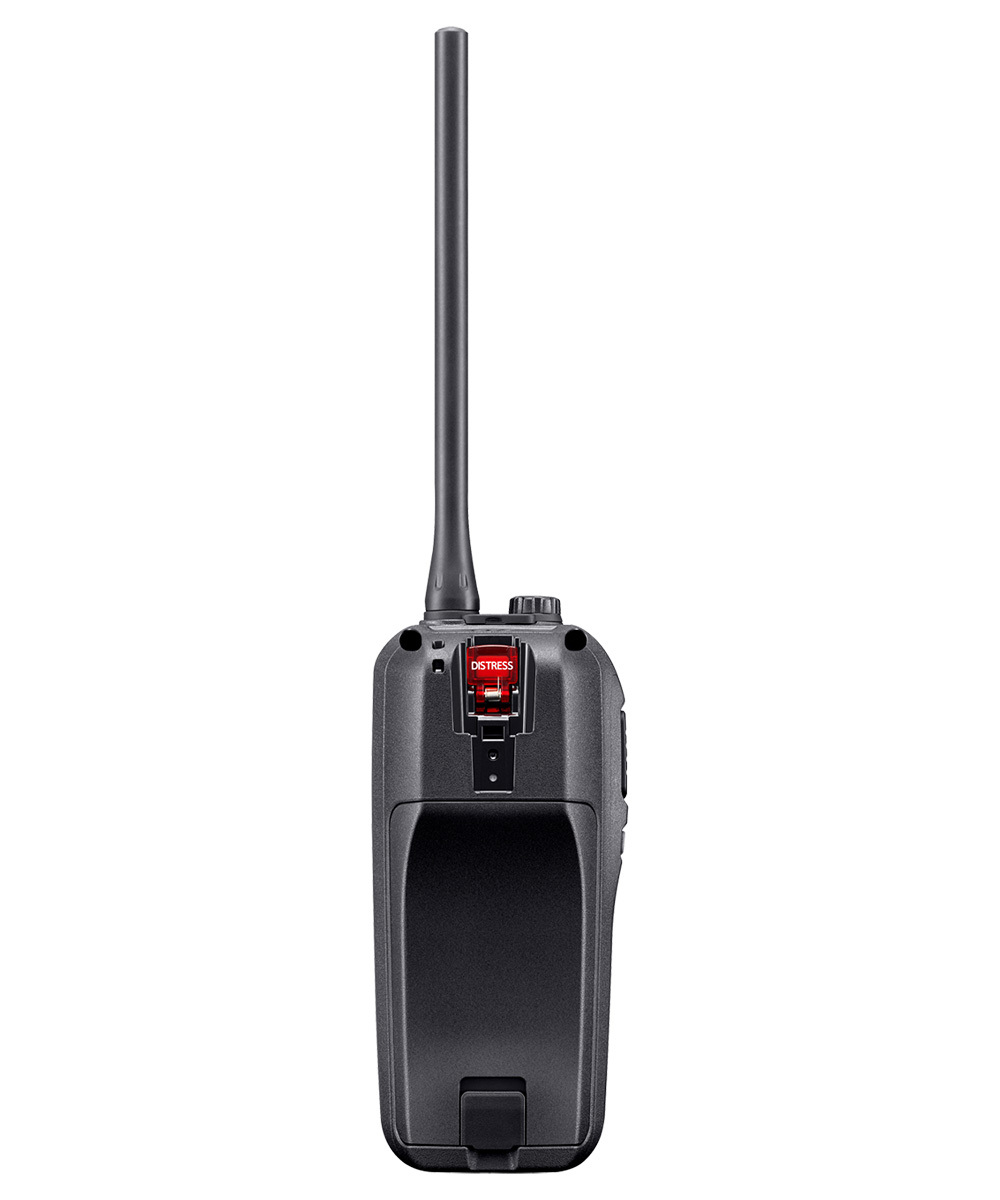

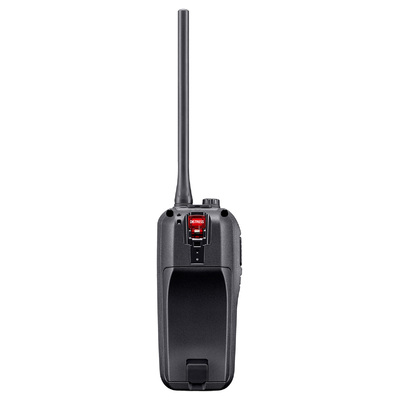

AIS receiver and DSC function add further assurance to your safety at sea. The integrated AIS receiver displays vessel traffic information on the screen. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel Distress button.


5W RF Output Power and 10 Hours of Operating Time

The IC-M94DE’s 5 watts of transmit power provides an extended communication range for the user. The supplied BP-306 high capacity 2400 mAh (typical) Li-ion battery, provides 10 hours of operating time, under normal conditions*1.
(*1 Approximate, typical operation with TX: RX: Standby= 5: 5: 90 duty ratio when the Power save function is ON.)


Class-Leading 1500 mW Audio Output

Icom’s custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.


Simplified Navigation Function

The Navigation function guides you to a specified waypoint. You can assign up to 50 favourite fishing spots or destinations as waypoints.


Float’n Flash and MOB Auto Set Functions

If the IC-M94DE falls into the water, it will float and the LCD screen, keys and rear panel Distress button will flash helping you to retrieve it. Pressing the distress button while the Float’n Flash is working will transmit the MOB distress signal.


IC-M94DE Features

  • AIS Receiver and DSC in One Marine Handheld
  • 6 W RF Output Power and 10 Hours of Operating Time
  • Class-Leading 1500 mW Audio Output
  • Simplified Navigation Function
  • Float’n Flash and MOB Auto Set Functions
  • Integrated GPS receiver　
  • Active noise cancelling technology
  • IPX7 waterproof (1 m depth of water for 30 minutes)
  • Dualwatch and Tri-watch functions
  • Favourite channel function
  • Supports 4-digit channels
  • AquaQuake™ prevents audio degradation from a water-logged speaker


Accessories Included

  • BP-306 battery pack
  • BC-251 battery charger
  • AC adapter*
  • MB-133 belt clip
  • Antenna
  • Hand strap

General

  IC-M94DE
AUS Version
Frequency range Tx 156.025–157.425 MHz
Rx 156.300–162.000 MHz
DSC 156.525 MHz
AIS (RX) 162.025 MHz
Usable channel groups INT, USA and WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
16K0GXW (AIS)
Current drain
(at 7.2 V DC)		 TX (6 W/1 W output) 1400 mA/700 mA (approx.)
RX (Inter SP/Exter SP Max. audio) 700 mA/350 mA (approx.)
Operating temperature range –15°C to +55°C
Antenna impedance 50 Ω
Dimensions (W×H×D)
(Projections not included)		 60.9 × 145.8 × 43.8 mm
Weight (approximately) 357 g
(With BP-306, antenna, MB-133)

Transmitter

  IC-M94DE
AUS Version
Output power (Hi/Low) 5 W/1 W
Max. frequency deviation ±5 kHz
Frequency stability ±10 ppm
Spurious emissions 0.25 μW typical

Receiver

  IC-M94DE
AUS Version
Sensitivity (at 20 dB SINAD)
DSC receiver (at 1% BER)
AIS receiver (at 20% PER)		 –6 dBμ emf typical
–3 dBμ emf typical
–107 dBm
Squelch sensitivity (Threshold) –6 dBμ emf typical
Adjacent channel selectivity
DSC receiver (at 1% BER)		 65 dB
73 dBμ emf
Spurious response
DSC receiver (at 1% BER)		 65 dB
73 dBμ emf
Intermodulation
DSC receiver (at 1% BER)		 65 dB
68 dBμ emf
Hum and noise 40 dB
Audio output power
(at 10% distortion)		 Internal SP 1500 mW typical (8 Ω load)
External SP 350 mW typical (8 Ω load)

Applicable U.S. Military Specifications & IP Rating

Standard
 		 MIL-810 G
Method Procedure
Low Pressure

500.5

I, II
High Temperature

501.5

I, II
Low Temperature

502.5

I, II
Temperature Shock

503.5

I-C
Solar Radiation

505.5

I
Rain Blowing/Drip

506.5

I, III
Humidity

507.5

II
Salt Fog

509.5

-
Dust Blowing

510.5

I
Immersion

512.5

I
Vibration

514.6

 I
Shock

516.6

I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Ingress Protection Standards
Water

IPX7 (Waterproof protection)

All stated specifications are subject to change without notice or obligation.
