Long-Lasting 24V Lithium Power for Deep Cycle Applications

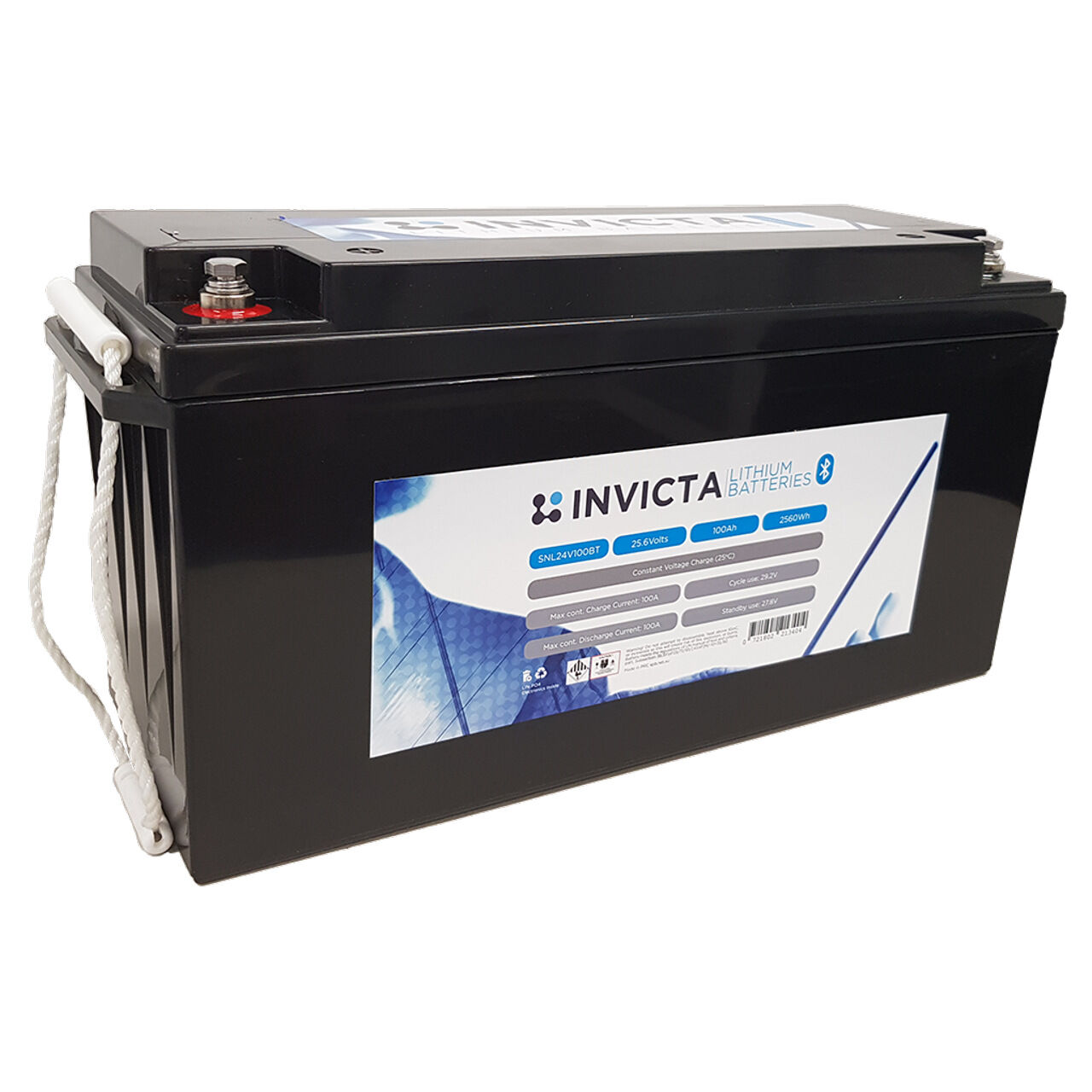

The Invicta Lithium 24V 100Ah LiFePO4 Battery delivers 25.6V nominal voltage and 100Ah capacity for deep cycle applications requiring extended runtime and efficient energy storage. LiFePO4 chemistry provides greater usable capacity and significantly lower weight compared with equivalent SLA batteries, while the integrated Battery Management System (BMS) protects against overcharge, over-discharge, temperature and short-circuit conditions. Bluetooth connectivity also enables battery monitoring through the Invicta app.

Key Features

• 100Ah LiFePO4 Capacity: Provides 100Ah nominal capacity at 25.6V for deep cycle energy storage applications.
• Long Cycle Life: Rated for more than 2,000 cycles at 100% depth of discharge (DoD), supporting extended service life.
• Integrated BMS Protection: Protects against overcharge, over-discharge, temperature and short-circuit conditions.
• Greater Usable Capacity: Offers approximately 60% greater capacity utilisation than SLA, helping provide longer runtime from the available battery capacity.
• Reduced Weight: High energy density provides less than half the weight of an equivalent SLA battery, with the battery weighing 24.2kg.
• Fast Recharge Capability: Supports up to 100A maximum charge current, with a recommended charge current of 30A or less.
• Bluetooth Connectivity: Allows compatible battery information to be accessed through the Invicta mobile app.
• Low Self-Discharge: Supports longer periods between use while minimising stored-energy loss.
• UL1642 Cell Level: LiFePO4 cells are specified as UL1642 compliant at cell level.

Combining LiFePO4 chemistry, integrated battery protection and Bluetooth monitoring, the 24V 100Ah battery supports deep cycle installations where runtime, weight reduction and service life are important considerations.
