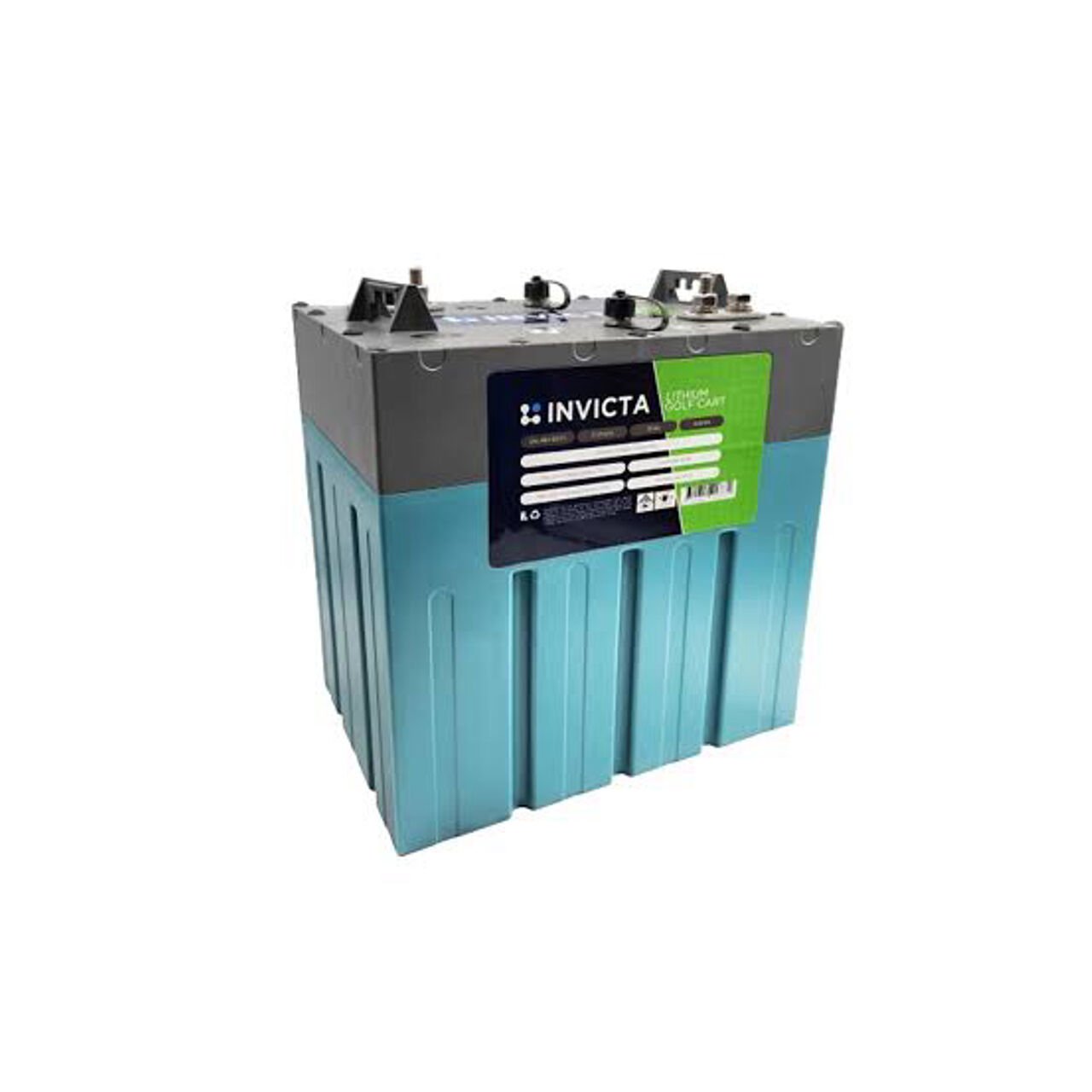

48V LiFePO4 battery for deep-cycle mobile and commercial power applications

Built as a lithium replacement for similarly sized lead-acid batteries, this 48V-class battery uses LiFePO4 chemistry to deliver longer cycle life, greater usable capacity and reduced weight. The integrated BMS provides protection against overcharge, over-discharge, temperature and short-circuit conditions, while an isolation switch, Bluetooth connectivity and LCD gauge provide additional control and battery monitoring. Its IP65-rated enclosure also provides protection against dust and water ingress for demanding installations.

Key Features

• LiFePO4 chemistry: Combines stable lithium iron phosphate chemistry with high energy density for deep-cycle applications requiring extended runtime.
• Long cycle life: Rated for more than 3,000 cycles at 100% depth of discharge (DoD), with up to eight times the cycle life of SLA batteries stated by the manufacturer.
• Integrated BMS protection: Protects against overcharge, over-discharge, temperature and short-circuit conditions.
• Greater usable capacity: Offers approximately 60% greater capacity utilisation than SLA, helping extend runtime compared with an equivalent lead-acid battery.
• Reduced system weight: High energy density allows the battery to weigh less than half that of an equivalent SLA battery, reducing overall application weight.
• Fast recharge capability: Supports up to 100 A maximum charge current for applications requiring shorter charging periods.
• High discharge capability: Supports up to 200 A continuous discharge and 400 A pulse discharge for less than 30 seconds.
• Bluetooth monitoring: Integrated Bluetooth connectivity supports battery monitoring through the compatible mobile app.
• LCD battery gauge: Included LCD gauge provides convenient access to battery information at the installation.
• Isolation switch: Integrated isolation switch allows the battery to be electrically isolated when required.
• IP65 protection: Enclosure is rated IP65 for protection against dust and water ingress.
• Cell-level certification: Cells are UL1973 certified according to the specification sheet.
• 5-year warranty: Covered by a 5-year warranty for personal and commercial applications.

With integrated monitoring, isolation and BMS protection, the battery supports demanding 48V-class installations where deep cycling, high discharge capability and extended service life are required.
