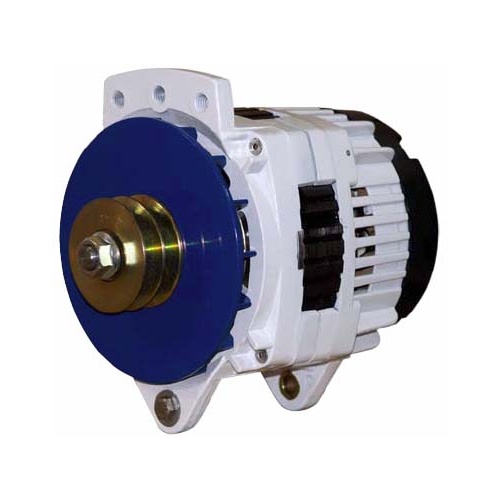

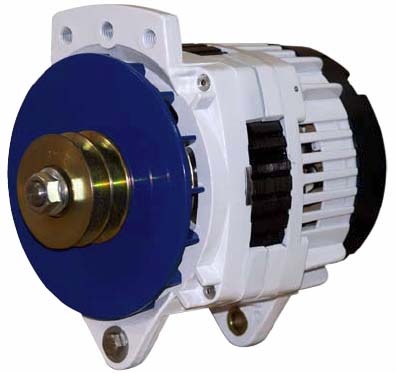

Balmar Alternator, 98 Series, 220a, 24v, SaddleMT, 4 inch, DualPul, IsoGrd, Brushless

A large case brushless heavy duty alternator with a J180 4" dual foot mounting arrangment. 24 volt, 220 amp.

  • Availability:
  • SKU: BAL.98-24-220-IG-BL
  • Voltage: 24V
  • Gnd: Isol Gnd
  • Mount: 4 J180 Saddle
  • Reg: Ext Reg
  • Manufacturer: Balmar
  • MPN:
  • Shipping Weight: 20.45kg
$9,272.45

Related Products


Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

A large case brushless heavy duty alternator with a J180 4" dual foot mounting arrangment. 24 volt, 220 amp.

Download Datasheet

Balmar’s 98-Series, extra large case alternators are scaled to bridge the gap between standard alternators and gensets. Commonly found on USCG 47-foot motor lifeboats, the 98-Series alternator is the largest and most powerful Balmar alternator A robust J180 saddle-style dual foot mounting configuration is ideal as a replacement for standard J180 mount alternators or for use as a second alternator on custom J180 saddle mount brackets.

Isolated grounding termination provides sure continuity to system ground. High amperage diodes and extra-large sealed bearings ensure dependability and long alternator life. The 98-Series alternator features a D+ lamp circuit, custom rotor and stator windings designed to maximize low rpm output, and an efficient dual fan design for increased alternator cooling.

  • Isolated Ground Terminal
  • Brushless Design
  • D+ Lamp Circuit
  • External Regulation
  • Maximum RPM: 6,500
  • Meets USCG Title 33, CE, SAE 8846 and ISO J-1171 standards for ignition protection.
  • Durable powdercoat finish.
  • 1-year limited warranty.
  • ShWt 21 KG.

(BAL.98-24-220-IG-BL)
