The Auto Glide can be easily retrofitted. One of the components that make the Lenco Autoglide Boat Control Trim Tab Control System so effective is the use of Lenco’s highly accurate and precise state of the art electric actuators and the Way the control box commands them.

Advanced solid state electronics can power the actuator in ways not humanly possible for completely seamless operation and that “works like magic” feel! The Auto Glide is different from other “auto systems” in that it never takes any time off. We automatically drive the tabs down before takeoff to greatly reduce the Bow rise and the time to plane, systematically transitioning them into Planing mode. Once the Boat is on plane and to its desired Pitch angle, the Boat is then automatically leveled and held there. It’s that simple!

One of the best features of the Auto Glide is the simple home position set up. The Auto Glide uses some or all of the data it receives, such as changes in the GPS speed, engine RPM and fuel consumption to put your Boat in its most efficient, fastest, and best riding cruising position automatically, every time!

Harness for single actuator Trim tab system

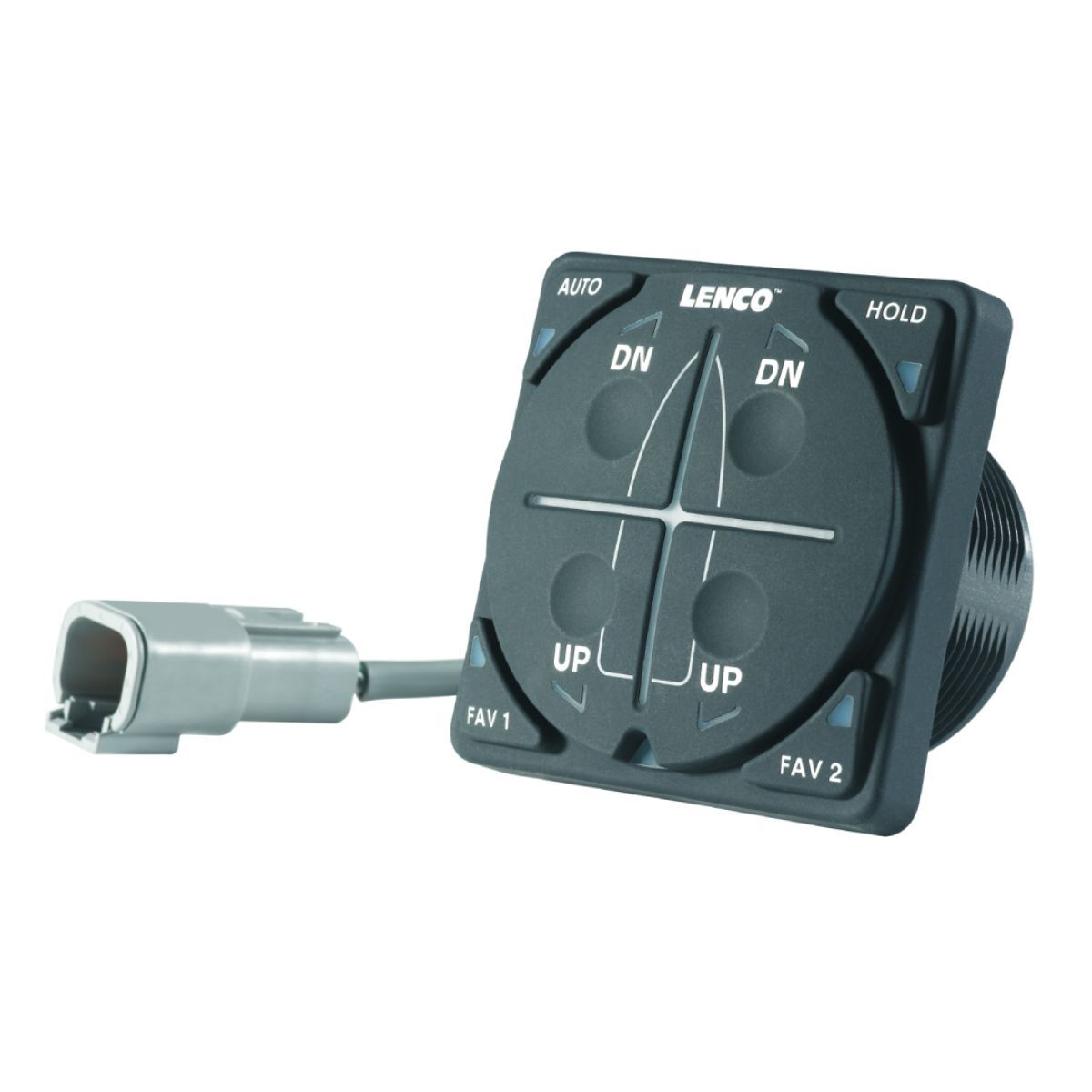

Key pad with waterproof connector

Control box with waterproof mating connector

The Auto Glide can also store two additional positions that can be set up manually for such things as rough water or different speeds.

"Hold” feature that will, with a touch of a button, maintain the boat’s Planing position indefinitely until the Boat is powered off.

With a tap any of the up or down buttons, you always have a manual override of the system.

The Auto Glide control box is an all-in-one, plug and play design utilizing three gyros and three accelerometers in one 6” x 6” x 2” fully submersible and pressure washer-proof box.

All connections and components are also waterproof so there are no weak links in the system.

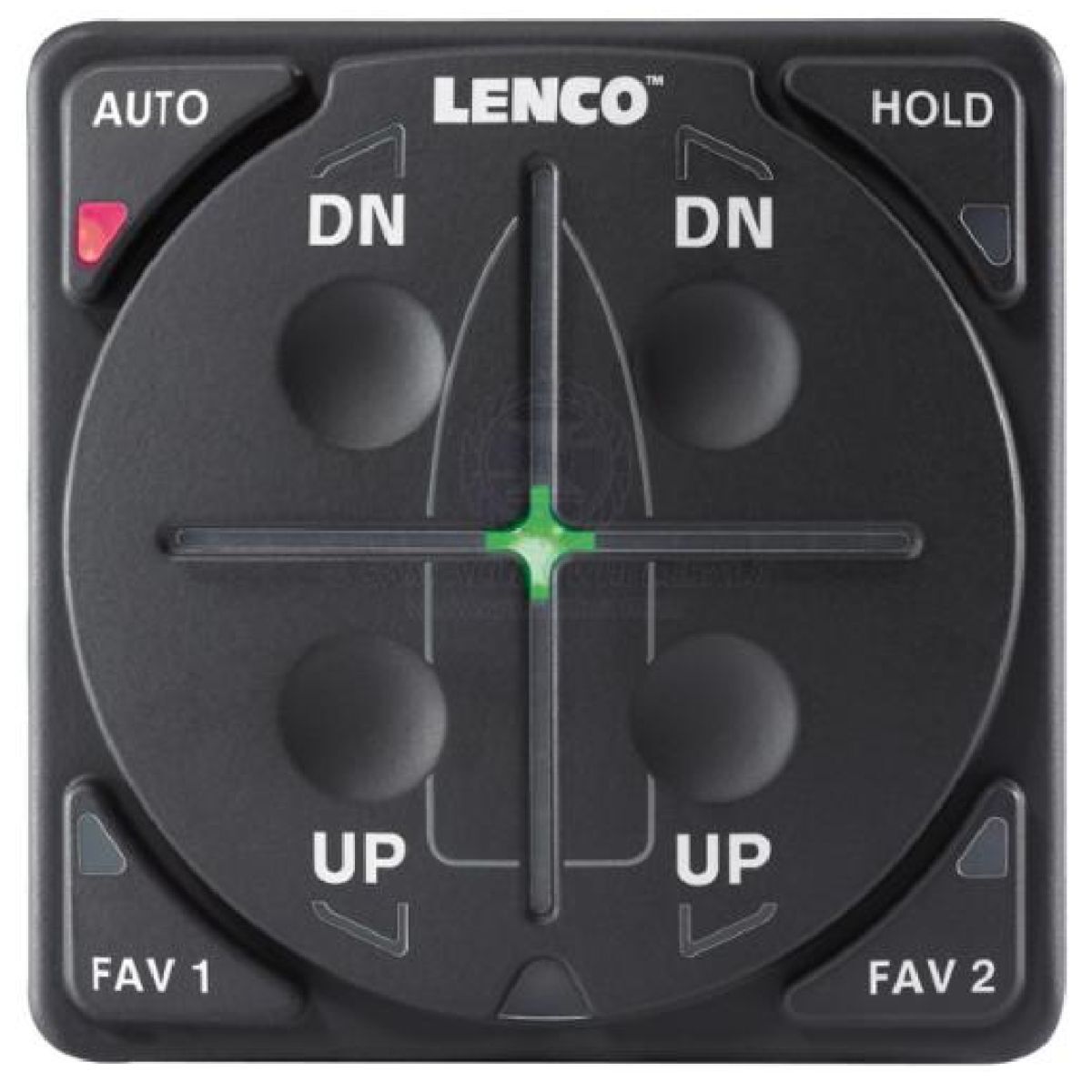

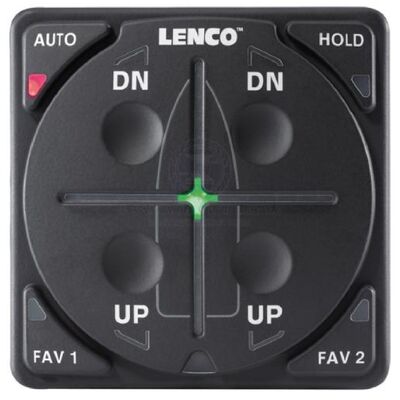

Unique user-friendly key pad always displays the boats position through its LED crosshair design and continuously broadcasts the actuator positions of the Trim Tabs over the NMEA 2000 network.

Whenever there is an actuator movement the corresponding up or down button on the key pad is illuminated.

Brand Lenco
Country of Manufacture USA
SKU LEN.30254-001D
Model # 30254-001D
Brand Lenco Marine
Shipping Weight 1.7200kg
Shipping Width 0.336m
Shipping Height 0.158m
Shipping Length 0.165m
Shipping Cubic 0.008759520m3
Unit Of Measure ea
